Accelerate your business operations

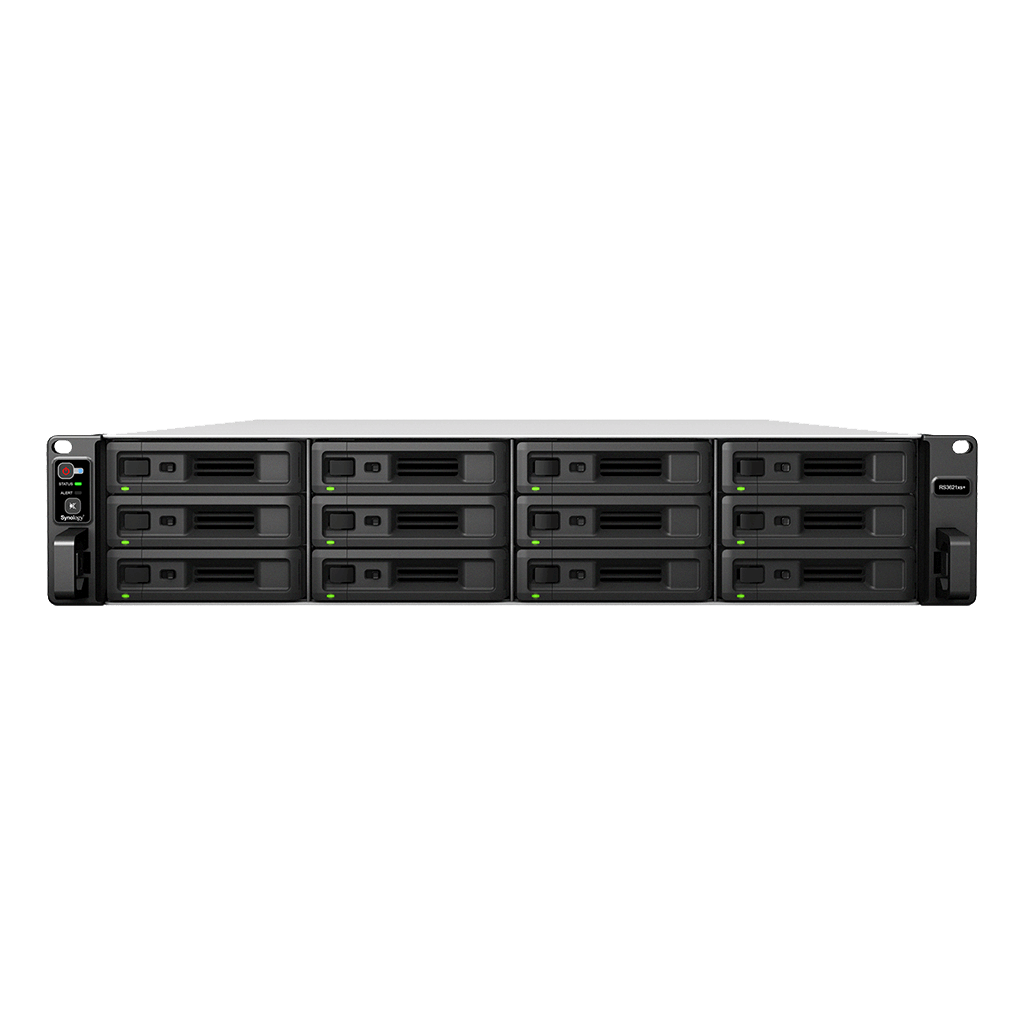

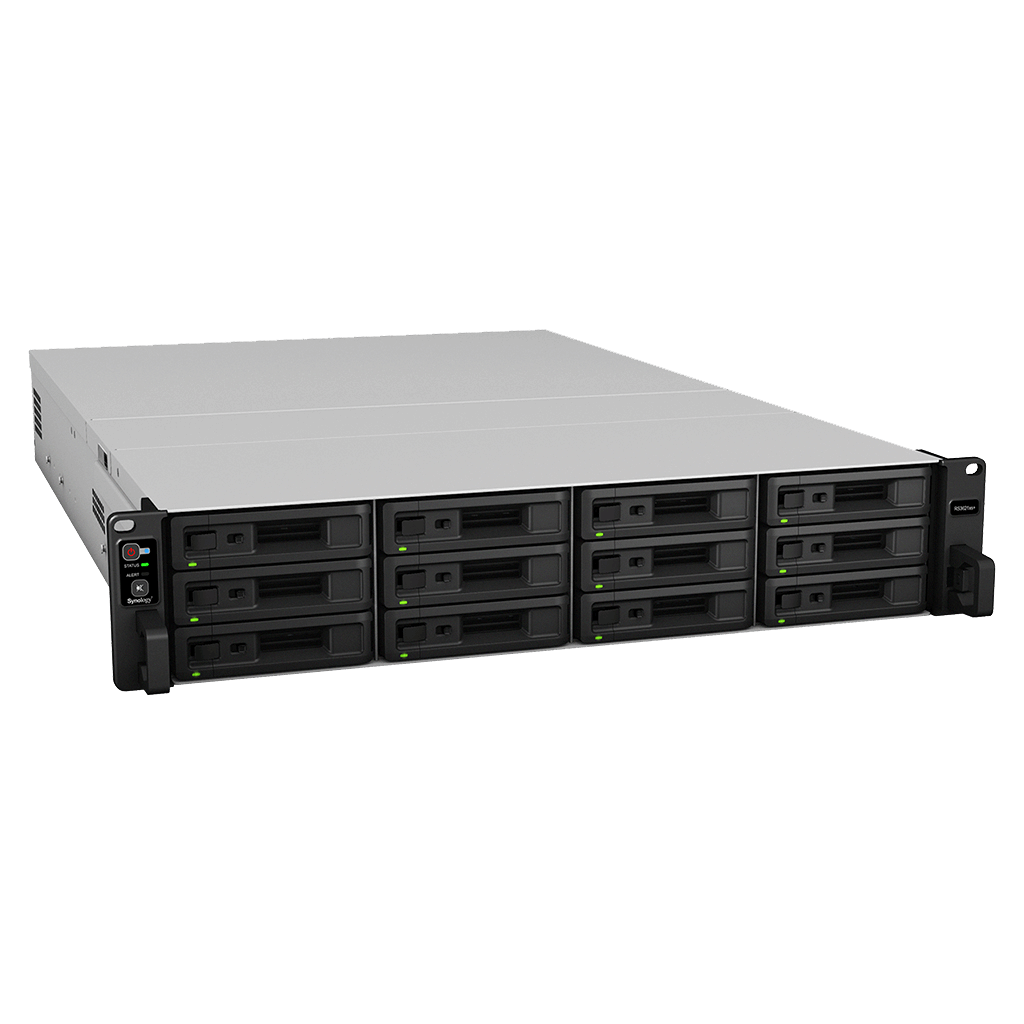

The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput— a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.
Compute
Intel® Xeon® D-1541 8-core 2.1 GHz
Networking
Built-in dual-port 10GbE
Memory
8 GB ECC DDR4 Up to 64 GB
Scalability
Up to 36 drive bays with RX1217RP/RX1217
Specification
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | Intel Xeon D-1541 |
| CPU Quantity | 1 | |
| CPU Core | 8 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine |
|
|
|
Memory
|
System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RX1217 x 2) | |
| Drive Type |
|
|
| Hot Swappable Drive* |
|
|
| Notes | The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 4 |
| RJ-45 10GbE LAN Port | 2 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 2 | |
| Expansion Port Type | Infiniband | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe
|
PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
|
Appearance
|
Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 14.5 kg | |
| Rack Installation Support* | 4-post 19" rack | |
| Notes | The rail kit is sold separately | |
|
Others
|
System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan |
|
|
| Power Recovery |
|
|
| Noise Level* | 50.2 dB(A) | |
| Scheduled Power On / Off |
|
|
| Wake on LAN / WAN |
|
|
| Power Supply Unit / Adapter | 500 watts 550 watts* |
|
| Redundant Power Supply |
|
|
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 142.5 watts (Access) 72.76 watts (HDD Hibernation) |
|
| British Thermal Unit | 485.93 BTU/hr (Access) 248.11 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
