Description

Accessible and convenient

Maintain data availability with an active-passive high availability dual-controller module

Versatile applications

Manage, distribute, and protect data, back up endpoints, and guard physical premises

Fast and efficient

Over 3,500/2,900 MB/s seq. read/write throughput and over 500 TB maximum storage capacity



Specification



Hardware Specifications
Controller
Number of Controller Module 2
CPU
CPU Model Intel Xeon D-1541
CPU Quantity 1 (per controller)
CPU Core 8
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory
System Memory 8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed 8 GB (8 GB x 1) (per controller)
Total Memory Slots 4 (per controller)
Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations.
Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)
Drive Type
  • 3.5” dual port SAS HDD
  • 2.5” dual port SAS SSD
Hot Swappable Drive*
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
RJ-45 1GbE LAN Port 2 (per controller)
RJ-45 10GbE LAN Port 1 (per controller)
Expansion Port 1 (per controller)
Expansion Port Type Mini-SAS HD
Notes This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)
Appearance
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 19.7 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit
Notes The rail kit is sold separately
Others
System Fan 60 mm x 60 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 51.3 dB(A)
Power Supply Unit / Adapter 500 watts
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 257.78 watts (Access)
British Thermal Unit 879.58 BTU/hr (Access)
Notes
  • Power consumption is measured when it is fully loaded with Synology 12TB HAS5300-12T hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1

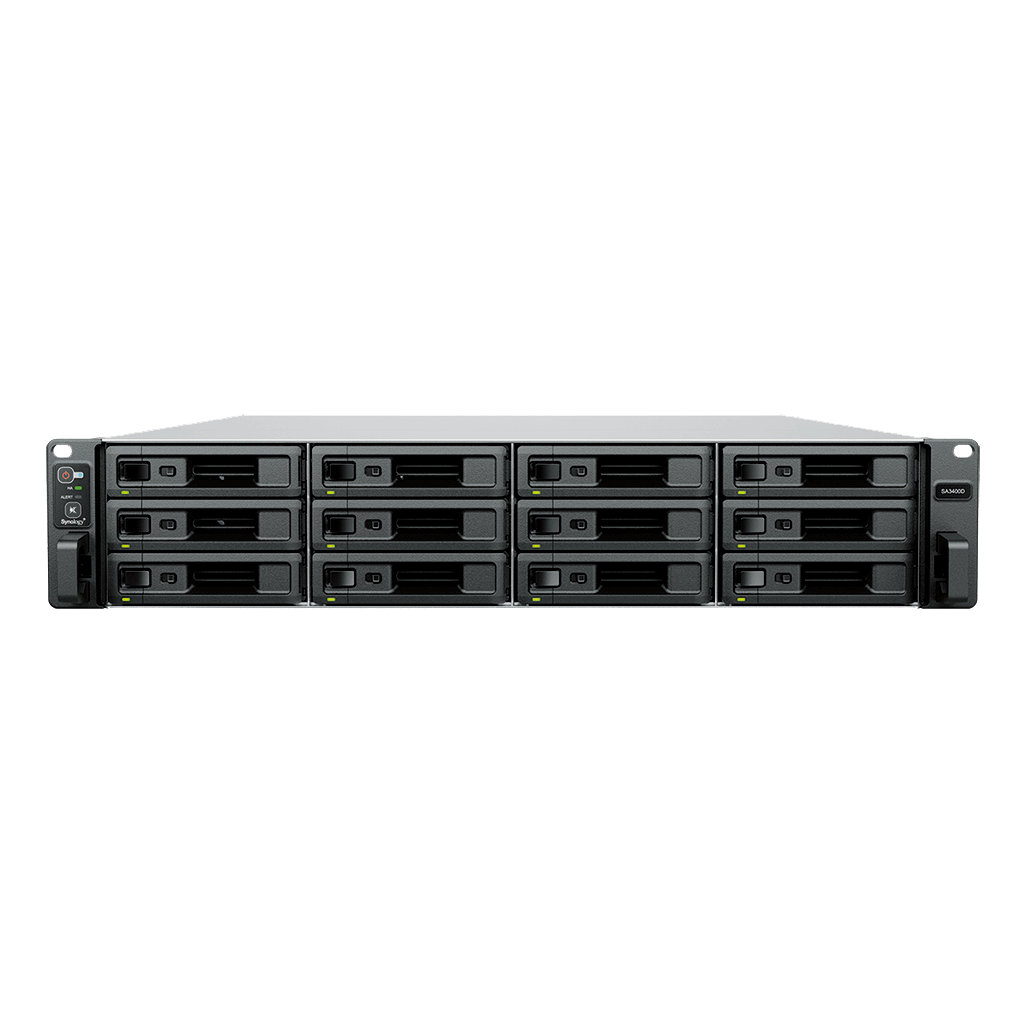

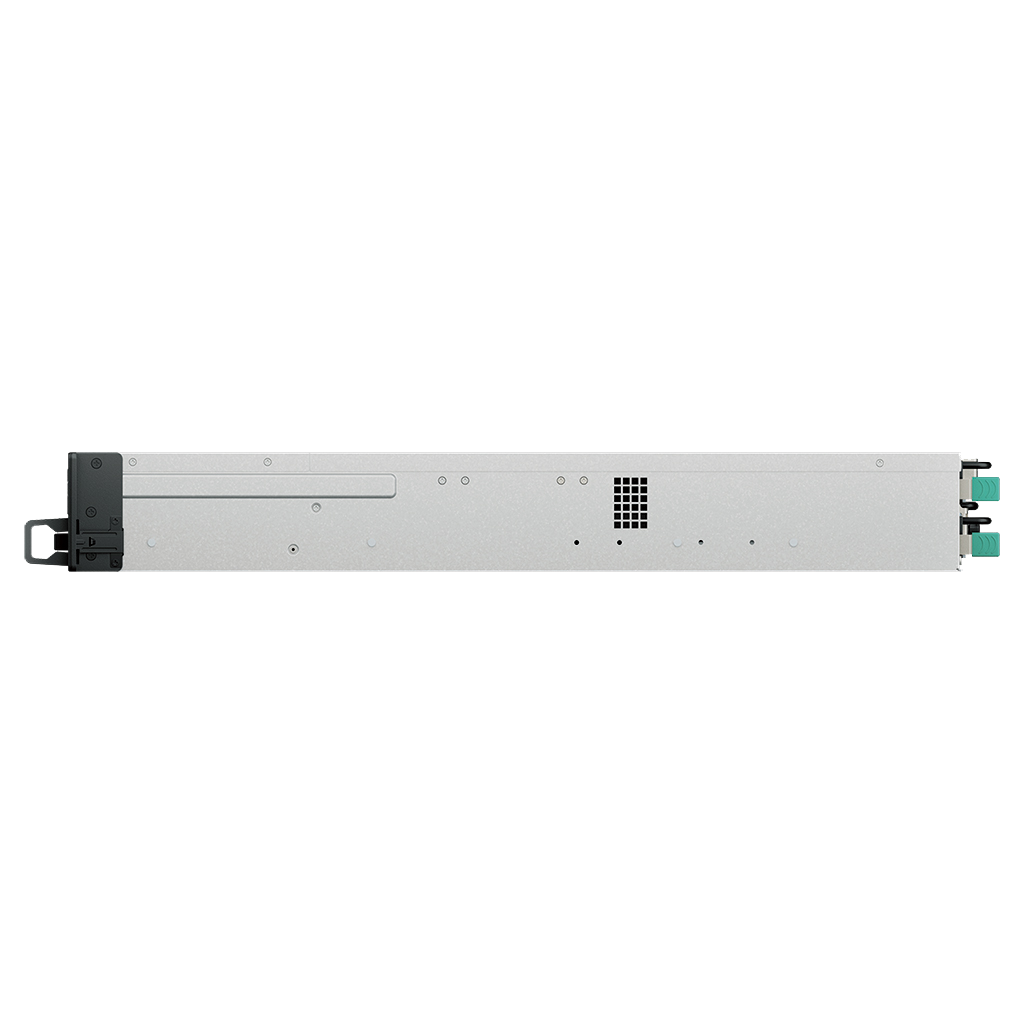

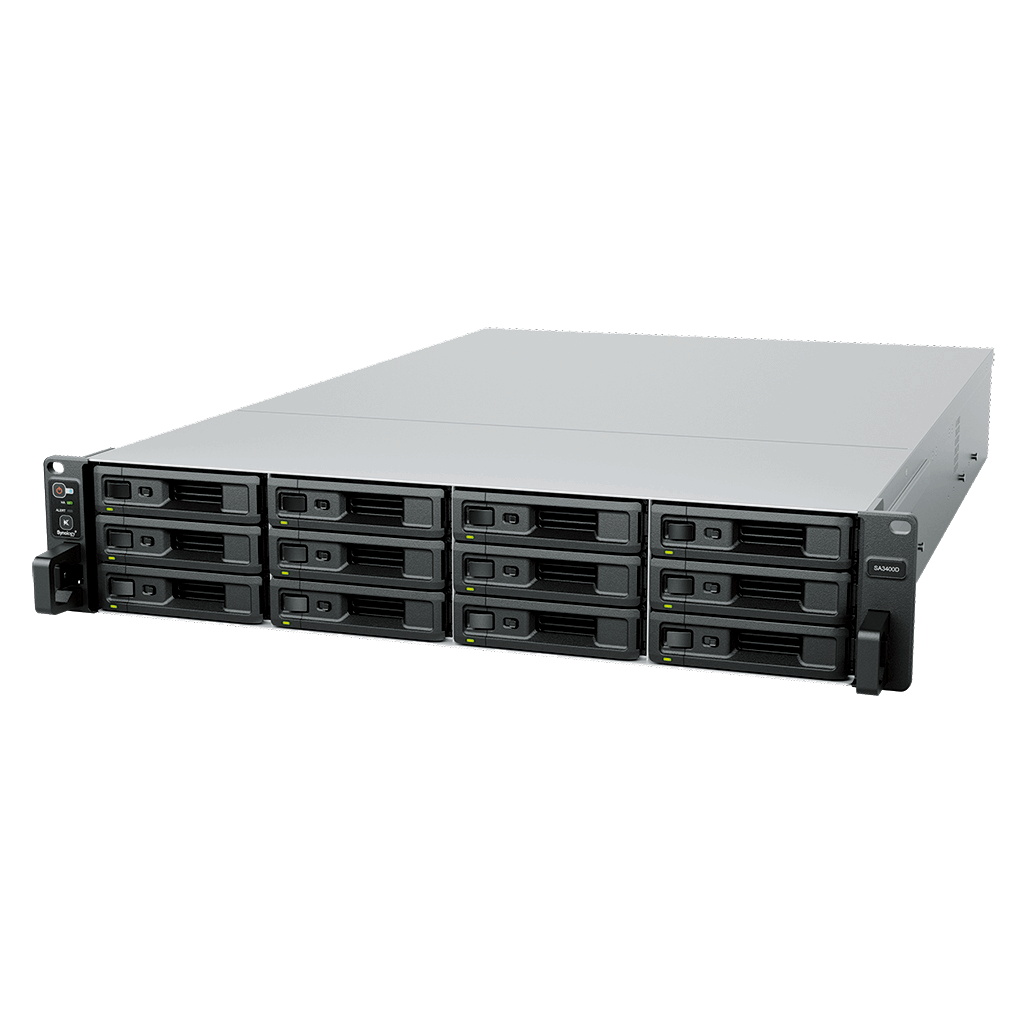

Synology SA3400D ,12-Bay Intel Xeon D-1541 ,8GB DDR4 ,Dual Controller 3.5" Diskless SAS ,1 x Gen3 x8 slot (x8 link) (per controller)

Regular price $17,999.00
Sold Out

SKU: SA3400D
