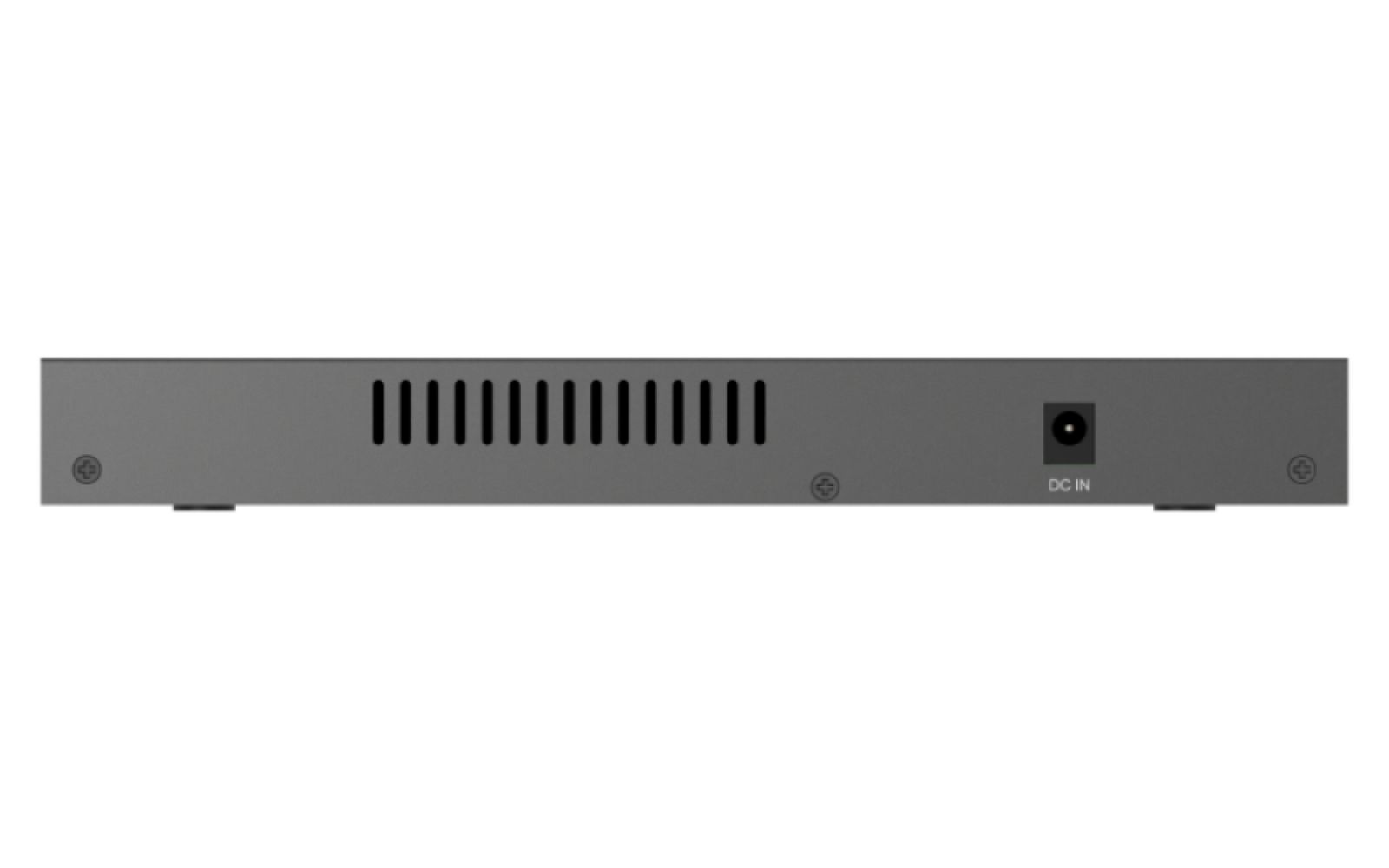

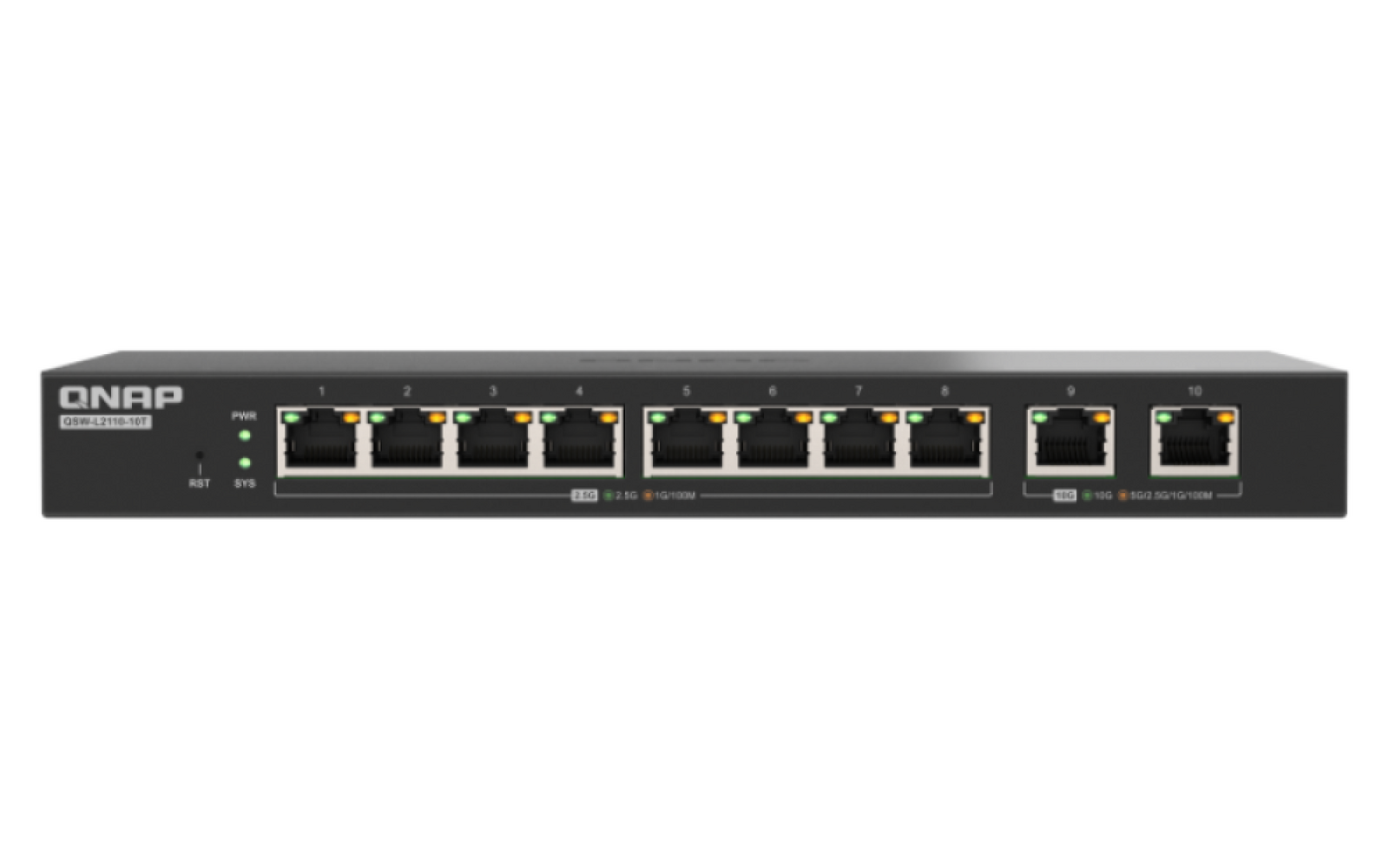

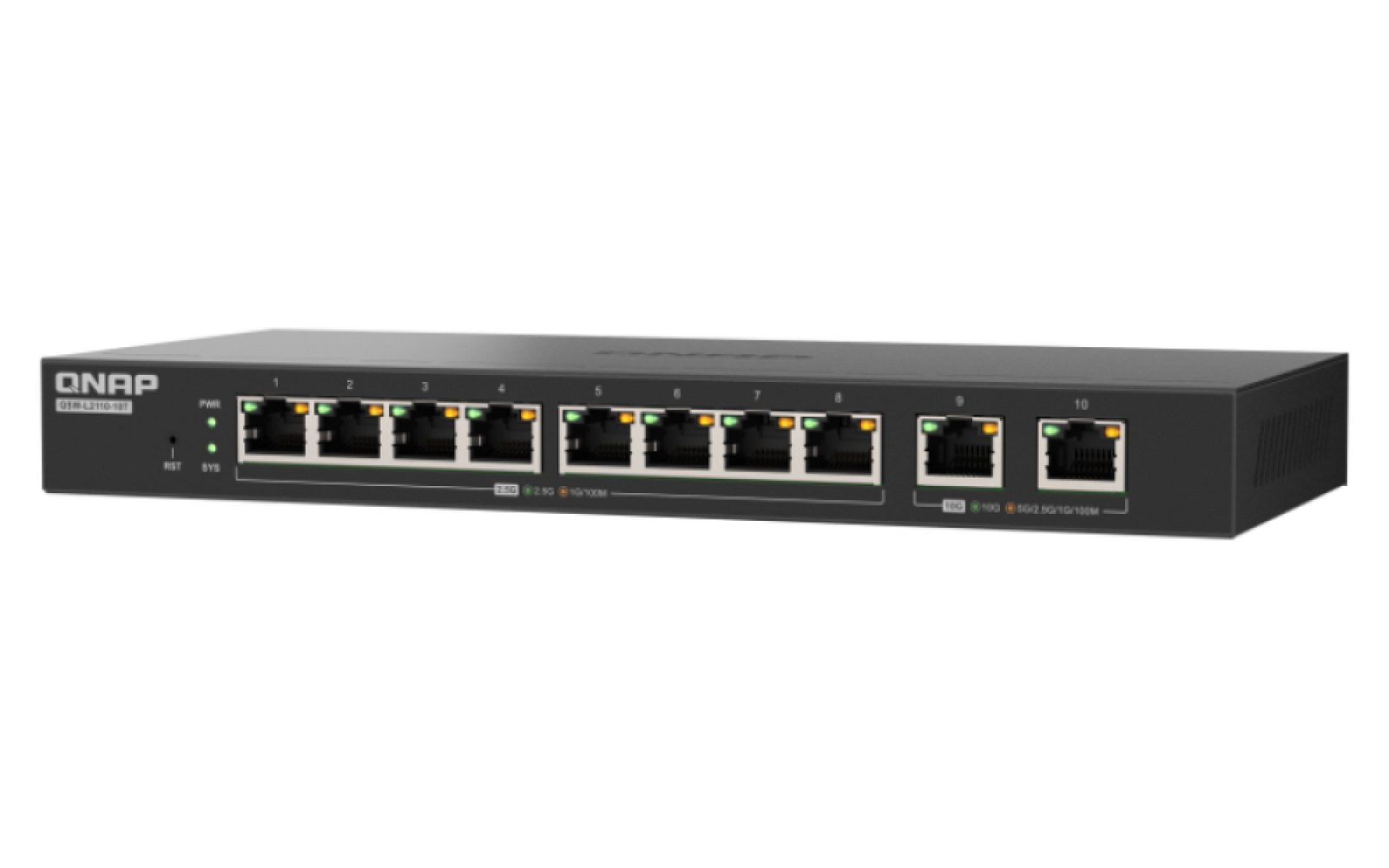

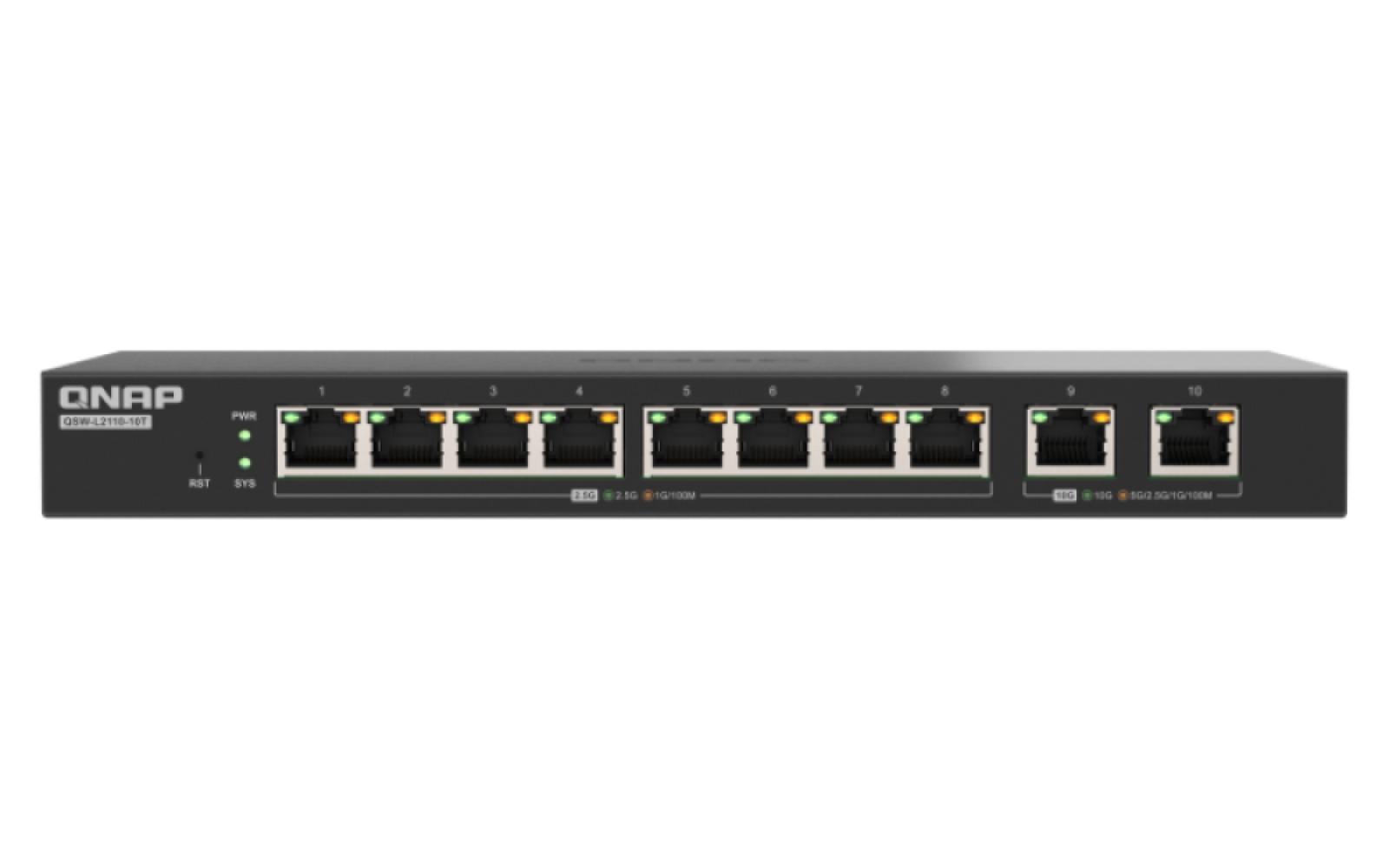

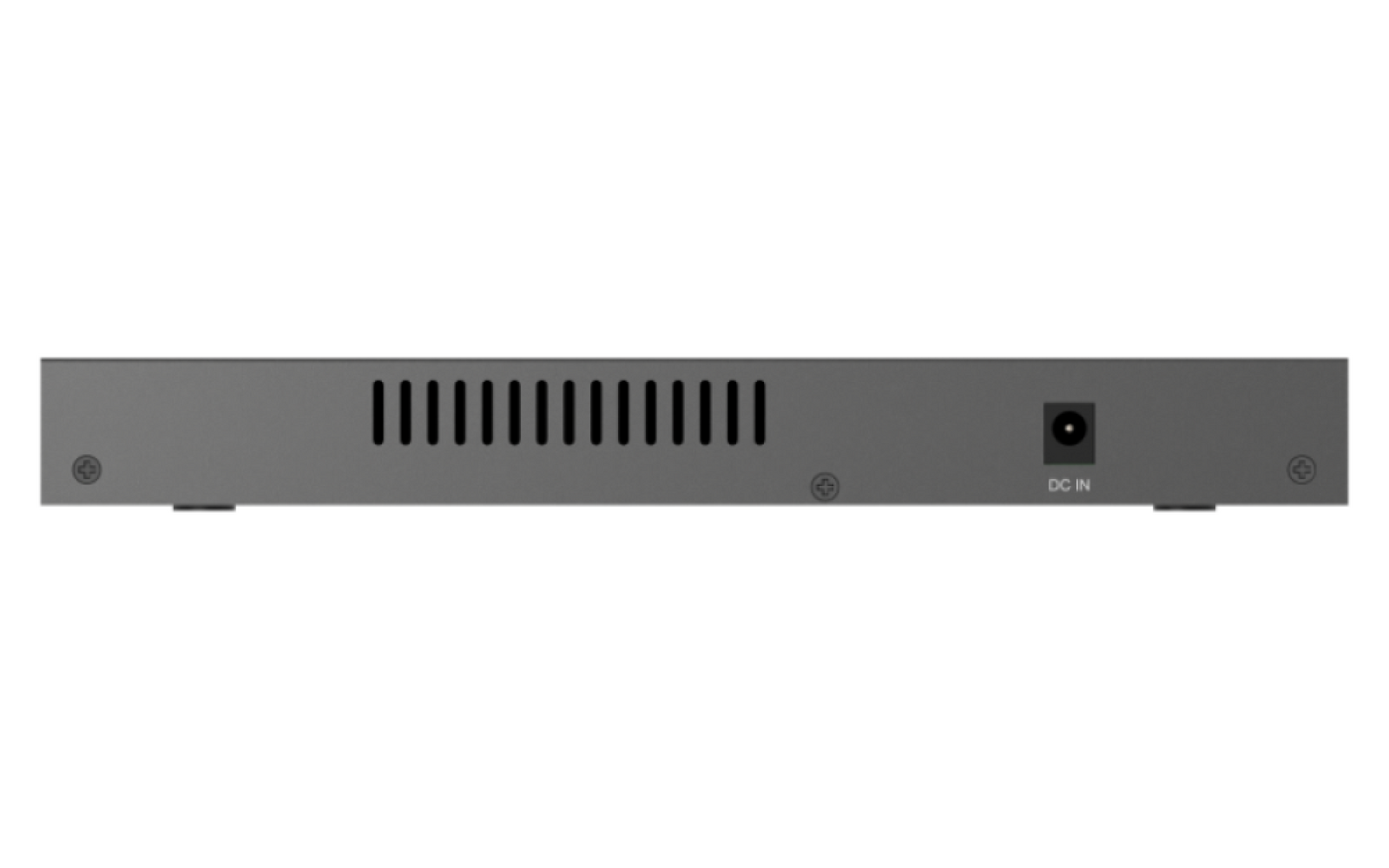

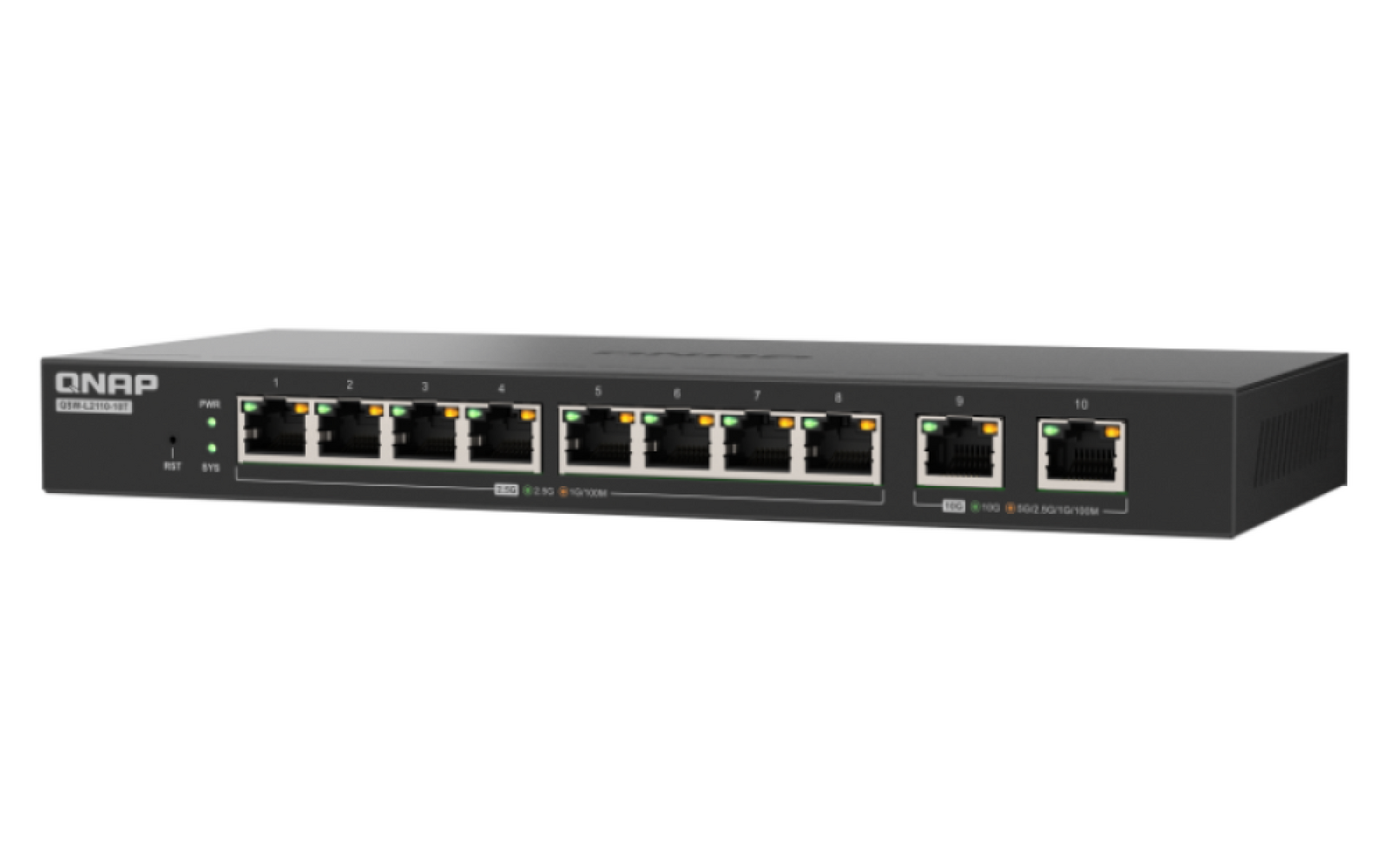

QNAP QSW-L2110-10T
The QSW-L2110-10T combines eight 2.5GbE RJ45 ports with two 10GbE BASE-T RJ45 ports for endpoint access, high-speed uplinks and direct connections to critical devices. Its Lite Managed feature set includes VLAN, QoS, LACP, port mirroring, IGMP Snooping and practical traffic controls through an intuitive web interface.
What is the QNAP QSW-L2110-10T?
It is a 10-port Lite Managed desktop switch designed to remove bandwidth bottlenecks for Wi-Fi 6, Wi-Fi 6E and Wi-Fi 7 access points, NAS devices, servers and workstations. The compact, fanless metal enclosure supports quiet office or studio deployment, while QSS provides web-based management and online firmware checks.
Smarter Network Management Without Full Layer 2 Complexity
Practical controls for SMBs, studios and advanced home networks.
Lite Managed switching provides more control than an unmanaged switch while remaining simpler to operate than a full Layer 2 managed model. The QSW-L2110-10T supports traffic segmentation, bandwidth prioritisation, link aggregation and traffic monitoring without adding unnecessary management complexity.
Its web-based interface helps simplify everyday configuration and network monitoring, making it suitable for users who need control over key connections without a complex setup.
Flexible 2.5GbE and 10GbE Network Architecture
Use the two port speeds together to support endpoint access and backbone traffic.
10GbE Uplink Backbone
Connect Wi-Fi 6/6E/7 access points and workstations through the 2.5GbE ports, then use 10GbE to link to a core switch or server-room backbone. This aggregates traffic for environments with multiple simultaneous users.
Direct 10GbE Device Connection
Where uplink requirements are lower, the 10GbE ports can connect directly to critical devices such as a NAS or server, while the eight 2.5GbE ports continue serving endpoint devices.
Traffic, Bandwidth and Packet Controls
Manage important connections and organise traffic using supplied Lite Managed features.
LACP
Combines multiple network connections into a single high-speed link to increase total bandwidth.
VLAN
Segments departmental or device networks for more organised traffic management.
QoS, CoS and DSCP
Prioritises performance-sensitive traffic such as VoIP and video streaming.
IGMP Snooping
Manages multicast streams to help prevent packet loss or duplication during audio and video delivery.
Port Mirroring
Supports practical traffic monitoring as part of the Lite Managed feature set.
Web Management
An intuitive web interface simplifies configuration and day-to-day network monitoring.
Quiet, Efficient and Easy to Maintain
Designed for desktop deployment in offices, studios and workspaces.
Fanless Metal Enclosure
The full-metal enclosure supports heat dissipation and long-term stability, while the fanless design keeps operation quiet.
Energy Efficient Ethernet
IEEE 802.3az EEE support automatically adjusts power use according to network traffic.
Online Firmware Updates
QSS supports online firmware checks and Qfinder Pro for one-click updates.
Switch Type Comparison
Compare the supplied management levels, benefits and recommended applications.
| Switch Type | Key Features | Management Benefits | Recommended Use Cases |
|---|---|---|---|
| Lite Managed | LACP, VLAN, QoS, Port Mirroring | Easy traffic control and bandwidth segmentation | SMBs, retail and basic multi-device segments |
| L2 Managed | ACL, SNMP, RSTP | Advanced security and diagnostics | Virtualisation, storage networks and campus backbones |
| Unmanaged | EEE, Flow Control, Loop Protection | Plug-and-play operation with no maintenance | Homes, small offices and quick meeting-room setups |
Frequently Asked Questions
Quick answers about the QNAP QSW-L2110-10T.
How many network ports does the QSW-L2110-10T have?
It has ten RJ45 ports: eight 2.5GbE ports and two 10GbE BASE-T ports.
Can the 10GbE ports be used for devices instead of uplinks?
Yes. The two 10GbE ports can be used for uplinks or connected directly to devices such as a NAS or server.
Is the QSW-L2110-10T fanless?
Yes. It uses a fanless desktop design for quiet deployment in offices, studios and workspaces.
Which management features are included?
The supplied information includes VLAN, QoS, CoS, DSCP, LACP, Port Mirroring, IGMP Snooping, flow control and web-based management.
Does it support Energy Efficient Ethernet?
Yes. It supports IEEE 802.3az Energy Efficient Ethernet, which adjusts power use according to network traffic.
How are firmware updates managed?
QSS supports online firmware checks and Qfinder Pro for one-click updates.
What is the warranty period?
The supplied datasheet lists a two-year warranty.
Product note: Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.
