10-Port 10GbE Combo and 2.5GbE Web-Managed Switch
QNAP QSW-M2106-4C Managed Switch

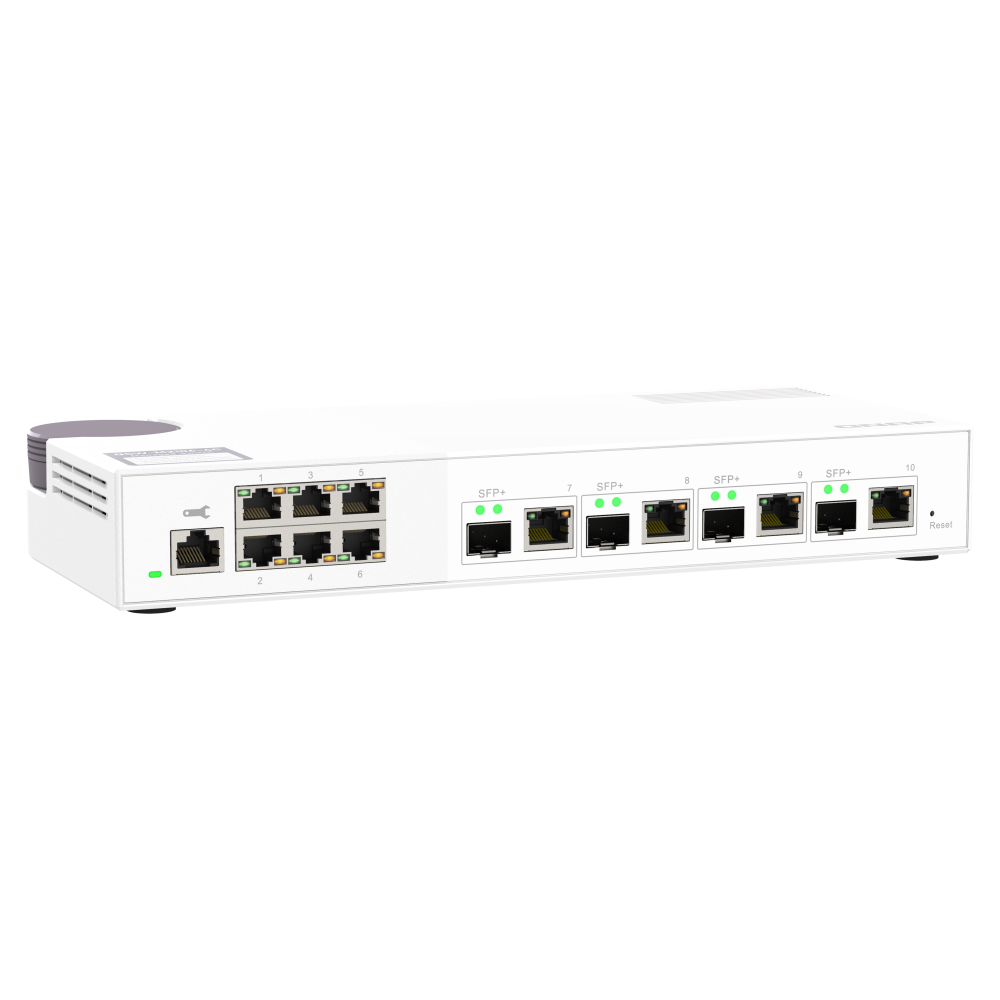

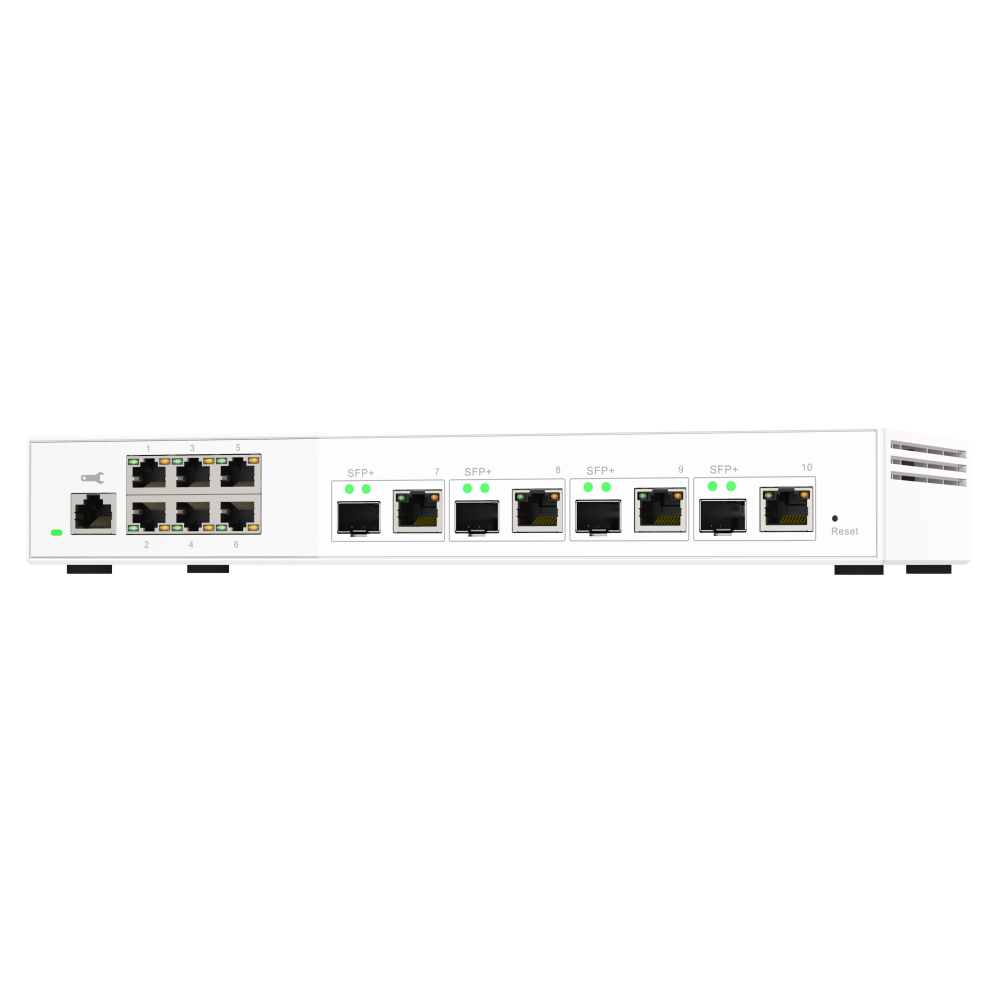

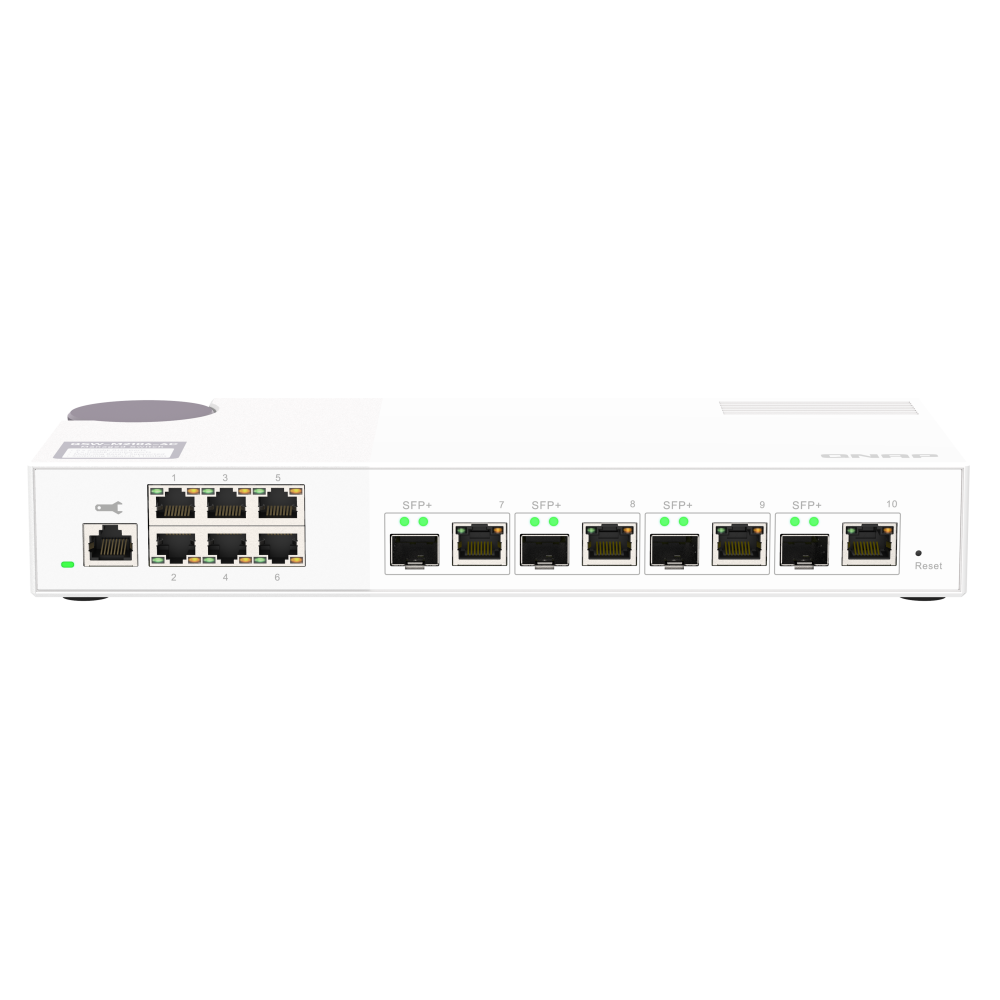

A desktop Layer 2 web-managed switch with four 10GbE SFP+/RJ45 combo ports, six 2.5GbE RJ45 ports and a stated switching capacity of 110Gbps.
Flexible fibre or copper 10GbE with six 2.5GbE access ports
The QNAP QSW-M2106-4C combines four SFP+/RJ45 combo positions with six 2.5GbE access ports. Five-speed copper support, QSS web management, Layer 2 controls and RSTP suit compact hybrid networks that mix fibre, Multi-Gigabit copper, storage and workstation connections.
Key features and benefits
Four 10GbE combo ports
Each combo position provides SFP+ fibre or RJ45 copper connectivity.
Five-speed copper support
The RJ45 combo interfaces support 10G, 5G, 2.5G, 1G and 100M speeds.
Six 2.5GbE RJ45 ports
Six access ports support 2.5G, 1G and 100M connections.
QSS web management
The interface provides an overview dashboard, port management and a settings guide.
Layer 2 controls
LACP, VLAN, ACL and LLDP support bandwidth and network control.
RSTP support
Rapid Spanning Tree Protocol supports expansion, redundancy and loop prevention.
Who is this model best for?
A strong choice for
- Hybrid fibre and copper 10GbE networks
- Desktop 2.5GbE network upgrades
- Teams reusing supported Ethernet cabling
- Small-business and office workgroups
- Networks needing Layer 2 management
Consider another model if you need
- You need more than four 10GbE-capable positions
- You require Power over Ethernet
- You need a rackmount switch
Key specifications
- Management type
- Web Managed
- Ports
- 4 × 10GbE SFP+/RJ45 combo; 6 × 2.5GbE RJ45
- RJ45 combo speeds
- 10G / 5G / 2.5G / 1G / 100M
- MAC address table
- 16K
- Non-blocking throughput
- 55Gbps
- Switching capacity
- 110Gbps
- Power
- Adapter; 36W maximum
- Form factor
- Desktop
- Dimensions
- 42.5 × 290 × 127 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 10 |
| 10GbE SFP+/RJ45 Combo Ports | 4 |
| 2.5GbE (RJ45) | 6 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP (IEEE 802.1p Class of Service) |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 36W |
| Input Power Type | DC |
| Fan | PWM double ball bearing fan x 1 |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.15 kg |
| Weight (Gross) | 1.75 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 12V/3A |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS B |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M2106-4C
What is the QNAP QSW-M2106-4C?
It is a desktop Layer 2 web-managed switch with four 10GbE SFP+/RJ45 combo ports and six 2.5GbE RJ45 ports.
How many ports does the QSW-M2106-4C have?
It has 10 data positions: four 10GbE combo positions and six 2.5GbE RJ45 ports.
Which high-speed connections does the QSW-M2106-4C provide?
It provides four 10GbE combo positions with SFP+ fibre or five-speed RJ45 copper connectivity.
How is the QSW-M2106-4C managed?
It is web managed through QSS and highlights LACP, VLAN, ACL, LLDP and RSTP.
What is the switching capacity of the QSW-M2106-4C?
The stated switching capacity is 110Gbps.
What is the non-blocking throughput of the QSW-M2106-4C?
The stated total non-blocking throughput is 55Gbps.
What form factor does the QSW-M2106-4C use?
The QSW-M2106-4C uses a desktop form factor.
What are the dimensions of the QSW-M2106-4C?
The stated dimensions are 42.5 × 290 × 127 mm.
What warranty is provided with the QSW-M2106-4C?
The QSW-M2106-4C includes a two-year warranty.
Which network features are highlighted for the QSW-M2106-4C?
It highlights LACP, VLAN, ACL, LLDP, RSTP and online firmware updates.
Important information
Each combo position provides an SFP+ or RJ45 connection, not two simultaneous data ports.
The product includes a two-year warranty.
