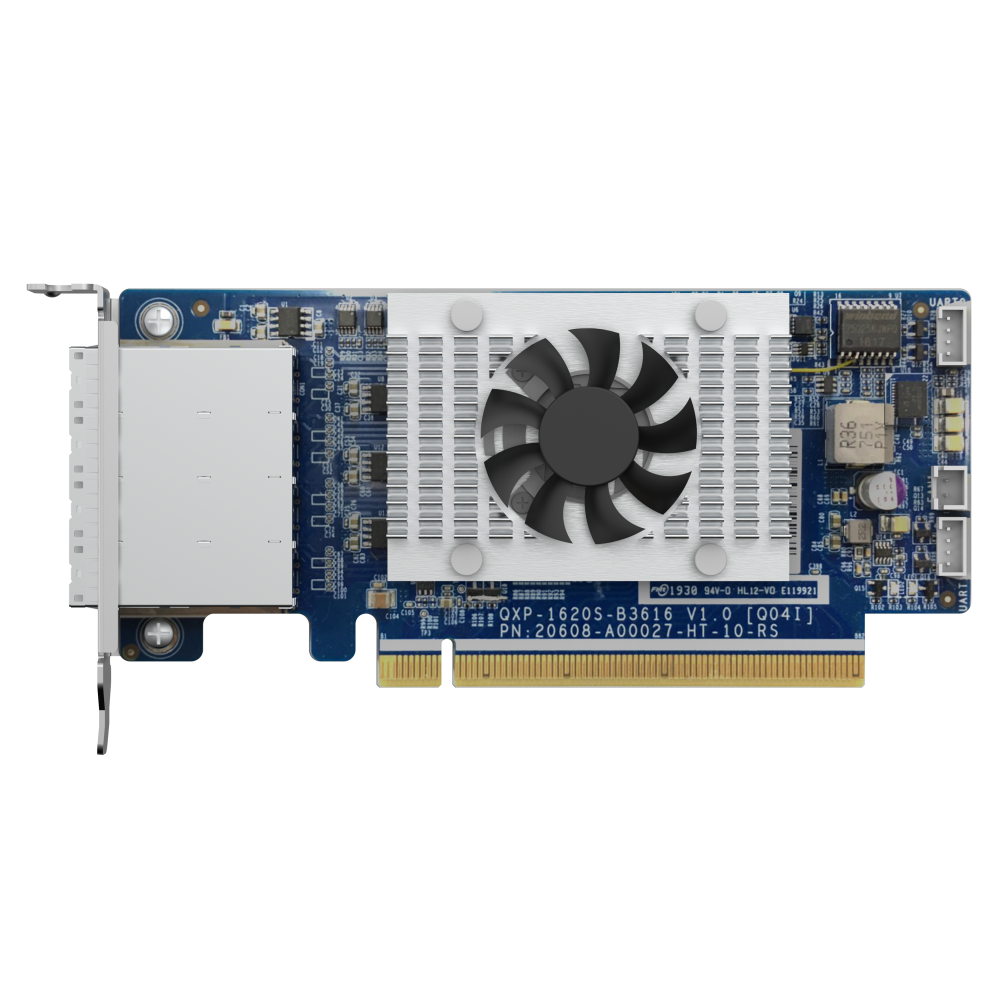

QNAP QXP-1620S-B3616W Expansion Card Front View

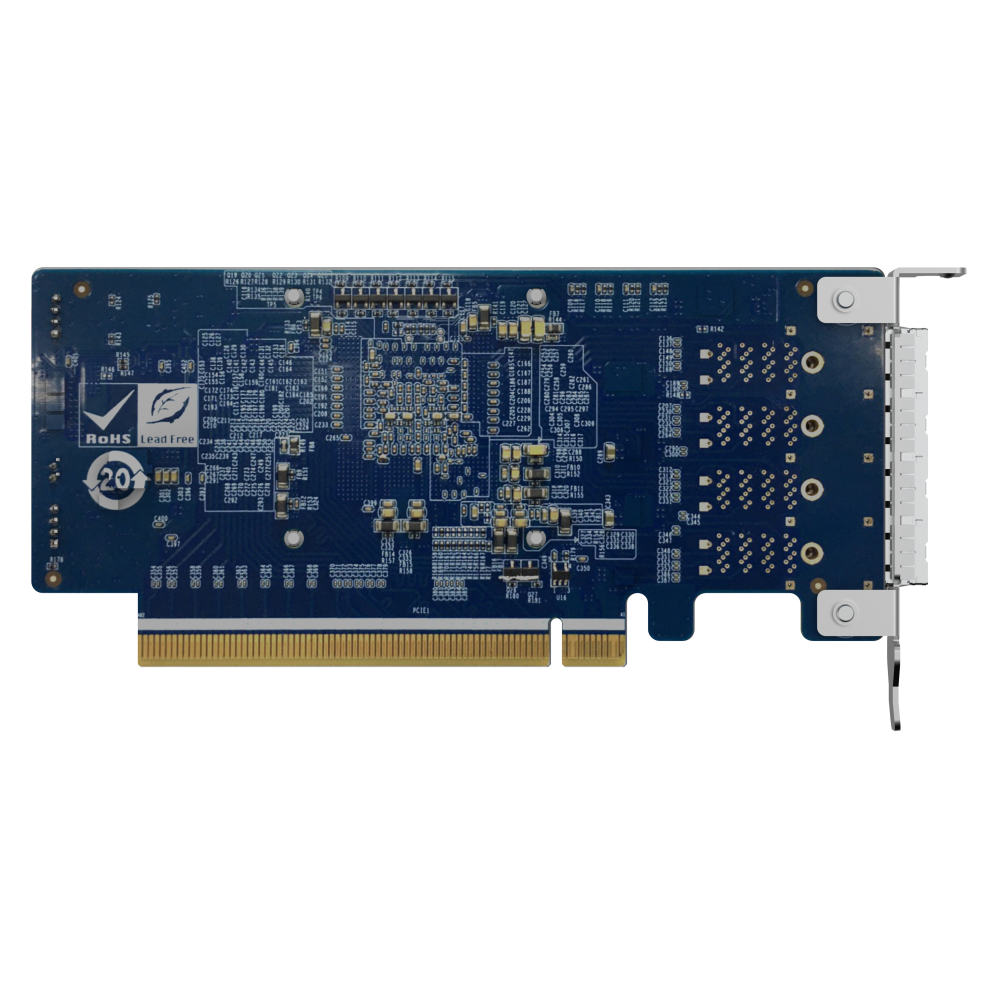

QNAP QXP-1620S-B3616W Expansion Card Back View (I/O ports)

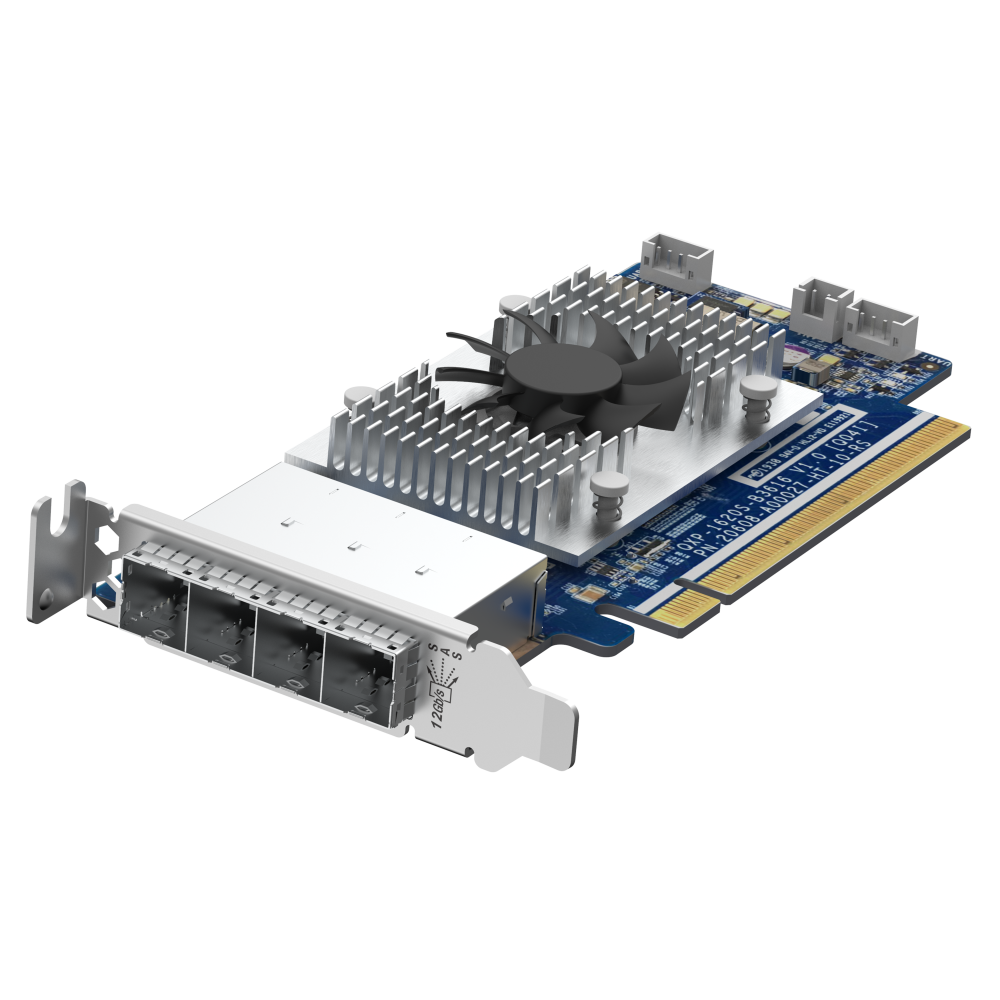

QNAP QXP-1620S-B3616W Expansion Card Side View 3

QNAP QXP-1620S-B3616W Expansion Card Side View 4

QNAP QXP-1620S-B3616W Expansion Card Side View 5

Gallery
Description

Description

The SAS HBA PCIe Expansion Card is designed for expanding the capacity of a QNAP NAS by connecting it to TL SAS JBOD storage enclosures and REXP expansion units. Multiple expansion units can be daisy-chained via high-speed mini SAS HD cables to expand the total disk capacity up to 4.6PB to meet growing data storage needs. SAS-based storage solutions can assist businesses in creating highly-reliable IT environments for virtualization, surveillance, Big Data, video editing and TV broadcast storage.

Specification

Standard Warranty	3 years
Controller	Broadcom SAS3616W Tri-mode
Connector	Four (x4) SFF-8644
PCIe and Lanes	PCIe Gen 3 x16
Tri-mode	12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s A wide port with four SAS signals.
Bracket	Low-profile (default). Desktop and Full-height brackets are also included.
Supported Cable	CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644
Supported Cable_note	Only passive cables are supported. Passive cables are sold separatedly.

QNAP QXP-1620S-B3616W ,Broadcom SAS3616W Tri-mode 4-port SAS HBA PCIe Expansion Card

$1,018.00

Tax included.

SKU: QXP-1620S-B3616W

Select quantity

Ask for Availability

Description
Compatibility

Specification

Standard Warranty	3 years
Controller	Broadcom SAS3616W Tri-mode
Connector	Four (x4) SFF-8644
PCIe and Lanes	PCIe Gen 3 x16
Tri-mode	12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s A wide port with four SAS signals.
Bracket	Low-profile (default). Desktop and Full-height brackets are also included.
Supported Cable	CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644
Supported Cable_note	Only passive cables are supported. Passive cables are sold separatedly.
