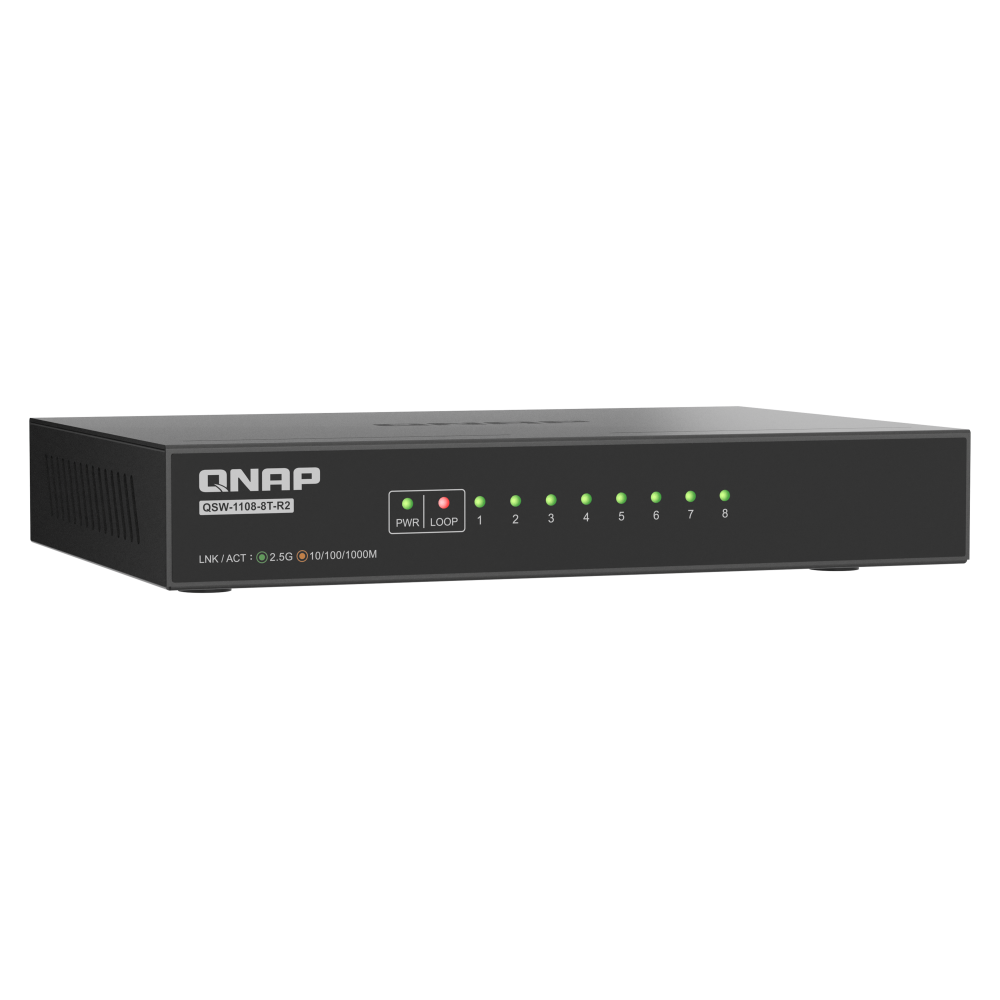

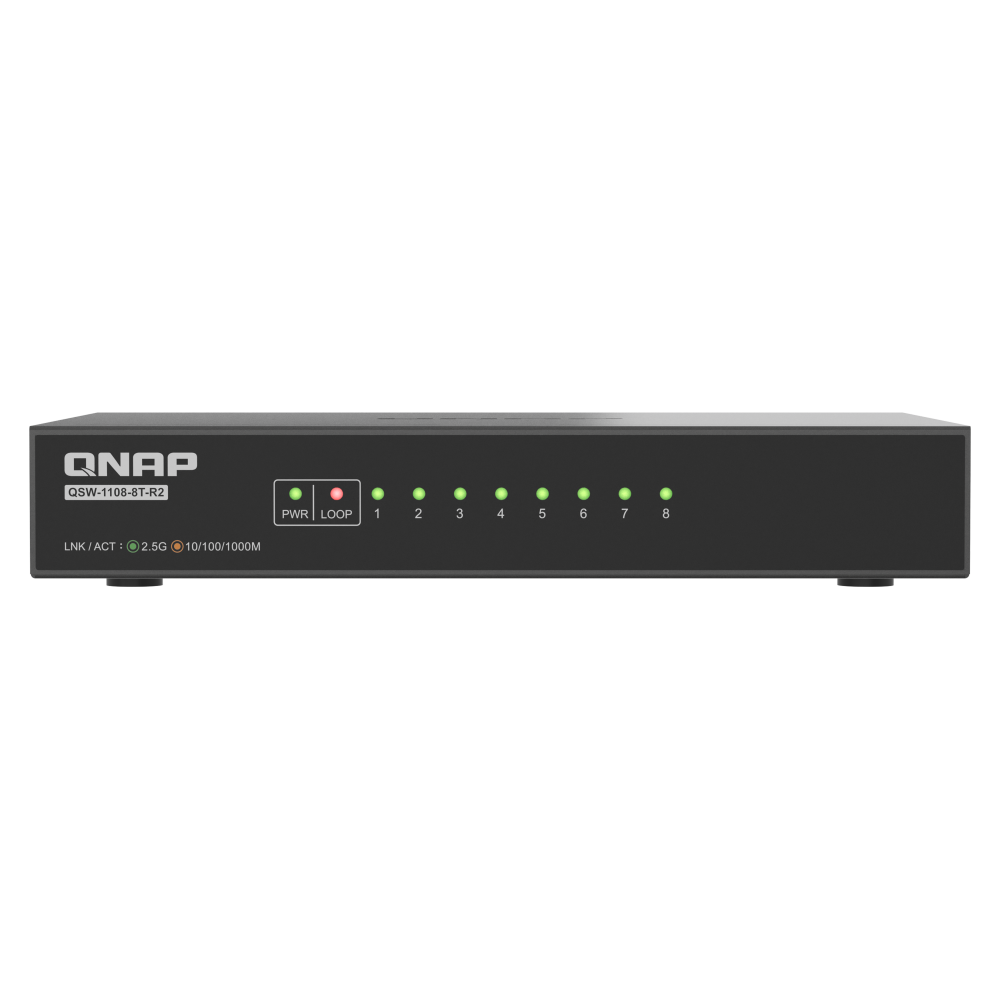

8-Port Full 2.5GbE Multi-Gig Switch – Enjoy Smooth File Backups, Media Streaming, and Gaming
Affordable and compact, the QSW-1108-8T-R2 is your ideal entry-level 8-port 2.5GbE switch. As part of the QSW 1000 Series, this unmanaged switch offers high-speed and stable performance at an economical price. Optimized for Wi-Fi 6/6E, it’s perfect for home and office environments seeking to enhance workflows, multimedia streaming, and file transfers. Designed and manufactured in Taiwan, the QSW-1108-8T-R2 delivers reliable and secure networking quality.
-
2.5G Multi-Gig Connectivity
8x 2.5GbE RJ45 ports (supports 2.5G/1G/100M), with a total switching capacity of 40Gbps.
-
Plug and Play
Auto-negotiates optimal speeds based on connected devices—no need to overhaul your network.
-
Compact Desktop Design
Energy-efficient with EEE support and Class B EMI certification; ideal for indoor environments.
-
Ultra-Quiet

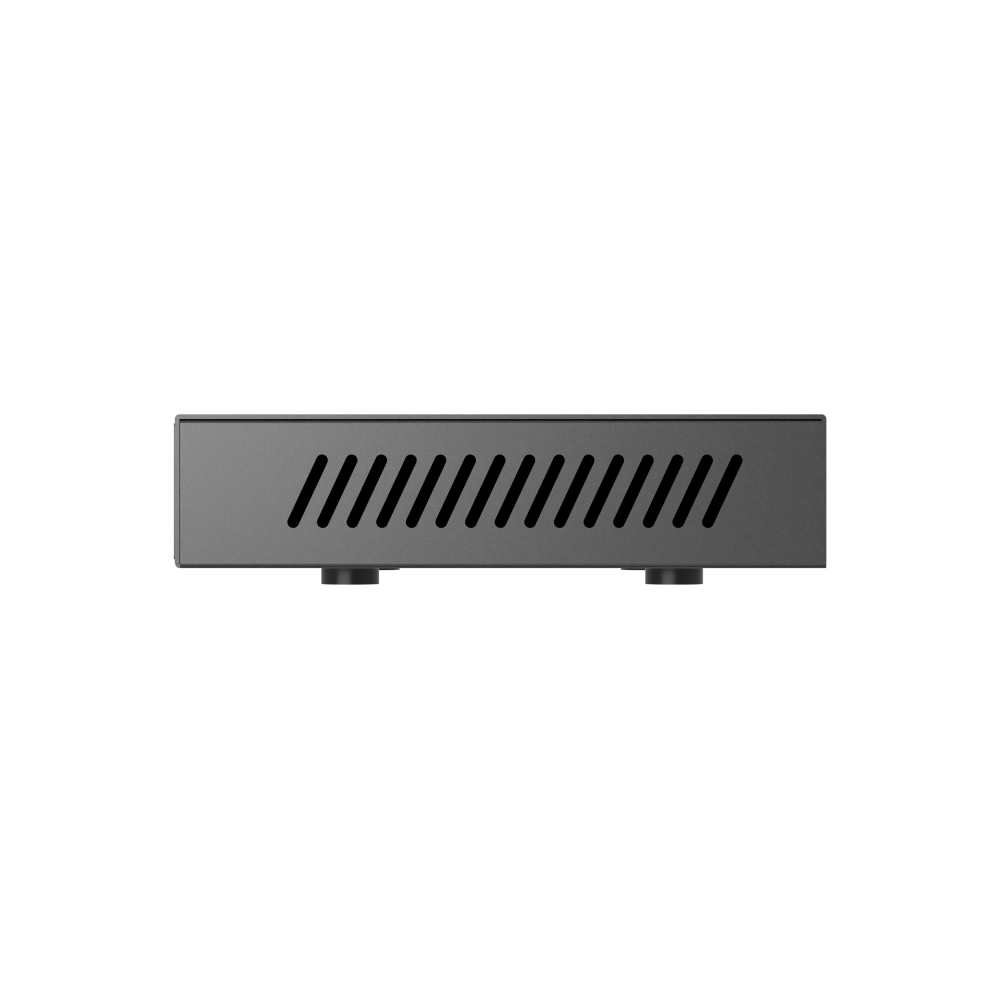

Fanless design with advanced heat dissipation keeps noise to a minimum—ideal for workspaces.
-
Network Stability
Loop detection and blocking automatically prevents network disruptions caused by looped connections.
-
Jumbo Frame Support
Supports 12K Jumbo Frames for more efficient large file transfers and reduced packet loss.
Specification
| Management Type | Unmanaged |
| Number of Ports | 8 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 4K |
| Total Non-Blocking Throughput | 20Gbps |
| Switching Capacity | 40Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) |  |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 26 x 160 x 110 mm |
| Weight (Net) | 0.5 kg |
| Weight (Gross) | 0.9 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 10~90% Non-condensing |
| Certifications | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
