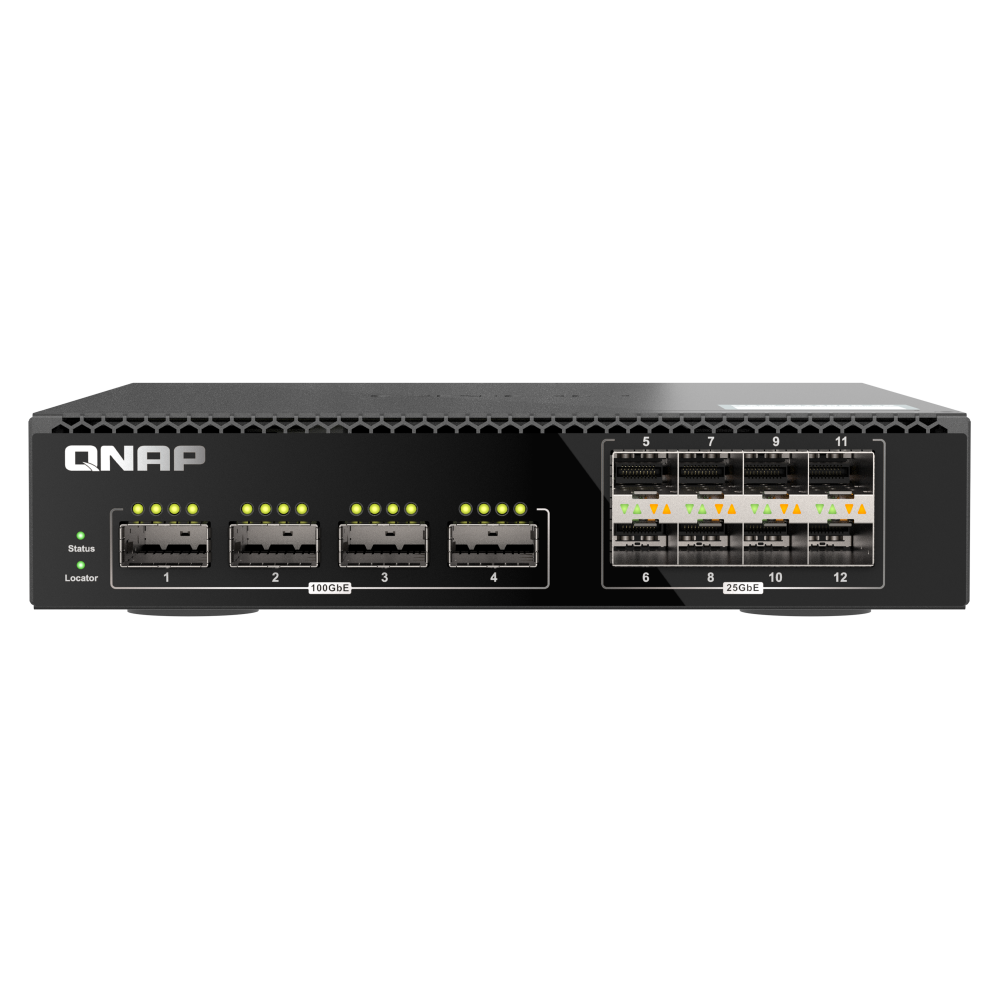

The QNAP QSW-M7308R-4X is a top-of-the-line 100GbE L3 Lite Managed Switch, featuring four 100GbE QSFP28 and eight 25GbE SFP28 ports. Its competitive pricing, compact design, and MC-LAG switch redundancy make it a perfect choice for businesses looking to upgrade their network infrastructure for high-speed storage, video editing, virtualization, and AI applications. Made in Taiwan with high-quality materials, this switch guarantees a secure and reliable networking solution.
-
100GbE/25GbE Network
Includes four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports to offer a backbone switching capacity of 1200Gbps for uplinking server rooms.
-
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
-
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
-

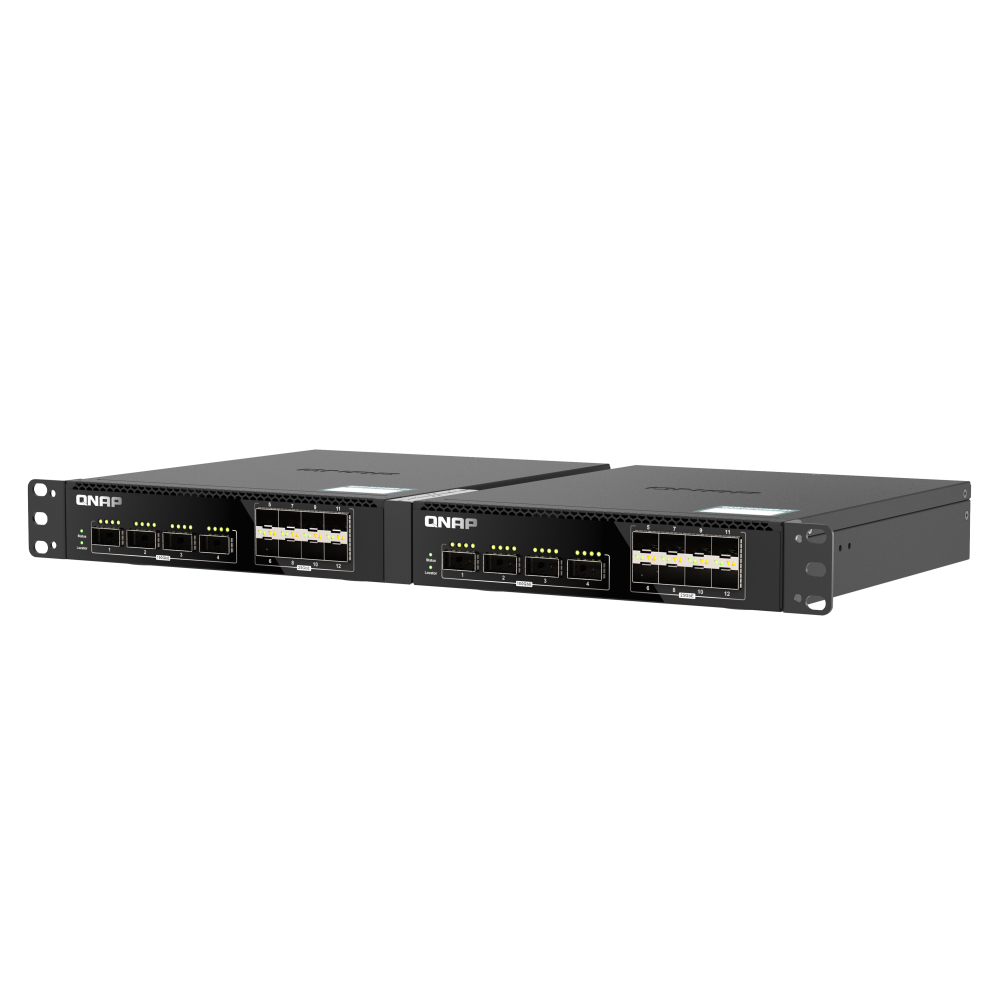

Space-saving half-width design
One of the few compact 100GbE switches on market, the QSW-M7308R-4X, can be installed in a 1U rack space with another half-width rackmount switch for efficient physical space utilization.
-
Compatible with QNAP NAS
Supports FEC (Forward Error Correction) and IEEE-802.3ap Auto-Negotiation for high compatibility to connect to QNAP 25GbE NAS or NAS installing 100G network cards for high-performance, low-latency computing.
-
User-friendly management interface
The user-friendly QNAP Switch System (QSS) Pro centralizes and simplifies central network management with an overview dashboard, port management, and settings guide.
Specification
| Management Type | L3 Lite Web Managed |
| Number of Ports | 12 |
| 100GbE QSFP28 | 4 |
| 25GbE SFP28 | 8 |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power supply unit |
| Max. Power Consumption | 55.153W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 600Gbps |
| Switching Capacity | 1200Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status/Locater |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.78 kg |
| Weight (Gross) | 2.63 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
