2U short-depth rackmount NAS; redundant power supply
2x M.2 NVMe slots for SSD caching
2x 2.5GbE, 1x PCIe slot for 25GbE expansion

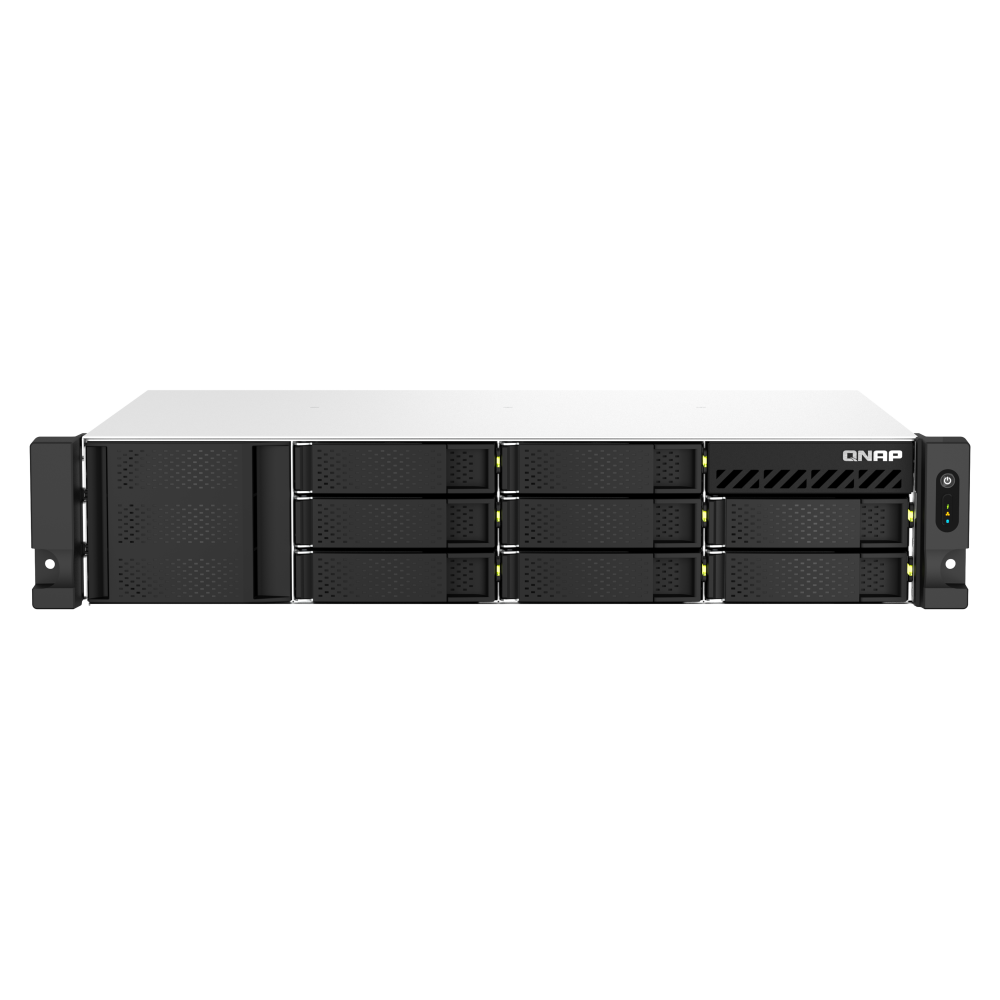

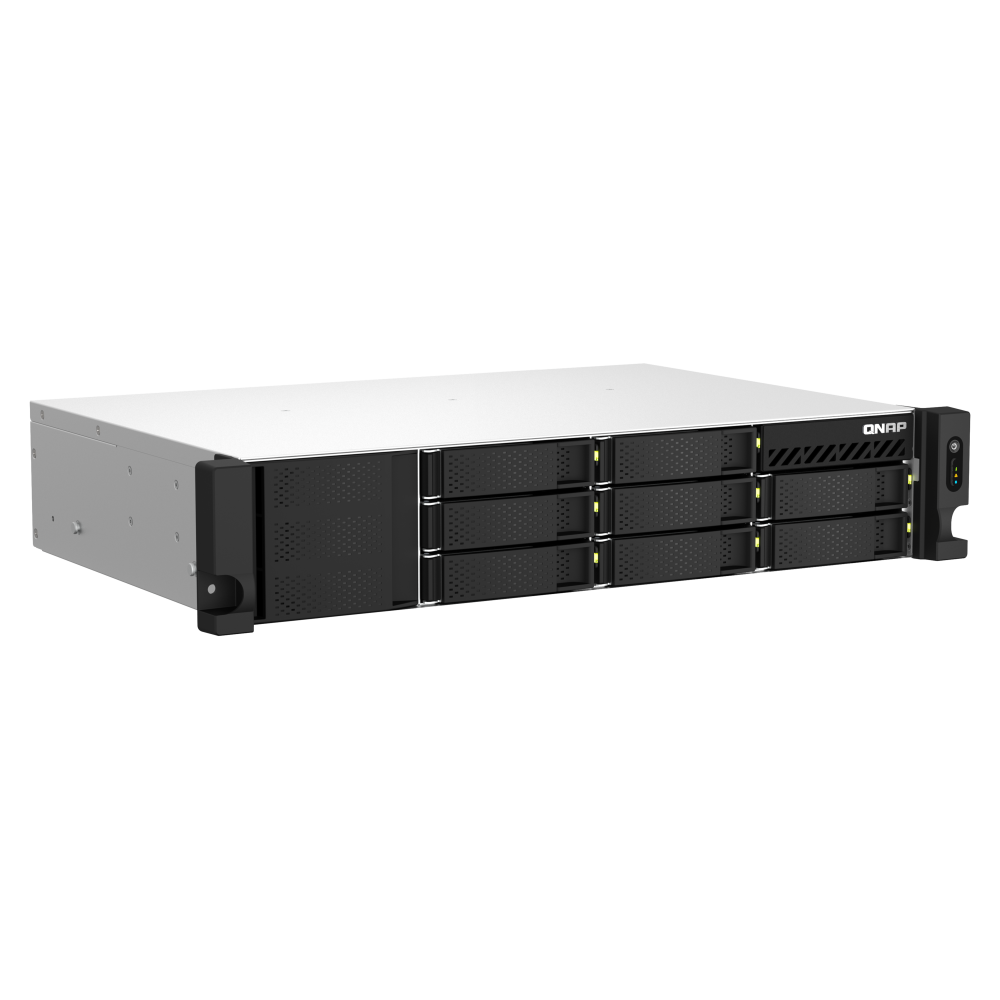

The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen™ V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.
-
Dual-2.5GbE connectivity
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
PCIe expandability
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.
-
Optimized SSD performance
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology.
-
Hybrid cloud storage
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
-
Virtual machine applications
Host multiple virtual machines and containers to run a wide range of applications.
-
2U Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.
Specification
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit |  |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1)
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | |
| PCIe Slot | 1 x PCIe Gen3 x8
Card dimensions for PCIe slot：210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches.
|
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI™ Output | Optional via a PCIe graphics card |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 9.2 kg |
| Weight (Gross) | 10.7 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W PSU(x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 32.19 W |
| Power Consumption: Operating Mode, Typical | 58.14 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
