AMD Ryzen™ 7 CPU, up to 4.4 GHz
2x 10GbE SFP+ SmartNIC ports, 2x 10GBASE-T ports
4x PCIe slots, expandable for 25GbE

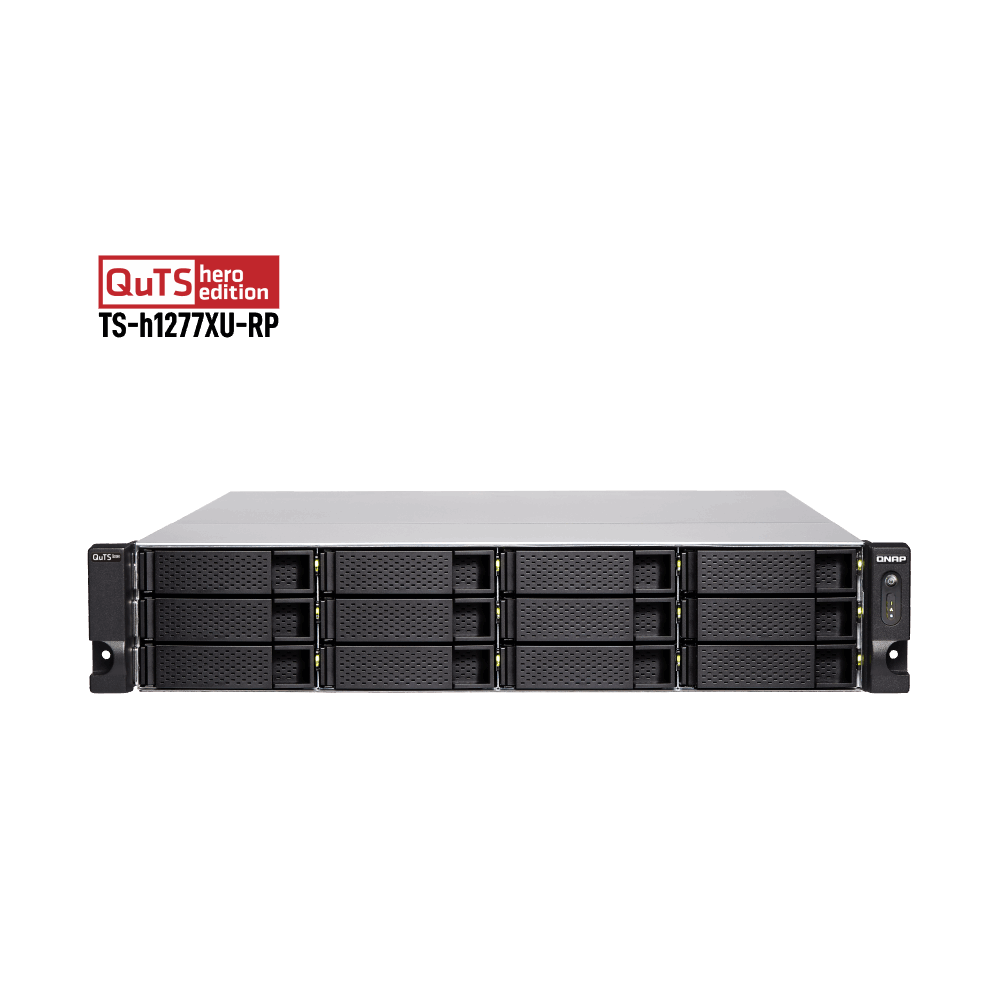

The QuTS hero NAS TS-h1277XU-RP is powered by an AMD Ryzen™ 7 processor that delivers supreme system performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h1277XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1277XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
-
2 x 10GbE SFP+ ports
Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port 10GbE RJ45 adapter for bandwidth-demanding applications.
-
4 x PCIe Gen 3 slots
PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
-
SSD cache acceleration
SSD cache acceleration improves random read/write performance to meet IPOS-demanding applications.
-
Virtualization applications
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019, and hosts virtual machines and containers.
-
Cloud storage gateway
Supports block-based and file-based cloud storage gateways with local cache for low-latency access to cloud data.
-
120+ NAS applications
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
Specification
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit |  |
| Encryption Engine | (AES-NI) |
| System Memory | 128 GB UDIMM DDR4 (4 x 32GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |

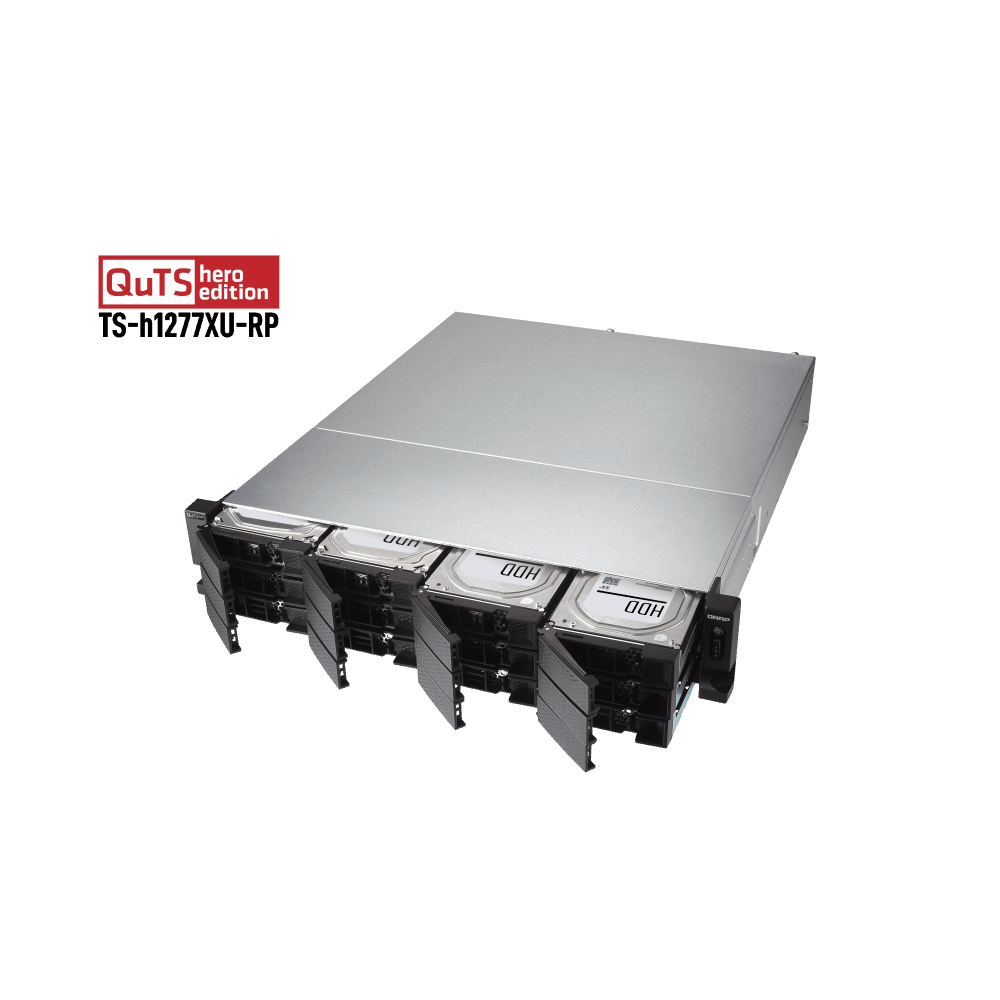

| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 4 provides the width of PCIe Gen.3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 3 is in use. ***PCIe slot 4 is preinstalled with a 10GbE network adapter ***PCIe slot 2 is preinstalled with a 10GbE SFP+ network adapter Card dimensions for PCIe slot 1：220 x 68.9x 39.08 mm / 8.66 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2~Slot 4：220 x 68.9x 18.76 mm / 8.66 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-12, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 511.2 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 13.96 kg |
| Weight (Gross) | 15.98 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 106.66 W
Tested with drives fully populated.
|
| Fan | System fan: 2 x 70mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
