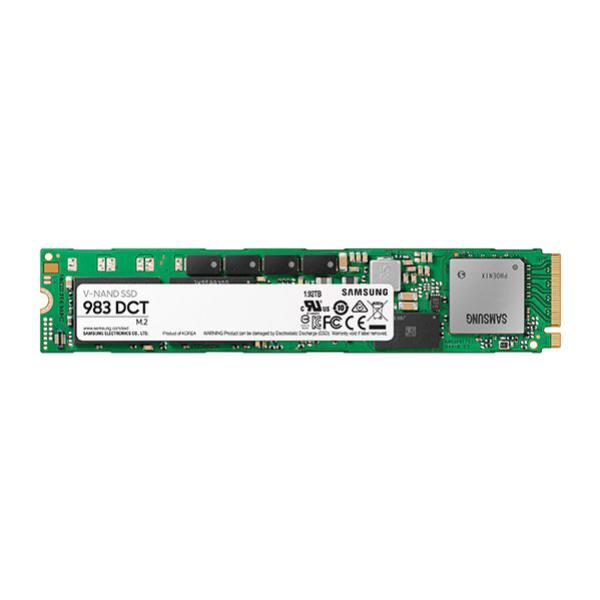

The Samsung 983 DCT 1.92TB MZ-1LB1T9NE is a 1,920GB M.2 22110 data-centre SSD rated up to 3,000MB/s sequential read, 1,430MB/s sequential write and 480K/42K QD32 random read/write IOPS, with power-loss protection and 2,733TBW endurance.
1,920GB
3,000/1,430MB/s
480K/42K IOPS
PCIe 3.0 x4
2,733TBW
3-year limited warranty
Capacity
1,920GB
Performance
Up to 3,000/1,430MB/s
Interface
PCIe Gen 3.0 x4, NVMe 1.2b
Endurance
2,733TBW
Read-focused NVMe storage for supported data-centre platforms
The Samsung 983 DCT 1.92TB MZ-1LB1T9NE combines Samsung V-NAND, the Phoenix controller and 1.5GB Low Power DDR4 cache in the long M.2 22110 format. It is positioned for data-centre use where predictable service, data-path protection and power-loss protection are required within its published performance and endurance profile.
Up to 3,000MB/s read
The M.2 model is rated up to 3,000MB/s sequential read under Samsung's published test conditions.
Up to 1,430MB/s write
Capacity-specific sequential write performance is rated up to 1,430MB/s.
480K/42K random IOPS
QD32 random performance is rated up to 480,000 read and 42,000 write IOPS.
Power-loss protection
The design includes protection intended to help preserve data integrity during unexpected power interruption.
End-to-end data protection
Samsung specifies protection across the data-transfer path for this data-centre SSD.
2,733TBW endurance
The Australian warranty profile is limited by three years or 2,733TBW, whichever occurs first.
Who is the Samsung 983 DCT 1.92TB MZ-1LB1T9NE best for?
A strong choice for
Supported servers with an M.2 22110 PCIe NVMe slot
Read-focused data-centre storage workloads
Platforms requiring power-loss protection
Deployments needing end-to-end data protection
Buyers requiring 1,920GB rated capacity
Consider another model if you need
Your platform supports only shorter M.2 form factors
You require hot-swap U.2 storage
You need write performance above 1,430MB/s
You need endurance beyond 2,733TBW
Key specifications
Official model
MZ-1LB1T9NE
Application
Data centre
Rated capacity
1,920GB
Form factor
M.2 22110
Interface
PCIe Gen 3.0 x4, NVMe 1.2b
Controller
Samsung Phoenix Controller
NAND
Samsung V-NAND 3-bit MLC
Cache
1.5GB Low Power DDR4 SDRAM
Sequential read/write
Up to 3,000/1,430MB/s
Random read/write
Up to 480K/42K IOPS
Endurance
2,733TBW
Warranty
Three years limited or 2,733TBW
Full technical specifications
Hardware and performance
Series
Samsung 983 DCT
Official model
MZ-1LB1T9NE
Application
Data centre
Rated capacity
1,920GB
Form factor
M.2 22110
Interface
PCIe Gen 3.0 x4
NVMe version
NVMe 1.2b
Controller
Samsung Phoenix Controller
Storage memory
Samsung V-NAND 3-bit MLC
Cache memory
1.5GB Low Power DDR4 SDRAM
Sequential read
Up to 3,000MB/s
Sequential write
Up to 1,430MB/s
Random read, 4KB QD32
Up to 480,000 IOPS
Random write, 4KB QD32
Up to 42,000 IOPS
Physical, power and environmental
Dimensions
110.2 × 22.0 × 3.8 mm
Weight
Maximum 20.0g
Average write power
7.5W
Idle power
Maximum 2.6W
Allowable voltage
3.3V ±5%
MTBF
2.0 million hours
Operating temperature
0°C to 70°C
Shock
1,500G, 0.5ms half sine
Protection, management and warranty
Power-loss protection
Supported
End-to-end data protection
Supported
TRIM
Supported
S.M.A.R.T.
Supported
Garbage collection
Automatic algorithm
Encryption support
TCG/Opal, Class 0
WWN support
NGUID supported
Device Sleep
Not supported
Management software
Samsung SSD DC Toolkit
Installation kit
Not available
Endurance
2,733TBW
Warranty
Three years limited or 2,733TBW
Frequently asked questions about the Samsung 983 DCT 1.92TB MZ-1LB1T9NE
What is the Samsung 983 DCT 1.92TB MZ-1LB1T9NE?
It is a 1,920GB M.2 22110 NVMe SSD designed for supported data-centre systems.
How fast is the MZ-1LB1T9NE?
Samsung rates it up to 3,000MB/s sequential read and 1,430MB/s sequential write.
What random performance does the MZ-1LB1T9NE provide?
It is rated up to 480K QD32 random-read and 42K QD32 random-write IOPS.
What interface does the MZ-1LB1T9NE use?
It uses PCIe Gen 3.0 x4 with NVMe 1.2b.
What form factor is the MZ-1LB1T9NE?
It is the long M.2 22110 form factor, so physical and electrical support must be confirmed.
Does the MZ-1LB1T9NE include power-loss protection?
Yes. Samsung lists power-loss protection and end-to-end data protection.
What endurance applies to the MZ-1LB1T9NE?
Samsung Australia specifies 2,733TBW.
What are the dimensions of the MZ-1LB1T9NE?
Samsung specifies 110.2 × 22.0 × 3.8 mm, with a maximum weight of 20.0g.
What management software is listed for the MZ-1LB1T9NE?
Samsung lists the Samsung SSD DC Toolkit.
What warranty applies to the MZ-1LB1T9NE?
Samsung Australia specifies three years limited or 2,733TBW, whichever occurs first.
Important information:
Confirm M.2 22110 length, PCIe Gen 3.0 x4 NVMe support, cooling and platform qualification before purchase.
Published performance is an up-to figure and varies with system hardware, firmware, software and workload.
This is a data-centre SSD and is not the shorter M.2 2280 form factor.
Actual usable capacity is lower after formatting, partitioning and system use.
