Samsung 990 PRO 1TB PCIe 4.0 NVMe M.2 2280 SSD - MZ-V9P1T0BW
Adding product to your cart
1TB PCIe 4.0 x4 NVMe 2.0 M.2 SSD without integrated heatsink

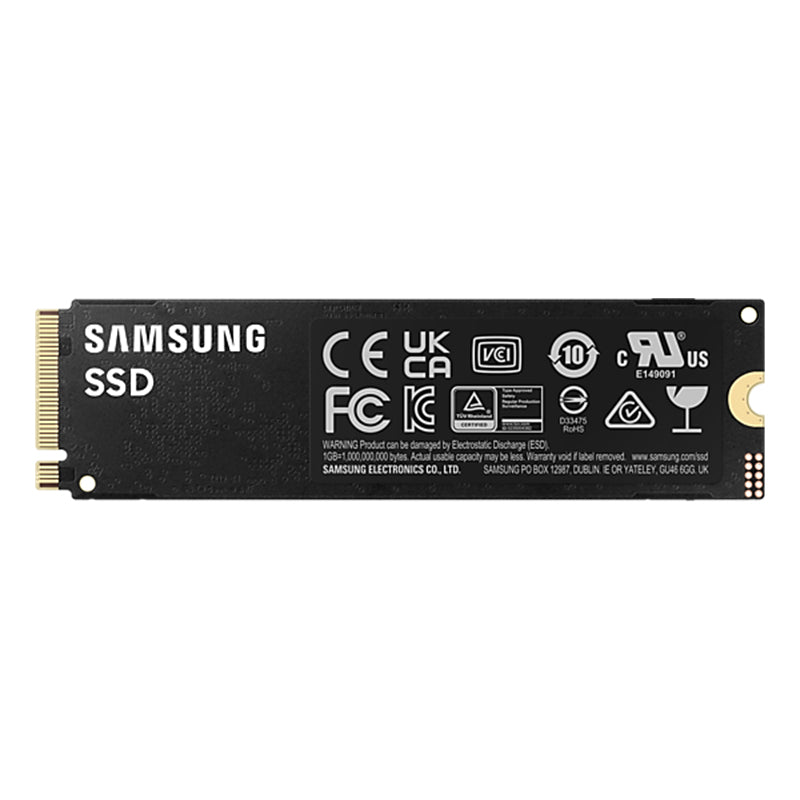

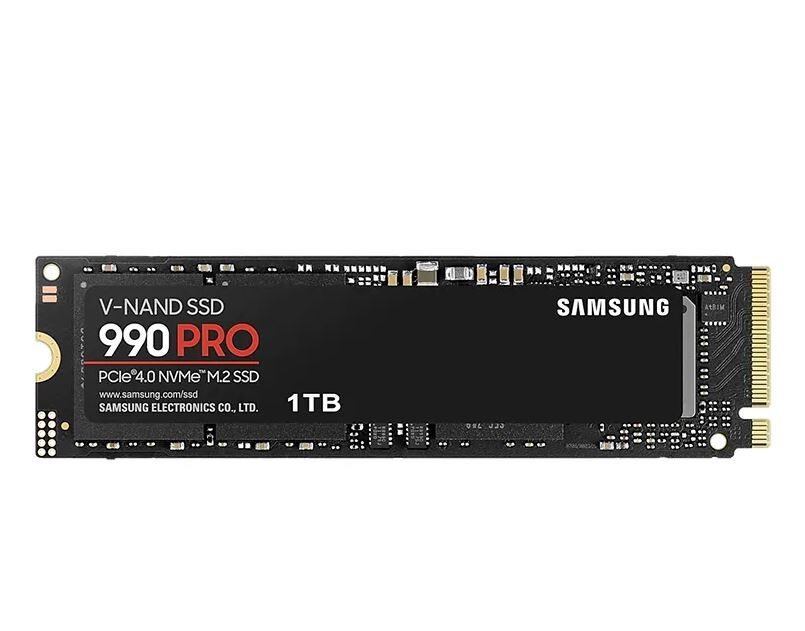

Samsung 990 PRO 1TB MZ-V9P1T0BW NVMe SSD without Integrated Heatsink
The Samsung 990 PRO 1TB MZ-V9P1T0BW is an M.2 2280 client SSD rated up to 7,450/6,900MB/s sequential read/write and 1,200K IOPS/1,550K IOPS random read/write at QD32, with 600TBW endurance in a low-profile module.
- 1TB capacity
- 7,450/6,900MB/s
- 1,200K IOPS/1,550K IOPS
- PCIe 4.0 x4 / NVMe 2.0
- No integrated heatsink
- 600TBW / 5-year limited warranty
| Capacity |
1TB |
| Performance |
Up to 7,450/6,900MB/s |
| Interface |
PCIe 4.0 x4, NVMe 2.0 |
| Cooling configuration |
No integrated heatsink |
High-performance PCIe 4.0 storage in the 1TB low-profile configuration
The Samsung 990 PRO 1TB MZ-V9P1T0BW combines Samsung V-NAND TLC, an in-house controller and 1GB LPDDR4 cache for high-performance client storage. This exact capacity has its own random-read, power and endurance profile, while the non-heatsink design leaves thermal management to the compatible host system.
PCIe 4.0 x4
The drive uses PCIe 4.0 x4 with NVMe 2.0 and is backwards compatible with PCIe 3.0.
7,450/6,900MB/s
Samsung rates every listed 990 PRO capacity up to 7,450MB/s sequential read and 6,900MB/s sequential write.
1,200K IOPS/1,550K IOPS
This 1TB profile is rated up to 1,200K IOPS random read and 1,550K random write IOPS at QD32.
1GB LPDDR4 cache
The exact 1TB model includes 1GB of Samsung-specified LPDDR4 DRAM cache memory.
Low-profile module
The non-heatsink model is 2.3mm high maximum; confirm compatible host cooling and airflow.
Security and warranty
AES 256-bit, TCG Opal 2.0 and IEEE1667 support accompany a five-year limited or 600TBW warranty, whichever comes first.
Who is the Samsung 990 PRO 1TB MZ-V9P1T0BW best for?
A strong choice for
- Compatible high-performance client PCs
- Gaming and creative workflows
- Systems with a compatible M.2 2280 PCIe 4.0 slot
- Samsung Magician-supported storage management
- 1TB buyers needing the non-heatsink configuration
Consider another model if you need
- Your system lacks an M.2 2280 PCIe slot
- Your host cannot accommodate the 80 × 22 × 2.3mm dimensions
- Your platform cannot provide sufficient airflow or cooling
- You require endurance above 600TBW
- You need an enterprise or data-centre SSD
Key specifications
| Official model code |
MZ-V9P1T0BW |
| Capacity |
1TB |
| Application |
Client PCs; PlayStation 5 |
| Form factor |
M.2 2280 |
| Interface |
PCIe 4.0 x4, NVMe 2.0 |
| NAND |
Samsung V-NAND TLC |
| DRAM cache |
1GB LPDDR4 |
| Sequential read/write |
Up to 7,450/6,900MB/s |
| QD32 random read/write |
Up to 1,200K IOPS/1,550K IOPS |
| Endurance |
600TBW |
| MTBF |
1,500,000 hours |
| Dimensions |
Maximum 80 × 22 × 2.3mm |
| Heatsink |
Not integrated |
| Warranty |
Five-year limited or TBW, whichever comes first |
Full technical specifications
Hardware and performance
| Series |
Samsung 990 PRO |
| Official model code |
MZ-V9P1T0BW |
| Capacity |
1TB |
| Usage application |
Client PCs; PlayStation 5 |
| Form factor |
M.2 2280 |
| Interface |
PCIe 4.0 x4, NVMe 2.0 |
| Backwards compatibility |
PCIe 3.0 |
| Controller |
Samsung in-house controller |
| NAND flash |
Samsung V-NAND TLC |
| DRAM cache |
1GB LPDDR4 |
| Sequential read |
Up to 7,450MB/s |
| Sequential write |
Up to 6,900MB/s |
| QD1 random read/write |
Up to 22K/80K IOPS |
| QD32 random read |
Up to 1,200K IOPS |
| QD32 random write |
Up to 1,550K IOPS |
| Write acceleration |
Intelligent TurboWrite |
Power, reliability and endurance
| Average active read power |
5.5 W |
| Average active write power |
5.2 W |
| Typical idle, APST on |
50 mW |
| L1.2 mode |
5 mW |
| Operating temperature |
0°C to 70°C, measured by S.M.A.R.T. |
| Non-operating temperature |
-40°C to 85°C |
| Humidity |
5% to 95% non-condensing |
| Non-operating shock |
1,500G for 0.5ms, three axes |
| Non-operating vibration |
20–2,000Hz, 20G |
| MTBF |
1,500,000 hours |
| Endurance |
600TBW |
| Warranty |
Five-year limited or TBW, whichever comes first |
Physical configuration, features and security
| Dimensions |
Maximum 80 × 22 × 2.3mm |
| Integrated heatsink |
No |
| Airflow |
Proper airflow recommended |
| TRIM |
Supported; operating-system support required |
| Garbage Collection |
Supported |
| S.M.A.R.T. |
Supported |
| Encryption |
AES 256-bit full-disk encryption |
| Security standard |
TCG Opal 2.0 |
| Encrypted Drive |
IEEE1667 |
| Nominal capacity note |
Actual usable capacity may be lower |
Frequently asked questions about the Samsung 990 PRO 1TB MZ-V9P1T0BW
What is the Samsung 990 PRO 1TB MZ-V9P1T0BW?
It is a 1TB PCIe 4.0 x4 NVMe 2.0 client SSD in the M.2 2280 form factor without an integrated heatsink.
What sequential speed does the MZ-V9P1T0BW provide?
Samsung rates it up to 7,450MB/s read and 6,900MB/s write.
What random performance applies to the MZ-V9P1T0BW?
At QD32 it is rated up to 1,200K IOPS random read and 1,550K random write IOPS; QD1 figures are 22K/80K IOPS.
Does the MZ-V9P1T0BW include a heatsink?
No. This BW model has no integrated heatsink; confirm the host's thermal solution and airflow.
Is the MZ-V9P1T0BW backwards compatible with PCIe 3.0?
Yes. Samsung specifies PCIe 3.0 backwards compatibility, with performance limited by the host interface.
How much DRAM cache does the MZ-V9P1T0BW have?
Samsung specifies 1GB LPDDR4 cache memory for this 1TB model.
What endurance applies to the MZ-V9P1T0BW?
Samsung specifies 600TBW for this 1TB model.
What security features does the MZ-V9P1T0BW support?
Samsung lists AES 256-bit full-disk encryption, TCG Opal 2.0 and IEEE1667 Encrypted Drive.
What are the MZ-V9P1T0BW dimensions?
The published dimensions are maximum 80 × 22 × 2.3mm.
What warranty applies to the MZ-V9P1T0BW?
Samsung specifies five years limited or 600TBW, whichever comes first, subject to its warranty terms.
Important information:
- Confirm M.2 2280 interface support, 80 × 22 × 2.3mm clearance, power and cooling before purchase.
- Proper airflow is recommended; performance varies by firmware, host hardware and configuration.
- This BW model has no integrated heatsink; confirm the host's thermal solution before installation.
- Actual usable capacity may be lower than the labelled capacity.
