Samsung MZ-VAP1T0CW 9100 PRO 1TB 2280 M.2 NVMe 2.0 Gen 5 SSD with Heatsink
Adding product to your cart
1TB PCIe 5.0 x4 NVMe 2.0 M.2 SSD with integrated heatsink

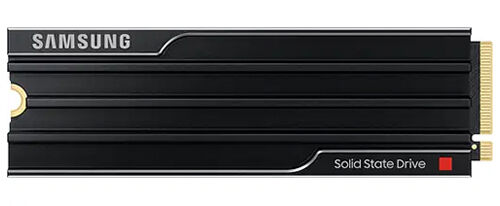

Samsung 9100 PRO 1TB MZ-VAP1T0CW PCIe 5.0 NVMe SSD with Heatsink
The Samsung 9100 PRO 1TB MZ-VAP1T0CW is a client M.2 2280 SSD rated up to 14,700MB/s sequential read, 13,300MB/s sequential write and 1,850K IOPS/2,600K IOPS random read/write, with 600TBW endurance and a factory-fitted heatsink.
- 1TB capacity
- 14,700MB/s/13,300MB/s
- 1,850K IOPS/2,600K IOPS
- PCIe 5.0 x4 / NVMe 2.0
- Integrated heatsink
- 600TBW / 5-year warranty
| Capacity |
1TB |
| Performance |
Up to 14,700MB/s/13,300MB/s |
| Interface |
PCIe 5.0 x4, NVMe 2.0 |
| Cooling configuration |
Integrated heatsink |
Flagship Gen5 performance in the 1TB heatsink configuration
The Samsung 9100 PRO 1TB MZ-VAP1T0CW combines Samsung V-NAND TLC, an in-house controller and 1GB LPDDR4X cache for high-performance client storage. This exact capacity has its own sequential, random, power and endurance profile, while the factory-fitted heatsink manages the supplied thermal configuration.
PCIe 5.0 x4
The drive uses a PCIe 5.0 x4 interface with NVMe 2.0 and is backwards compatible with PCIe 4.0 x4 and 3.0 x4.
Up to 14,700MB/s read
Samsung rates this exact 1TB model for sequential reads up to 14,700MB/s.
Up to 13,300MB/s write
Capacity-specific sequential write performance reaches up to 13,300MB/s with Intelligent TurboWrite active.
1,850K IOPS/2,600K IOPS
Random performance is rated up to 1,850K IOPS read and 2,600K write IOPS under Samsung's stated test conditions.
Factory-fitted heatsink
The integrated heatsink is pre-installed; Samsung states it should not be removed and host clearance must be checked.
Security and warranty
AES 256-bit, TCG Opal 2.0 and IEEE1667 support accompany a five-year limited or 600TBW warranty, whichever comes first.
Who is the Samsung 9100 PRO 1TB MZ-VAP1T0CW best for?
A strong choice for
- High-performance client PCs with a compatible M.2 2280 slot
- Content creation and large-file workflows
- Gaming systems that support the drive and provide adequate cooling
- Samsung Magician-supported storage management
- 1TB buyers needing the integrated-heatsink configuration
Consider another model if you need
- Your system lacks an M.2 2280 PCIe slot
- Your host cannot accommodate the 80.15 × 25 × 8.88mm maximum dimensions
- Your platform cannot provide sufficient cooling or power
- You require endurance above 600TBW
- You need an enterprise/data-centre SSD rather than a client drive
Key specifications
| Official model code |
MZ-VAP1T0CW |
| Capacity |
1TB |
| Form factor |
M.2 2280 |
| Interface |
PCIe 5.0 x4, NVMe 2.0 |
| NAND |
Samsung V-NAND TLC |
| Cache |
1GB LPDDR4X |
| Sequential read/write |
Up to 14,700MB/s/13,300MB/s |
| Random read/write |
Up to 1,850K IOPS/2,600K IOPS |
| Endurance |
600TBW |
| MTBF |
1,500,000 hours |
| Dimensions |
80.15 × 25 × 8.88mm maximum |
| Heatsink |
Integrated |
| Warranty |
Five-year limited or TBW, whichever comes first |
Full technical specifications
Hardware and performance
| Series |
Samsung 9100 PRO |
| Official model code |
MZ-VAP1T0CW |
| Capacity |
1TB |
| Application |
Client PCs and PlayStation 5 |
| Form factor |
M.2 2280 |
| Interface |
PCIe 5.0 x4, NVMe 2.0 |
| Backwards compatibility |
PCIe 4.0 x4 and PCIe 3.0 x4 |
| Controller |
Samsung in-house controller |
| NAND flash |
Samsung V-NAND TLC |
| Cache memory |
1GB LPDDR4X |
| Sequential read |
Up to 14,700MB/s |
| Sequential write |
Up to 13,300MB/s |
| Random read |
Up to 1,850K IOPS |
| Random write |
Up to 2,600K IOPS |
| Write acceleration |
Intelligent TurboWrite |
Power, reliability and endurance
| Average active read power |
7.6 W |
| Average active write power |
7.2 W |
| Typical idle PS3, APST on |
4.0 mW |
| Typical idle PS4, L1.2 |
3.3 mW |
| Operating temperature |
0°C to 70°C, measured by S.M.A.R.T. |
| Non-operating temperature |
-40°C to 85°C |
| Humidity |
5% to 95% non-condensing |
| Non-operating shock |
1,500G for 0.5ms, three axes |
| Non-operating vibration |
20–2,000Hz, 20G |
| MTBF |
1,500,000 hours |
| Endurance |
600TBW |
| Warranty |
Five-year limited or TBW, whichever comes first |
Physical configuration, features and security
| Dimensions |
80.15 × 25 × 8.88mm maximum |
| Integrated heatsink |
Yes; pre-installed |
| Airflow |
Proper airflow recommended |
| TRIM |
Supported; OS support required |
| Garbage Collection |
Supported |
| S.M.A.R.T. |
Supported |
| Encryption |
AES 256-bit full-disk encryption |
| Security standard |
TCG Opal 2.0 |
| Encrypted Drive |
IEEE1667 |
| Nominal capacity note |
Actual usable capacity may be lower |
Frequently asked questions about the Samsung 9100 PRO 1TB MZ-VAP1T0CW
What is the Samsung 9100 PRO 1TB MZ-VAP1T0CW?
It is a 1TB PCIe 5.0 x4 NVMe 2.0 client SSD in the M.2 2280 form factor with a pre-installed heatsink.
What sequential speed does the MZ-VAP1T0CW provide?
Samsung rates this exact capacity up to 14,700MB/s read and 13,300MB/s write; results vary with firmware, hardware and configuration.
What random performance applies to the MZ-VAP1T0CW?
It is rated up to 1,850K IOPS random-read and 2,600K random-write IOPS under Samsung's stated conditions.
Does the MZ-VAP1T0CW include a heatsink?
Yes. This CW model has a pre-installed heatsink that Samsung says should not be removed.
Is the MZ-VAP1T0CW backwards compatible with older PCIe generations?
Yes. Samsung states compatibility with PCIe 4.0 x4 and PCIe 3.0 x4, with performance limited by the host interface.
What endurance applies to the MZ-VAP1T0CW?
Samsung specifies 600TBW for this 1TB model.
What security features does the MZ-VAP1T0CW support?
Samsung lists AES 256-bit full-disk encryption, TCG Opal 2.0 and IEEE1667 Encrypted Drive.
Can the MZ-VAP1T0CW be used with PlayStation 5?
Samsung lists PlayStation 5 as an application for the 9100 PRO. Confirm current console requirements, physical fit and clearance for the integrated heatsink before installation.
What are the MZ-VAP1T0CW dimensions?
The published maximum dimensions are 80.15 × 25 × 8.88mm maximum.
What warranty applies to the MZ-VAP1T0CW?
Samsung specifies five years limited or 600TBW, whichever comes first, subject to its warranty terms.
Important information:
- Confirm M.2 2280 interface support, 80.15 × 25 × 8.88mm maximum clearance, power and cooling before purchase.
- Proper airflow is recommended; performance varies by firmware, system hardware and configuration.
- Do not remove the pre-installed heatsink; Samsung states removal can void the product warranty.
- Actual usable capacity may be lower than the labelled capacity.
