16-Port Gigabit Smart Edge Switch
QNAP QGD-1600-4G Managed Switch

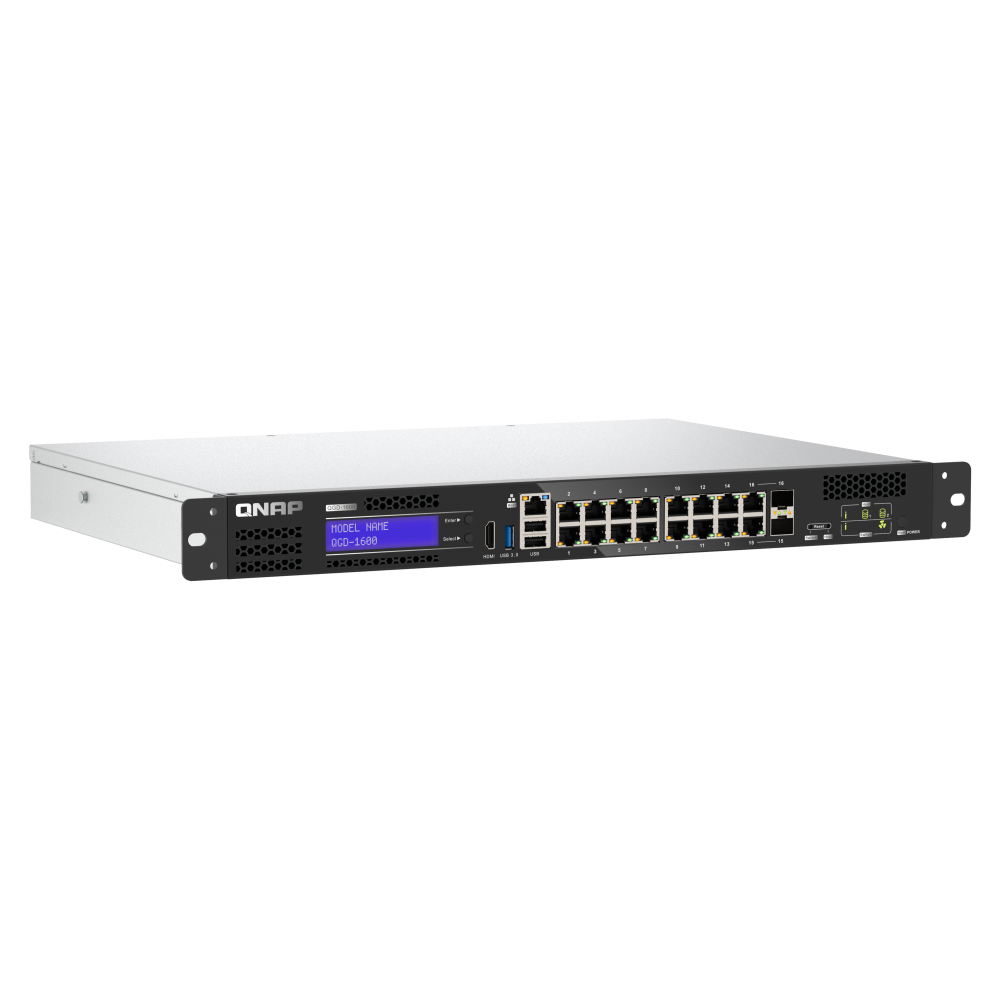

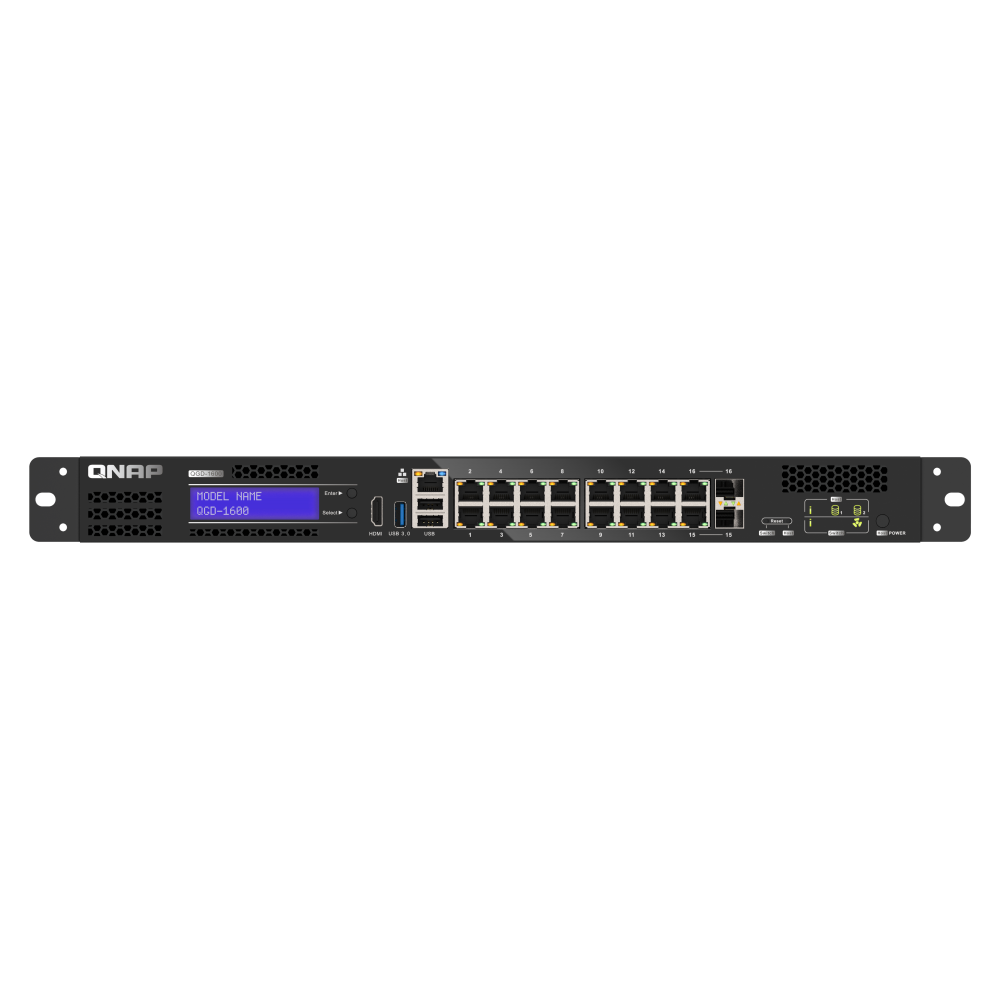

A rackmount web-managed Gigabit switch with fourteen RJ45 ports, two SFP/RJ45 combo positions, QTS, two SATA drive bays, PCIe expansion and 4GB memory.
Managed Gigabit switching and QTS for compact edge deployments
The QNAP QGD-1600-4G combines Layer 2 switching, QTS and two local drive bays in one rackmount appliance. It suits branch offices, network services, surveillance management and other edge deployments that need application hosting without Power over Ethernet.
Key features and benefits
Sixteen Gigabit positions
Fourteen RJ45 ports and two SFP/RJ45 combo positions provide copper and fibre connectivity.
Layer 2 management
VLAN, LACP, QoS, IGMP Snooping and Wake-on-LAN are included in the product positioning.
Built-in QTS
QTS supports the listed storage, virtual-machine and network-application use cases.
4GB installed memory
The system includes 4GB as one 4GB module, with a stated maximum of 8GB.
Two SATA drive bays
Two 2.5-inch SATA bays support the listed solid-state drives and hard disk drives.
PCIe expansion
Two PCIe Gen2 x2 slots support the listed network, QM2, USB and wireless-adapter options.
Who is this model best for?
A strong choice for
- Managed Gigabit branch networks
- QTS and virtualised edge applications
- Surveillance and network-service use
- Two-bay storage at the network edge
- Rackmount installations without PoE
Consider another model if you need
- You require Power over Ethernet
- You need more than 4GB installed memory
- You need 2.5GbE on the switch ports
Key specifications
- Management type
- Web Managed
- Switch ports
- 14 × 1GbE RJ45; 2 × 1GbE SFP/RJ45 combo
- Processor
- Intel Celeron J4115 quad-core 1.8GHz, burst up to 2.5GHz
- Memory
- 4GB (1 × 4GB); 8GB maximum
- Management port
- 1 × 1GbE
- Non-blocking throughput
- 16Gbps
- Switching capacity
- 32Gbps
- Drive bays
- 2 × 2.5-inch SATA
- PCIe slots
- 2 × PCIe Gen2 x2
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Management Port | 1 x 1GbE |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Supported |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Jumbo Frames | 9k |
Software and system features
| PCIe Slot | Slot 1: PCIe Gen2 (x2) Slot 2: PCIe Gen2 (x2) |
|---|---|
| USB 3.2 Gen 1 port | 1 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| HDMI™ Output | 1 |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| LCD Management | Supported |
| Internal Network Bandwidth | 2 x 1GbE |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
Physical, environmental and power
| Power Supply Description | Internal Power Supply Unit |
|---|---|
| Max. Power Consumption | 100W |
| Input Power Type | AC |
| Fan | System: 2 x 4 cm (12V DC) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed Per System: Warning/Fan |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 47.2 × 436.2 × 326.2 mm |
| Weight (Net) | 4.41 kg |
| Weight (Gross) | 5.56 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
|---|---|
| Electromagnetic Compliance | CLASS A, UL62368 |
| Warranty | 2 Years |
Processor, memory and storage
| QTS Built-in | Supported |
|---|---|
| CPU | Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphics Processors | Intel® HD Graphics 600 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 4 GB (1 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| M.2 SSD Slots | Optional via PCIe adapter |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
Frequently asked questions about the QGD-1600-4G
What is the QNAP QGD-1600-4G?
It is a rackmount web-managed switch with QTS, storage bays and application-hosting capabilities.
How many switch positions does it have?
It has sixteen positions: fourteen 1GbE RJ45 ports and two 1GbE SFP/RJ45 combo positions.
Does the QGD-1600-4G provide PoE?
No PoE specifications are listed for this model.
Which processor does it use?
It uses an Intel Celeron J4115 quad-core 1.8GHz processor with burst speed up to 2.5GHz.
How much memory is included?
It includes 4GB as one 4GB module, with a stated maximum of 8GB.
How many drive bays does it have?
It has two 2.5-inch SATA drive bays.
Does it support PCIe expansion?
Yes. Two PCIe Gen2 x2 slots are listed.
What is its switching capacity?
The stated switching capacity is 32Gbps.
How is it managed?
The QGD-1600-4G is web managed and includes QTS.
What warranty is provided?
It includes a two-year warranty.
Important information
This model does not include the PoE specifications listed for the QGD-1600P variants.
The product includes a two-year warranty.
