16-Port Gigabit PoE Smart Edge Switch

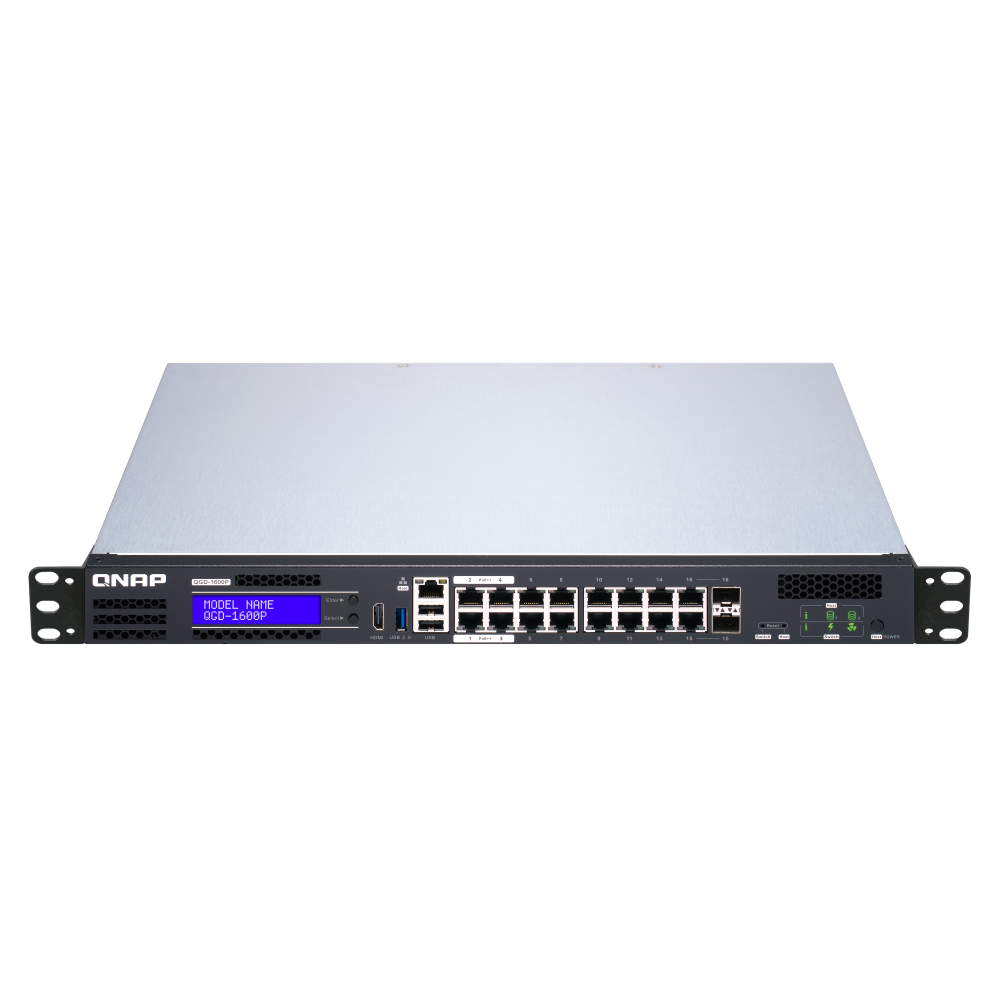

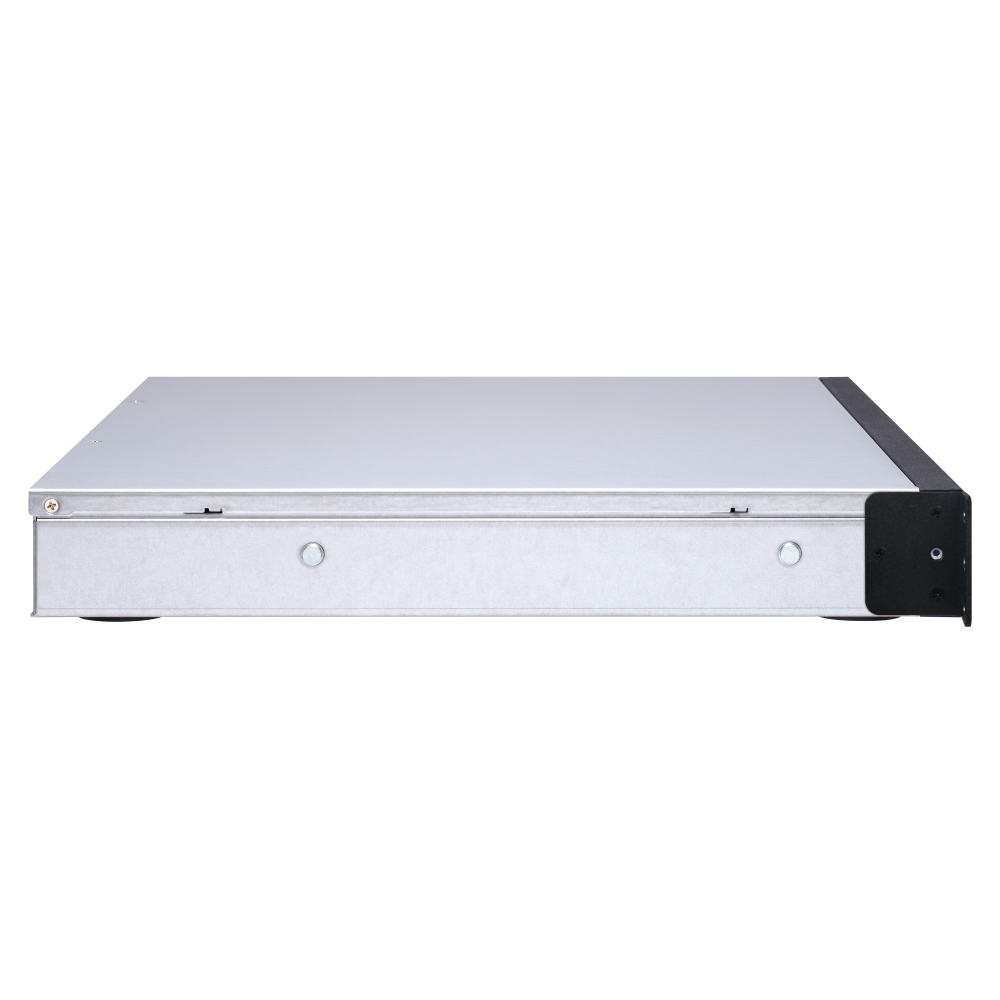

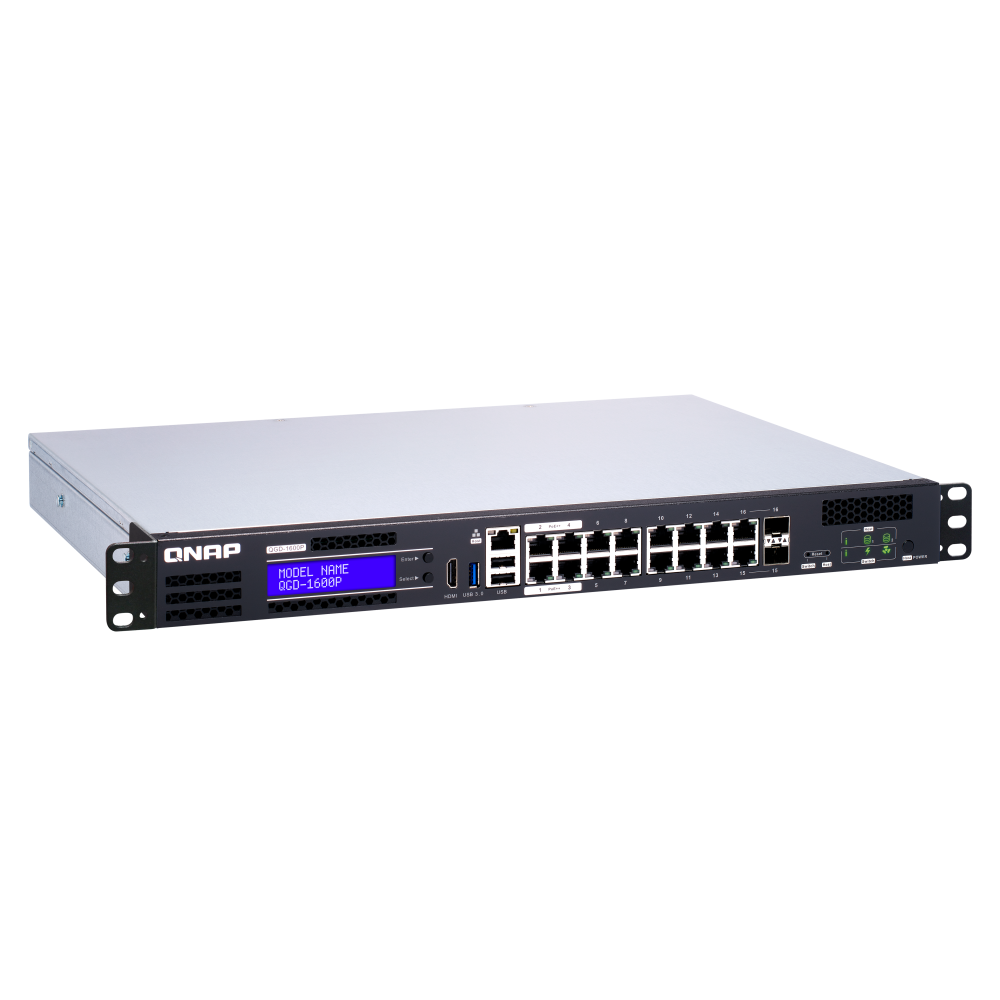

QNAP QGD-1600P-4G Managed PoE Switch
A rackmount web-managed switch with sixteen Gigabit PoE ports, a 360W PoE budget, two SFP/RJ45 combo positions, QTS, two SATA bays and 4GB memory.
PoE switching, storage and application hosting for branch networks
The QNAP QGD-1600P-4G brings managed Gigabit PoE switching, QTS and local storage into one rackmount appliance. It is positioned for surveillance, wireless-network, security and edge applications that need Layer 2 controls, powered-device support and application hosting.
Key features and benefits
Sixteen Gigabit positions
Fourteen RJ45 ports and two SFP/RJ45 combo positions provide flexible copper and fibre connectivity.
PoE++ and PoE+
Ports 1–4 provide the listed 60W output, while ports 5–16 provide the listed 30W output.
360W PoE budget
The stated total PoE power budget supports multiple powered devices within the available limit.
Layer 2 management
VLAN, LACP, QoS, IGMP Snooping and Wake-on-LAN are included in the product positioning.
Two SATA drive bays
Two 2.5-inch SATA bays support the listed solid-state drives and hard disk drives.
PCIe expansion
Two PCIe Gen2 x2 slots support the listed network, QM2, USB and wireless-adapter options.
Who is this model best for?
A strong choice for
- PoE surveillance networks
- Wireless access-point deployments
- QTS and virtualised edge applications
- Managed branch-office networks
- Rackmount Gigabit infrastructure
Consider another model if you need
- You need more than 4GB installed memory
- You need 2.5GbE on the switch ports
- You need more than two SATA bays
Key specifications
- Management type
- Web Managed
- Switch ports
- 14 × 1GbE RJ45; 2 × 1GbE SFP/RJ45 combo
- PoE ports
- 16
- PoE output
- Ports 1–4: 60W; ports 5–16: 30W
- Total PoE power budget
- 360W
- Processor
- Intel Celeron J4115 quad-core 1.8GHz, burst up to 2.5GHz
- Memory
- 4GB (1 × 4GB); 8GB maximum
- Drive bays
- 2 × 2.5-inch SATA
- Switching capacity
- 32Gbps
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 60W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (60W), Ports 5-16 (30W) |
| Total PoE Power Budget | 360W |
| Management Port | 1 x 1GbE |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Supported |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Jumbo Frames | 9k |
Software and system features
| PCIe Slot | Slot 1: PCIe Gen2 (x2) Slot 2: PCIe Gen2 (x2) |
|---|---|
| USB 3.2 Gen 1 port | 1 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| HDMI™ Output | 1 |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| LCD Management | Supported |
| Internal Network Bandwidth | 2 x 1GbE |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
Physical, environmental and power
| Power Supply Description | Internal Power Supply Unit |
|---|---|
| Max. Power Consumption | 418W |
| Input Power Type | AC |
| Fan | System: 2 x 4 cm (12V DC) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 47.2 × 436.2 × 326.2 mm |
| Weight (Net) | 4.41 kg |
| Weight (Gross) | 5.56 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
|---|---|
| Electromagnetic Compliance | CLASS A, UL62368 |
| Warranty | 2 Years |
Processor, memory and storage
| QTS Built-in | Supported |
|---|---|
| CPU | Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphics Processors | Intel® HD Graphics 600 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 4 GB (1 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| M.2 SSD Slots | Optional via PCIe adapter |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
Frequently asked questions about the QGD-1600P-4G
What is the QNAP QGD-1600P-4G?
It is a rackmount web-managed PoE switch with QTS, storage bays and application-hosting capabilities.
How many switch positions does it have?
It has sixteen positions: fourteen 1GbE RJ45 ports and two 1GbE SFP/RJ45 combo positions.
How many PoE ports are included?
PoE is listed on ports 1–16.
What is the total PoE budget?
The stated total PoE power budget is 360W.
Which processor does it use?
It uses an Intel Celeron J4115 quad-core 1.8GHz processor with burst speed up to 2.5GHz.
How much memory is included?
The QGD-1600P-4G includes 4GB as one 4GB module, with a stated maximum of 8GB.
How many drive bays does it have?
It has two 2.5-inch SATA drive bays.
Does it support PCIe expansion?
Yes. Two PCIe Gen2 x2 slots are listed.
What is its switching capacity?
The stated switching capacity is 32Gbps.
What warranty is provided?
It includes a two-year warranty.
Important information
The two SFP/RJ45 interfaces are combo positions.
The product includes a two-year warranty.
