18-Port 10GbE and 2.5GbE Smart Edge Switch

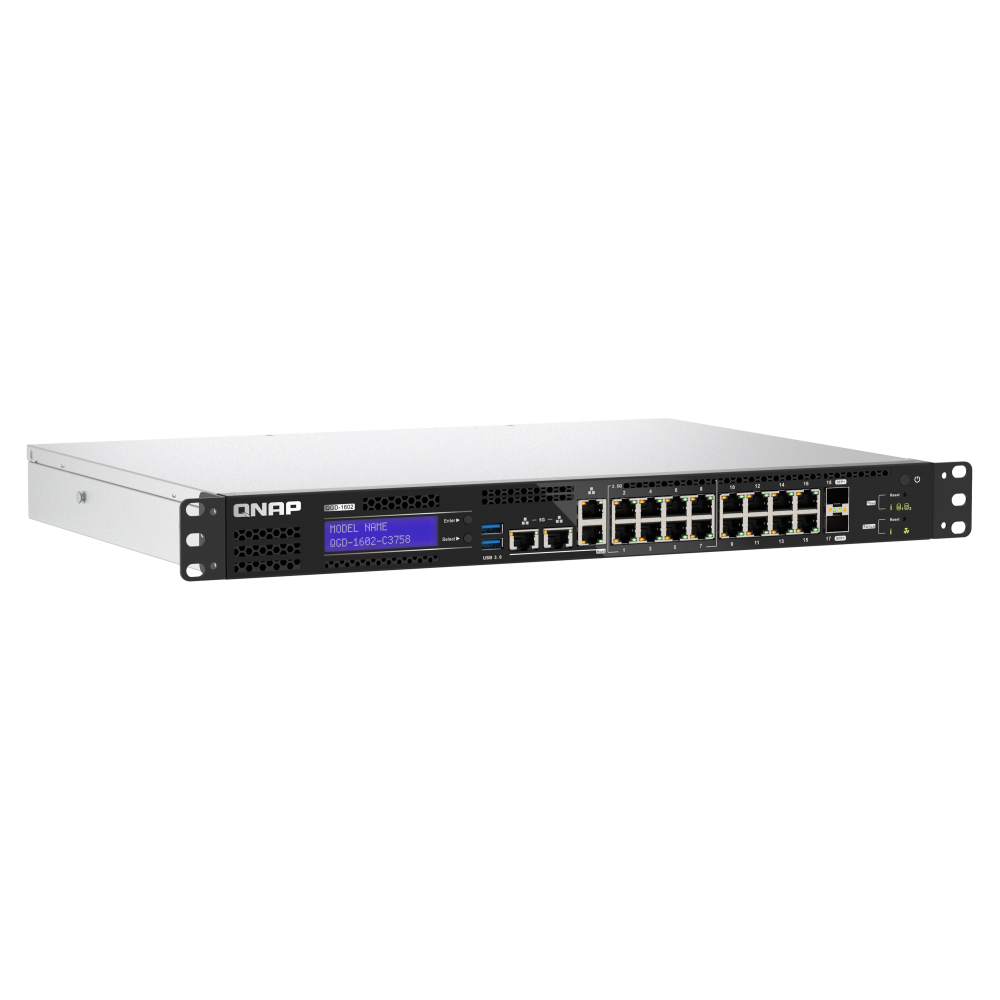

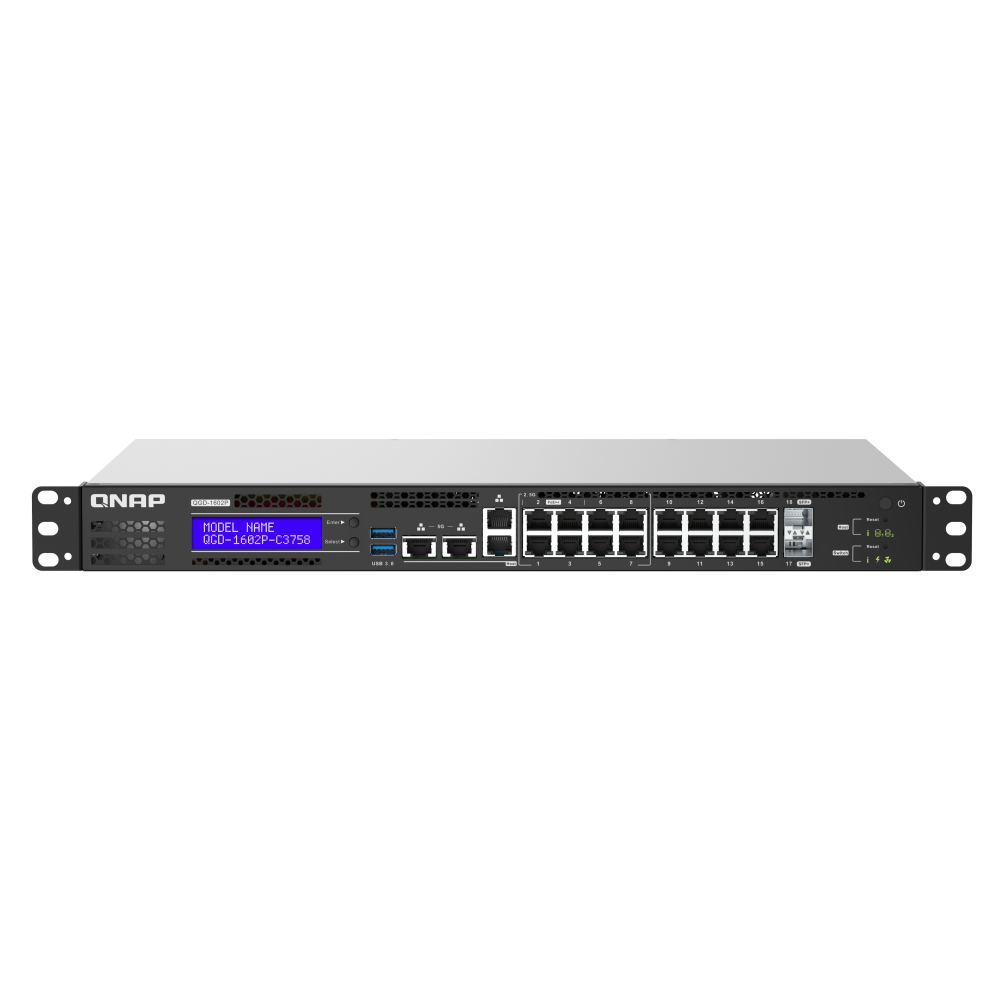

QNAP QGD-1602-C3558-8G Managed Switch
A rackmount web-managed switch with two 10GbE SFP+ ports, eight 2.5GbE ports, eight Gigabit ports, QTS, two SATA drive bays and dual M.2 NVMe slots.
Mixed-speed managed switching with built-in QTS
The QNAP QGD-1602-C3558-8G combines mixed-speed Layer 2 switching with an Intel Atom C3558 processor, 8GB memory, QTS and local storage options. It is positioned for branch-office networking, surveillance, network-security and virtualised edge applications that benefit from switching and application hosting in one rackmount appliance.
Key features and benefits
Eighteen switch ports
Two 10GbE SFP+, eight 2.5GbE RJ45 and eight 1GbE RJ45 interfaces support mixed-speed network connections.
Layer 2 management
VLAN, LACP, QoS, IGMP Snooping and Wake-on-LAN are included in the product positioning.
Intel Atom processing
The Intel Atom C3558 quad-core 2.2GHz processor includes Intel QAT support.
8GB installed memory
The system includes 8GB as one 8GB module, with a stated maximum of 64GB.
Two SATA and two M.2 slots
Two 2.5-inch SATA bays and two PCIe Gen3 x1 M.2 NVMe slots support local storage functions.
PCIe expansion
Two PCIe Gen3 slots support the listed network, QM2, USB and wireless-adapter options.
Who is this model best for?
A strong choice for
- Mixed 10GbE, 2.5GbE and 1GbE networks
- QTS and virtualised edge applications
- Surveillance and network-security use
- Two-bay storage at the network edge
- Rackmount branch-office infrastructure
Consider another model if you need
- You need more than eighteen switch ports
- You need more than two SATA drive bays
- You need a desktop or fanless device
Key specifications
- Management type
- Web Managed
- Switch ports
- 2 × 10GbE SFP+; 8 × 2.5GbE; 8 × 1GbE
- Processor
- Intel Atom C3558 quad-core 2.2GHz
- Memory
- 8GB (1 × 8GB); 64GB maximum
- Management ports
- 2 × 5GbE; 2 × 1GbE
- Non-blocking throughput
- 48Gbps
- Switching capacity
- 96Gbps
- Drive bays
- 2 × 2.5-inch SATA
- M.2 slots
- 2 × NVMe, PCIe Gen3 x1
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 18 |
| 10GbE SFP+ | 2 10G/1G |
| 2.5GbE (RJ45) | 8 |
| 1GbE (RJ45) | 8 |
| Management Port | 2 x 5GbE ; 2 x 1GbE |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capacity | 96Gbps |
| Management Interface | Web |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3ae 10GBASE-SR IEEE 802.3ae 10GBASE-LR IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Jumbo Frames | Supported |
Software and system features
| PCIe Slot | Slot 1: PCIe Gen3 (x4 slot, x2 speed) Slot 2: PCIe Gen3 (x4 slot, x2 speed) |
|---|---|
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| LCD Management | Supported |
| Internal Network Bandwidth | 2 x 10GbE |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
Physical, environmental and power
| Power Supply Description | Internal Power Supply Unit |
|---|---|
| Max. Power Consumption | 100W |
| Input Power Type | AC |
| Fan | System: 3 x 4 cm (12V DC) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed Per System: Warning/Fan |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 44.2 × 435.2 × 327.7 mm |
| Weight (Net) | 4.37 kg |
| Weight (Gross) | 5.52 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI RCM |
|---|---|
| Electromagnetic Compliance | CLASS A, UL62368 |
| Warranty | 2 Years |
Processor, memory and storage
| QTS Built-in | Supported |
|---|---|
| CPU | Intel® Atom® C3558 quad-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Intel QAT Support | Supported |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 8 GB (1 x 8 GB) |
| Maximum Memory | 64 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| M.2 SSD Slots | 2 (NVMe, PCIe Gen3 x 1) |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
Frequently asked questions about the QGD-1602-C3558-8G
What is the QNAP QGD-1602-C3558-8G?
It is a rackmount web-managed switch with QTS, storage bays and application-hosting capabilities.
How many switch ports does the QGD-1602-C3558-8G have?
It has eighteen switch ports: two 10GbE SFP+, eight 2.5GbE RJ45 and eight 1GbE RJ45.
Which processor does the QGD-1602-C3558-8G use?
It uses an Intel Atom C3558 quad-core 2.2GHz processor.
How much memory does the QGD-1602-C3558-8G include?
It includes 8GB as one 8GB module, with a stated maximum of 64GB.
What is the switching capacity of this model?
The stated switching capacity is 96Gbps.
How is the QGD-1602-C3558-8G managed?
It is web managed and includes QTS.
How many drive bays does it have?
It has two 2.5-inch SATA drive bays.
Does it have M.2 slots?
Yes. It has two NVMe M.2 slots using PCIe Gen3 x1.
Which management ports are included?
The listed management ports are two 5GbE and two 1GbE connections.
What warranty is provided?
The QGD-1602-C3558-8G includes a two-year warranty.
Important information
The switch-port layout comprises two 10GbE SFP+, eight 2.5GbE RJ45 and eight 1GbE RJ45 ports.
The product includes a two-year warranty.
