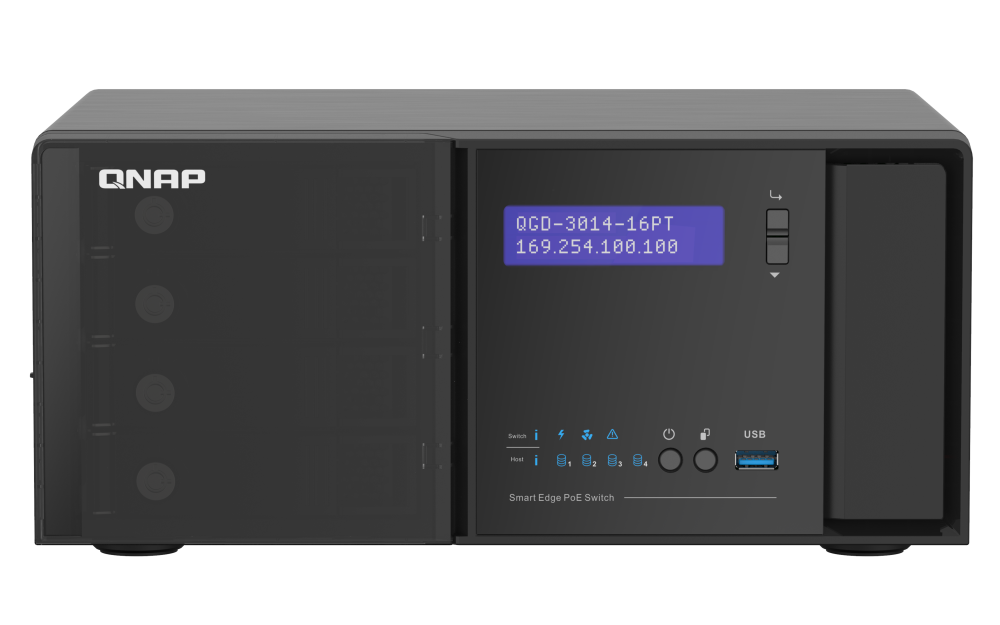

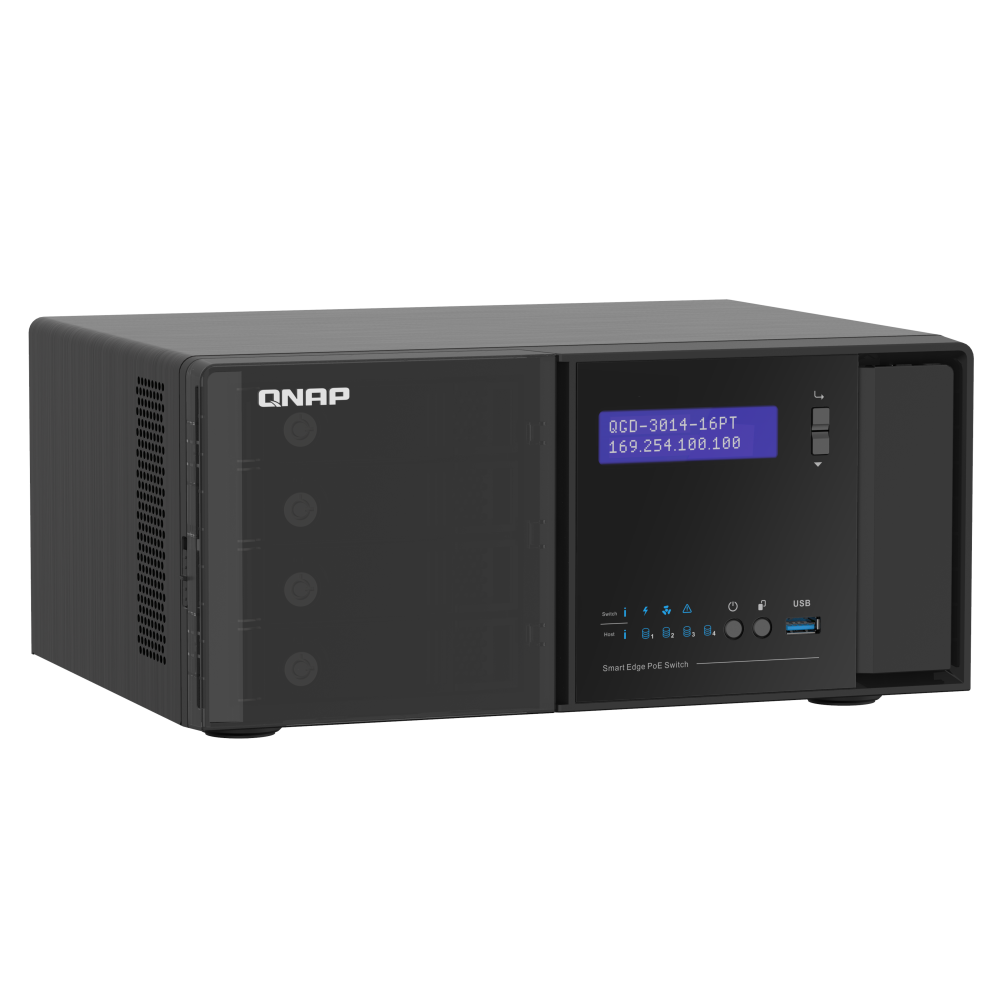

16-Port Gigabit PoE Smart Edge Switch
QNAP QGD-3014-16PT-8G Managed Switch
A desktop web-managed PoE switch with sixteen Gigabit PoE ports, two SFP/RJ45 combo positions, two 2.5GbE host-management ports, four SATA drive bays and QTS.
PoE switching, storage and application hosting in one appliance
The QNAP QGD-3014-16PT-8G combines a web-managed Gigabit PoE switch with QTS, four SATA bays and a quad-core Intel Celeron processor. It is designed for surveillance, video storage, remote backup and network applications that benefit from switching, storage and compute functions in one desktop device.
Key features and benefits
Sixteen Gigabit PoE ports

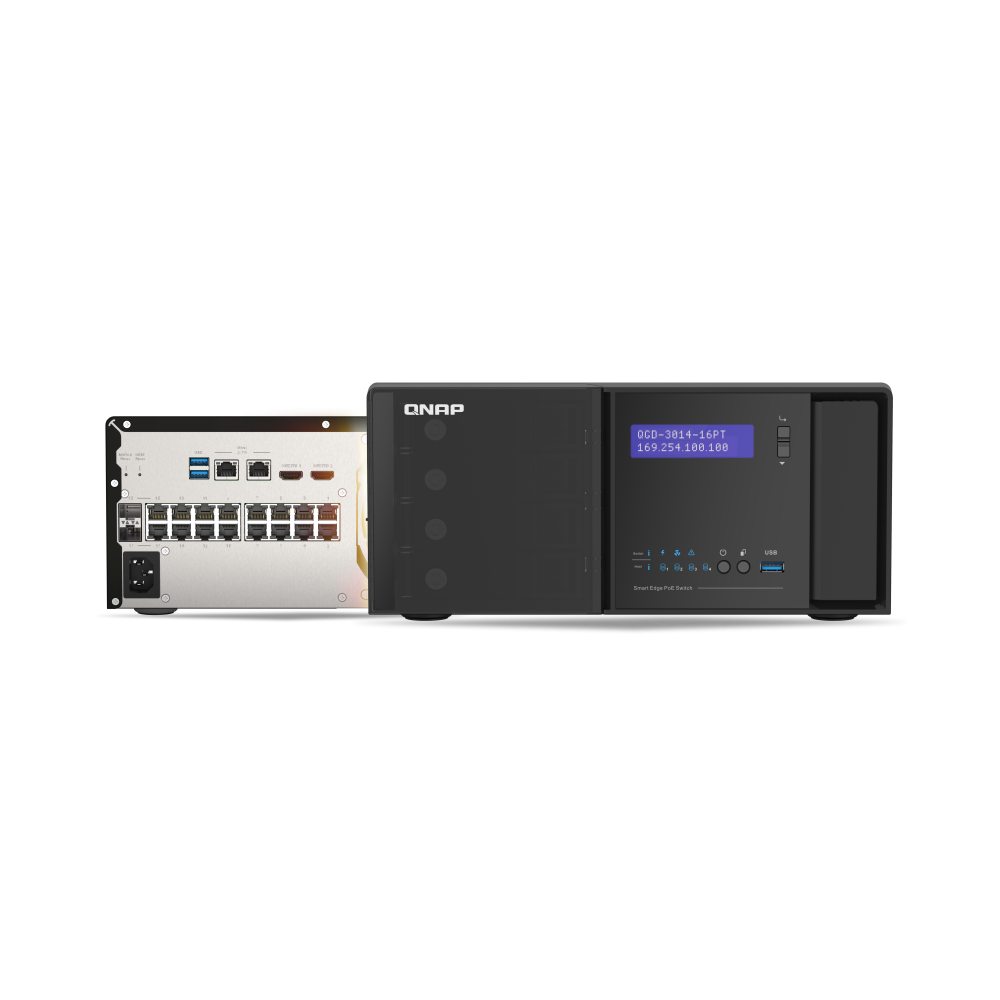

Fourteen RJ45 ports and two SFP/RJ45 combo positions provide PoE+ across ports 1–16.
140W PoE budget
The stated total PoE power budget is 140W, with up to 30W on ports 1–16.
Four SATA drive bays
Four 3.5-inch SATA bays support the listed 2.5-inch and 3.5-inch solid-state drives and hard disk drives.
QTS and application hosting
QTS is built in, with virtual machines, QVR Pro, HBS 3 and QuWAN included in the product positioning.
Dual M.2 SATA slots
Two M.2 SATA 2280 slots support the listed SSD-cache function.
HDMI output
Two HDMI outputs are listed, alongside 4K 60Hz surveillance-playback positioning.
Who is this model best for?
A strong choice for
- PoE surveillance deployments
- Video storage and direct monitoring
- Combined switching and QTS applications
- Remote backup and QuWAN use
- Desktop smart-edge installations
Consider another model if you need
- You need 2.5GbE on the sixteen switch ports
- You require more than four drive bays
- You need a rackmount chassis
Key specifications
- Management type
- Web Managed
- Switch ports
- 14 × 1GbE RJ45; 2 × 1GbE SFP/RJ45 combo
- PoE
- 16 ports; up to 30W per port
- Total PoE power budget
- 140W
- Host-management ports
- 2 × 2.5GbE
- Processor
- Intel Celeron J4125, quad-core 2.0GHz, burst up to 2.7GHz
- Memory
- 8GB (2 × 4GB); 8GB maximum
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- M.2 slots
- 2 × M.2 SATA 2280
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE Power Output | Ports 1-16 (Max 30W) |
| Total PoE Power Budget | 140W |
| Management Port | 2 x 2.5GbE |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Supported |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization IEEE 802.3af/at Power-over-Ethernet (PoE) |
| Jumbo Frames | Supported |
Software and system features
| USB 3.2 Gen 1 port | 3 |
|---|---|
| HDMI™ Output | 2 |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| LCD Management | Supported |
| Internal Network Bandwidth | 2 x 1GbE |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
Physical, environmental and power
| Power Supply Description | Internal Power Supply Unit |
|---|---|
| Max. Power Consumption | 250W |
| Input Power Type | AC |
| Fan | System: 12 x 12 cm (12V DC) |
| Form Factor | Desktop |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 130 × 295 × 224.8 mm |
| Weight (Net) | 4.08 kg |
| Weight (Gross) | 5.34 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Processor, memory and storage
| QTS Built-in | Supported |
|---|---|
| CPU | Intel Celeron ® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphics Processors | Intel® HD Graphics 600 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 8 GB (2 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives 3.5-inch bays: 3.5-inch solid-state drives 3.5-inch hard disk drives |
| M.2 SSD Slots | 2 (M.2 SATA 2280) |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
Frequently asked questions about the QGD-3014-16PT-8G
What is the QNAP QGD-3014-16PT-8G?
It is a desktop web-managed PoE switch with QTS, storage bays and application-hosting capabilities.
How many switch ports does the QGD-3014-16PT-8G have?
It has sixteen Gigabit switch positions: fourteen RJ45 ports and two SFP/RJ45 combo positions.
How many PoE ports does the QGD-3014-16PT-8G provide?
It provides PoE on ports 1–16, with up to 30W per port.
What is the PoE budget of the QGD-3014-16PT-8G?
The stated total PoE power budget is 140W.
Which processor does the QGD-3014-16PT-8G use?
It uses an Intel Celeron J4125 quad-core 2.0GHz processor with burst speed up to 2.7GHz.
How much memory does the QGD-3014-16PT-8G include?
It includes 8GB as two 4GB modules, and the stated maximum is 8GB.
How many drive bays does the QGD-3014-16PT-8G have?
It has four 3.5-inch SATA drive bays.
Does the QGD-3014-16PT-8G have M.2 slots?
Yes. It has two M.2 SATA 2280 slots.
Which host-management ports are included?
Two 2.5GbE host-management ports are listed.
What warranty is provided with the QGD-3014-16PT-8G?
It includes a two-year warranty.
Important information
The two SFP/RJ45 interfaces are combo positions.
The system memory is listed as 8GB installed and 8GB maximum.
The product includes a two-year warranty.
