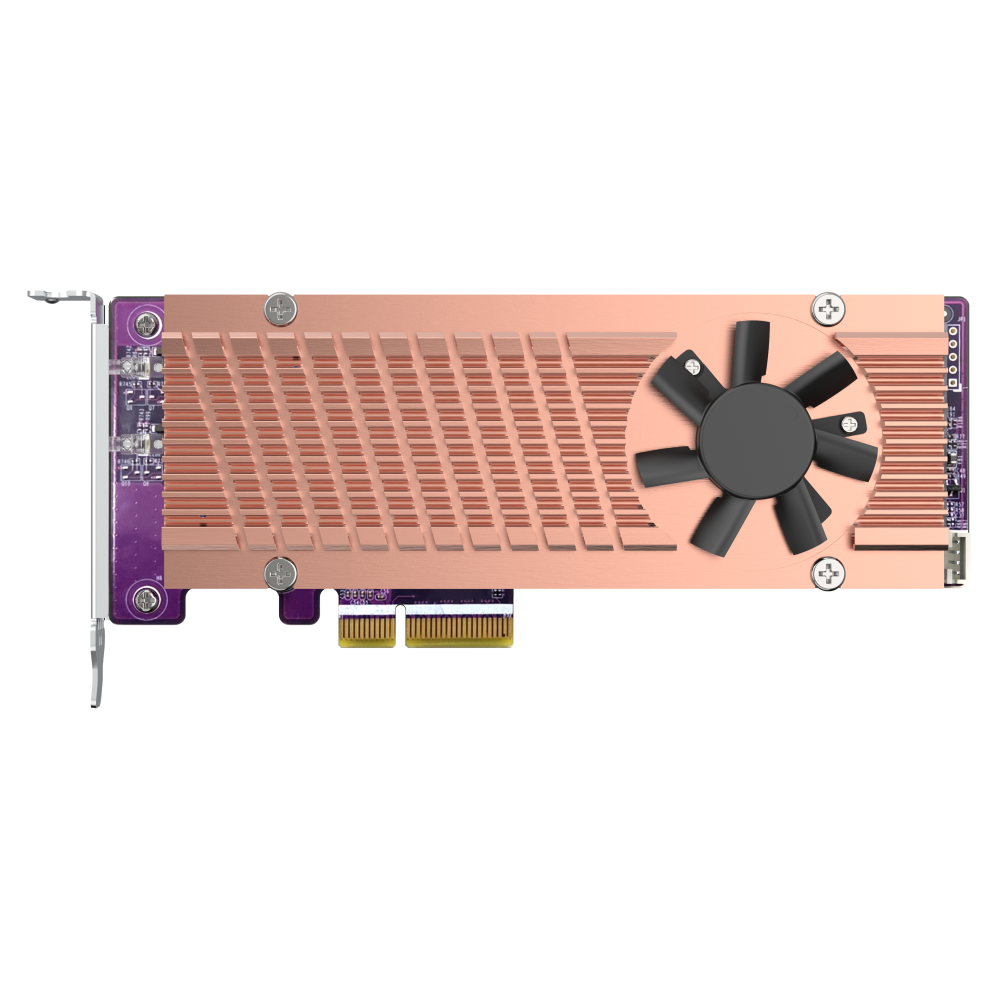

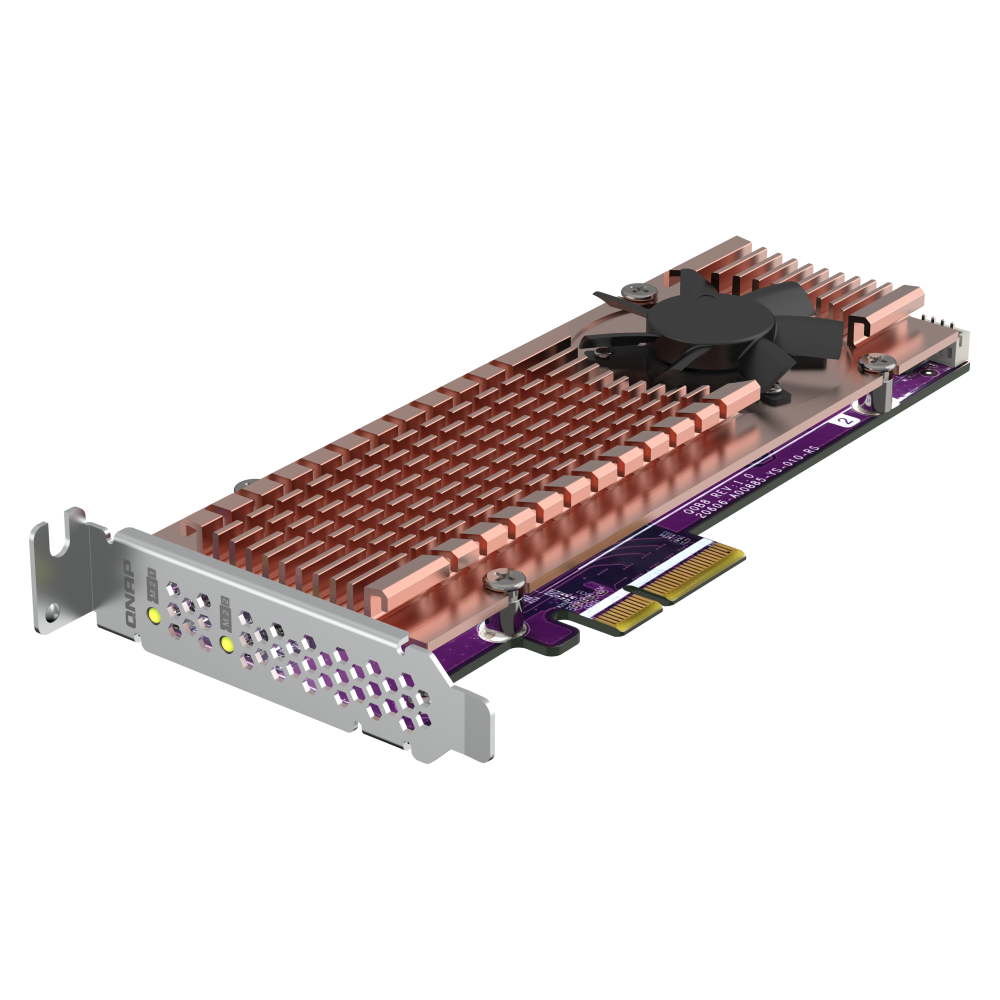

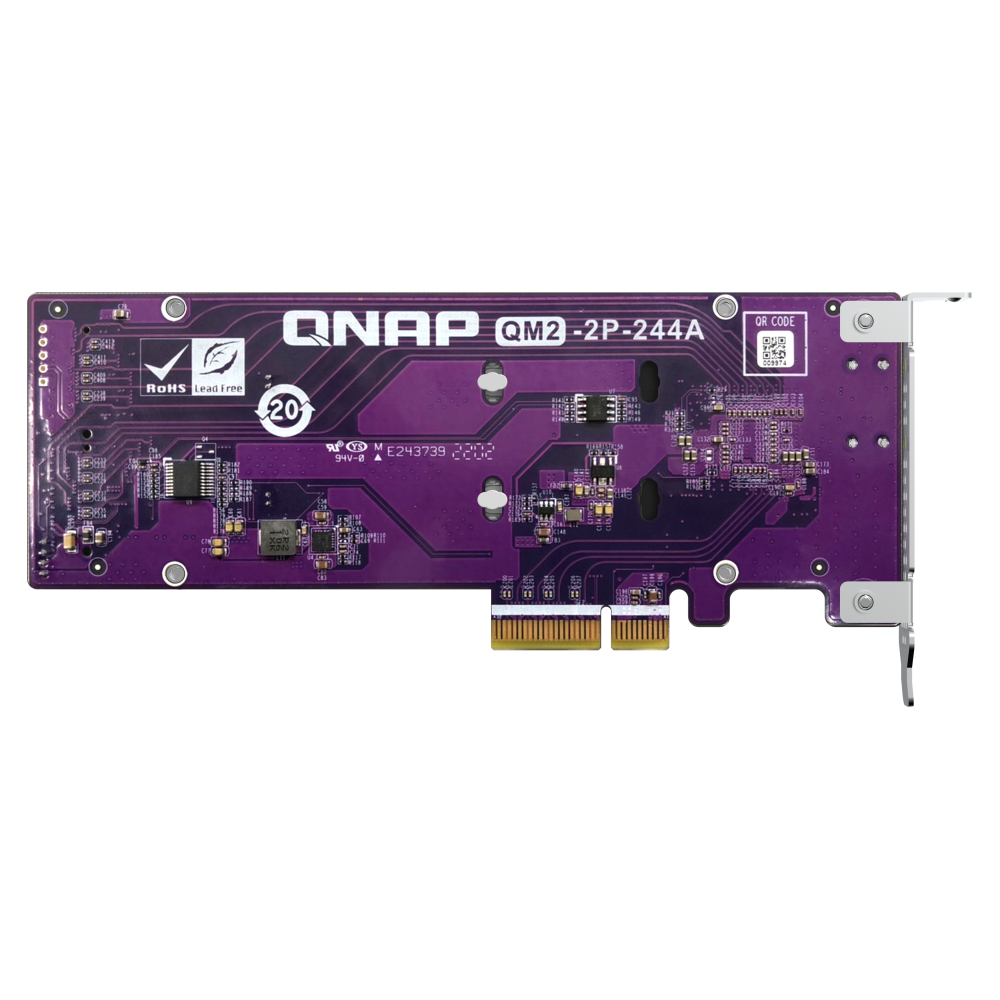

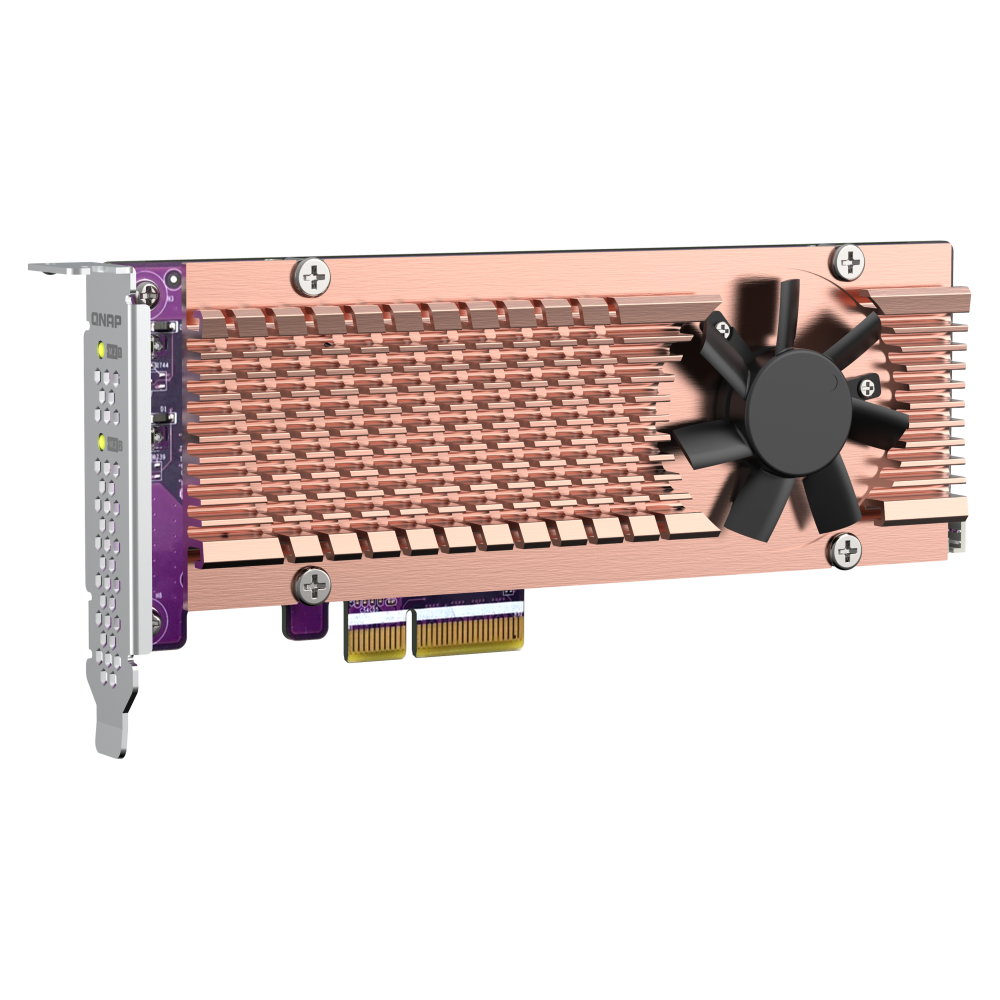

Dual M.2 22110/2280 PCIe NVMe SSD expansion card
Use a budget-friendly QM2-2P-244A M.2 PCIe 2.0 expansion card to add NVMe SSD storage to your QNAP NAS.
-
PCIe 2.0
PCIe Gen2 x4 provides up to 16 Gbps transfer speeds to your QNAP NAS.
-
Ready-to-use
No drivers or extra software are required.
-
SSD cache & volume
Configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS performance.
-
Efficient cooling module
Keeps your SSDs at optimal temperature for dependable high performance.
-
Tool-less design
M.2 SSDs can be easily installed in your NAS.
-
LED indicators & thermal sensors
Monitor the real-time status and temperatures of the M.2 SSDs.
Specification
| Connector | 2 x M.2 22110 or 2280 PCIe (Gen2 x 4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen2 x 4 |

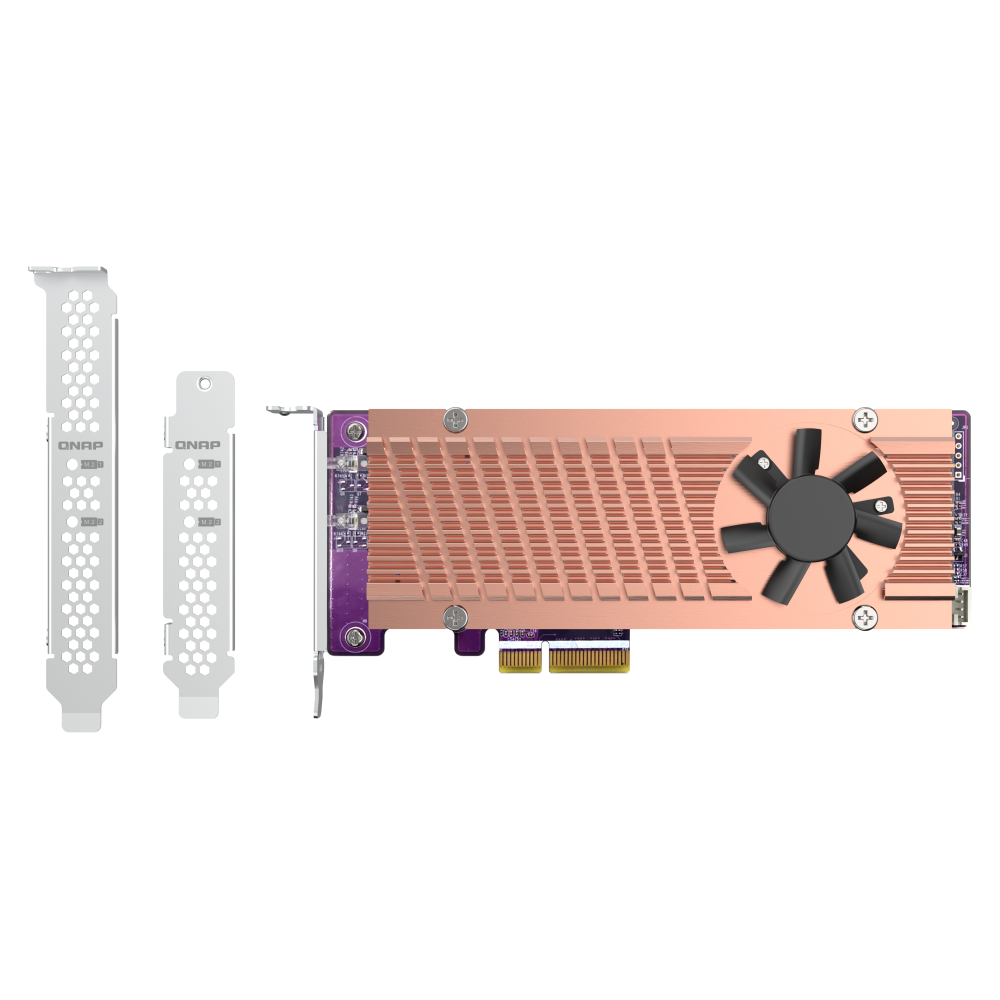

| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 147.15 × 20.6 × 68.9 mm |
| Note [PC] | Note: The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. |
| Architecture Diagram |  |
| Standard Warranty | 1 year |
