Dual M.2 22110/2280 PCIe NVMe SSD expansion card

Add NVMe SSDs to your QNAP NAS with the QM2-2P-344A to increase storage capacity and boost performance.

PCIe 3.0

PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds to your NAS.
Ready-to-use

No drivers or extra software are required.
SSD cache & volume

Configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS performance.

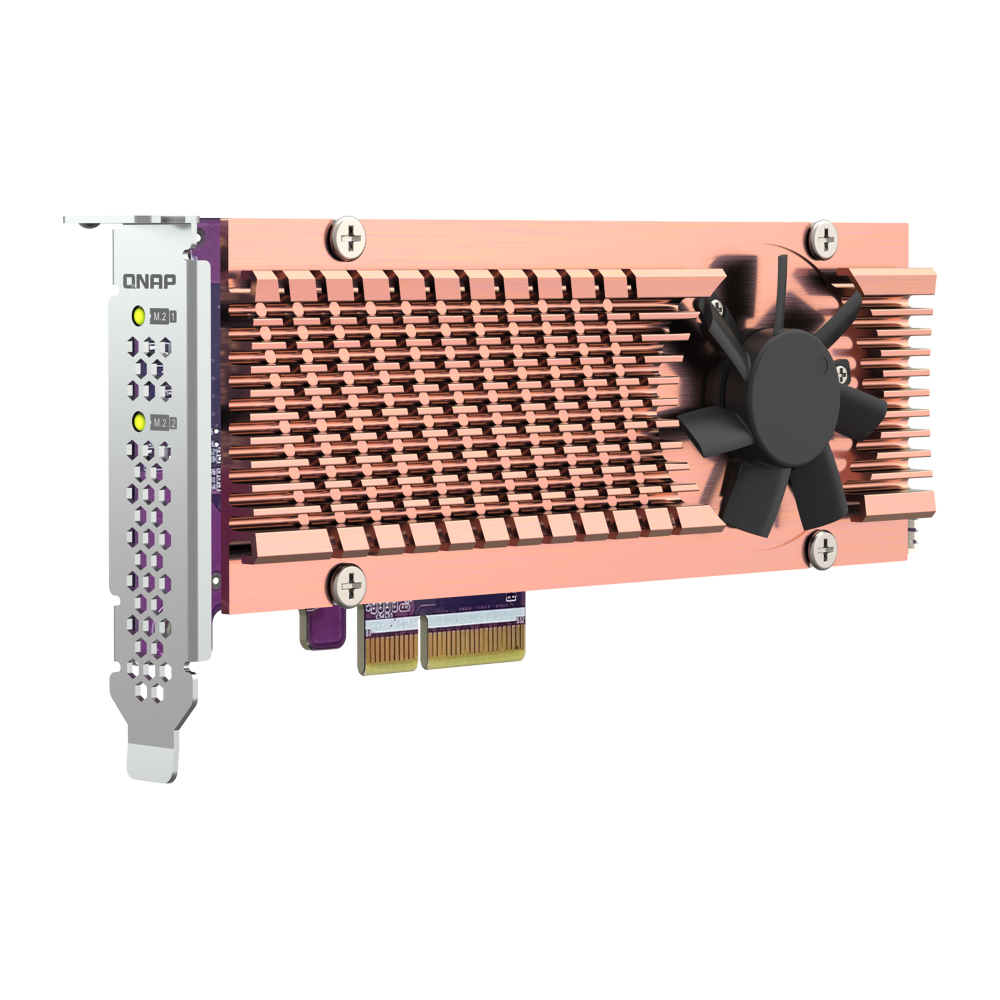

Efficient cooling module

Keeps your SSDs cool and maintains high performance.
Tool-less design

Easily install M.2 SSDs in your NAS with a screw-less, easy-to-use locking method.

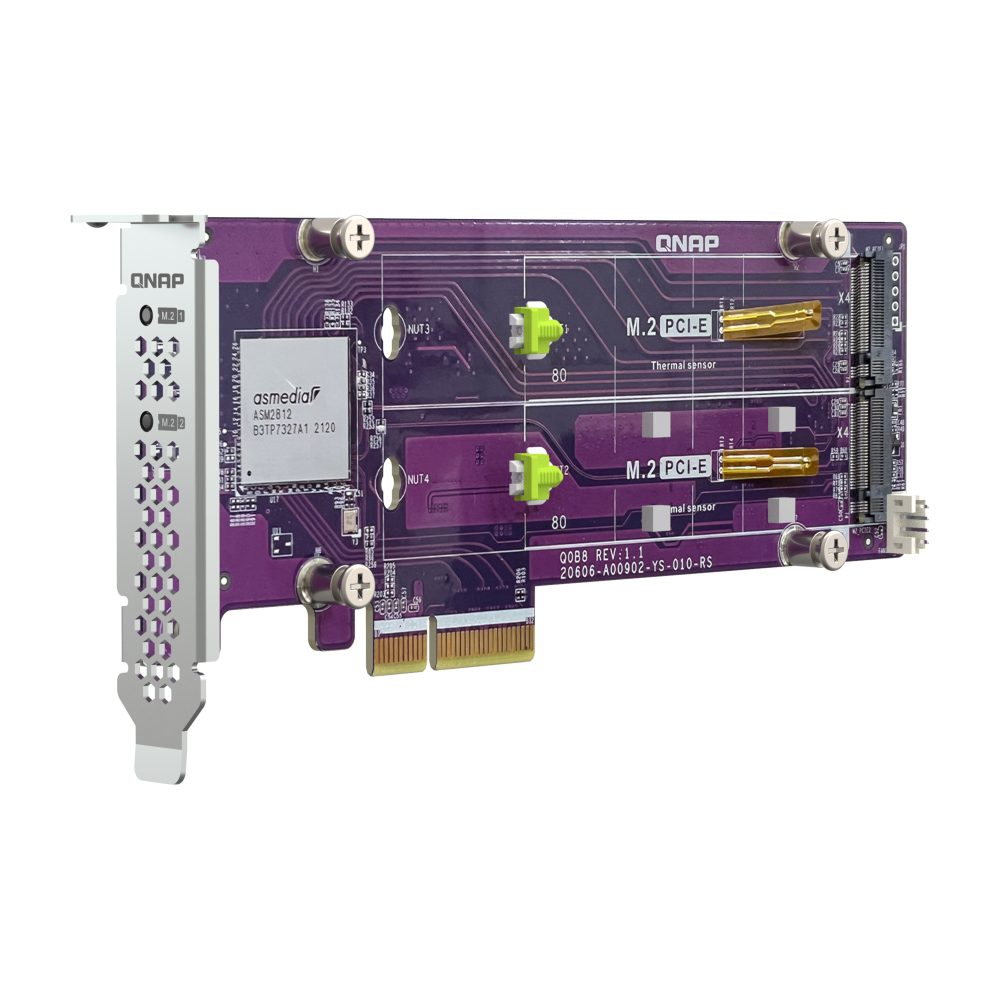

LED indicators & thermal sensors

Monitor the real-time status and temperatures of the M.2 SSDs.

Specification

Connector	2 x M.2 22110 or 2280 PCIe (Gen3 x 4) NVMe SSD slots
PCIe and Lanes	PCIe Gen3 x 4

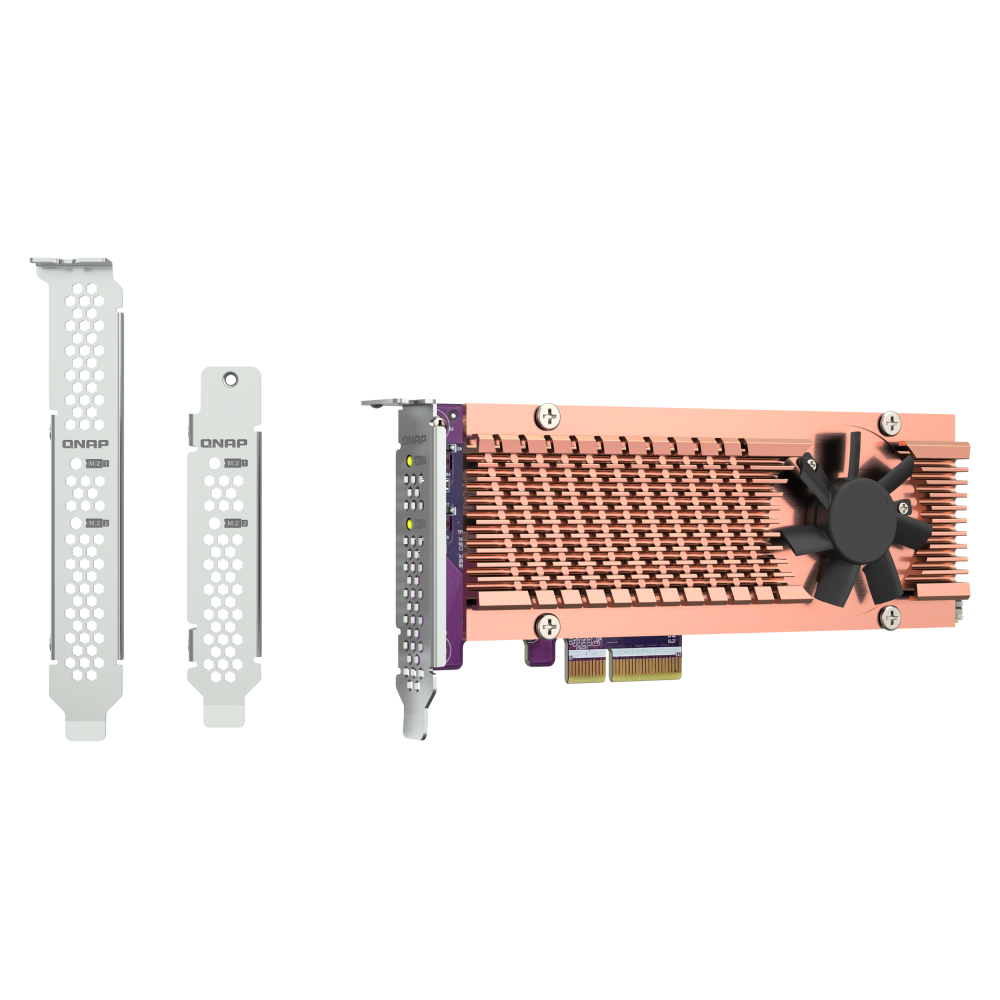

Bracket	Low-profile (default). Low-profile flat and Full-height brackets are also included.
Dimensions (L x W x H)	170.5 × 19.3 × 68.9 mm
Note [PC]	Note: The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. Please refer to the technical manual of your system or consult with the vendor.
Architecture Diagram
Standard Warranty	1 year

QNAP QM2-2P-344A ,Dual-port M.2 PCIe SSD Expansion Card

$323.00

Tax included.

SKU: QM2-2P-344A

Select quantity

Ask for Availability

Dual M.2 22110/2280 PCIe NVMe SSD expansion card

Add NVMe SSDs to your QNAP NAS with the QM2-2P-344A to increase storage capacity and boost performance.

PCIe 3.0

PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds to your NAS.
Ready-to-use

No drivers or extra software are required.
SSD cache & volume

Configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS performance.
Efficient cooling module

Keeps your SSDs cool and maintains high performance.
Tool-less design

Easily install M.2 SSDs in your NAS with a screw-less, easy-to-use locking method.
LED indicators & thermal sensors

Monitor the real-time status and temperatures of the M.2 SSDs.

Connector	2 x M.2 22110 or 2280 PCIe (Gen3 x 4) NVMe SSD slots
PCIe and Lanes	PCIe Gen3 x 4
Bracket	Low-profile (default). Low-profile flat and Full-height brackets are also included.
Dimensions (L x W x H)	170.5 × 19.3 × 68.9 mm
Note [PC]	Note: The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. Please refer to the technical manual of your system or consult with the vendor.
Architecture Diagram
Standard Warranty	1 year
