QM2 series PCIe cards add support for M.2 NVMe SSDs to a QNAP NAS, allowing users to configure SSD caching, a caching pool, or an auto-tiering volume to improve overall NAS performance.

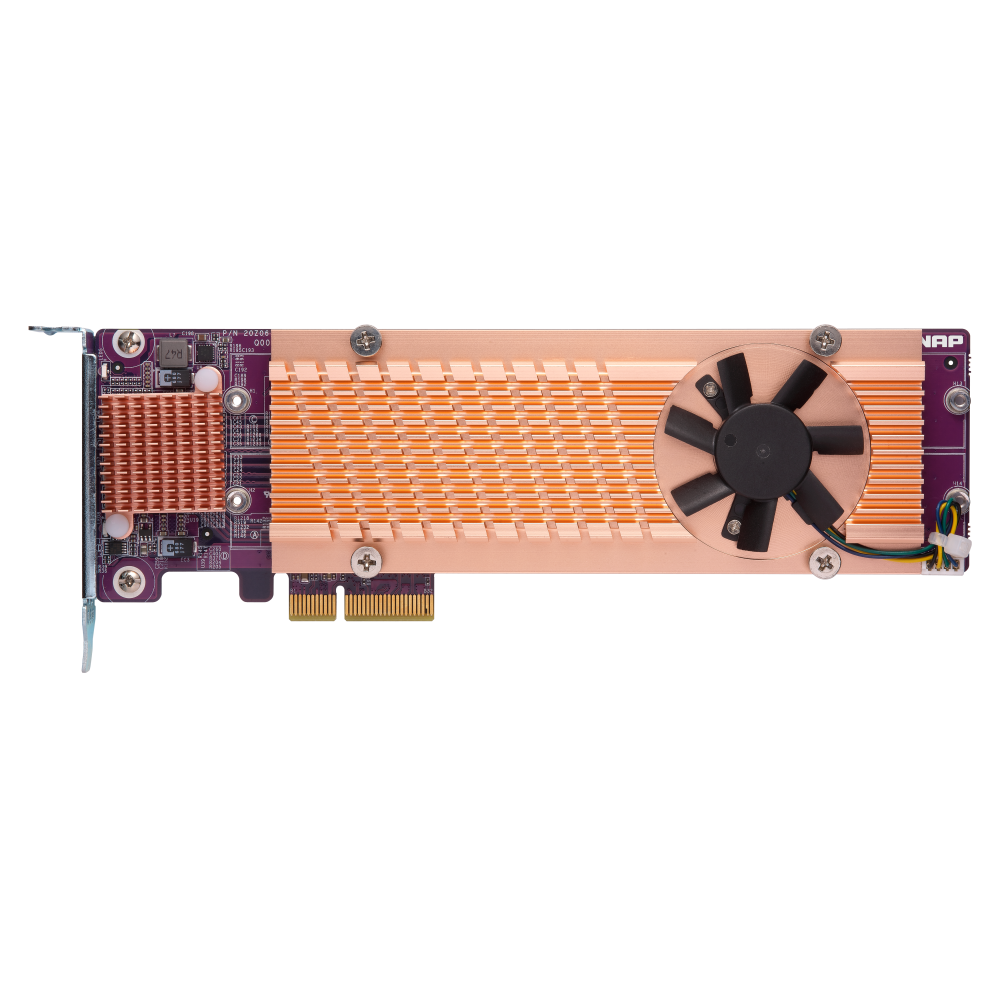

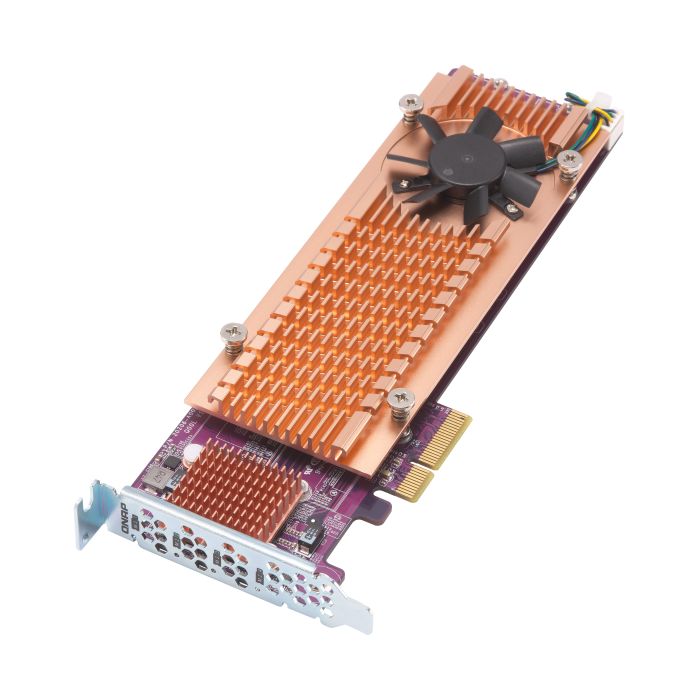

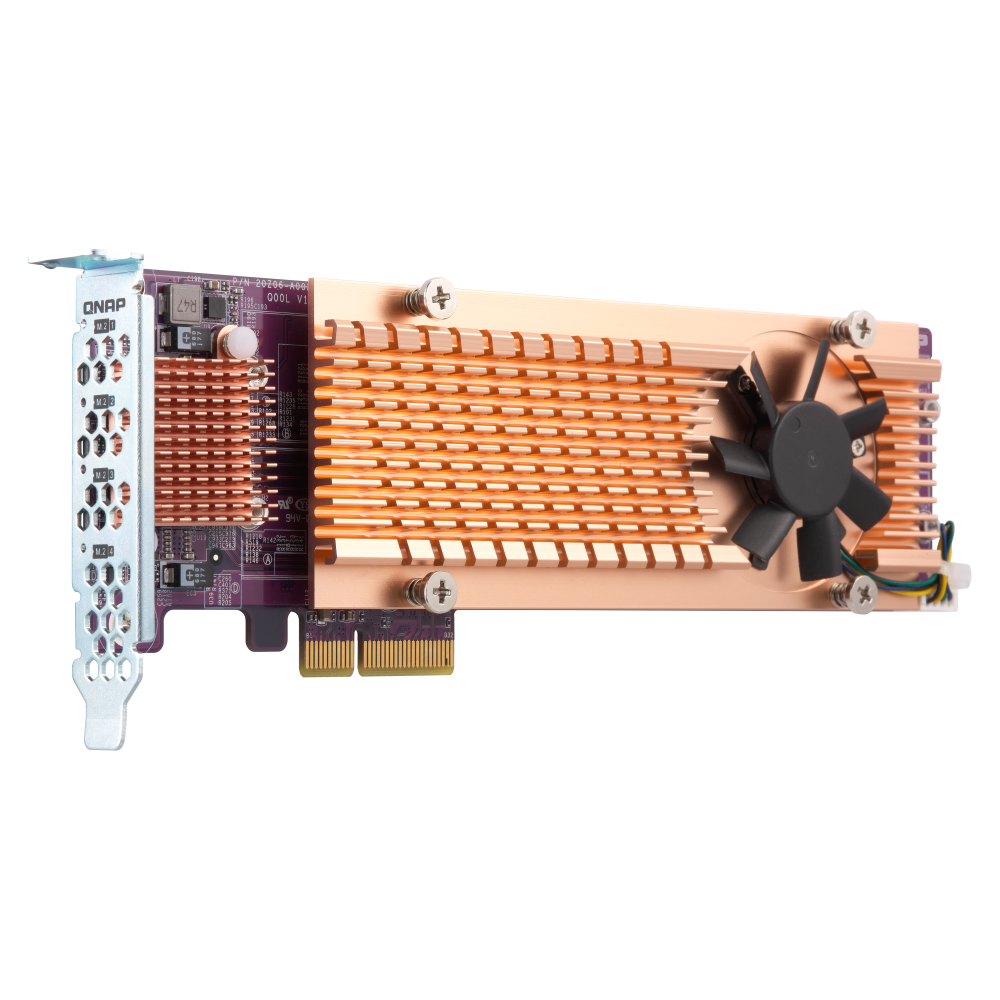

Upgrade your QNAP NAS performance with the QM2-4P-342 Quad M.2 2280 PCIe SSD Expansion Card. Boost your storage experience by adding support for M.2 NVMe SSDs, allowing you to configure SSD caching, a caching pool, or an auto-tiering volume, providing a significant performance increase.
Specification
| Connector | 4 x M.2 2280 PCIe (Gen3 x 2) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x 4 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 204.95 × 68.9 × 20.6 mm |
| Form factor | Low-profile |
| Note [NAS] |
Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). |
| Note [PC] | Note: The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. |
| Architecture Diagram |  |
| Standard Warranty | 1 year |
