8-port 2.5GbE unmanaged switch

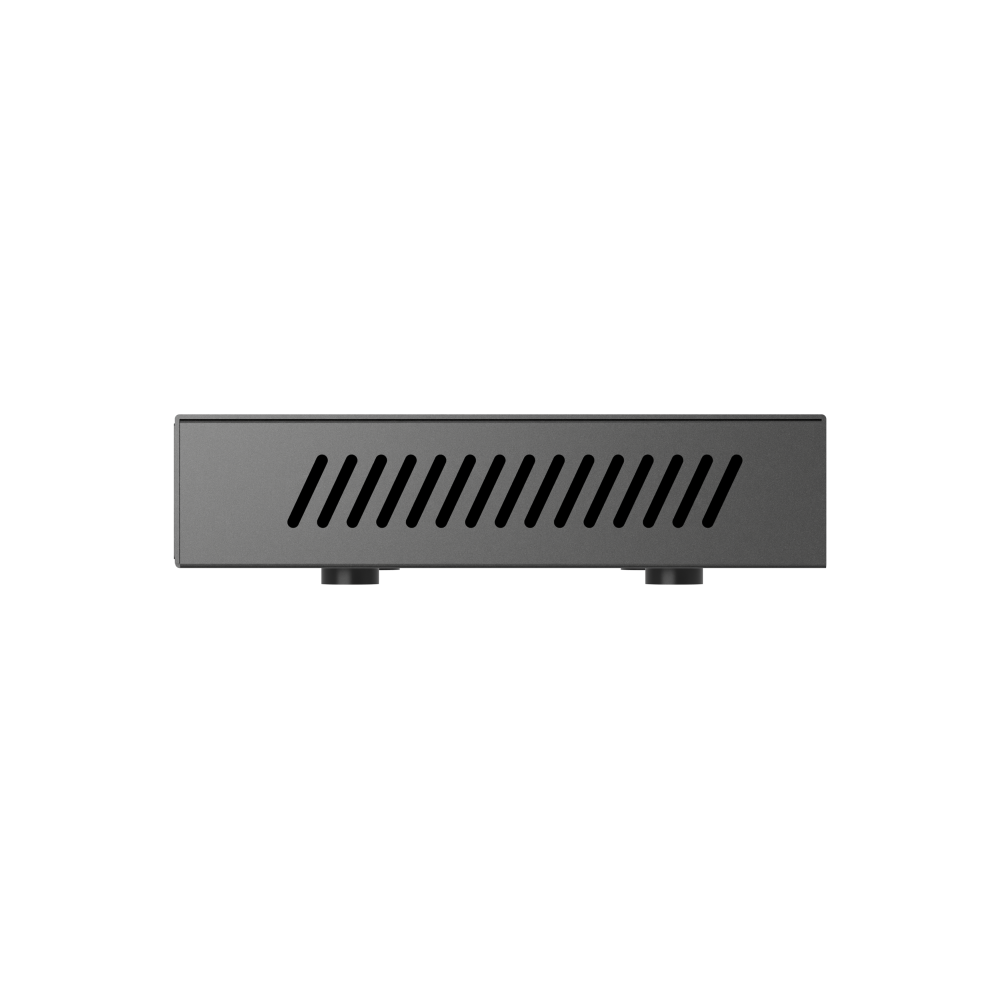

QNAP QSW-1108-8T-R2 Multi-Gig Network Switch
An affordable, compact desktop switch with eight 2.5GbE RJ45 ports for upgrading home and office networks without complex configuration.
A simple 2.5GbE upgrade for home and office networks
The QNAP QSW-1108-8T-R2 is an unmanaged eight-port Multi-Gig switch designed to improve file transfers, backups, media streaming and gaming. Its ports automatically negotiate 2.5G, 1G or 100M speeds, providing plug-and-play connectivity for mixed-speed network devices.
Key features and benefits
Eight 2.5GbE ports
Connect up to eight wired devices through RJ45 ports supporting 2.5G, 1G and 100M speeds.
Plug-and-play setup
The unmanaged design automatically negotiates the appropriate supported speed for each connected device.
40Gbps switching capacity
A stated 40Gbps switching capacity and 20Gbps total non-blocking throughput support multi-device network traffic.
Quiet desktop operation
The compact fanless design reduces operating noise for desks, workspaces and indoor environments.
Loop protection
Loop detection and blocking are designed to prevent disruptions caused by looped network connections.
12K Jumbo Frames
Jumbo Frame support can improve the efficiency of large file transfers on a suitably configured network.
Who is the QNAP QSW-1108-8T-R2 best for?
A strong choice for
- Home and small-office 2.5GbE network upgrades
- Multi-Gig file backups and transfers
- Media streaming and gaming networks
- Wi-Fi 6 or Wi-Fi 6E network environments
- Workspaces requiring quiet, fanless operation
Consider another model if you need
- Managed network configuration and controls
- Network speeds above 2.5GbE
- More than eight wired network ports
- A rackmount rather than desktop form factor
Key specifications
- Management
- Unmanaged
- Ports
- 8 × 2.5GbE RJ45
- Supported port speeds
- 2.5G / 1G / 100M
- Switching capacity
- 40Gbps
- Non-blocking throughput
- 20Gbps
- Jumbo Frames
- 12K
- Maximum power consumption
- 12W
- Dimensions
- 26 × 160 × 110 mm
- Net weight
- 0.5 kg
- Warranty
- 2 Years
Full technical specifications
View all supplied technical specifications
| Management Type | Unmanaged |
|---|---|
| Number of Ports | 8 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 4K |
| Total Non-Blocking Throughput | 20Gbps |
| Switching Capacity | 40Gbps |
| Energy Efficient Ethernet | IEEE 802.3az compliant |
| Fanless | Supported |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 26 × 160 × 110 mm |
| Weight (Net) | 0.5 kg |
| Weight (Gross) | 0.9 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 10~90% Non-condensing |
| Certifications | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
Frequently asked questions about the QNAP QSW-1108-8T-R2
What is the QNAP QSW-1108-8T-R2?
The QNAP QSW-1108-8T-R2 is an unmanaged desktop network switch with eight 2.5GbE RJ45 ports.
Does the QNAP QSW-1108-8T-R2 require configuration?
No configuration is required for normal operation. The unmanaged switch automatically negotiates 2.5G, 1G or 100M speeds with connected devices.
How many ports does the QNAP QSW-1108-8T-R2 have?
It has eight RJ45 network ports, and each supports 2.5G, 1G and 100M speeds.
What is its switching capacity?
The supplied specification lists 40Gbps switching capacity and 20Gbps total non-blocking throughput.
Is the QNAP QSW-1108-8T-R2 fanless?
Yes. The supplied specification identifies a fanless desktop design.
Does it support Jumbo Frames?
Yes. The QNAP QSW-1108-8T-R2 supports 12K Jumbo Frames.
What are its dimensions?
The supplied dimensions are 26 × 160 × 110 mm (height × width × depth), with a net weight of 0.5 kg.
What warranty is supplied?
The supplied product information lists a 2-year warranty.
