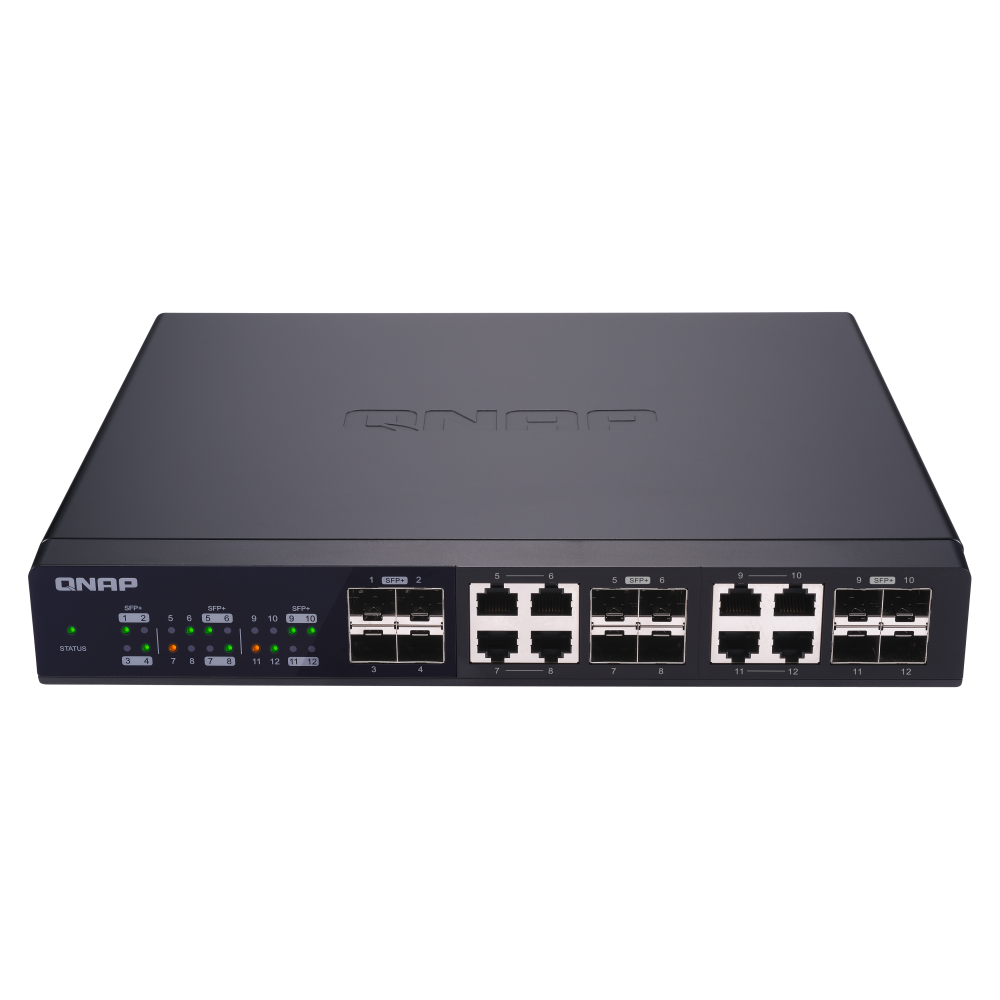

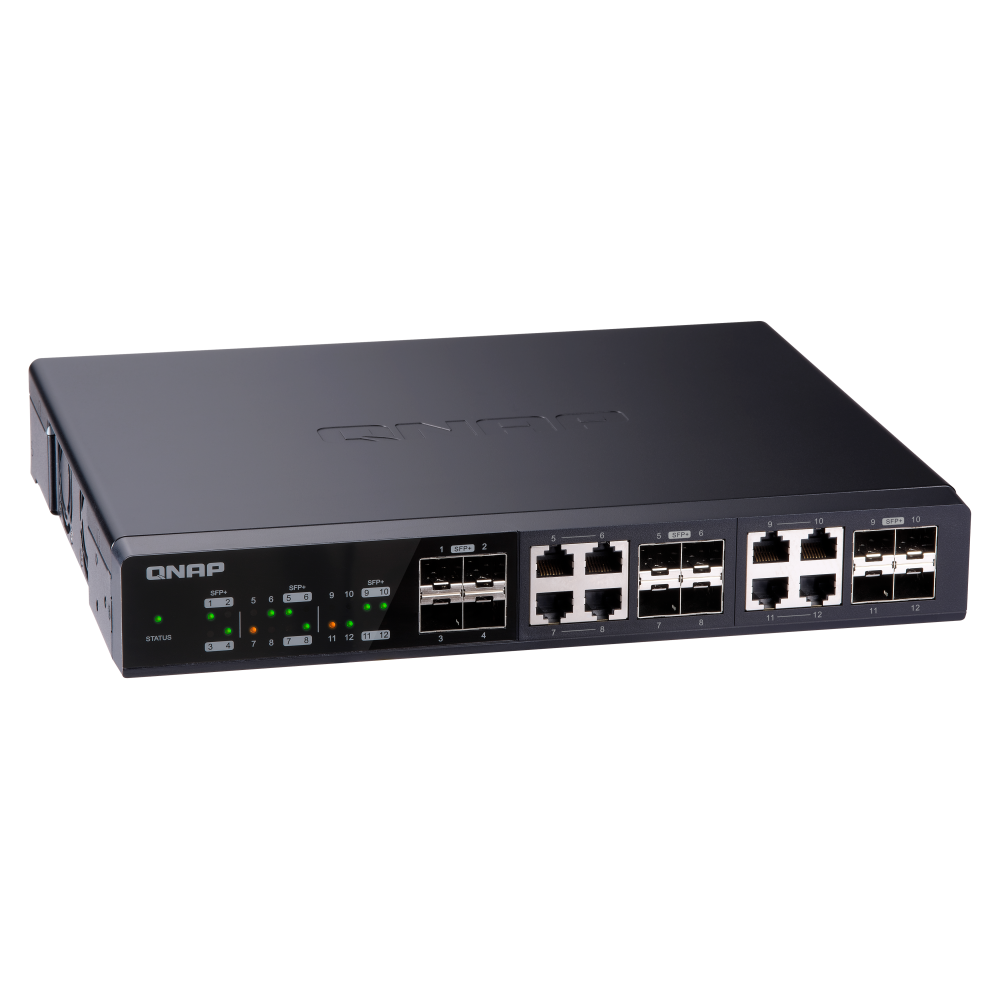

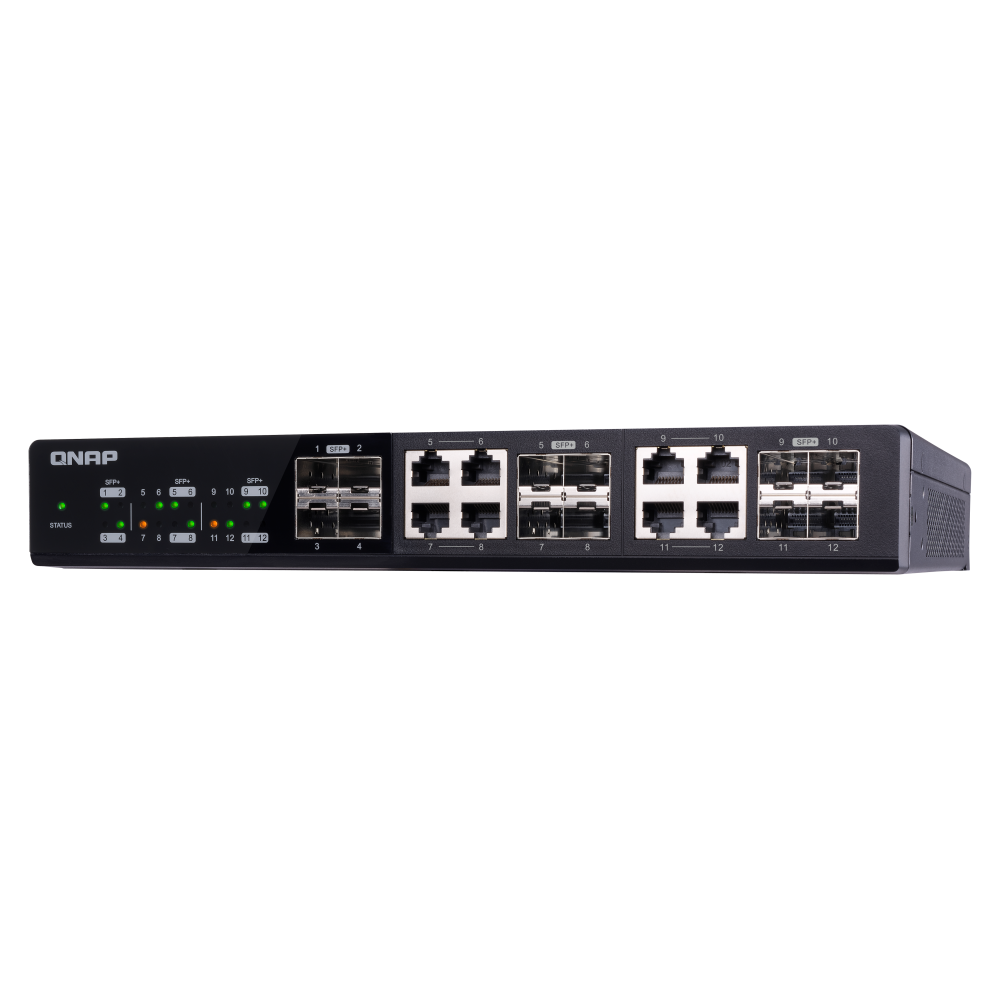

The QNAP QSW-1208-8C is a 12-port 10GbE unmanaged switch, allowing you to instantly upgrade your network environment at a cost-effective price. The QSW-1208-8C supports 10GBASE-T and NBASE-T standards, allowing you to take advantage of higher network speeds with your existing Cat 5e and 6a cables. Both SFP+ (fiber) and RJ45 (copper) ports are available (with 8 combo ports) for servicing a range of network needs. With high performance, low latency and superb functionality, the QSW-1208-8C is the ideal choice for upgrading your home or business network to support 10GbE connections. The QSW-1208-8C is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
-
NBASE-T Ethernet
With NBASE-T support, existing cables can be used. Backwards compatibility is provided for legacy devices.
-
SFP+/RJ45 ports
With a combination of SFP+ (fiber) and RJ45 (copper) ports, most devices can take advantage of 10GbE connectivity provided by the QSW-1208-8C.
Specification
| Management Type | Unmanaged |
| Number of Ports | 12 |
| 10GbE SFP+ | 4
10G/1G
|
| 10GbE SFP+/RJ45 Combo Ports | 8
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
|
| Power Supply Description | Internal Open Frame |
| Max. Power Consumption | 50W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 120Gbps |
| Switching Capacity | 240Gbps |

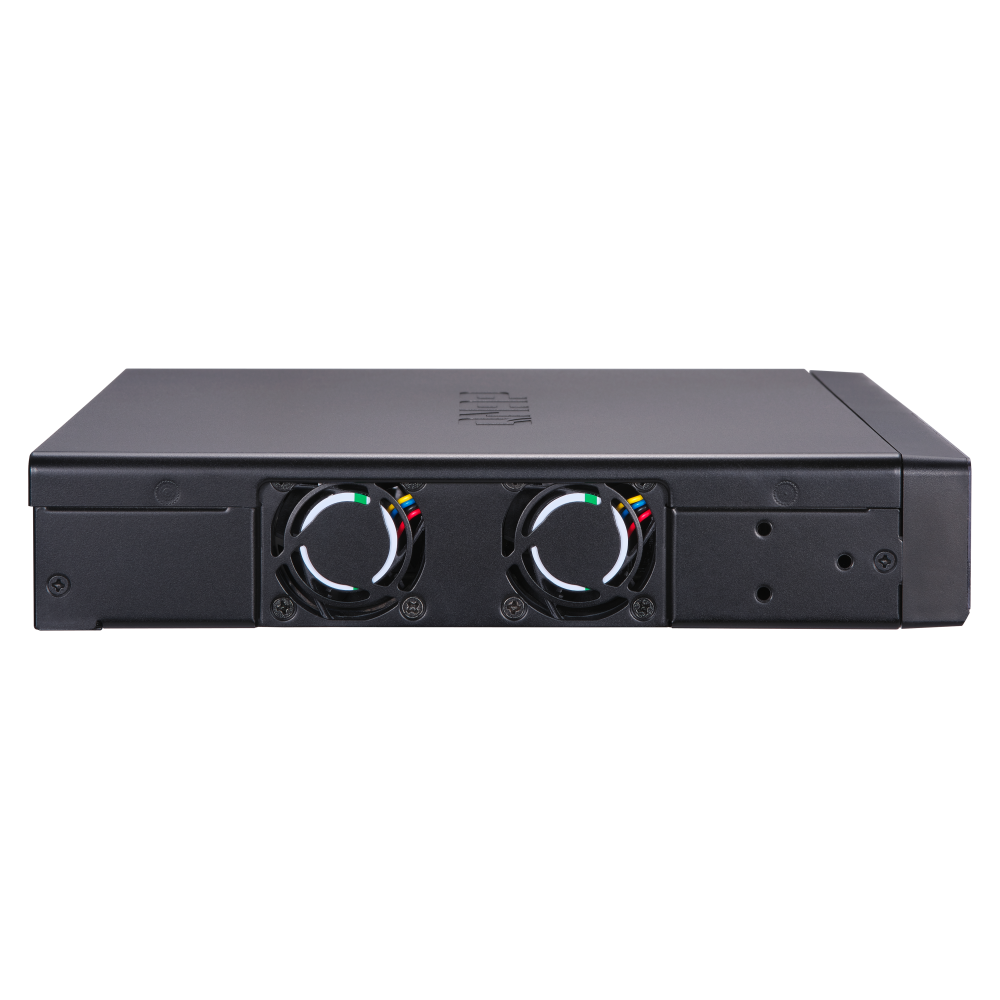

| Fan | System: 2 x 4 cm (12V DC) |
| Supported Standards | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3ae 10GBASE-SR IEEE 802.3ae 10GBASE-LR IEEE 802.3x Full-duplex flow control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 43 × 285 × 233 mm |
| Weight (Net) | 2.15 kg |
| Weight (Gross) | 2.2 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 10% to 85% RH non-condensing |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS A, UL62368 |
| Jumbo Frames | 9k |
| Warranty | 2 Years |
