Hybrid 10GbE and Gigabit Unmanaged Switch
QNAP QSW-308-1C Unmanaged Switch
A fanless desktop unmanaged switch with two dedicated 10GbE SFP+ ports, one 10GbE SFP+/RJ45 combo position, eight Gigabit RJ45 ports and a stated switching capacity of 76Gbps.
Flexible fibre and copper 10GbE for a quiet desktop network

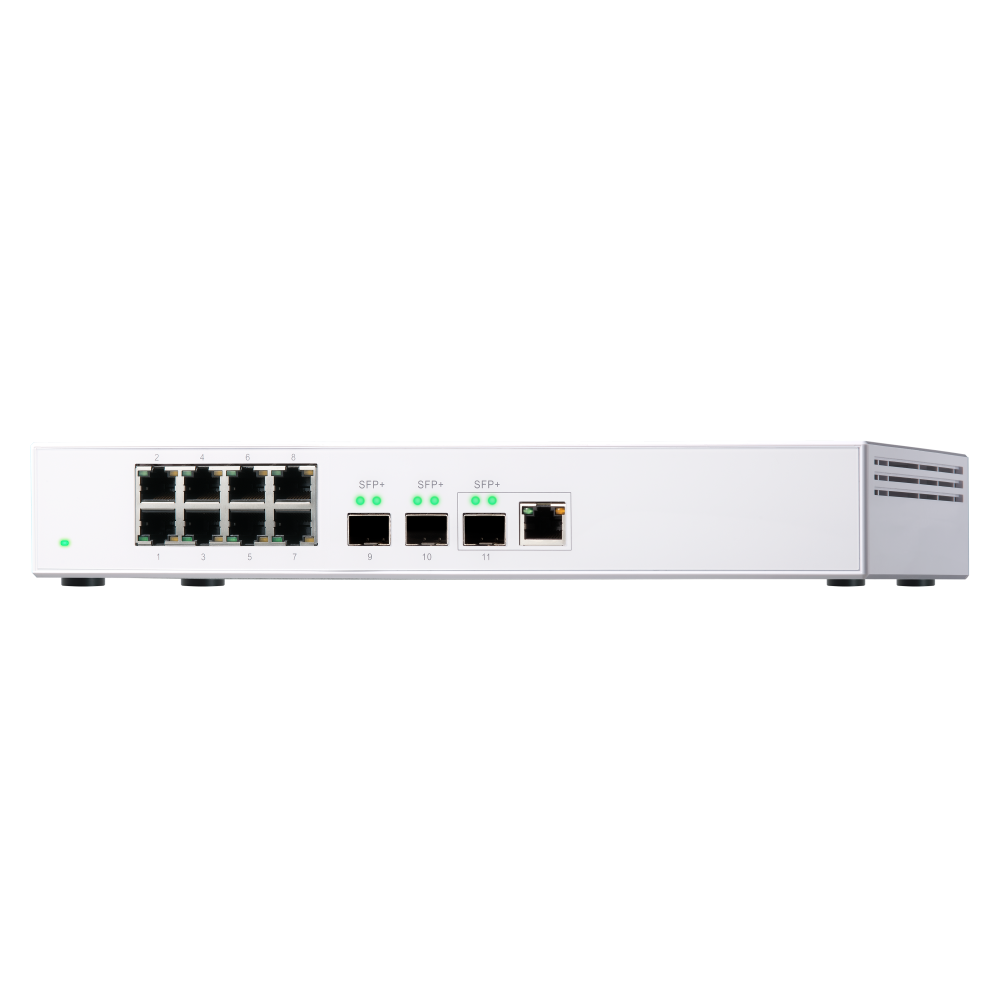

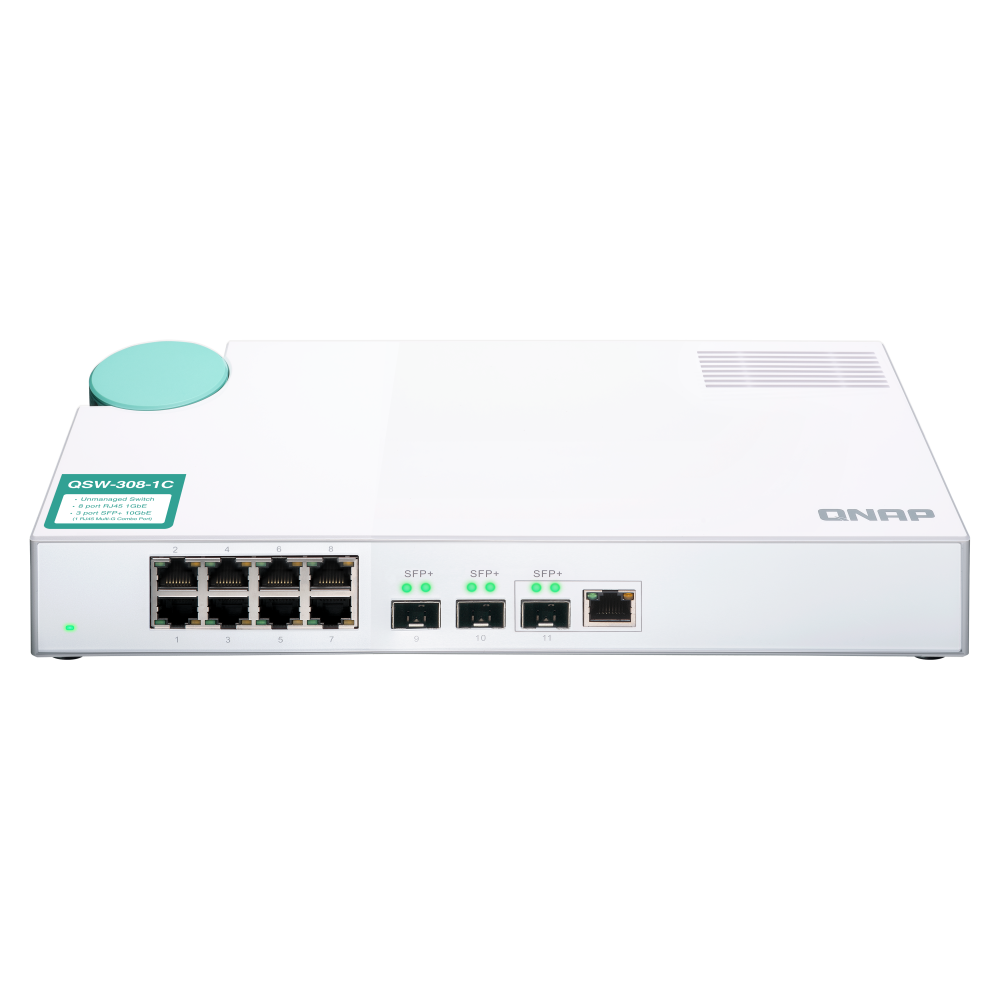

The QNAP QSW-308-1C combines two dedicated SFP+ connections, one SFP+/RJ45 combo position and eight Gigabit ports in a fanless desktop chassis. The combo position supports fibre or five-speed copper connectivity, while plug-and-play operation supports straightforward home and office upgrades.
Key features and benefits
Two dedicated SFP+ ports
Two fibre interfaces provide the stated 10G-only connections.
One 10GbE combo position
The combo position provides SFP+ fibre or RJ45 copper connectivity.
Five-speed copper option
The RJ45 combo interface supports 10G, 5G, 2.5G, 1G and 100M speeds.
Eight Gigabit RJ45 ports
Eight copper ports connect existing Gigabit Ethernet devices.
Fanless cooling
The ventilated fanless design supports quiet desktop operation.
Plug-and-play setup
The unmanaged design and auto-negotiation simplify deployment.
Who is this model best for?
A strong choice for
- Quiet home and office networks
- Hybrid fibre and copper 10GbE access
- Desktop NAS and workstation connectivity
- Networks retaining Gigabit devices
- Plug-and-play deployment
Consider another model if you need
- You need web or Layer 2 management
- You require more than one 10GbE copper option
- You require Power over Ethernet
Key specifications
- Management type
- Unmanaged
- 10GbE interfaces
- 2 × dedicated SFP+; 1 × SFP+/RJ45 combo
- Gigabit interfaces
- 8 × 1GbE RJ45
- RJ45 combo speeds
- 10G / 5G / 2.5G / 1G / 100M
- MAC address table
- 16K
- Non-blocking throughput
- 38Gbps
- Switching capacity
- 76Gbps
- Cooling
- Fanless
- Dimensions
- 42.5 × 290 × 127 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Unmanaged |
|---|---|
| 10GbE SFP+ | 2 10G only Note: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status. |
| 10GbE SFP+/RJ45 Combo Ports | 1 Note1: The 10GbE SFP+ ports are not backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M). Note2: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status. |
| 1GbE (RJ45) | 8 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 38Gbps |
| Switching Capacity | 76Gbps |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet |
| Jumbo Frames | 10k |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 36W |
| Input Power Type | AC |
| Fan | Fanless |
| Fanless | Supported |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 42.5 × 290 × 127 mm |
| Weight (Net) | 0.77 kg |
| Weight (Gross) | 1.19 kg |
| Operating Temperature | 0 - 40°C / 32~104°F |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 100-240VAC, 50/60 Hz |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
|---|---|
| Electromagnetic Compliance | CLASS B, UL62368 |
| Warranty | 2 Years |
Frequently asked questions about the QSW-308-1C
What is the QNAP QSW-308-1C?
It is a fanless desktop unmanaged switch with dedicated SFP+, a fibre-or-copper combo position and Gigabit RJ45 connectivity.
Which 10GbE connections does it provide?
It provides two dedicated 10GbE SFP+ interfaces and one 10GbE SFP+/RJ45 combo position.
How many Gigabit RJ45 ports are included?
It includes eight 1GbE RJ45 ports.
Which speeds does the combo RJ45 interface support?
The combo RJ45 interface supports 10G, 5G, 2.5G, 1G and 100M speeds.
Is it managed?
No. The QSW-308-1C is an unmanaged plug-and-play switch.
Is it fanless?
Yes. The switch uses a fanless desktop design.
What is its switching capacity?
The stated switching capacity is 76Gbps.
What is its non-blocking throughput?
The stated total non-blocking throughput is 38Gbps.
What are its dimensions?
The stated dimensions are 42.5 × 290 × 127 mm.
What warranty is provided?
The QSW-308-1C includes a two-year warranty.
Important information
The dedicated SFP+ ports are not backward compatible with 1GbE SFP.
Compatibility issues with the Intel X520 Ethernet network adapter may cause SFP+ ports to switch repeatedly between up and down states.
The product includes a two-year warranty.
