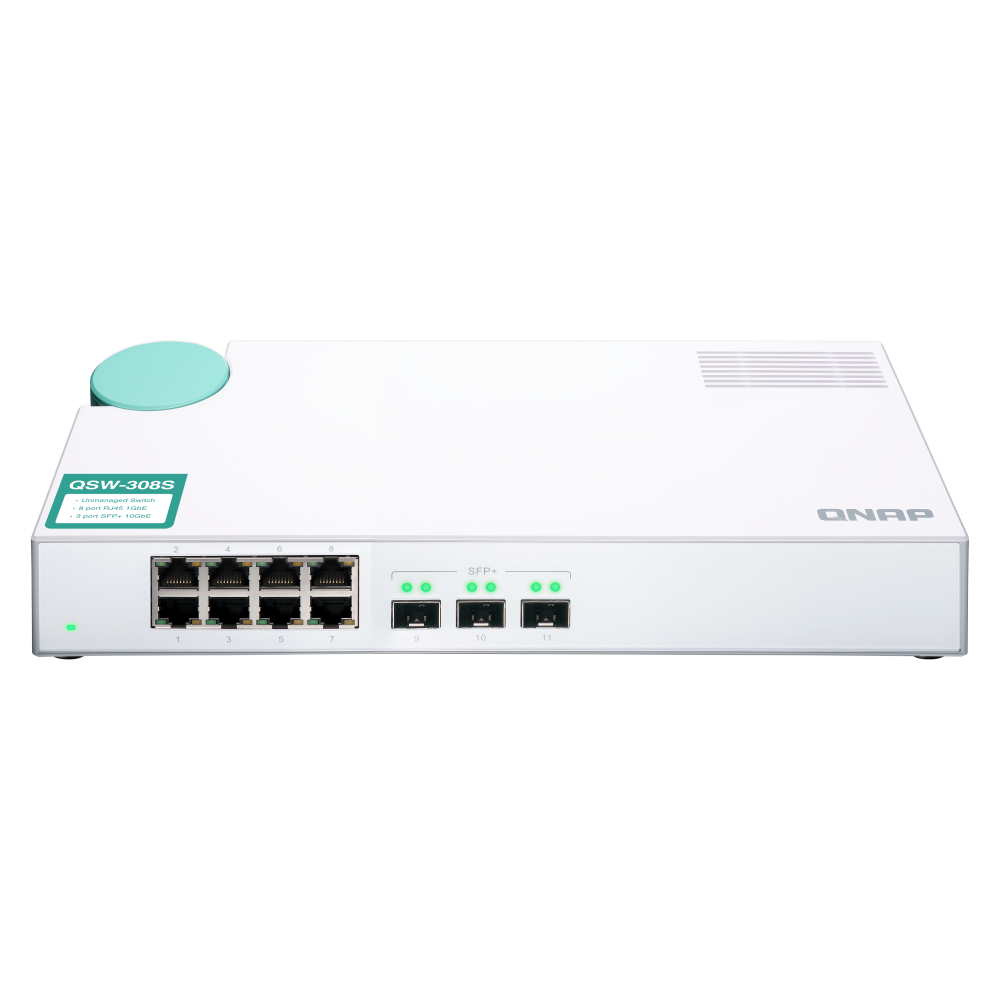

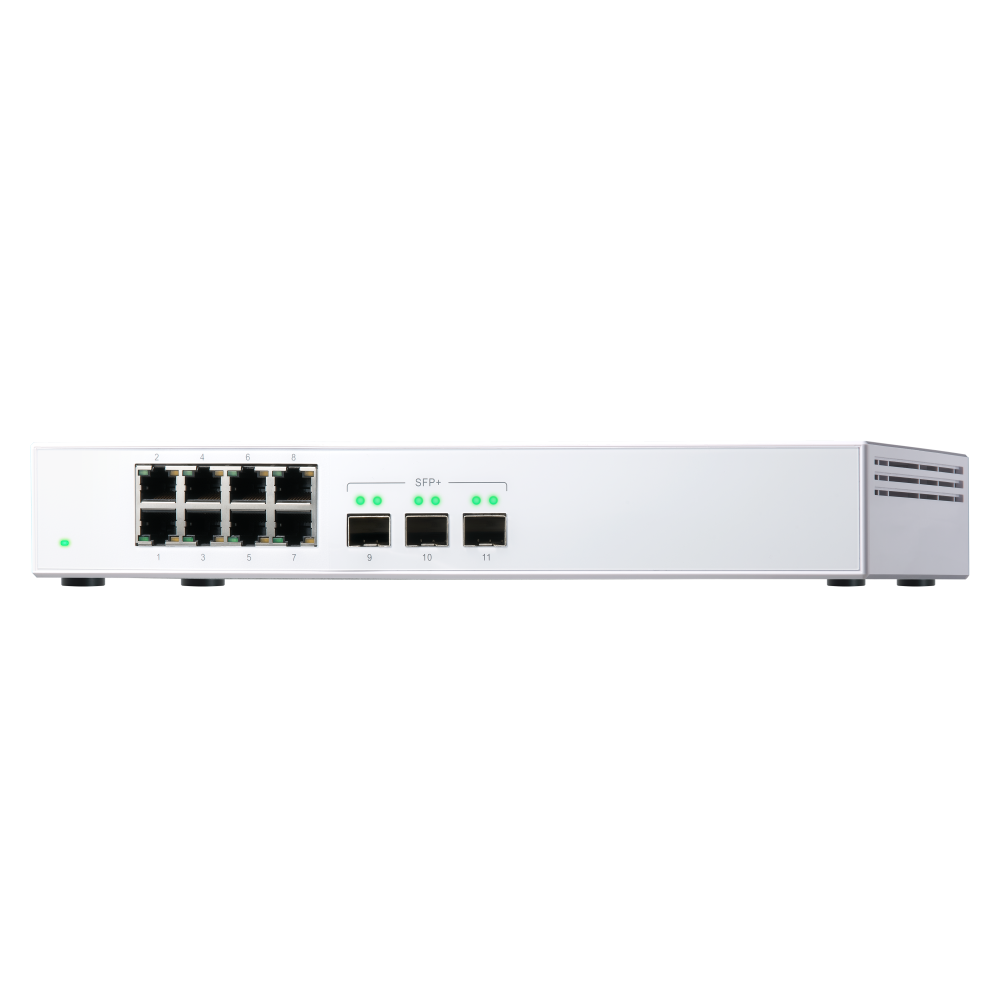

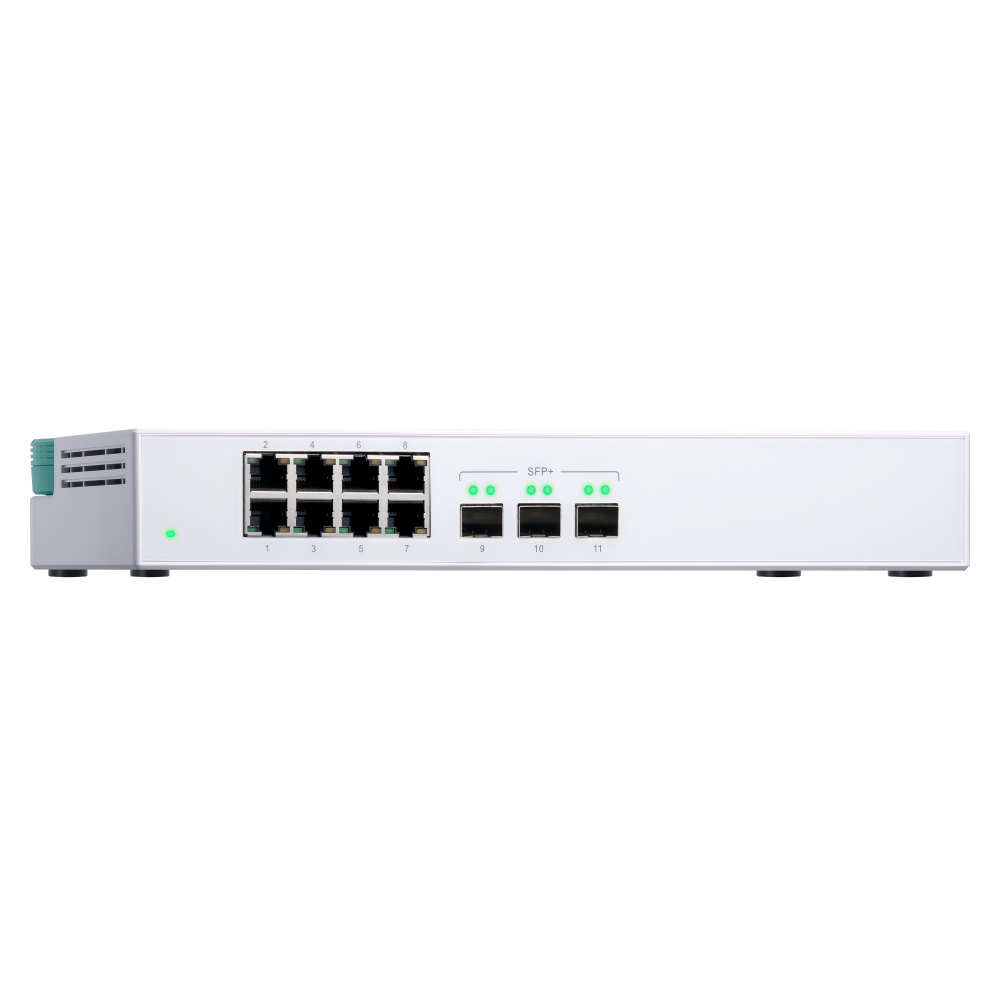

The QSW-308S is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, allowing you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price. With its desktop size and silent operation, the QSW-308S perfectly blends into homes and offices while providing high performance, low latency and superb functionality. The QSW-308S is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
-
10GbE SFP+ connectivity
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices.
-
Silent operation

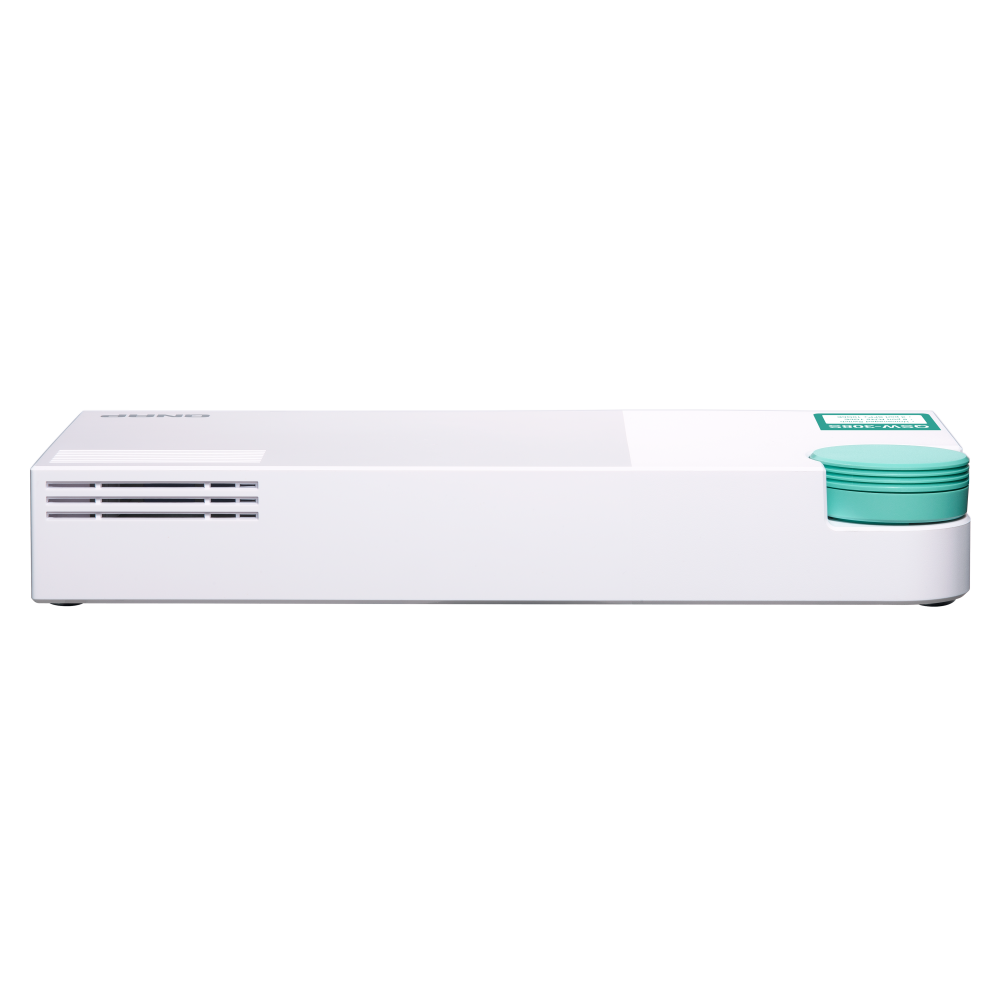

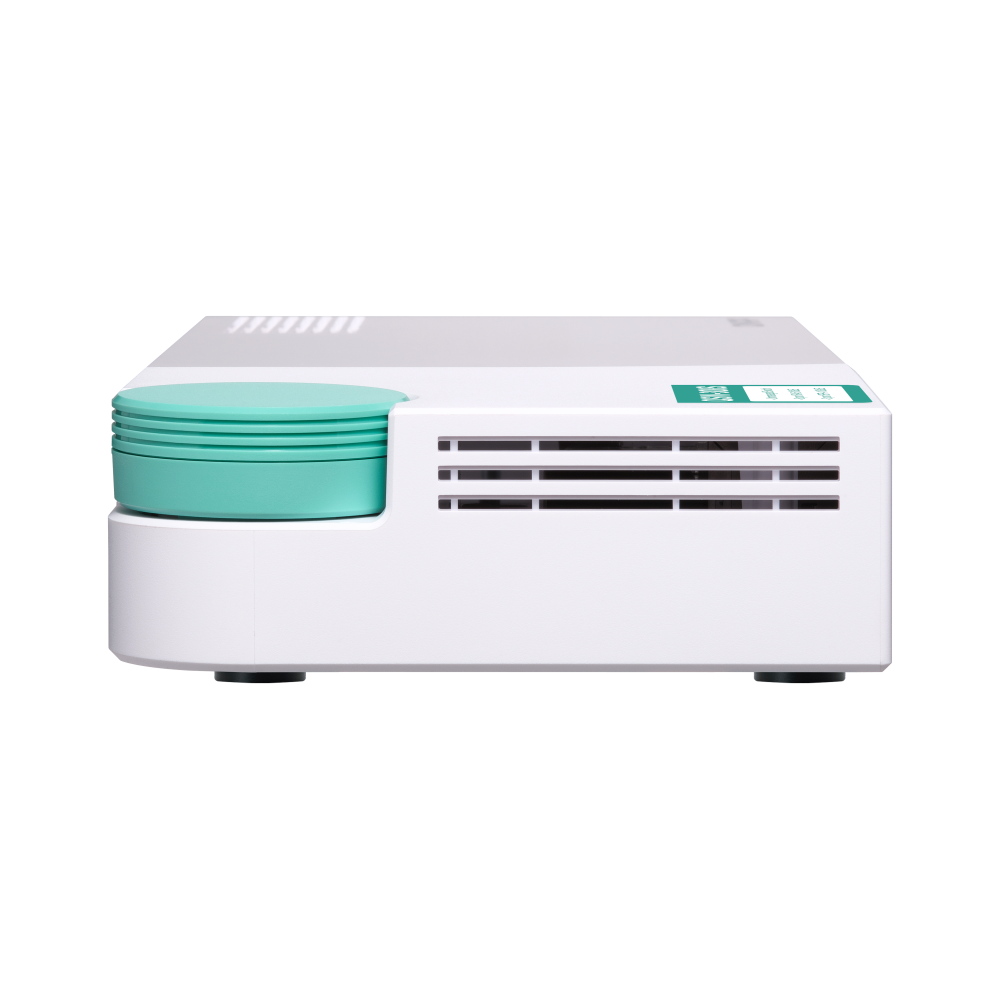

The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
-
Plug and play
Simply connect the QSW-308S to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Specification
| Management Type | Unmanaged |
| Number of Ports | 11 |
| 10GbE SFP+ | 3
10G only
Note: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status. |
| 1GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 38Gbps |
| Switching Capacity | 76Gbps |
| Fan | Fanless |
| Fanless | yes |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3an 10GBASE-T |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 42.5 × 290 × 127 mm |
| Weight (Net) | 0.74 kg |
| Weight (Gross) | 1.16 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS B, UL62368 |
| Jumbo Frames | 10k |
| Warranty | 2 Years |
