12-Port 10GbE/Gigabit Web-Managed Switch
QNAP QSW-M408S Managed Switch
A desktop Layer 2 web-managed switch with four 10GbE SFP+ ports, eight 1GbE RJ45 ports and a listed switching capacity of 96Gbps.
A compact path to mixed 10GbE fibre and Gigabit networking

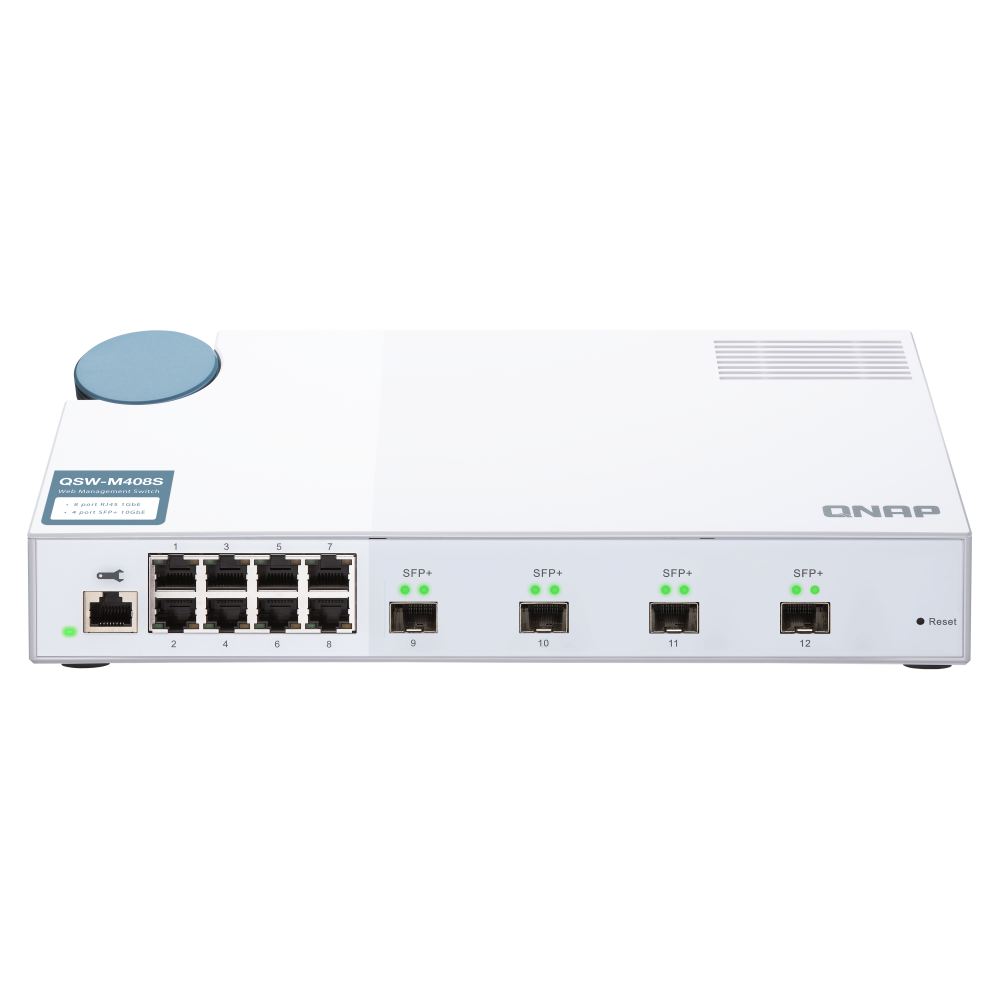

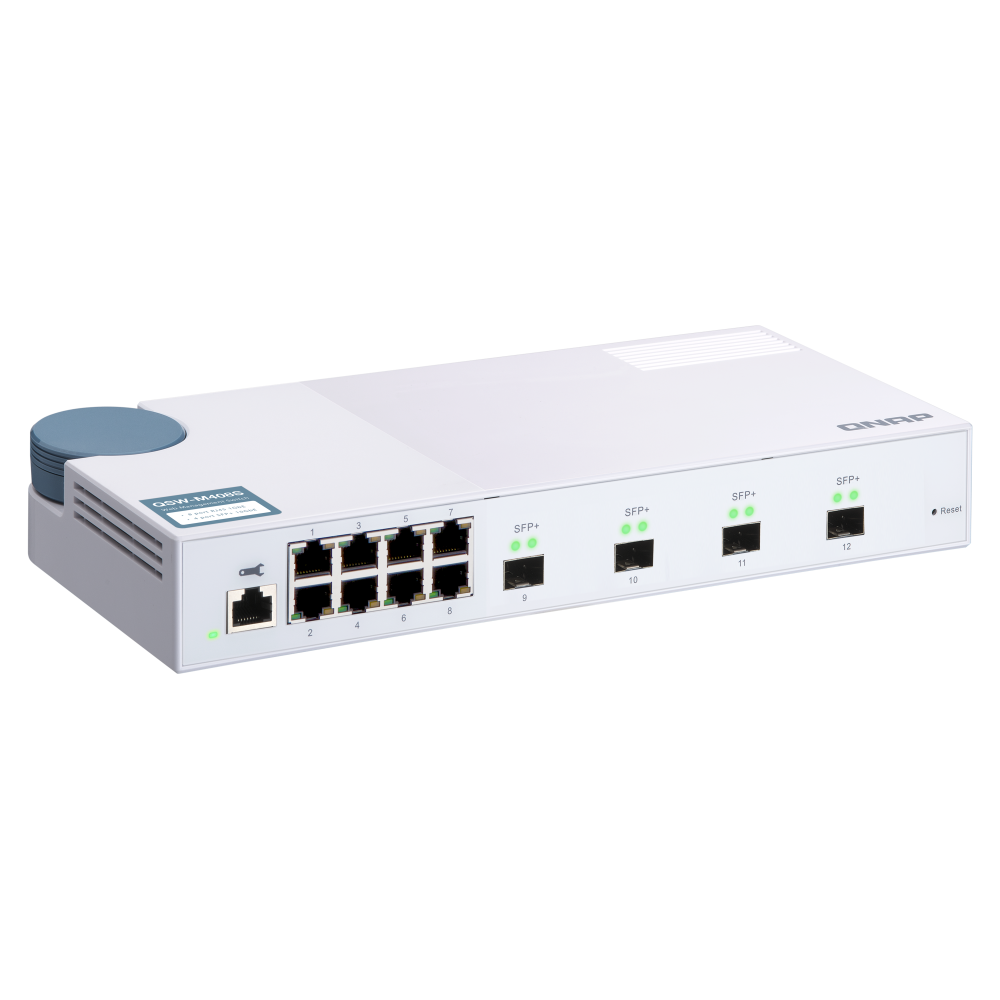

The QNAP QSW-M408S combines four 10GbE SFP+ ports and eight Gigabit RJ45 ports in a desktop web-managed switch. QSS management, Layer 2 controls, RSTP and flow control support small and medium network upgrades that mix high-speed fibre uplinks with existing Gigabit devices.
Key features and benefits
Four 10GbE SFP+ ports
Four SFP+ ports provide 10GbE fibre connectivity and are listed for 10G/1G operation.
Eight Gigabit RJ45 ports
Eight 1GbE copper ports connect existing network devices.
User-friendly QSS management
The web interface provides an overview dashboard, port management and a settings guide.
Layer 2 controls
The highlighted features include LACP, VLAN, ACL and LLDP.
RSTP support
Rapid Spanning Tree Protocol supports redundancy and loop prevention.
Online firmware updates
QSS provides the listed one-click online firmware-update function.
Who is this model best for?
A strong choice for
- Small and medium hybrid-speed networks
- 10GbE fibre uplinks with Gigabit client devices
- Desktop network installations
- Teams needing Layer 2 management
- Networks using VLAN, LACP and RSTP
Consider another model if you need
- You need 25GbE or 100GbE ports
- You require multi-gigabit copper ports above 1GbE
- You need a rackmount switch
Key specifications
- Management type
- Web Managed
- Ports
- 4 × 10GbE SFP+; 8 × 1GbE RJ45
- MAC address table
- 16K
- Non-blocking throughput
- 48Gbps
- Switching capacity
- 96Gbps
- Management interface
- Web
- Console
- RJ45
- Form factor
- Desktop
- Dimensions
- 42.5 × 290 × 127 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 12 |
| 10GbE SFP+ | 4 10G/1G |
| 1GbE (RJ45) | 8 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capacity | 96Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 12.17 W |
| Input Power Type | AC |
| Fan | PWM double ball bearing fan x 1 |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 × 290 × 127 mm |
| Weight (Net) | 1.145 kg |
| Weight (Gross) | 1.565 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 100-240VAC, 50/60 Hz |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M408S
What is the QNAP QSW-M408S?
It is a desktop Layer 2 web-managed switch with four 10GbE SFP+ ports and eight 1GbE RJ45 ports.
How many ports does the QSW-M408S have?
It has 12 data ports: four 10GbE SFP+ ports and eight 1GbE RJ45 ports.
Which high-speed connections does the QSW-M408S provide?
It provides four 10GbE SFP+ ports listed for 10G/1G operation.
How is the QSW-M408S managed?
It is web managed through QSS and highlights Layer 2 features including LACP, VLAN, ACL, LLDP and RSTP.
What is the switching capacity of the QSW-M408S?
The listed switching capacity is 96Gbps.
What is the non-blocking throughput of the QSW-M408S?
The listed total non-blocking throughput is 48Gbps.
What form factor does the QSW-M408S use?
The QSW-M408S uses a desktop form factor.
What are the dimensions of the QSW-M408S?
The stated dimensions are 42.5 × 290 × 127 mm.
What warranty is listed for the QSW-M408S?
The QSW-M408S lists a two-year warranty.
Which network-management features are highlighted for the QSW-M408S?
It highlights LACP, VLAN, ACL, LLDP, RSTP, IEEE 802.3x Flow Control and online firmware updates.
Important information
The 10GbE SFP+ ports are listed for 10G/1G operation.
The product lists a two-year warranty.
