4-Bay QVR Pro Network Video Recorder
QNAP QVP-41A Surveillance NVR

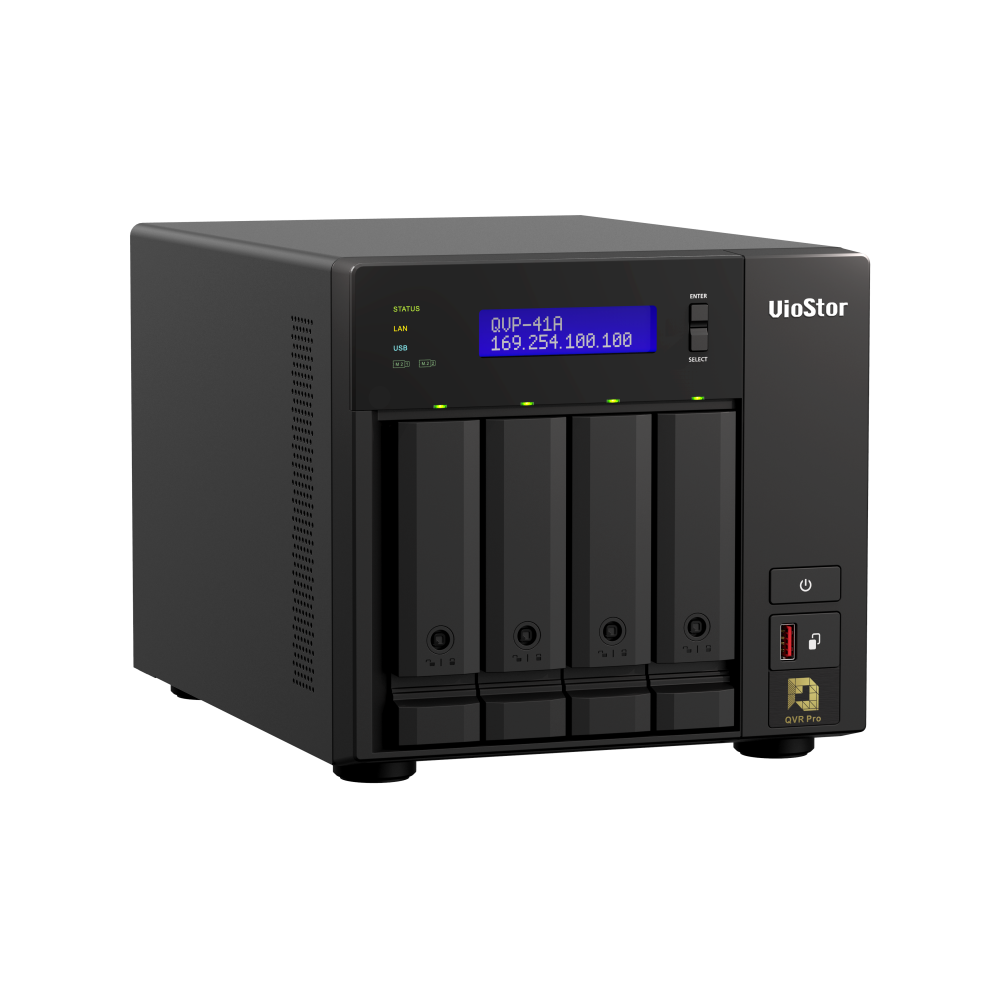

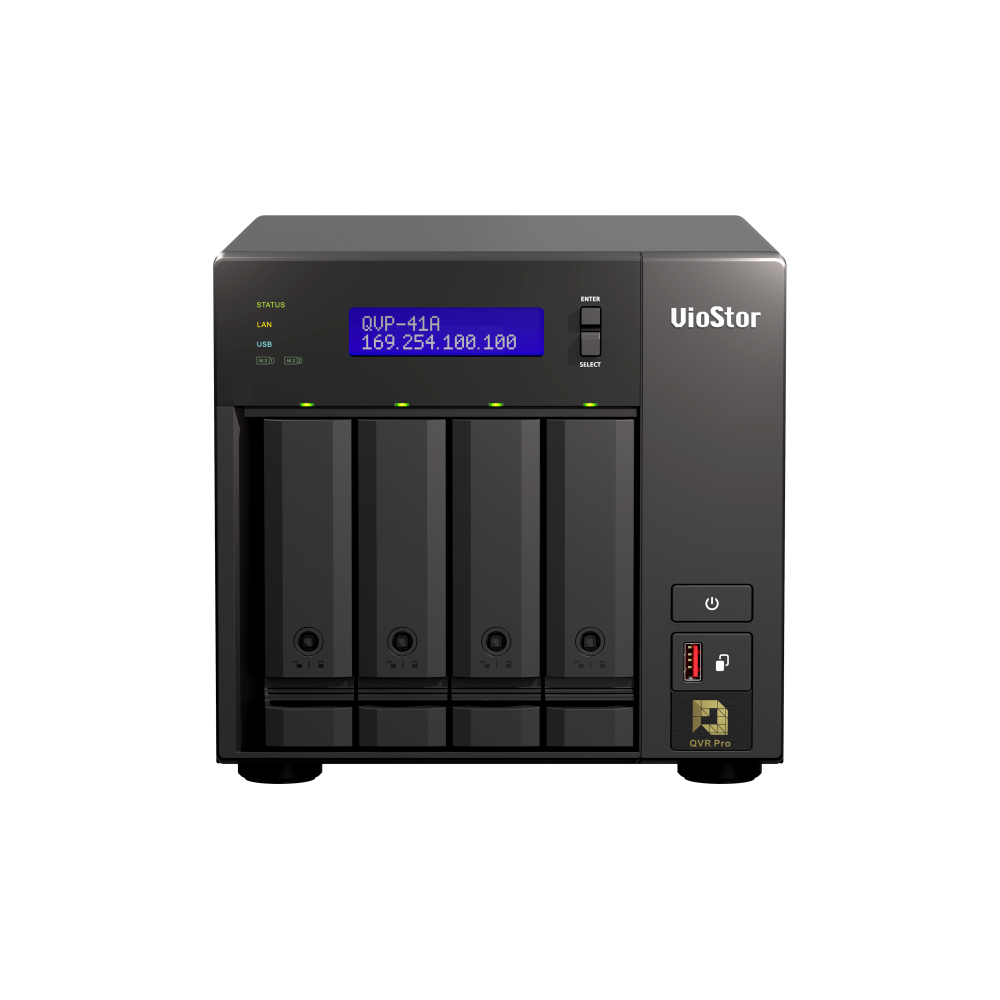

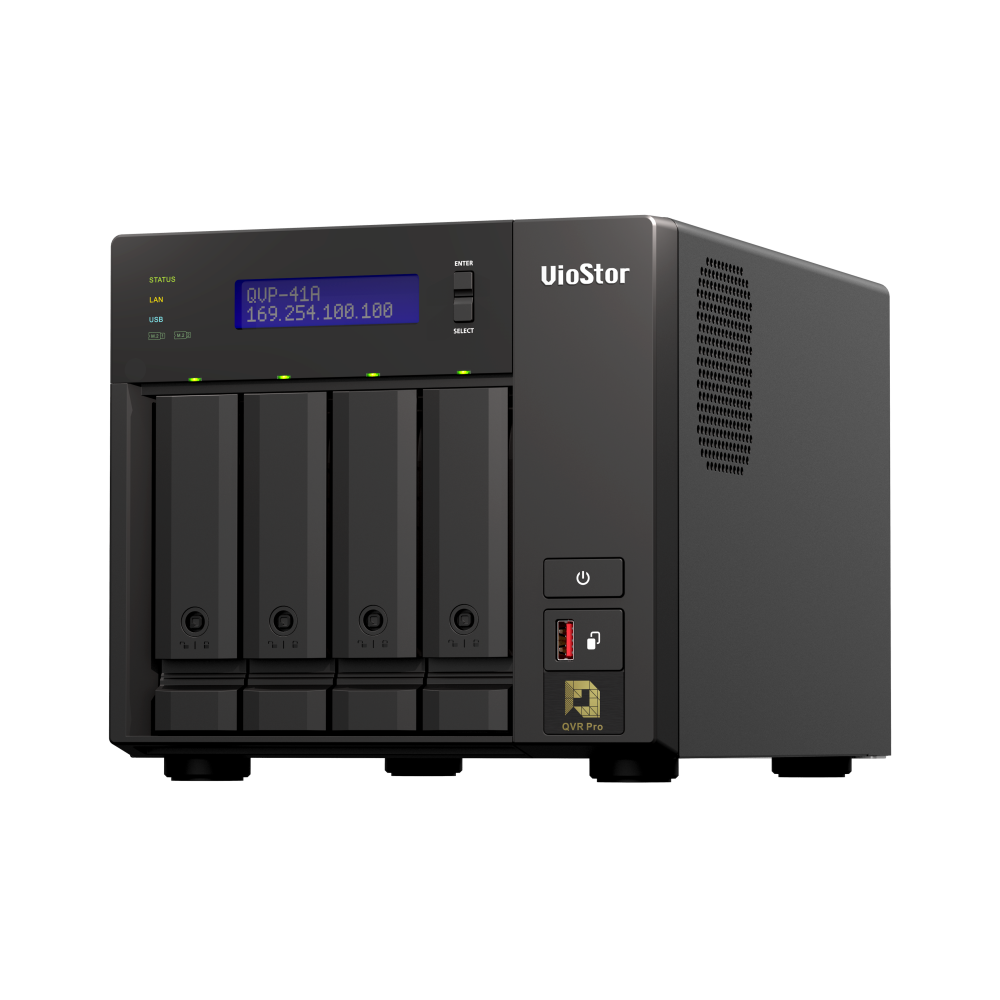

A four-bay diskless QVR Pro tower NVR with an Intel Pentium G5400T two-core processor, 8 GB DDR4 memory, eight embedded camera channels, a stated 24-channel maximum and dual Gigabit Ethernet.
Four-bay monitoring, recording and playback for everyday surveillance
The QNAP QVP-41A is a QVR Pro appliance for real-time video and audio monitoring, high-resolution recording and multi-camera playback. Its four hot-swappable SATA bays, eight embedded camera channels, stated 24-channel maximum, HDMI 2.0 output and client access from Windows, Mac and mobile devices support home, office and small-business surveillance.
Key features and benefits
Eight embedded channels
Eight camera channels are included, with a stated maximum of 24 channels.
Four hot-swappable bays
The listed SATA bays support 3.5-inch and 2.5-inch hard drives plus 2.5-inch solid state drives.
Cross-platform camera management
The product supports camera monitoring and management from Windows, Mac and mobile devices.
High-resolution local output
One HDMI 2.0 output supports a stated resolution up to 3840 × 2160 at 60Hz.
PCIe and M.2 expansion
Two PCIe Gen 3 slots and two M.2 2280 PCIe Gen 3 x2 slots provide the listed expansion paths.
Integrated audio connections
A microphone input, built-in speaker and line output support the listed surveillance audio functions.
Who is this model best for?
A strong choice for
- Home, office and small-business surveillance
- Four-bay video recording storage
- Deployments using eight embedded channels
- Systems scaling toward 24 camera channels
- Users managing cameras from desktop and mobile platforms
Consider another model if you need
- You need more than 24 camera channels
- You require built-in 2.5GbE networking
- You need a rackmount surveillance appliance
Key specifications
- Operating system
- QVR Pro OS (QVP)
- Processor
- Intel Pentium G5400T 2-core 3.1 GHz processor
- System memory
- 8 GB SODIMM DDR4 (2 × 4 GB)
- Maximum memory
- 32 GB (2 × 16 GB)
- Camera channels
- 8 embedded; maximum 24
- Maximum throughput
- 264 Mbps
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x2
- Networking
- two Gigabit Ethernet RJ45 ports
- HDMI output
- 1 × HDMI 2.0, up to 3840 × 2160 at 60Hz
- Dimensions
- 188.2 × 199.3 × 279.6 mm
Full technical specifications
Surveillance platform and capacity
| OS | QVR Pro OS (QVP) |
|---|---|
| Max Live Cameras (Local Display) | 24ch @ All 720p,H.264, 30FPS 12ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 12 |
| Embedded Channel | 8 |
| Max Channel | 24 H264 / 1920x1080 / 30FPS |
Processor, memory and storage
| CPU | Intel® Pentium G5400T 2-core 3.1 GHz Processor |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 610 |
| System Memory | 8 GB SODIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 32 GB ( 2 x 16 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
| File System: Internal Hard Drive | EXT4 |
Software and system features
| Max Concurrent Connection (Client) | 8 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
|---|

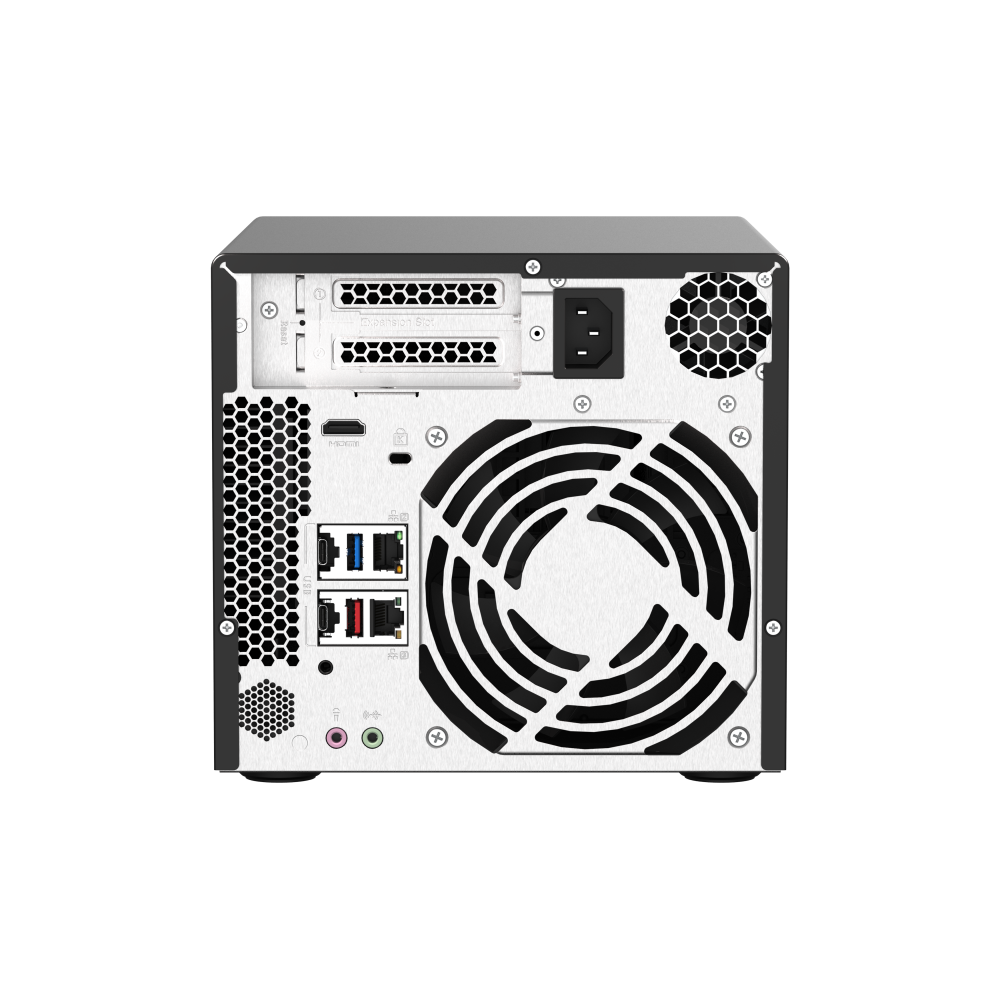

Network, ports and switching
| Max Throughput | 264 Mbps |
|---|---|
| Gigabit Ethernet Port (RJ45) | 2 |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x16 (CPU) Slot 2: PCIe Gen 3 x4 (PCH) |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen2 5V/3A 10Gbps 2 x Type-A USB 3.2 Gen2 5V/1A 10Gbps |
| HDMI™ Output | 1, HDMI™ 2.0 (up to 3840 x 2160 @ 60Hz) |
| Audio Input | 1 x 3.5mm microphone input jacks |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | HDD 1-4, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 199.3 × 279.6 mm |
| Weight (Net) | 5.4 kg |
| Weight (Gross) | 7.01 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 24.14 W |
| Power Consumption: Operating Mode, Typical | 37.32 W With WD10EFRX drives fully populated |
| Fan | System fan: 1 x 120mm, 12VDC CPU fan: 2 x 60mm blower fan |
| Sound Level | 21.2 db(A) |
| System Warning | Voice prompts or Buzzer |
| Tray Locker | Yes |
Frequently asked questions about the QVP-41A
What is the QNAP QVP-41A?
It is a four-bay QVR Pro tower NVR with an Intel Pentium G5400T processor, 8 GB DDR4 memory, eight embedded camera channels and a stated 24-channel maximum.
Which processor does the QVP-41A use?
QVP-41A uses Intel Pentium G5400T 2-core 3.1 GHz processor.
How much memory is included with the QVP-41A?
QVP-41A includes 8 GB SODIMM DDR4 (2 × 4 GB) and lists a maximum memory capacity of 32 GB (2 × 16 GB).
How many drive bays does the QVP-41A have?
QVP-41A has 4 SATA drive bays.
Which drives are supported by the QVP-41A?
Its bays support 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
How many camera channels does the QVP-41A support?
QVP-41A includes 8 embedded channels and lists a maximum of 24 channels at H.264, 1920 × 1080 and 30 FPS.
Which network ports are built into the QVP-41A?
QVP-41A includes two Gigabit Ethernet RJ45 ports.
What local display capability is listed for the QVP-41A?
It lists up to 24 live 720p cameras or 12 live 1080p cameras at H.264 and 30 FPS, plus up to 12 playback cameras.
What are the dimensions of the QVP-41A?
The stated dimensions of the QVP-41A are 188.2 × 199.3 × 279.6 mm.
Which operating system does the QVP-41A use?
QVP-41A uses QVR Pro OS (QVP).
Important information
The system is shipped without HDDs.
The 24-channel maximum is stated for H.264 at 1920 × 1080 and 30 FPS.
The number of concurrent client connections varies with the number of live cameras.
The stated 37.32 W operating figure was measured with WD10EFRX drives fully populated.
