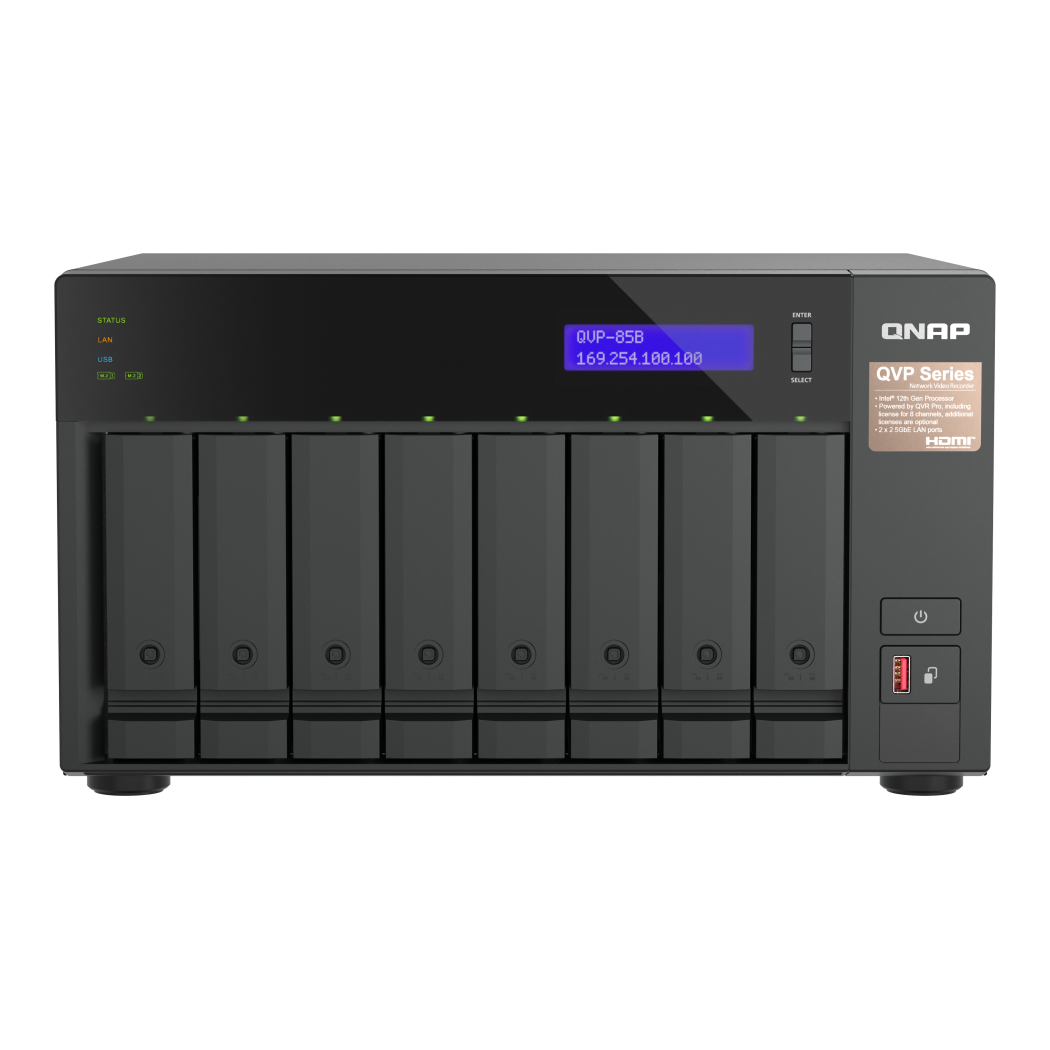

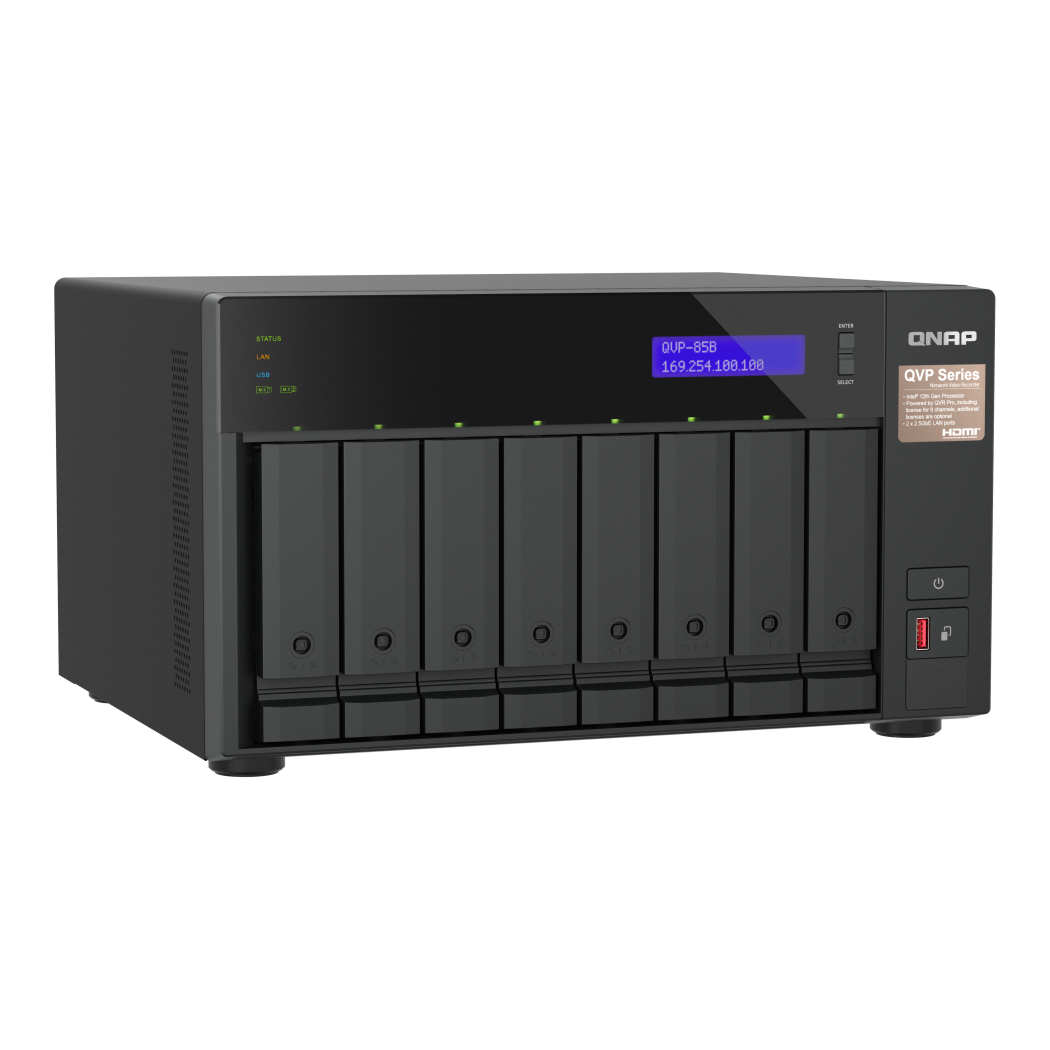

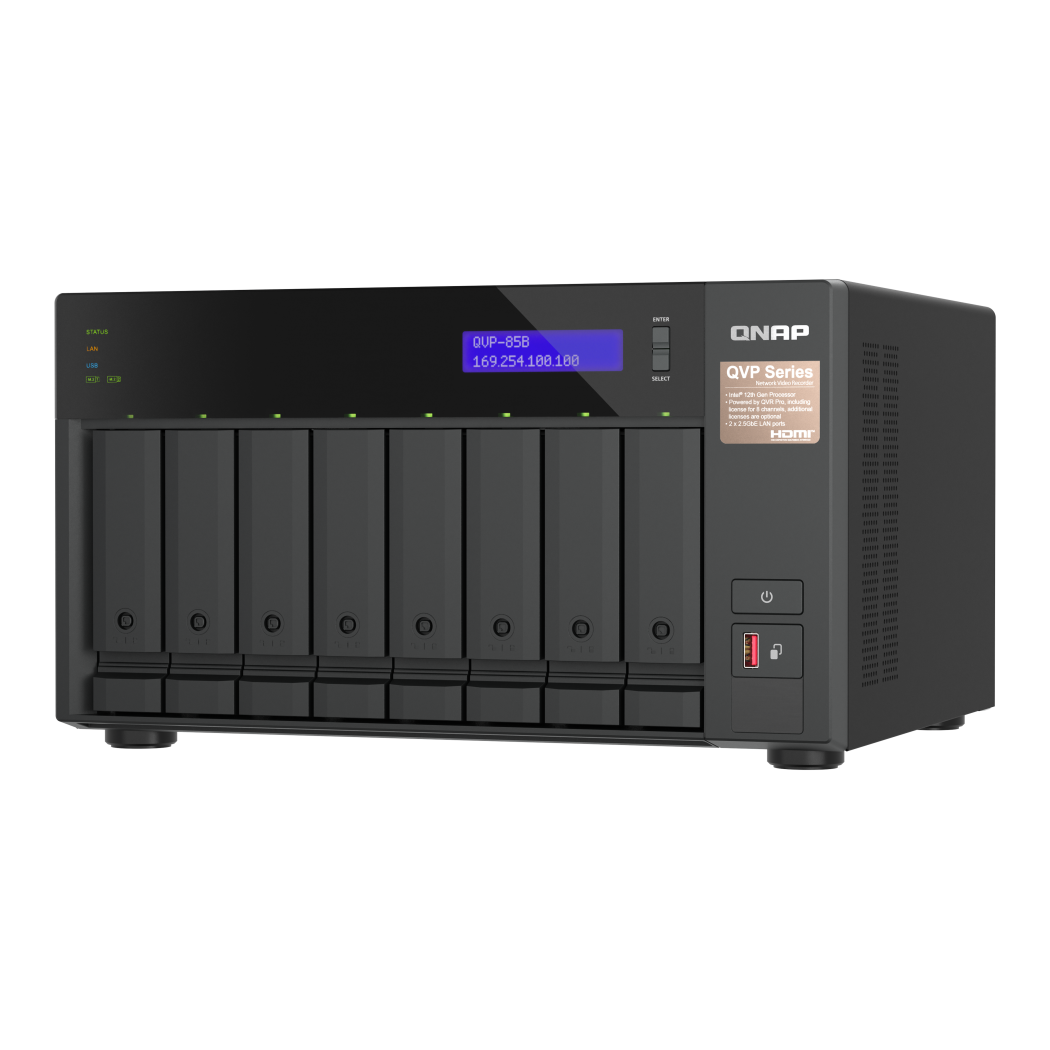

The QVP-85B QVR Pro is a tower-based network surveillance server with an Intel® Core™ multi-core processor that supports eight free IP camera channels and up to sixty-four IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-85B fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.
-
Support ONVIF cameras
Supports thousands of cameras from over 200+ brands and ONVIF standards.
-
Surveillance management
Monitor and manage cameras from Windows®, Mac® and mobile devices.
Specification
| OS | QVR Pro OS (QVP) |
| CPU | Intel® Core™ i5 6-core/12-thread Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 730 |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB SODIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Max Live Cameras (Local Display) | 56ch @ All 720p,H.264, 30FPS 34ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 16 |
| Max Concurrent Connection (Client) | 16 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
| Embedded Channel | 8 |
| Max Channel | 64
H264 / 1920x1080 / 30FPS
|
| Max Throughput | 1686 Mbps |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen4 x4 slots |
| 2.5 Gigabit Ethernet Port | 2 |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 329.3 × 280.8 mm |
| Weight (Net) | 7.3 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 43.131 W |
| Power Consumption: Operating Mode, Typical | 85.701 W
With WD10EFRX drives fully populated
|
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| Sound Level | 24.2 db(A) |
| System Warning | Voice prompts or Buzzer |
| Tray Locker | Yes |
| File System: Internal Hard Drive | EXT4 |
