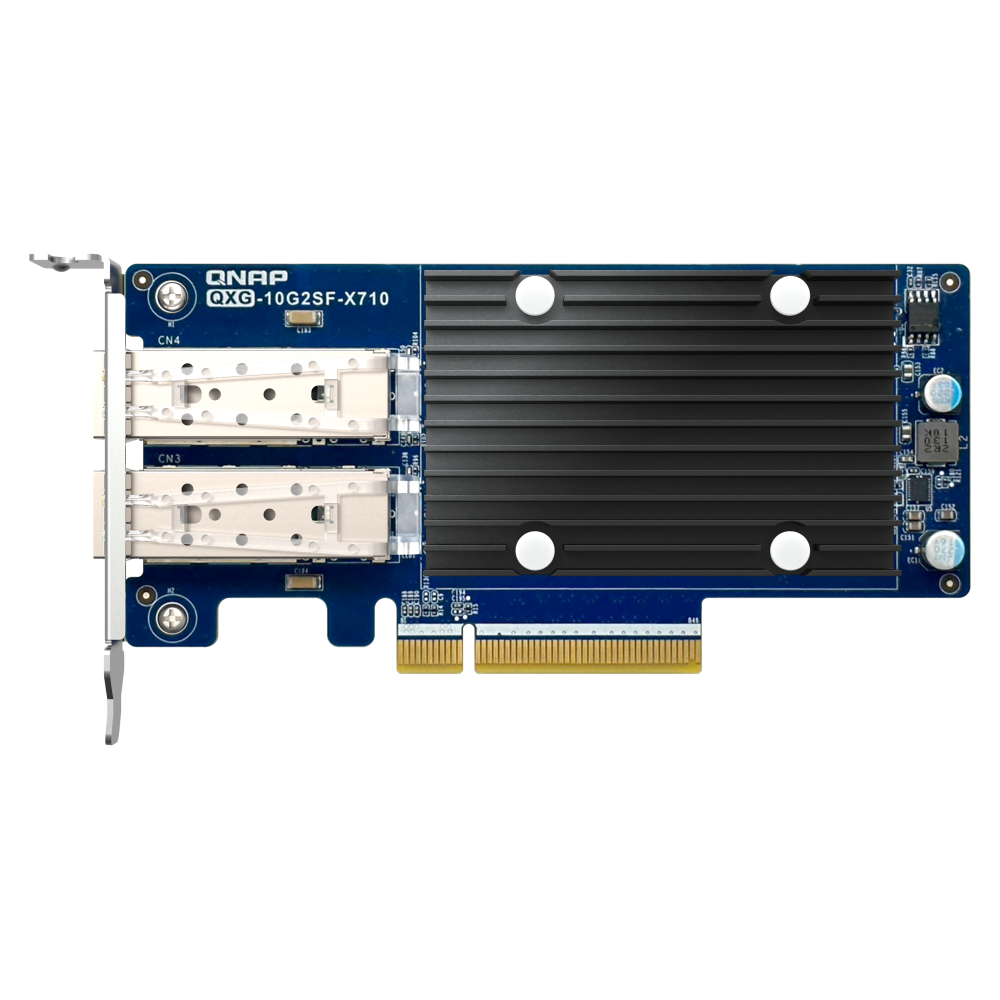

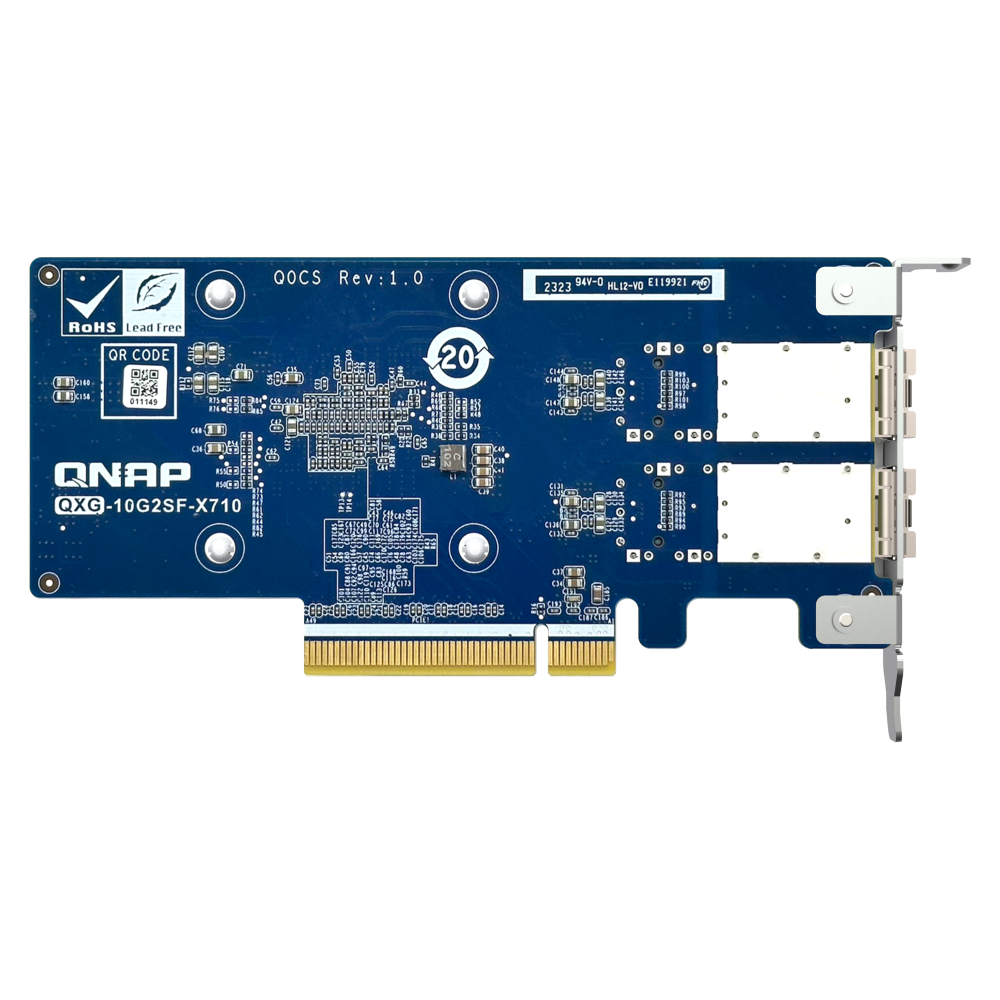

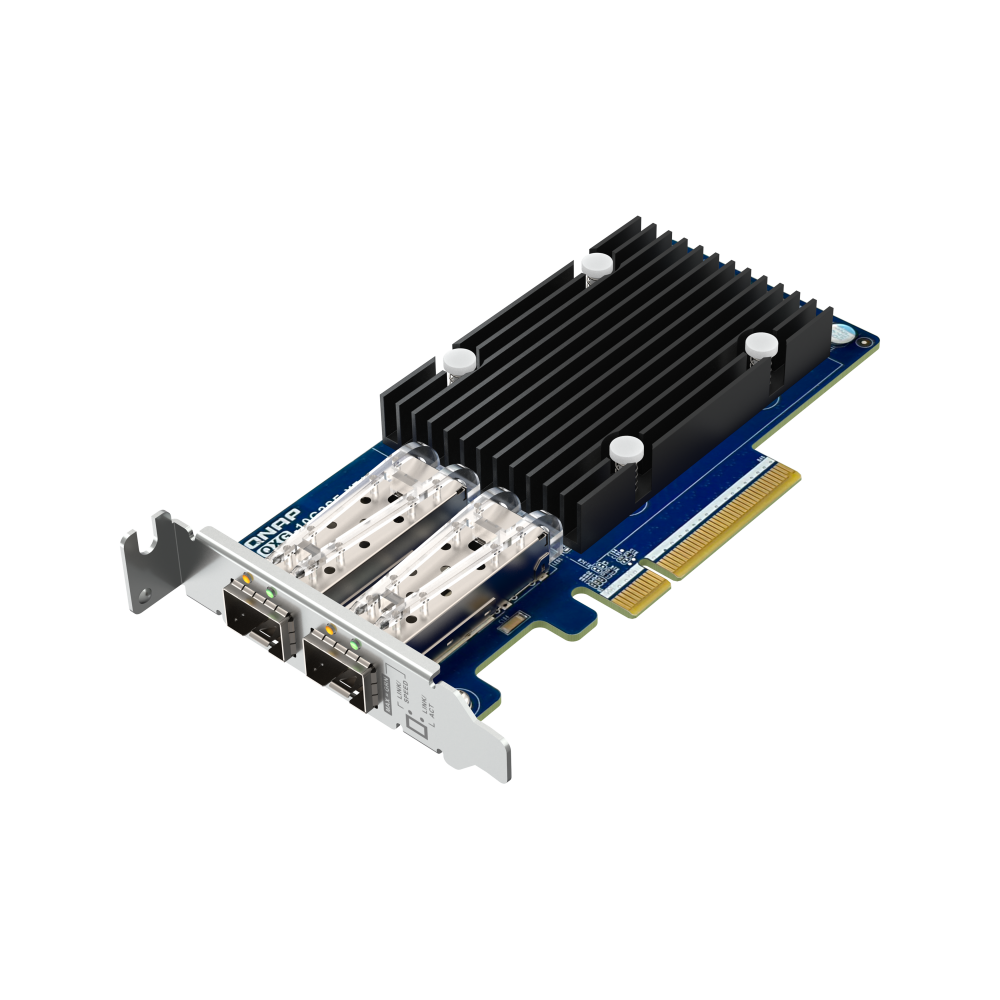

The QXG-10G2SF-X710 10 GbE network expansion card, featuring two 10 GbE SFP+ ports (10G/1G), is energy-efficient and budget-friendly. It serves as an ideal solution for teams that need concurrent data access, for photographers/videographers seeking rapid and seamless data transmission capabilities, or for latency-sensitive virtualization applications.
-
NAS and PC
The QXG-10G2SF-X710 can be installed in a QNAP NAS or Windows® PC.
-
PCIe 3.0
Supports PCIe Gen 3 x8, compatible with PCIe Gen 4 slot.
-
SR-IOV
Improves the network performance of virtual machines.
-
Fanless design
Uses large-area, high-quality heat sinks; Perfect for use in noise-sensitive environments.
-
LED indicators
Monitor the real-time status of ports with handy LED indicators.
Specification
| Dimensions (L x W x H) | 141.9 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| Number of Ports | 2 x SFP+ ports |
| Connector | SFP+ |
| PCIe and Lanes | PCIe Gen3 x8 |
| Transmission Rates | 10Gbps/1Gbps |
| IEEE Standards | IEEE Std 802.3ae 10 Gigabit Ethernet IEEE Std 802.3az Energy Efficient Ethernet IEEE Std 802.3ap based auto-negotiation between 1, 10, 40 Gb/s, FEC, and KR startup Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE- R4) IEEE Std 802.3ad Link Aggregation and Failover IEEE 802.1Q, 802.1p VLAN tags and priority IEEE Std 802.1Qau Congestion Notification (QCN) IEEE Std 802.1Qaz (ETS) |
| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | |
| Supported NAS operating systems | At least QTS 5.1.0 &QuTS Hero 5.1.0 build 20230725 |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Ubuntu 20.04/22.04 |
| Support Windows | Windows 11 |
| Support Windows Server | Windows Server 2022 |
| Port and Cable | SFP+ DAC cable (1.5M, 3M, 5M) or SFP+ OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
