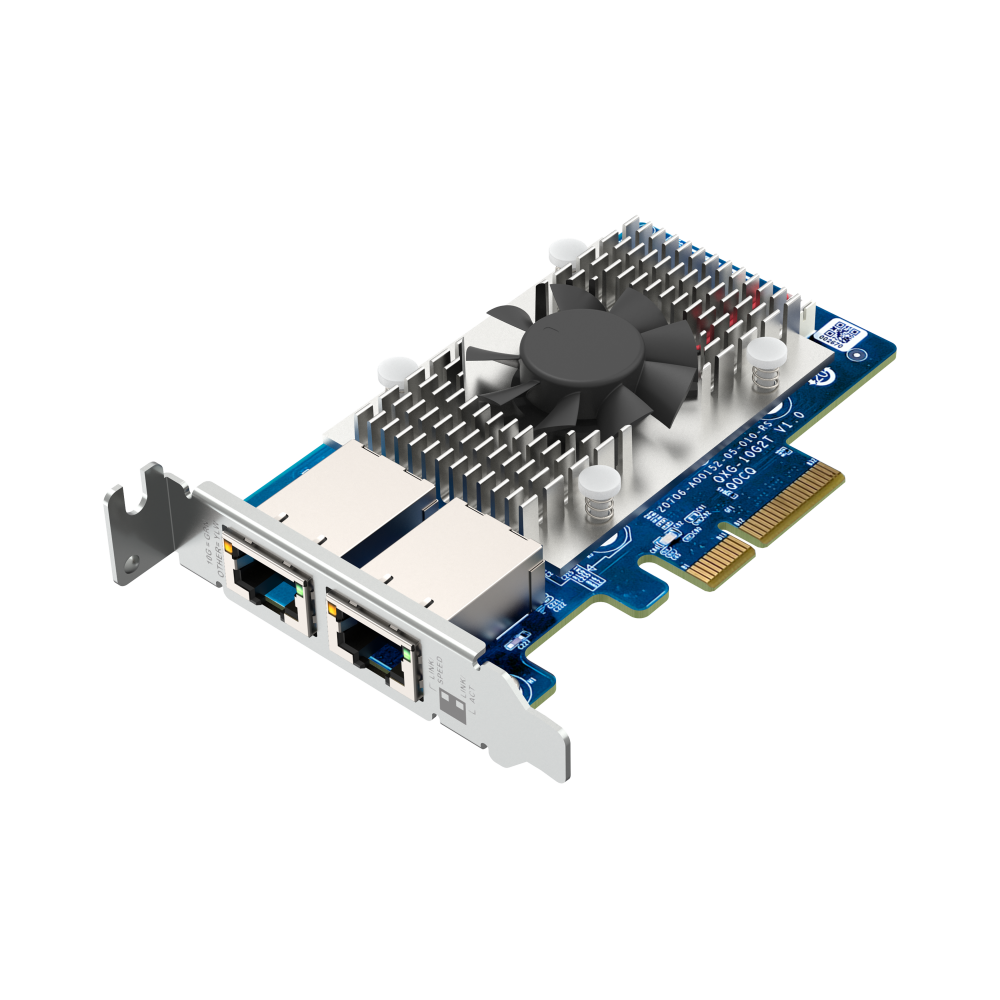

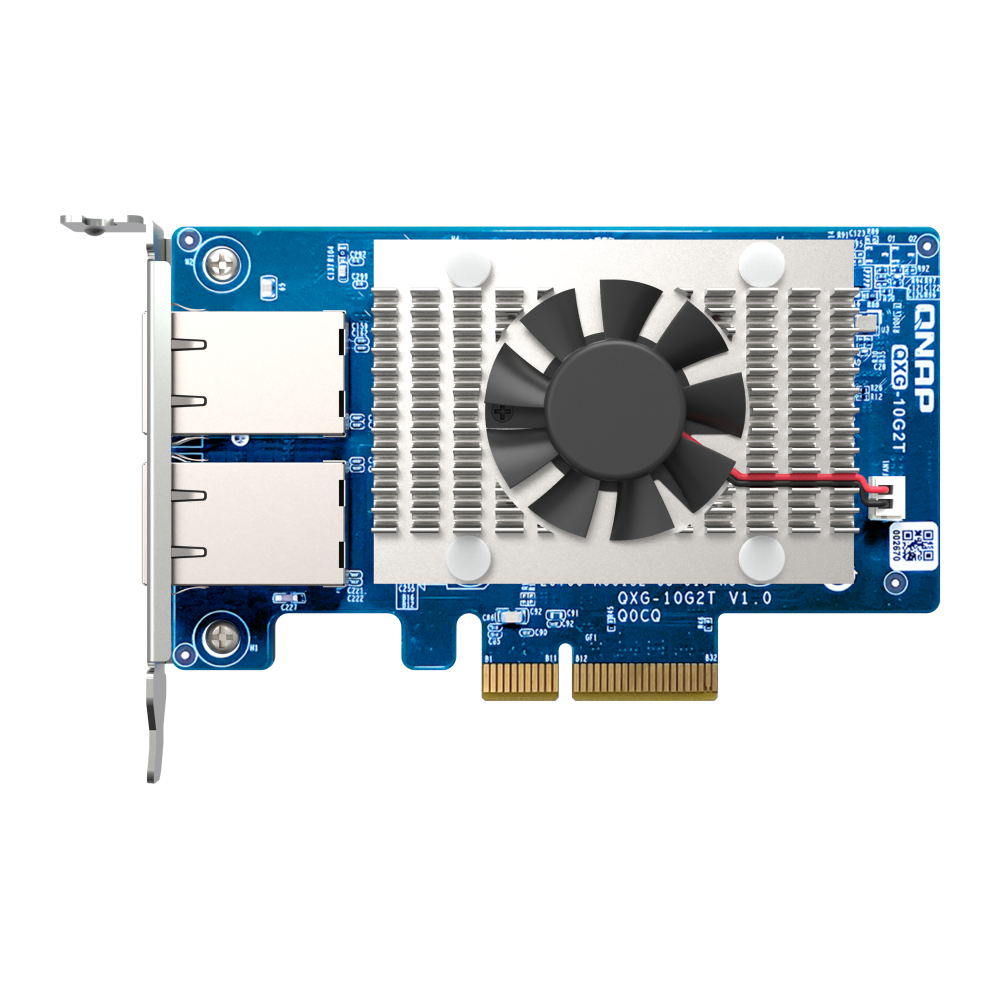

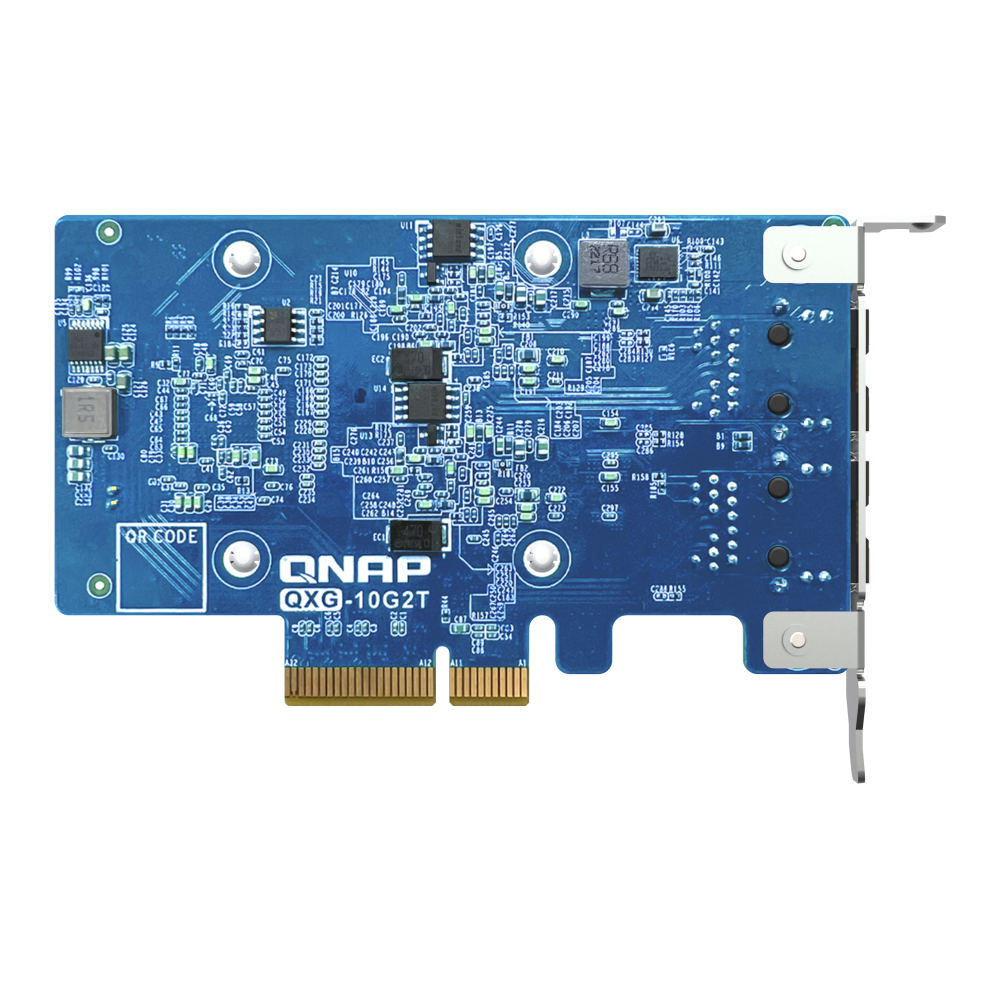

The QXG-10G2T is a highly energy efficient and cost-effective 10 GbE network expansion card, which is suitable for a team requiring simultaneous data access with multiple members, or a photographer/videographer requiring super-fast data transmission.
-
5-speed
Supports five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE).
-
NAS and PC
The QXG-10G2T can be installed in a QNAP NAS or Windows® PC.
-
Marvell® AQtion Controller AQC107
Highly energy efficient and cost-effective.
-
PCIe 3.0
PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds.
-
Efficient cooling module
Keeps the QXG-10G2T cool and maintains high performance.
-
LED indicators
Monitor the real-time status of ports with handy LED indicators.
Specification
Dimensions (L x W x H) | 111.5 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
Controller | Marvell AQtion AQC107 |
Number of Ports | 2 x NBASE-T (RJ45) |
Connector | NBASE-T (RJ45) |
PCIe and Lanes | PCIe 3.0 x4 |
Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
IEEE Standards | IEEE 802.3an IEEE 802.3bz |
Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
Supported NAS operating systems | At least QTS/QuTS 5.0.1.2430 build 20230614 |
Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
Support Ubuntu Commercial Linux Distribution | Linux 3.10 and higher |
Support RedHat | Linux 3.10 and higher |
Support Windows | Windows 10/11 (32-bit/64-bit) |
Support Debian | Linux 3.10 and higher |
Port and Cable | RJ-45; over CAT-6 class cable |
Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
Standard Warranty | 3 years |
