12x HDD + 4x SSD hybrid storage
Multi-lane SATA 6Gb/s JBOD
Supports QNAP NAS, Windows® and Ubuntu® PCs

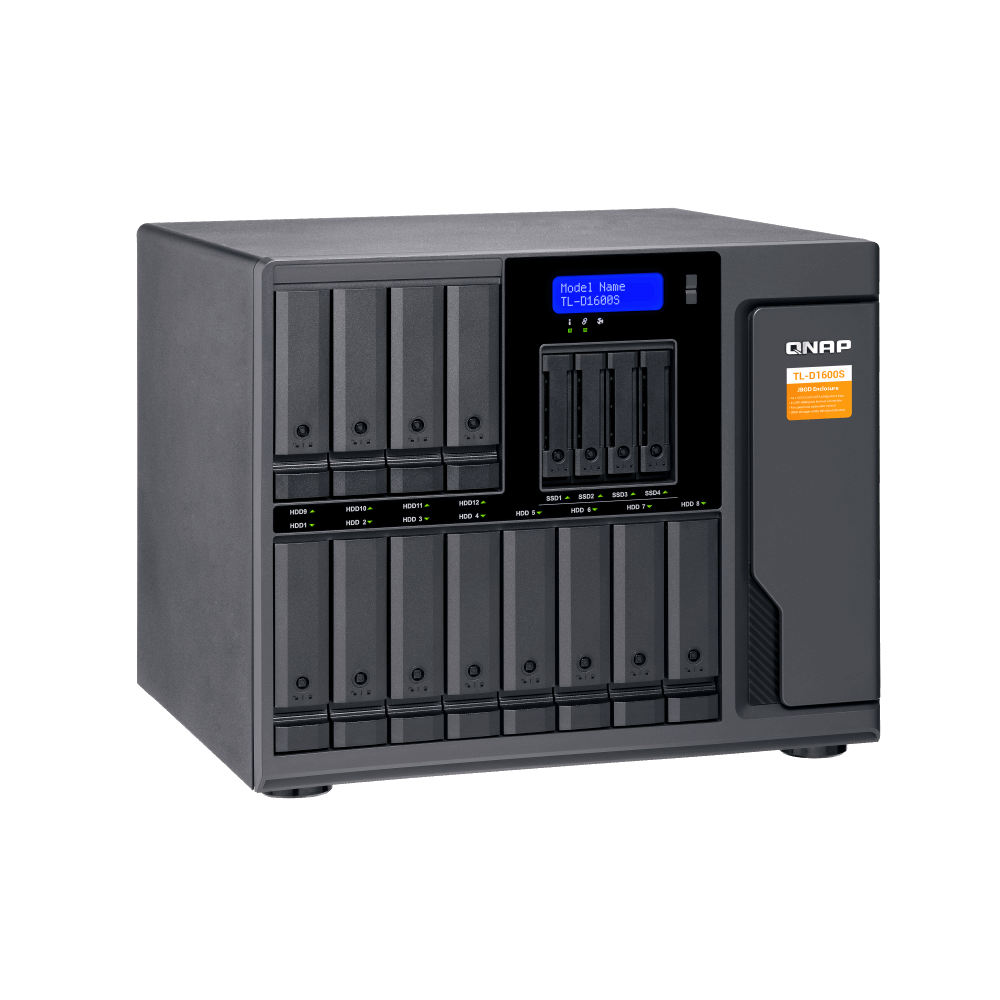

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
1. QNAP recommends following the standard procedure for connecting or disconnecting the TL-D1600S. For more information, please see the TL-D1600S user manual.
2. The TL-D1600S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D1600S.
3. The TL-D1600S only supports QNAP NAS running on QTS 4.5.4 (or above) or QuTS hero h4.5.4 operating system.
4. When the TL-D1600S is connected to a Windows® system, if JBOD disk slots are empty, virtual disks will be created in the empty slots due to the firmware mechanism of the control chip.
5. When the TL-D1600S is connected to a Windows® system, JBOD Manager will poll the first detected physical disk / virtual disk for monitoring the JBOD health status (physical disks take priority for monitoring).
6. Non-Server versions of Windows have a 63TB limit for a single volume. Thus, when connecting QNAP storage expansion products, the same limitation applies. For volumes larger than 63TB, it is recommended to use the Windows Server operating system.
7. The QXP-1600eS expansion card included in the package currently supports only Ubuntu and QTS operating systems and does not yet support Windows.
-

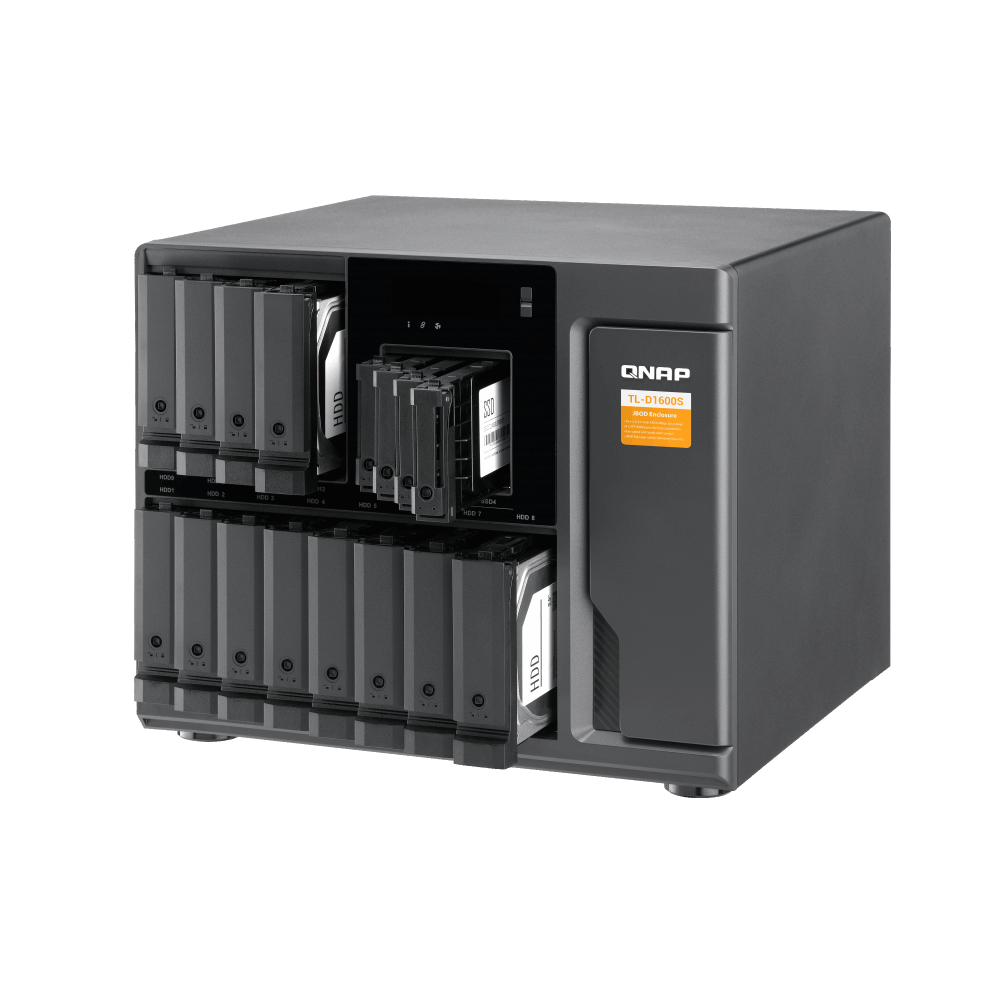

Lockable drive trays
Lockable hard drive trays prevent accidental drive removal.
-
High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
-
Flexible storage management
Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.
Specification
| JBOD Connection Interface | SATA |
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives 2.5-inch bays: 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
|
| Hot-swappable | yes |
| Form Factor | Tower |
| Host Interface | 4 x SFF-8088 |
| LED Indicators | HDD 1-16, Status, Link, Fan error |
| LCD Display/ Button | yes |
| Buttons | Power switch |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 13.49 kg |
| Weight (Gross) | 14.87 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 93.66 W
Tested with drives fully populated.
|
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 3 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | yes |
| QTS / QuTS hero | yes |
| Windows | yes |
| Ubuntu | yes |
| Standard Warranty | 2 |
