8-bay, USB 3.2 Gen 2 Type-C JBOD
Supports QNAP NAS or Windows®, Ubuntu® PC/Server

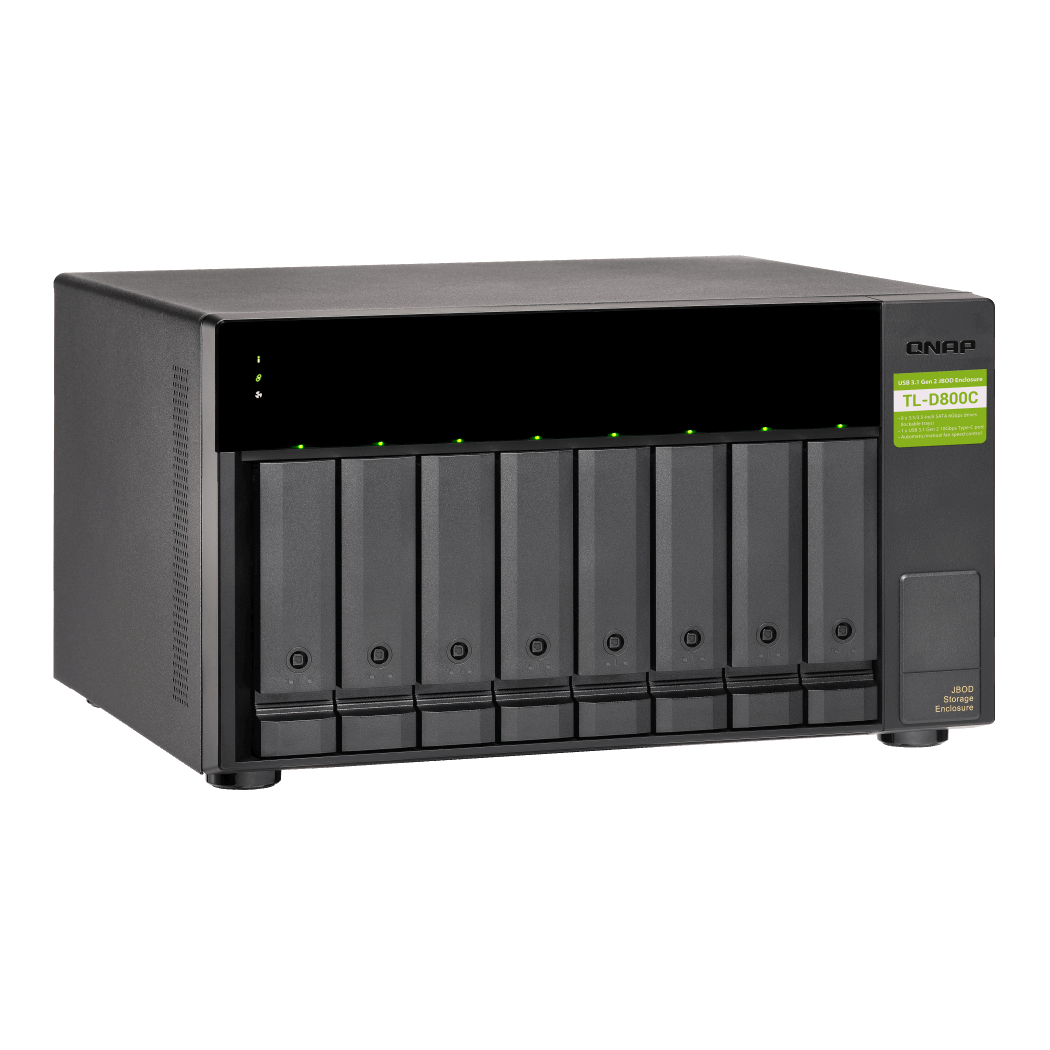

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.
Note：
1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port.
2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual.
3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.
4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system.
5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).
6. Non-Server versions of Windows have a 63TB limit for a single volume. Thus, when connecting QNAP storage expansion products, the same limitation applies. For volumes larger than 63TB, it is recommended to use the Windows Server operating system.
-
USB 3.2 Gen 2 (10Gbps)
USB 3.2 Gen2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.
The package includes one USB 3.2 Gen2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.
-

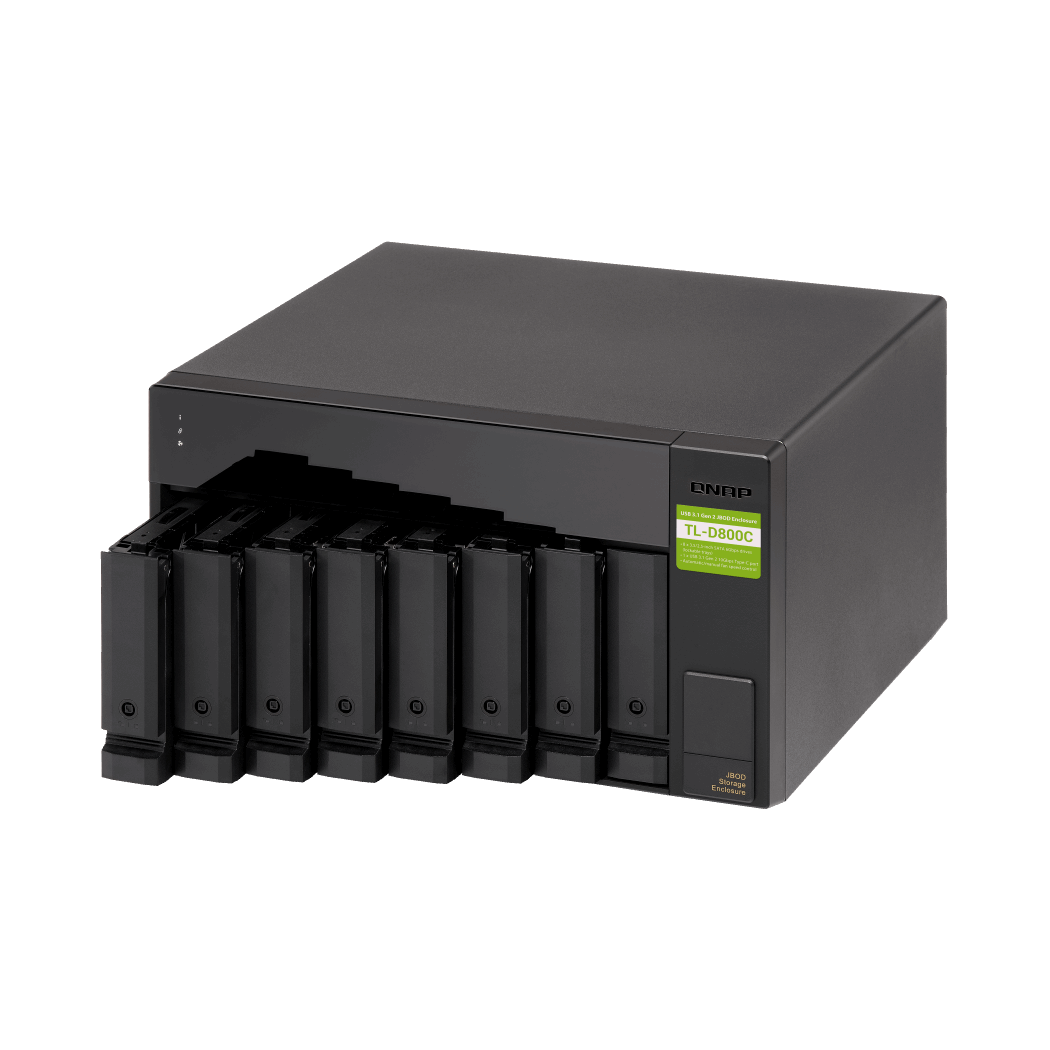

Lockable drive trays
Lockable hard drive trays prevent accidental drive removal.
-
Supports SATA drives
Supports SATA 6Gb/s drives for reliable read/write performance.
Specification
| JBOD Connection Interface | USB |
| Drive Bay | 8 x 3.5-inch
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
|
| Hot-swappable | yes |
| Form Factor | Tower |
| Host Interface | 1 x USB 3.2 Gen 2 Type-C |
| LED Indicators | HDD 1-8, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 188.2 × 329.3 × 281.4 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 8.13 kg |
| Weight (Gross) | 8.4 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 48.4 W
Tested with drives fully populated.
|
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | yes |
| QTS / QuTS hero | yes |
| Windows | yes |
| Ubuntu | yes |
| Standard Warranty | 2 |
