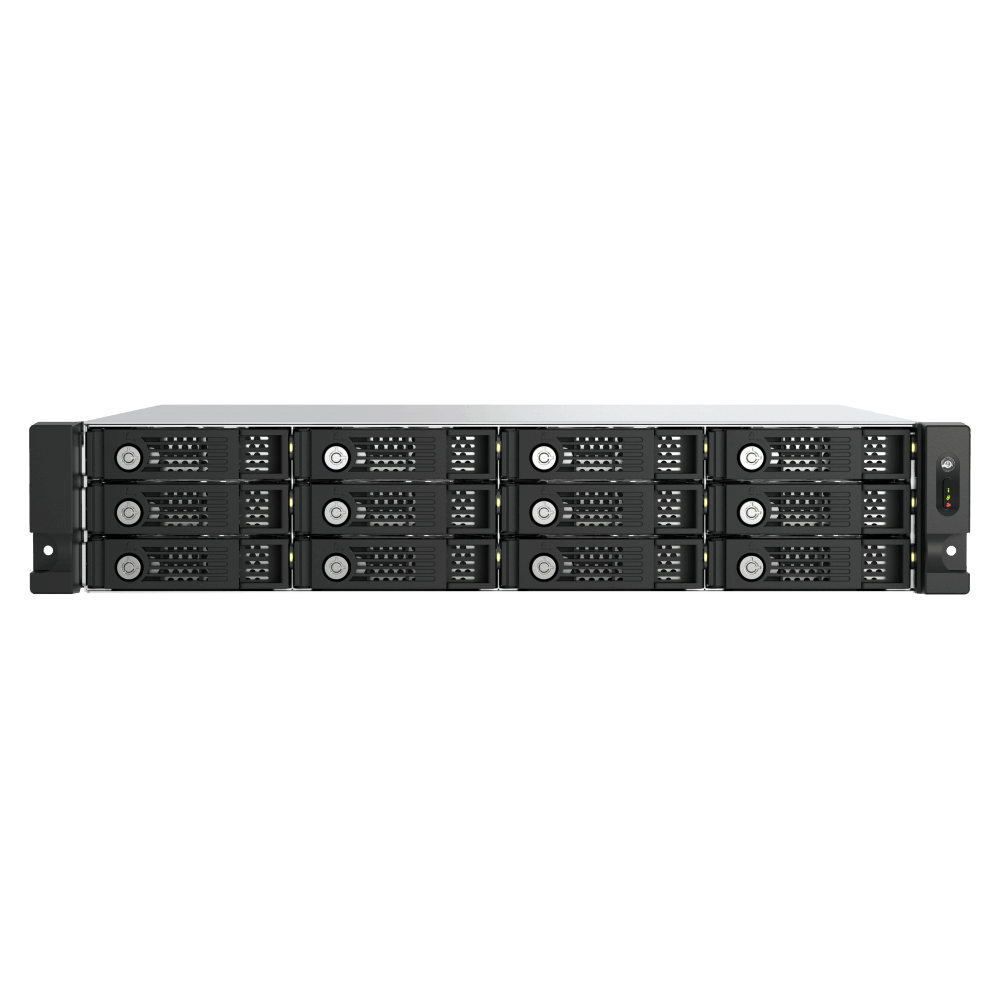

12x HDD drive bays, redundant power supply PCIe Gen 3 x8 64 Gb/s JBOD Supports QNAP NAS
The TL-R1200PES-RP TL PCIe interface JBOD storage enclosure allows you to expand the storage capacity of a QuTS hero or QTS NAS by using SATA hard drives. Providing large data capacity and fast transfer speed, the TL-R1200PES-RP is the ideal solution for archiving/backing up virtualization applications, surveillance recordings, large data, and multimedia.
Actual number of expansion units may depend on the host NAS.
Note:
• The host QNAP NAS requires QuTS hero h5.1.2 / QTS 5.1.2 (or later) and updating to specific BIOS versions per each model.
• Supported maximum pool sizes: 2.0 PB for QuTS hero NAS; 308 TB for QTS NAS.
• Users can purchase the optional RAIL-S01 short rail kit to deploy the TL-R1200PES-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
-
2.0 PB capacity
Expand up to 2.0 PB capacity for QuTS hero NAS, by connecting twelve expansion enclosures (up to 144 hard drives in total).
-
Economy
The TL-R1200PES-RP supports SATA hard drives, which are common, budget-friendly, and available with large capacities.
-
Up to 64 Gb/s
The TL-R1200PES-RP features PCIe Gen 3 x8, providing up to 64 Gb/s data transfer speed.
Note: Actual transfer speeds depend on the host NAS's PCIe slot and the storage units used.
-
Easy setup
Just connect your TL-R1200PES-RP to the host NAS to expand NAS capacity. RAID re-building on the host NAS is not required, and setup is finished within a few minutes.
-
Host-based power management
The TL-R1200PES-RP power on/off is linked with the host NAS.
-
Redundant power supply
Ensures service continuity with stable and reliable power supplies.
Specification
| JBOD Connection Interface | PCIe |
| Drive Bay | 12 x 3.5-inch
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
|
| Hot-swappable | yes |
| Form Factor | 2U Short Depth Rackmount |
| Host Interface | 2 x SFF-8644 1x2 (in, out) |
| LED Indicators | Front panel: HDD 1-12, Power, Status, Link, Fan error Rear panel: SAS connector, Enclosure ID |
| Buttons | Power |
| Dimensions (HxWxD) | 88.65 × 432 × 370.65 mm |
| Weight (Net) | 9.22 kg |
| Weight (Gross) | 14.02 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W (x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 43.4 W |
| Power Consumption: Operating Mode, Typical | 78.2 W
Tested with drives fully populated.
|
| Fan | 2 x 80mm, 12VDC |
| System Warning | Buzzer |
| QTS / QuTS hero | yes |
| Supports JBOD cascading | yes |
| Supports expanding NAS storage pools | yes |
| Standard Warranty | 5 |
| Management | Managed via QNAP QTS / QuTS hero OS 1. Supports disk S.M.A.R.T. information 2. RAID expansion enclosure identifier 3. Locate RAID expansion enclosures 4. Locate hard disks on RAID expansion enclosure 5. Smart fan control by detecting system and hard drive temperature 6. Support Host-Based Power Management |
