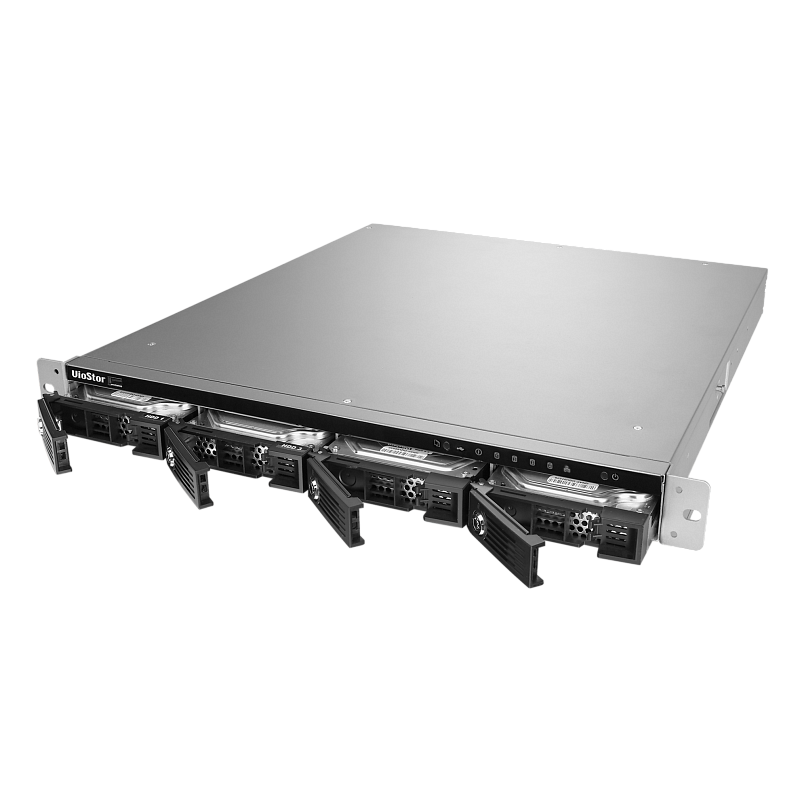

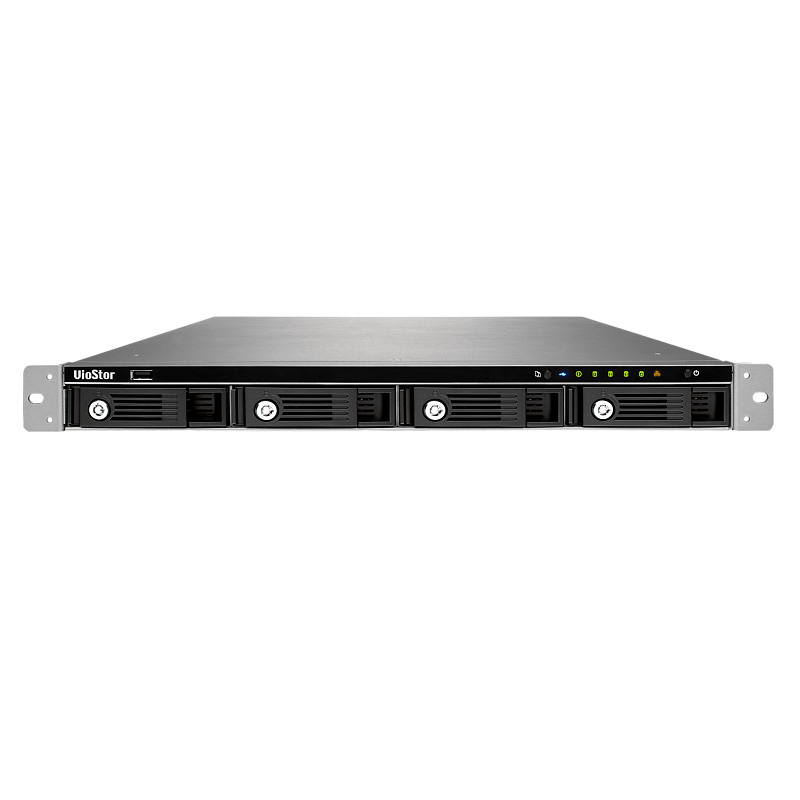

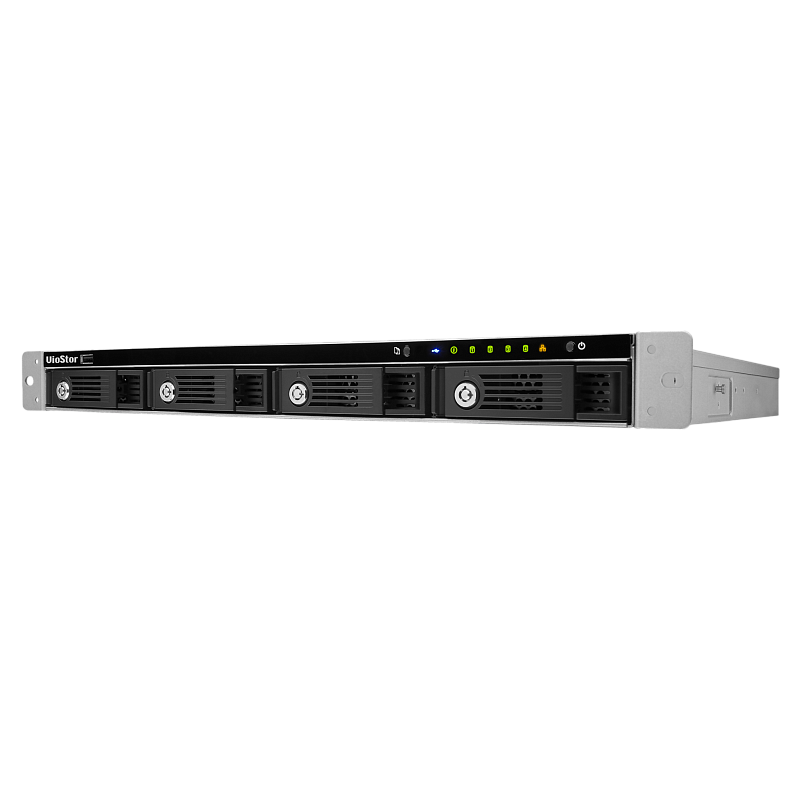

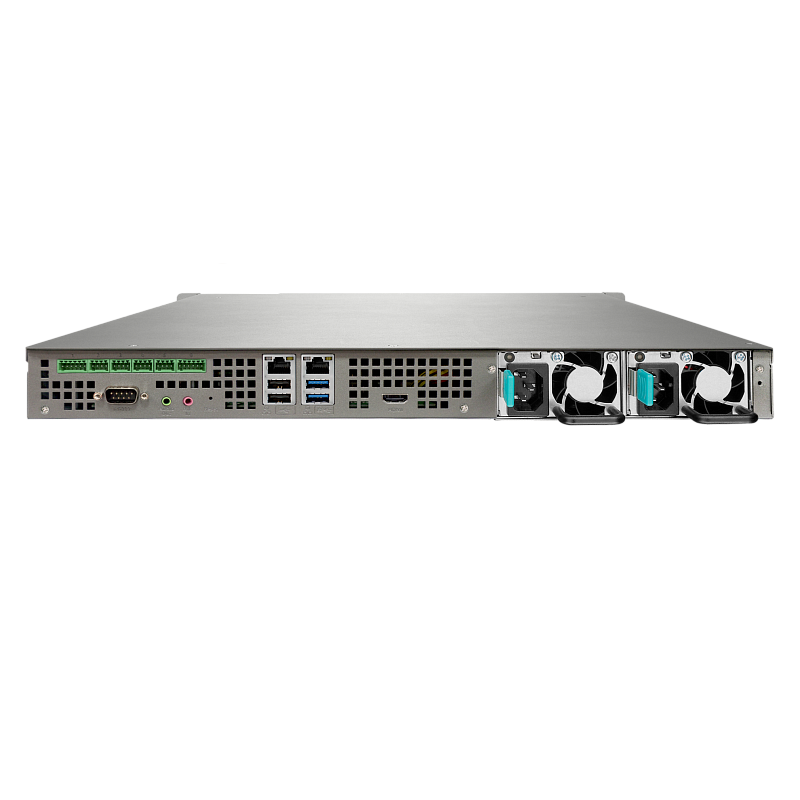

Powered by the Intel dual-core processor and 4GB of memory, it delivers high performance at a throughput rate of 250 Mbps to ensure stable recordings and smooth playbacks of multiple megapixel cameras. The 4-bay rackmount VS-4108U-RP Pro+ is designed for the SMB segment with the features of robust performance, solid reliability and high-definition local display.
Specification
| VS-4108U-RP Pro+ Specifications | |
|---|---|
| Processor | Dual-core Intel processor |
| DRAM | 4GB RAM |
| HDD Capacity | 4x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD. |
| Hard Drive Tray | 4 x hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| LED Indicators | USB, Status, HDD1-4, LAN |
| USB | 2 x USB 3.0 port (Back: 2) 3x USB 2.0 port (Front: 1; Back: 2) Support pen drive, USB mouse, USB keyboard, USB sound card, and USB UPS etc. |
| Buttons | Power button, One-touch-auto-video-backup button, Reset button |
| Alarm Buzzer | System warning |
| Audio | Audio In/Out for local display |
| Series Interface | RS-232 interface *1(reserved) , RS-485*1 interface (reserved) |
| Alarm In | Alarm In *8 |
| Alarm Out | Alarm Out *2 |
| Form Factor | 1U rackmount |
| Dimensions | 44(H) x 439(W) x 499(D) mm 1.73(H) x 16.97(W) x 19.65(D) inch |
| Weight | Net weight: 11.54 kg/ 25.44 lb Gross weight: 13.5 kg/ 29.76 lb |
| Temperature | 0~40˚C / 32~104˚F |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C. |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 250W |
| Power Consumption (W) | 80W (with 4 x 2TB HDD installed) |
| Video Output | 1x HDMI Suggested video output resolution: 1920 x 1080 (Full HD) |
| Fan | 3 x cooling fan (4 cm, 12V DC; internal) |
| Certification | CE, FCC, VCCI, BSMI |
| Package Contents |
|
