16-channel rackmount network video recorder

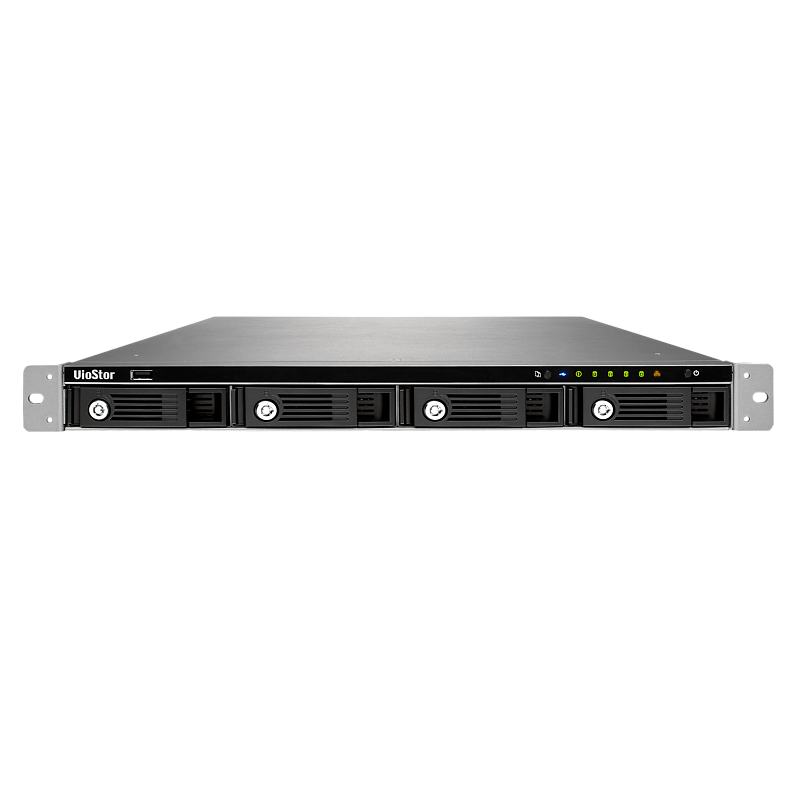

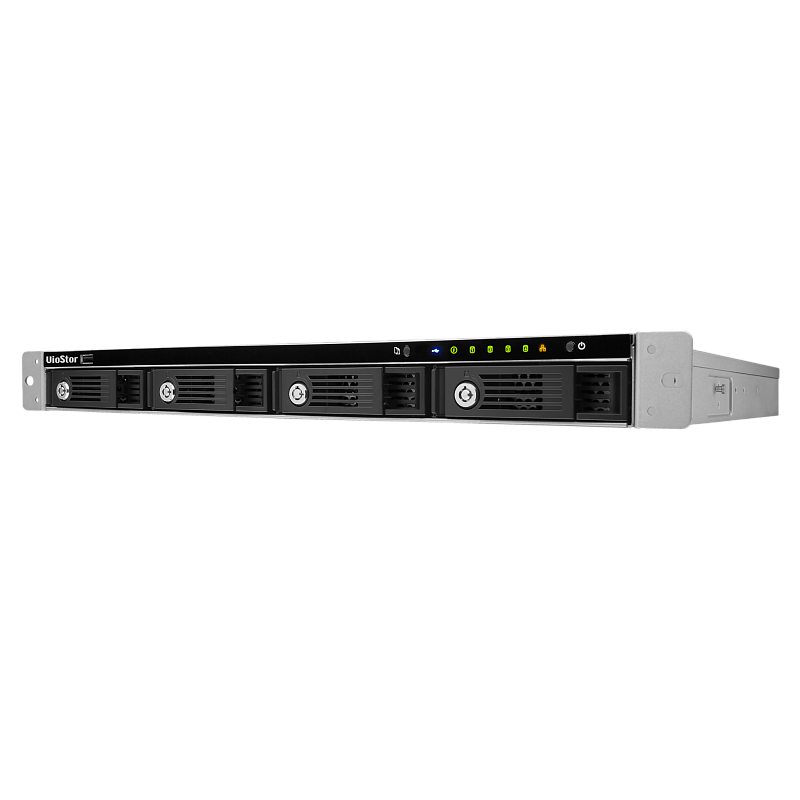

QNAP VS-4116U-RP Pro+ Network Video Recorder
A 4-bay diskless network video recorder with 4GB RAM, dual Gigabit Ethernet ports and local Full HD HDMI display for managing up to 16 surveillance channels.
Centralised surveillance recording with local monitoring
The QNAP VS-4116U-RP Pro+ brings network-camera recording, live monitoring and playback into a dedicated 1U rackmount appliance. Based on the supplied information, it combines 250 Mbps recording throughput, hot-swappable drive trays, HDMI local display and dual Gigabit Ethernet connectivity for small-to-medium businesses.
Key features and benefits
Multi-camera recording
The supplied model title identifies support for up to 16 surveillance channels.
Stable recording throughput
250 Mbps throughput is supplied for recording and playback of multiple megapixel cameras.

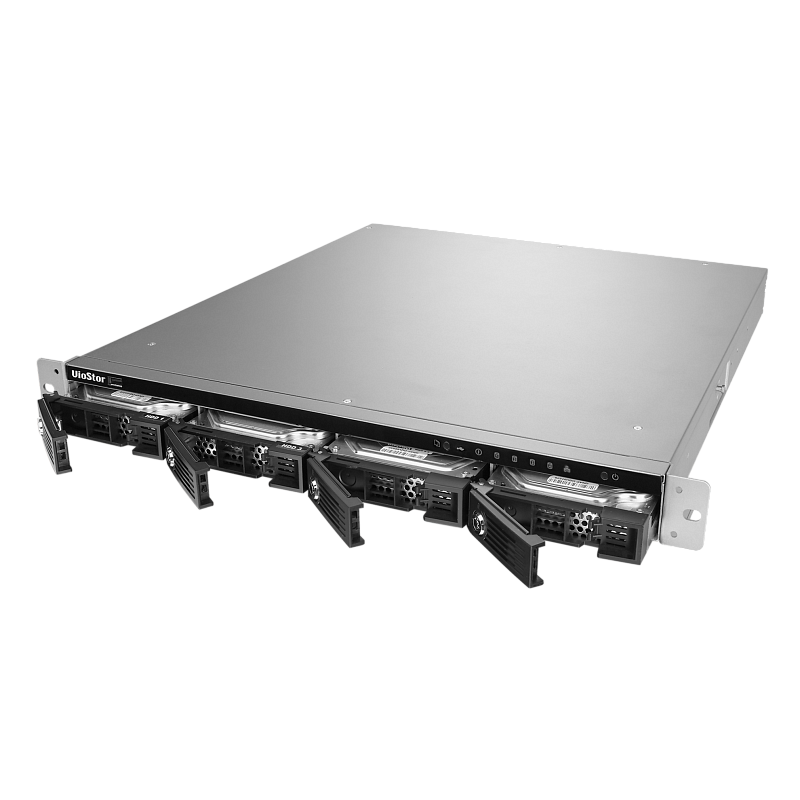

Hot-swappable storage
4 lockable, hot-swappable trays simplify physical drive access and replacement.
Local Full HD monitoring
The HDMI output supports a suggested 1920 × 1080 Full HD display resolution.
Dual network ports
Two Gigabit RJ45 Ethernet ports provide the supplied network connectivity.
Surveillance controls and alarms
One-touch video backup, audio input/output, alarm inputs and alarm outputs are included in the supplied specification.
Who is the QNAP VS-4116U-RP Pro+ best for?
A strong choice for
- small-to-medium businesses managing up to 16 surveillance channels
- Sites that require local HDMI monitoring
- Deployments needing 4 hot-swappable and lockable drive trays
- Teams using USB peripherals listed in the supplied specification
- Equipment-rack installations requiring a 1U form factor
Consider another model if you need
- More than 16 surveillance channels
- More than 4 internal drive bays
- A desktop or tower enclosure
- Recording throughput above the supplied 250 Mbps
Key specifications
- Processor
- Dual-core Intel processor
- Memory
- 4GB RAM
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard-drive bays
- Drive trays
- 4 × hot-swappable and lockable trays
- Network ports
- 2 × Gigabit RJ45 Ethernet
- USB
- 2 × USB 3.0; 3 × USB 2.0
- Video output
- 1 × HDMI; suggested resolution 1920 × 1080 Full HD
- Form factor
- 1U rackmount
- Dimensions
- 44 × 439 × 499 mm
- Net weight
- 11.54 kg
- Power consumption
- 80W with 4 × 2TB HDD installed
Full technical specifications
View all supplied technical specifications
| Processor | Dual-core Intel processor |
|---|---|
| DRAM | 4GB RAM |
| HDD Capacity | 4x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD. |
| Hard Drive Tray | 4 x hot-swappable and lockable tray |

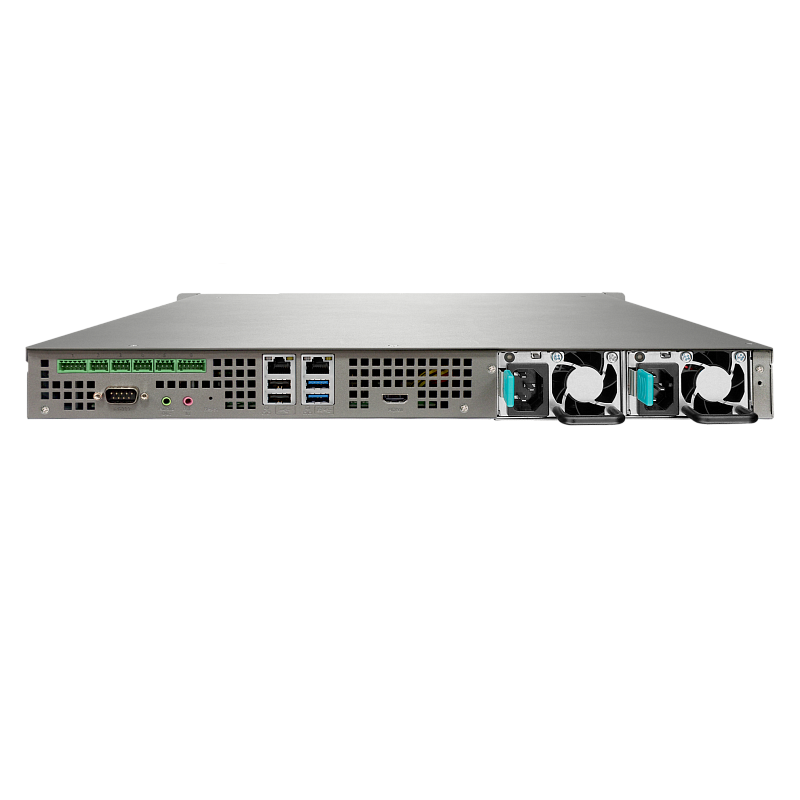

| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| LED Indicators | USB, Status, HDD1-4, LAN |
| USB | 2 x USB 3.0 port (Back: 2) 3x USB 2.0 port (Front: 1; Back: 2) Support pen drive, USB mouse, USB keyboard, USB sound card, and USB UPS etc. |
| Buttons | Power button, One-touch-auto-video-backup button, Reset button |
| Alarm Buzzer | System warning |
| Audio | Audio In/Out for local display |
| Series Interface | RS-232 interface *1(reserved) , RS-485*1 interface (reserved) |
| Alarm In | Alarm In *8 |
| Alarm Out | Alarm Out *2 |
| Form Factor | 1U rackmount |
| Dimensions | 44(H) x 439(W) x 499(D) mm 1.73(H) x 16.97(W) x 19.65(D) inch |
| Weight | Net weight: 11.54 kg/ 25.44 lb Gross weight: 13.5 kg/ 29.76 lb |
| Temperature | 0~40°C / 32~104°F |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27°C. |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 250W |
| Power Consumption (W) | 80W (with 4 x 2TB HDD installed) |
| Video Output | 1x HDMI Suggested video output resolution: 1920 x 1080 (Full HD) |
| Fan | 3 x cooling fan (4 cm, 12V DC; internal) |
| Certification | CE, FCC, VCCI, BSMI |
| Package Contents | VS-4116U-RP Pro+ CD-ROM Ethernet cable x 2 Power cord Screw pack Screw x 8 Handle x 2 Mount Kit x 2 Terminal Block x 6 Quick Installation Guide 1U Rail Kit Hard Disk Lock |
Frequently asked questions about the QNAP VS-4116U-RP Pro+
What is the QNAP VS-4116U-RP Pro+?
The QNAP VS-4116U-RP Pro+ is a 16-channel, 4-bay diskless network video recorder for surveillance recording, monitoring and playback.
How many surveillance channels does the QNAP VS-4116U-RP Pro+ support?
The supplied product title identifies the QNAP VS-4116U-RP Pro+ as a 16-channel NVR.
Does the QNAP VS-4116U-RP Pro+ include hard drives?
No. The supplied specification states that the system ships without hard drives.
How many drive bays does the QNAP VS-4116U-RP Pro+ have?
It has 4 3.5-inch SATA drive bays with hot-swappable and lockable trays.
What processor is in the QNAP VS-4116U-RP Pro+?
The supplied specification lists a Dual-core Intel processor.
How much memory is included with the QNAP VS-4116U-RP Pro+?
The QNAP VS-4116U-RP Pro+ includes 4GB RAM. No maximum or upgradeability information is supplied.
What network ports are included?
The supplied specification lists two Gigabit RJ45 Ethernet ports.
What local display output is available?
One HDMI output is supplied, with a suggested video output resolution of 1920 × 1080 Full HD.
