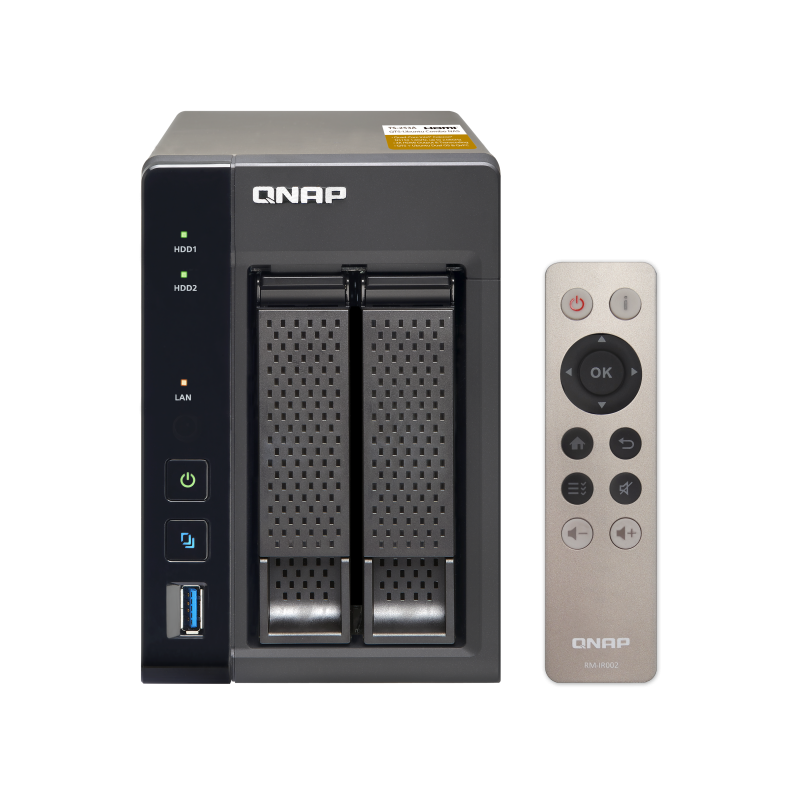

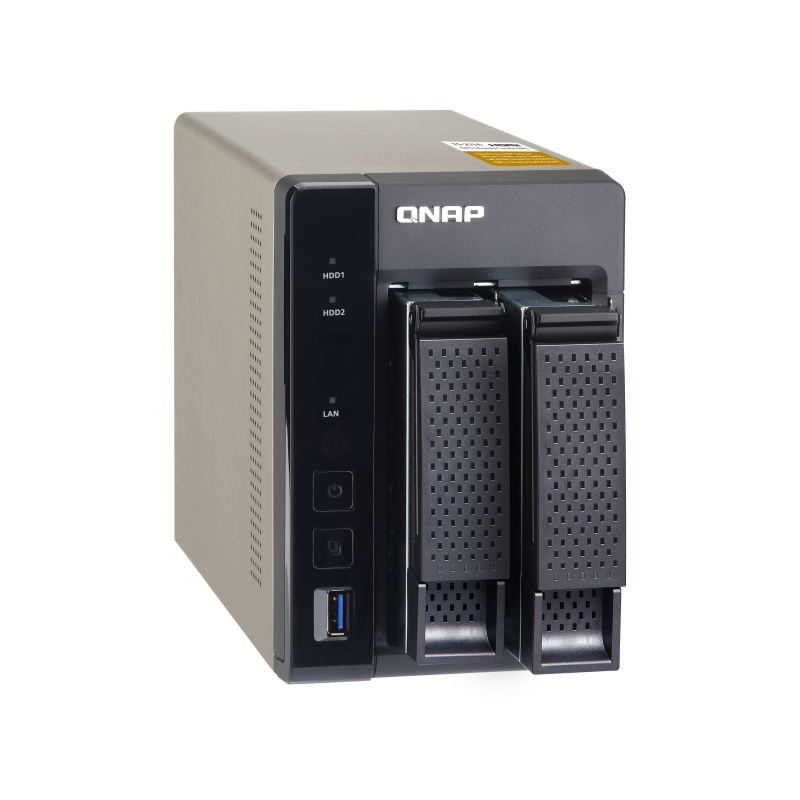

QTS-Linux Combo NAS: a well-rounded private cloud solution centralizing storage and IoT applications
In response to the coming era of Internet of Things (IoT), the TS-253A innovatively supports the open-source Linux® platform as a gateway for IoT solutions to other smart devices. The TS-253A allows users to directly utilize various feature-rich Linux apps, enjoying a private cloud combining storage and IoT applications, and professional developers can develop and run IoT applications directly on the TS-253A. The secure, reliable TS-253A is packed with business-critical features such as Volume/LUN Snapshot – allowing files/folders to revert to a previous state in case of any corruption or file-loss. The TS-253A is powered by the latest quad-core Intel® Celeron® processor which allows users to enjoy 4K (H.264) video playback and 1080p/4K video real-time transcoding directly from the TS-253A to an HD/4K display.
- Supports the Linux® OS with direct output via HDMI™
- Dual HDMI™ output for switching between duplicated and extended desktop options
- AES-NI hardware-accelerated encryption for efficient cryptographic performance up to 224 MB/s
- Supports 4K hardware decoding and transcodes 4K H.264 videos on-the-fly or offline
- Quickly find files using a real-time, natural search with Qsirch 2.1
- NAS and iSCSI-SAN unified storage solution for virtualization
- Supports VMware®, Citrix®, Microsoft® Hyper-V and advanced virtualization features
- A hybrid approach to virtualization in one NAS: Virtualization Station & Container Station
- Build a personal karaoke system with high-quality audio output with the new OceanKTV app
Specification
| Ordering P/N | TS-253A-4G | TS-253A-8G |
|---|---|
| CPU | 14 nm Intel® Celeron® N3150/N3160 1.6 GHz quad-core processor |
|
Floating Point Unit
|
✔ |
|
Hardware Encryption
|
✔ (AES-NI) |
| GPU | 8th generation Intel HD Graphics |
| System memory | TS-253A-4G: 4GB (2 x 2GB) TS-253A-8G: 8GB (2 x 4GB) |
| Memory Expandable Up To | 8 GB |
| Total Memory Slots | 2, SODIMM DDR3L-1600 (*For dual-DIMM configurations, you must use a pair of identical DDR3L modules.) |
| Flash Memory | 512MB |
| Maximum Number of Hard Drive | 2 |
| Hard Disk Drive | Hot-swappable 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| USB | 4 x USB 3.2 Gen1 port (Front:1, Rear:3) Support USB printer, pen drive, and USB UPS etc. |
| Video Output | 2 x HDMI™ , up to 4K 2160P 30Hz Ultra HD support |
| Audio Input | 2 x 6.3mm microphone jacks (dynamic microphones only) |
| Audio Output | Line Out Jack (for amplifier or headphone amplifier) |
| LED Indicators | Status, USB, HDD 1-2 |
| Buttons | System: Power button, USB one-touch-backup button, Reset button |
| IR Receiver | ✔, Support QNAP RM-IR002, RM-IR003 and MCE-compatible Remote Control |
| Other Interface | Kensington security slot, console port (system maintenance) |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Dimensions | 150(H) x 102(W) x 216(D) mm 5.91(H) x 4.02(W) x 8.5(D) inch |
| Weight | Net: 1.74 kg (3.84 lbs) Gross: 2.92 kg (6.44 lbs) |
| Power Consumption (W) | System sleep mode: 1.18W HDD standby: 8.38W In operation: 14.43W |
| Sound Level* | Sound pressure (LpAm) :18.3 dB(A) |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C |
| Power Supply | 65W AC adapter, 100-240V |
| Fan | 7cm quiet cooling fan (12V DC) |
