Intel® dual-core CPU, up to 2.9 GHz
2x M.2 NVMe slots for SSD caching
1x 2.5GbE, 1x PCIe slot, 2 x USB 3.2 Gen 2 (10Gbps)
A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-262 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-262 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI™ 2.1 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-262 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-262 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.
-
2.5GbE port
Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.
-
HDMI™ port
4K media playback and real-time transcoding; directly watch videos using HDMI™ 2.1 (4K @60Hz) output.
-
AI-powered image recognition
Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.
-
Dual M.2 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).
-
PCIe slot
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-262, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.
-
Expand storage capacity
Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).
Specification
| CPU | Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit |  |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 4 GB RAM
Since 2024/01
|
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |

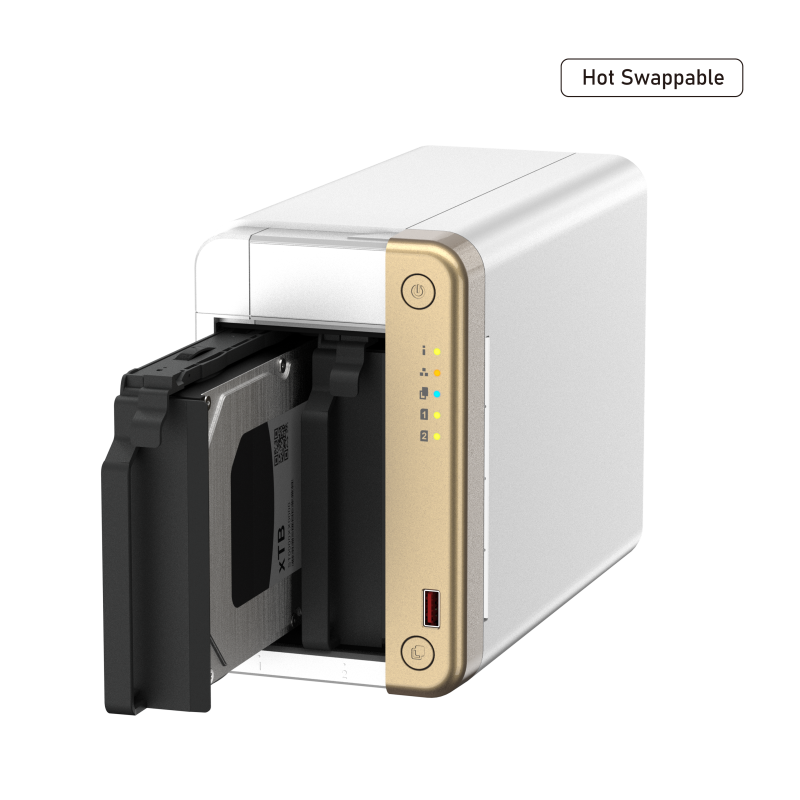

| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 105 × 226.5 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 2.61 kg |
| Weight (Gross) | 2.61 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 60W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 8.198 W |
| Power Consumption: Operating Mode, Typical | 12.448 W
Tested with drives fully populated.
|
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
