2-bay personal NAS

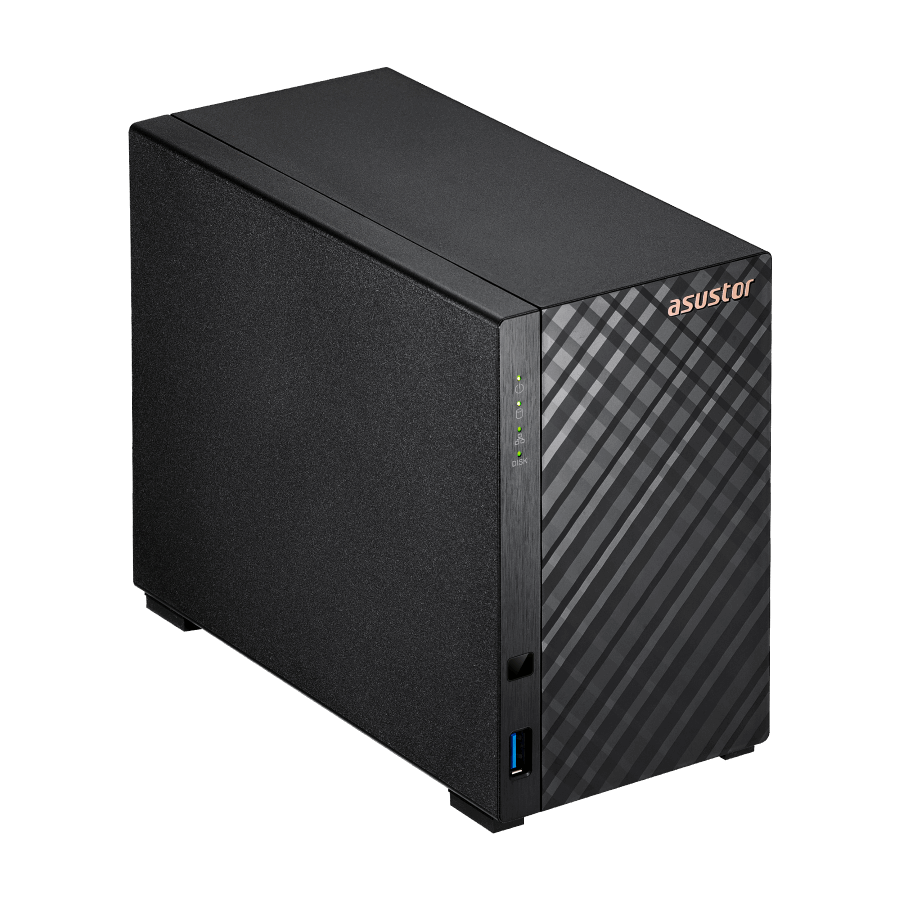

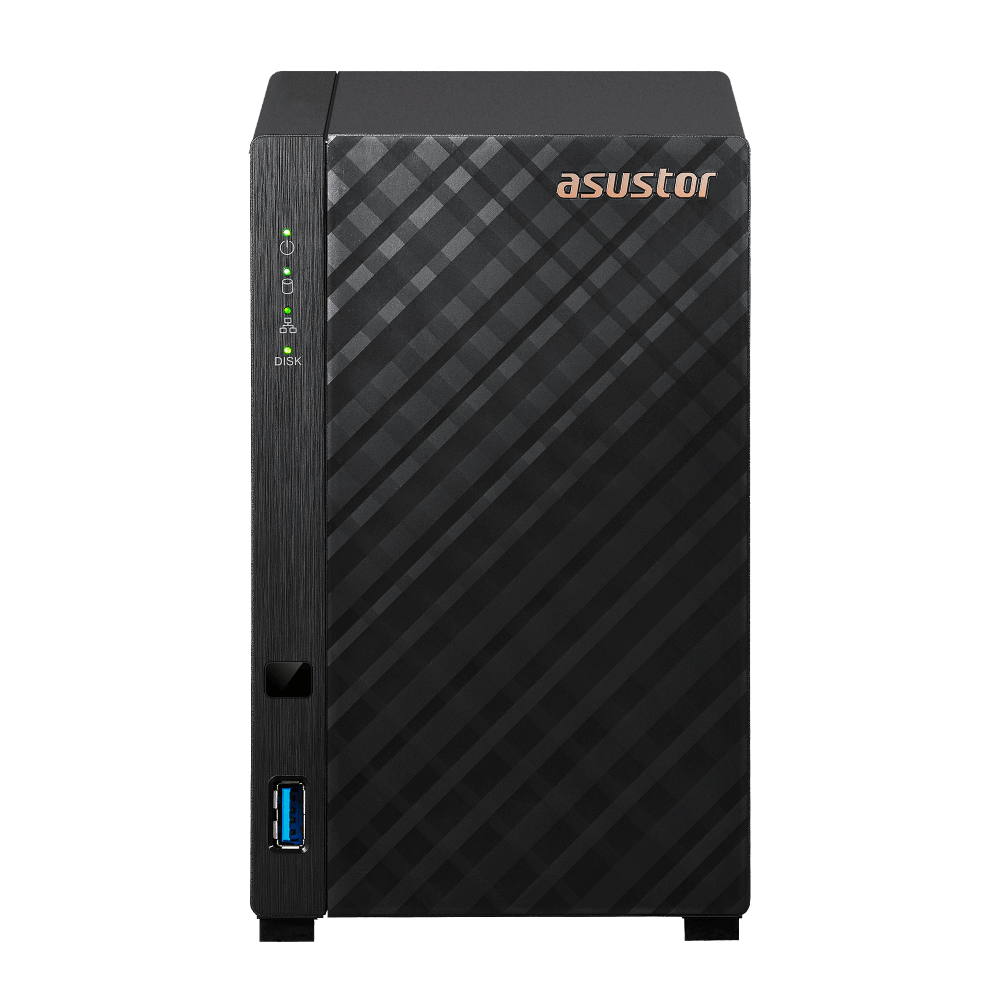

ASUSTOR Drivestor AS1102TL
The ASUSTOR Drivestor AS1102TL is a 2-bay NAS with Realtek RTD1619B, Quad-Core 1.7GHz, 1GB DDR4 and 1x Gigabit Ethernet (1G/100M).
- Processor
- Realtek RTD1619B — Quad-Core 1.7GHz
- Memory
- 1GB DDR4
- Drive bays
- 2
- Networking
- 1x Gigabit Ethernet (1G/100M)
Straightforward NAS storage based on the supplied feature set
The supplied Drivestor AS1102TL description positions this compact two-bay NAS for personal storage with a Realtek RTD1619B processor, 1GB DDR4 memory, Gigabit Ethernet, Wake-on-LAN, Btrfs/iSCSI snapshots, tool-free installation and 4K transcoding.
Compact two-bay NAS
The exact hardware table lists 2 drive bays.
Realtek quad-core processor
The supplied table lists Realtek RTD1619B with Quad-Core 1.7GHz.
Fixed 1GB DDR4 memory
The exact specification lists 1GB DDR4 and states memory is not expandable.
Gigabit Ethernet
The hardware table lists 1x Gigabit Ethernet (1G/100M).
USB connectivity
The supplied table lists 1x USB 3.2 Gen 1 1 x USB 2.0.
Snapshots and transcoding
The supplied description states Btrfs/iSCSI snapshots and 4K transcoding.
Who is the ASUSTOR AS1102TL best for?
A strong choice for
- Personal file storage
- Two-drive NAS deployments
- Home backup and shared storage
- Users who can use Gigabit Ethernet
- Buyers who do not need memory expansion
Consider another model if you need
- Upgradeable system memory
- 2.5GbE or 10GbE built in
- Built-in M.2 NVMe slots
- More than two internal drive bays without expansion
Key specifications
- Model
- AS1102TL
- CPU
- Realtek RTD1619B
- CPU frequency
- Quad-Core 1.7GHz
- Memory
- 1GB DDR4
- Memory expandable up to
- not expandable
- Flash memory
- 8GB eMMC
- Drive bays
- 2
- Compatible drive type
- 3.5" SATA HDD
- Networking
- 1x Gigabit Ethernet (1G/100M)
- External expansion
- 1x USB 3.2 Gen 1 1 x USB 2.0
- Multimedia output
- N/A
- Power supply
- 65W x1
- Power consumption
- 11.7W (Operation) 3.1W (Disk Hibernation);
- Noise level
- 18.6dB (HDD idle)
- Operating temperature
- 0°C~40°C (32°F~104°F)
- Storage temperature
- -20°C~70°C (-4°F~158°F)
- Humidity
- 5% to 95% RH
- Warranty
- 3 Years
- Size
- 165(H) x 102(W) x 218(D) mm
- Weight
- 1.14 kg / 2.5 lbs
Full technical specifications
CPU
| CPU Model | Realtek RTD1619B |
|---|---|
| CPU Architecture | ARM64 64-bit |
| CPU Frequency | Quad-Core 1.7GHz |
Memory
| Memory | 1GB DDR4 |
|---|---|
| Memory Expandable up to | not expandable |
| Flash Memory | 8GB eMMC |
Storage
| Drive Bays | 2 |
|---|---|
| Compatible Drive Type | 3.5" SATA HDD |
| Maximum Drive Bays with | 6 |
External Ports
| Expansion | 1x USB 3.2 Gen 1 1 x USB 2.0 |
|---|---|
| Network | 1x Gigabit Ethernet (1G/100M) |
| Multimedia Output | N/A |
Others
| System Fan | 1x 70mm |
|---|---|
| Power Supply Unit / Adapter | 65W x1 |
| Input Power Voltage | 100V to 240V AC |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC |
| Warranty | 3 Years |
Operation
| Power Consumption | 11.7W (Operation) 3.1W (Disk Hibernation); |
|---|---|
| Noise Level | 18.6dB (HDD idle) |
| Operation Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| Humidity | 5% to 95% RH |
Size and Weight
| Size | 165(H) x 102(W) x 218(D) mm |
|---|---|
| Weight | 1.14 kg / 2.5 lbs |
Frequently asked questions about the ASUSTOR AS1102TL
What is the ASUSTOR AS1102TL?
It is a 2-bay ASUSTOR Drivestor NAS with the hardware and features listed in the supplied product content.
What processor does the AS1102TL use?
The exact table lists Realtek RTD1619B with Quad-Core 1.7GHz.
How much memory does the AS1102TL include?
The supplied specification lists 1GB DDR4.
Can memory be upgraded on the AS1102TL?
The supplied table states: not expandable.
How many drive bays does the AS1102TL have?
The exact specification lists 2 drive bays.
What drive types are listed for the AS1102TL?
The supplied compatible-drive field lists 3.5" SATA HDD.
What networking is built into the AS1102TL?
The exact hardware table lists 1x Gigabit Ethernet (1G/100M).
What warranty is listed for the AS1102TL?
The supplied table lists 3 Years.
- Technical specifications above come only from the supplied product content.
- The supplied technical field is labelled “Maximum Drive Bays with” rather than “Maximum Drive Bays with expansion unit”; the value is retained only in the full source table.
