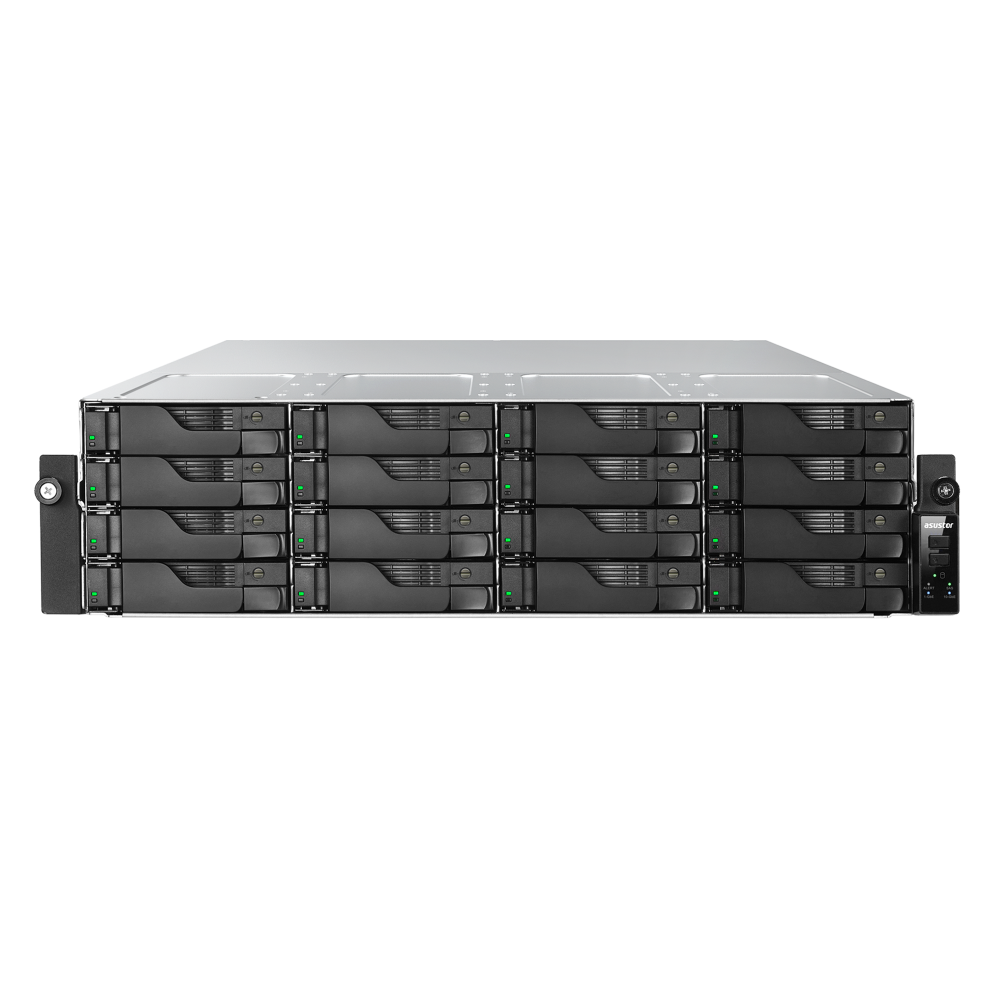

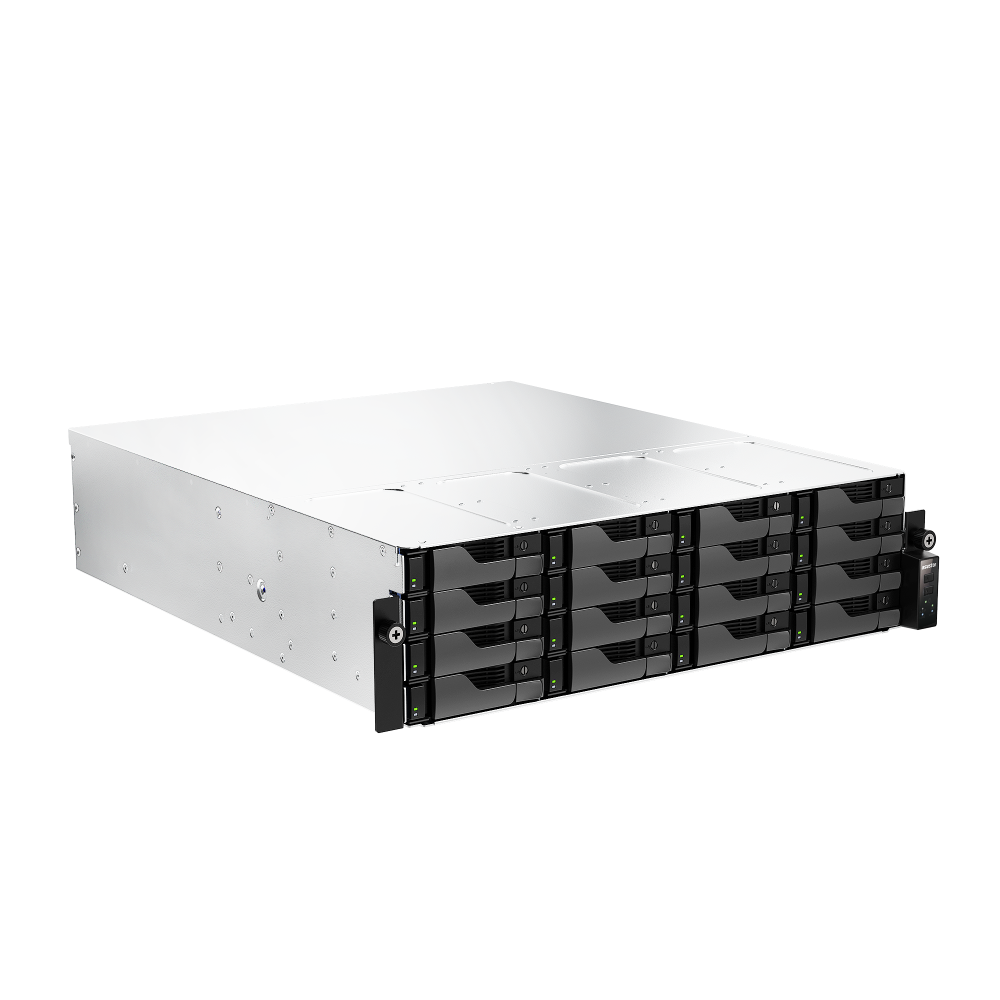

ASUSTOR Lockerstor 16R Pro Gen2 AS7216RDX Rackmount NAS
The ASUSTOR Lockerstor 16R Pro Gen2 AS7216RDX is a 3U rackmount NAS powered by an AMD Ryzen 7 Pro 7745 eight-core, 16-thread processor and 16GB ECC DDR5-4800 memory. It combines 16 hot-swappable SATA bays, one PCIe Gen5 x4 M.2 slot, dual 10GbE, dual Gigabit Ethernet and dual redundant 550W power supplies.
16 SATA bays
Ryzen 7 Pro 7745
16GB ECC DDR5
Dual 10GbE
PCIe Gen5 expansion
Five-year warranty
Drive bays
16 hot-swappable SATA bays
Processor
AMD Ryzen 7 Pro 7745, 8 cores / 16 threads
Memory
16GB ECC DDR5-4800; up to 192GB
Networking
2 × 10GbE + 2 × Gigabit Ethernet
High-density 3U storage with Ryzen and Gen5 expansion
The ASUSTOR Lockerstor 16R Pro Gen2 AS7216RDX is designed for centralised business storage, backup, virtualisation and collaborative workflows. ADM provides storage-management, snapshot, backup and application services, while PCIe Gen5 x8 and x4 expansion slots allow qualified networking or SAS expansion hardware. Drives and optional expansion cards are selected separately and must be checked against ASUSTOR's compatibility guidance.
Ryzen 7 Pro processing
The embedded eight-core, 16-thread Ryzen 7 Pro 7745 operates from 3.8GHz base up to 5.3GHz turbo for demanding NAS services.
ECC DDR5 memory
A 16GB ECC DDR5-4800 UDIMM is pre-installed; four slots support up to 192GB using compatible modules.
16 hot-swap bays
The rackmount chassis provides 16 hot-swappable bays for compatible 3.5-inch or 2.5-inch SATA HDDs and SSDs.
Dual 10GbE plus dual 1GbE
Two 10-Gigabit and two Gigabit Ethernet ports support flexible high-speed, redundant and aggregated network designs.
PCIe Gen5 flexibility
One Gen5 x8 slot, one Gen5 x4 slot and one M.2 2280 PCIe Gen5 x4 slot support qualified expansion and NVMe storage.
Redundant power
Two 550W 80 PLUS Platinum redundant power supplies support service continuity in an appropriate rack environment.
Who is the ASUSTOR Lockerstor 16R Pro Gen2 AS7216RDX best for?
A strong choice for
Business file services and centralised shared storage
Backup repositories and multi-stage data-protection workflows
Virtualisation and container workloads supported by ADM applications
High-throughput teams using 10GbE networking
Rack deployments needing 16 front-access hot-swap SATA bays
Consider another model if you need
You need a desktop or quiet small-office form factor
You do not have suitable rack depth, airflow and power provision
Your chosen drives or expansion cards are not on the compatibility list
You need a fully populated system rather than a diskless enclosure
3.5-inch SATA HDD; 2.5-inch SATA HDD; 2.5-inch SATA SSD
M.2 slots
1
M.2 type
M.2 2280 NVMe
M.2 interface
PCIe Gen5 x4
Gigabit Ethernet
2 × RJ45; 1G/100M; Wake-on-LAN
10-Gigabit Ethernet
2 × RJ45; 10G/1G
USB
4 × USB 3.2 Gen 1 Type-A
PCIe expansion
1 × Gen5 x8 slot with x8 link
PCIe expansion
1 × Gen5 x4 slot with x4 link
Qualified expansion categories
Optional 10/25/40/50GbE network cards and SAS controller cards
Display output
1 × HDMI for service only
External expansion note
SAS expansion is supported with qualified optional hardware; confirm the current supported maximum directly with ASUSTOR
Power, environment, dimensions and service
System fans
3 × 60mm
Power supplies
2 × 550W
Redundant power
Supported
Efficiency certification
80 PLUS Platinum
Input voltage
100–240V AC
Operating power
187W
Disk hibernation power
128W
Operating temperature
0°C to 40°C
Storage temperature
-20°C to 70°C
Humidity
5% to 95% RH
Dimensions
116 × 439 × 576mm
Weight
15.3kg
Service LED
Supported
Certifications
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS and UKCA
Warranty
Five years
Drive inclusion
Drives are not specified as included in the source listing
ADM storage and business capabilities
Operating system
ASUSTOR Data Master (ADM)
RAID options highlighted
RAID 50 and RAID 60, in addition to supported standard ADM volume types
Snapshots
Snapshot Center for Btrfs and iSCSI volumes
Backup tools
Cloud Backup Center and DataSync Center
File protocols highlighted
iSCSI/IP-SAN and NFS
Virtualisation positioning
VMware, Citrix and Hyper-V ready; verify current certification and configuration
Containers
Docker applications through supported ADM apps
Security tools
ADM Defender, firewall, antivirus options and two-step verification
Compatibility requirement
Use ASUSTOR-qualified drives, memory and expansion cards
Deployment note
Rack depth, rail kit, airflow, acoustic and power requirements must be planned separately
Frequently asked questions about the ASUSTOR Lockerstor 16R Pro Gen2 AS7216RDX
What is the AS7216RDX?
It is a 16-bay 3U ASUSTOR rackmount NAS with Ryzen 7 Pro processing, ECC DDR5 memory and dual 10GbE.
How many drive bays does the AS7216RDX have?
It has 16 hot-swappable SATA bays.
Which CPU is installed in the AS7216RDX?
ASUSTOR specifies an AMD Ryzen 7 Pro 7745 with eight cores, 16 threads and 3.8GHz to 5.3GHz frequency.
How much memory does the AS7216RDX include?
It includes 16GB ECC DDR5-4800 as one 16GB UDIMM and supports up to 192GB with compatible memory.
What networking does the AS7216RDX provide?
It has two 10GbE RJ45 ports and two Gigabit Ethernet RJ45 ports.
Does the AS7216RDX support NVMe SSDs?
Yes. It has one M.2 2280 NVMe slot using a PCIe Gen5 x4 interface; verify the exact SSD on ASUSTOR's compatibility list.
Can the AS7216RDX accept expansion cards?
Yes. It provides one PCIe Gen5 x8 slot and one Gen5 x4 slot for qualified network or SAS cards.
Does the AS7216RDX have redundant power?
Yes. ASUSTOR specifies dual 550W 80 PLUS Platinum redundant power supplies.
Are hard drives included with the AS7216RDX?
The supplied listing does not specify included drives, so treat it as an enclosure unless the seller's package details state otherwise.
What warranty applies to the AS7216RDX?
ASUSTOR specifies a five-year warranty, subject to its regional terms.
Important information:
Confirm every HDD, SSD, memory module and expansion card against ASUSTOR's current compatibility lists.
Drives are not specified as included; verify the exact package contents before purchase.
Plan rack depth, rails, power feeds, cooling, acoustics and network cabling before deployment.
Expansion maximums can change with supported enclosures and controllers; confirm the current limit with ASUSTOR.
Compatibility
✔ Expansion Units:
See which ASUSTOR NAS and expansion units are compatible. Explore HERE.
✔ Others (Drives, Accessories, Cards, etc.):
See which ASUSTOR NAS and storage drives, expansion cards, rail kits and accessories are compatible. Explore HERE.
