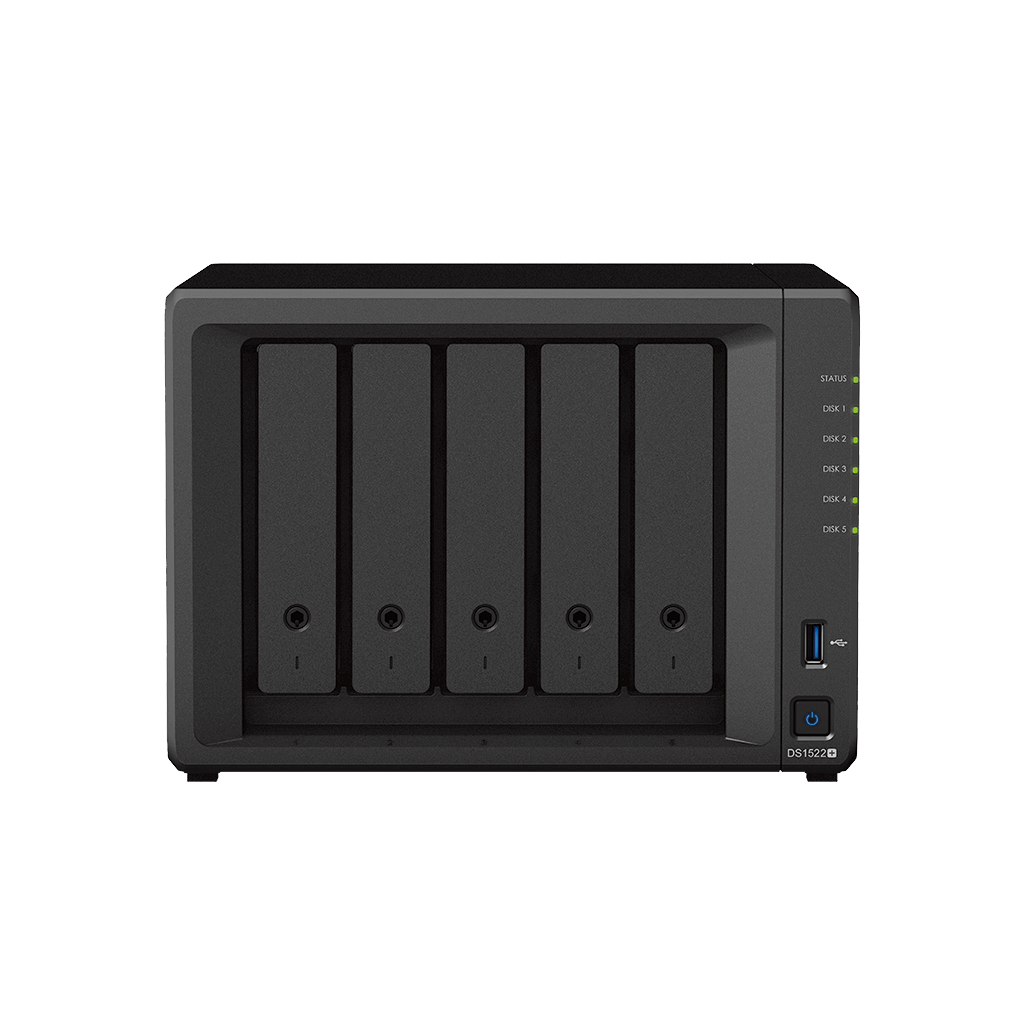

SYNOLOGY Plus series DS1522+ NAS Front View

SYNOLOGY Plus series DS1522+ NAS Back View (I/O ports)

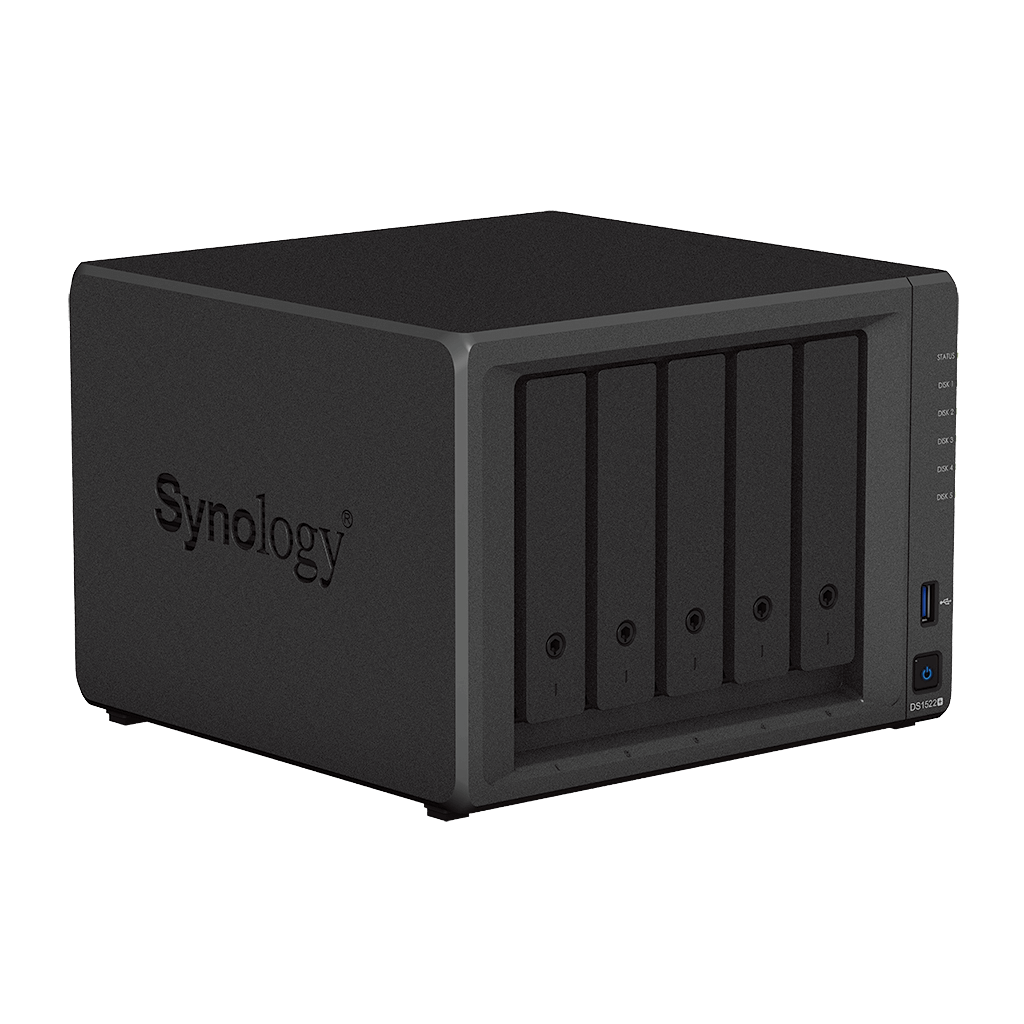

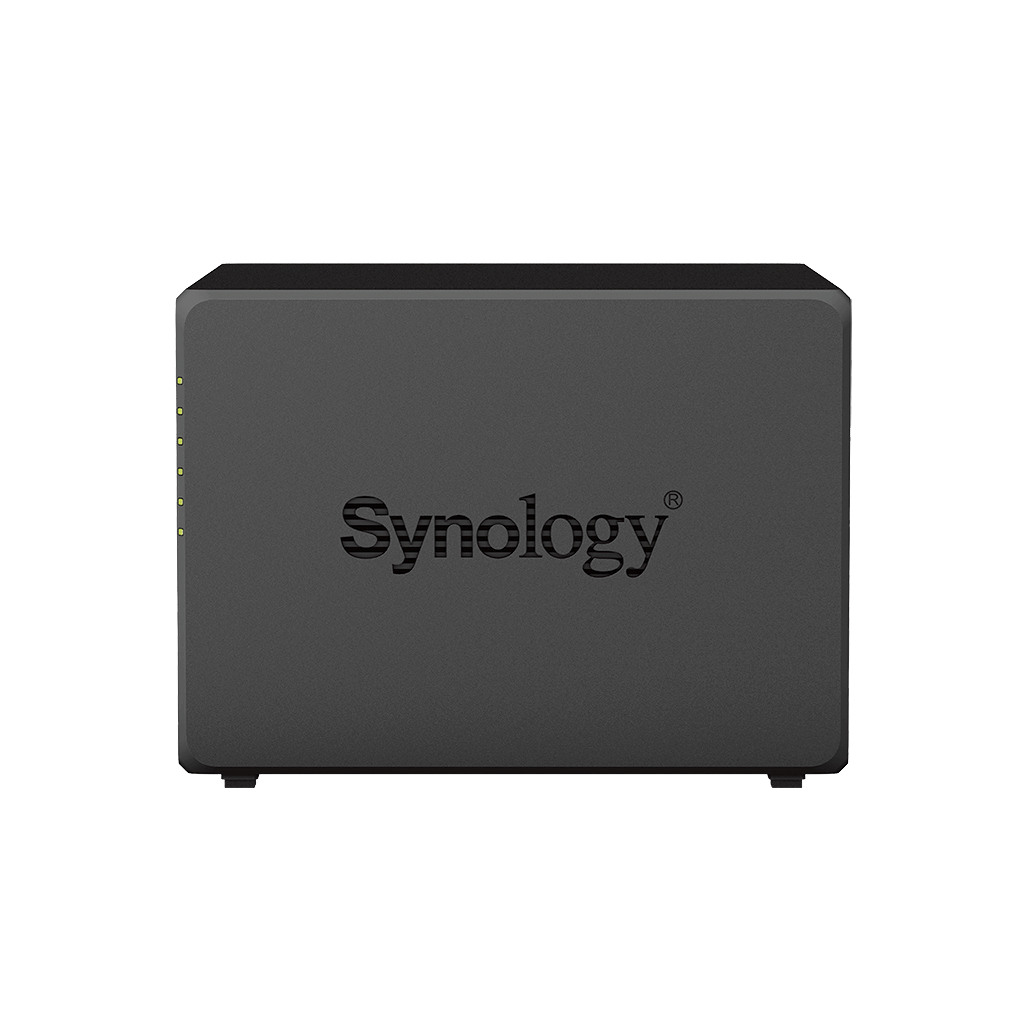

SYNOLOGY Plus series DS1522+ NAS Side View 3

SYNOLOGY Plus series DS1522+ NAS Side View 4

SYNOLOGY Plus series DS1522+ NAS Side View 5

Gallery
Description

Description

Flexible data management for homes and small business

The 5-bay Synology DiskStation DS1522+ is easy to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

Specification

Hardware Specifications
CPU	CPU Model	AMD Ryzen R1600
	CPU Quantity	1
	CPU Core	2
	CPU Architecture	64-bit
	CPU Frequency	2.6 (base) / 3.1 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	5
	Maximum Drive Bays with Expansion Unit	15 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Drive Type	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots.
External Ports	RJ-45 1GbE LAN Port	4
	USB 3.2 Gen 1 Port*	2
	Expansion Port	2
	Expansion Port Type	eSATA
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x2 network upgrade slot
Appearance	Size (Height x Width x Depth)	166 mm x 230 mm x 223 mm
	Weight	2.7 kg
Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	22.90 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	120 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	52.06 watts (Access) 16.71 watts (HDD Hibernation)
	British Thermal Unit	177.64 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation)
	Notes	Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	3-year hardware warranty, extendable to 5 years with extended warranty plus
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Synology DiskStation DS1522+ ,5-Bay AMD Ryzen R1600 2-core ,8GB DDR4 ,3.5" Diskless NAS ,1 x Gen3 x2 network upgrade slot

$1,317.00

SKU: DS1522+

Select quantity

Synology Compatibility Check

See the compatibility storage drives and accessories for this Synology device (SKU: DS1522+):

Expansion Units Compatibility

Scalable up to 15 drives with DX517 x 2
