2-bay compact desktop NAS

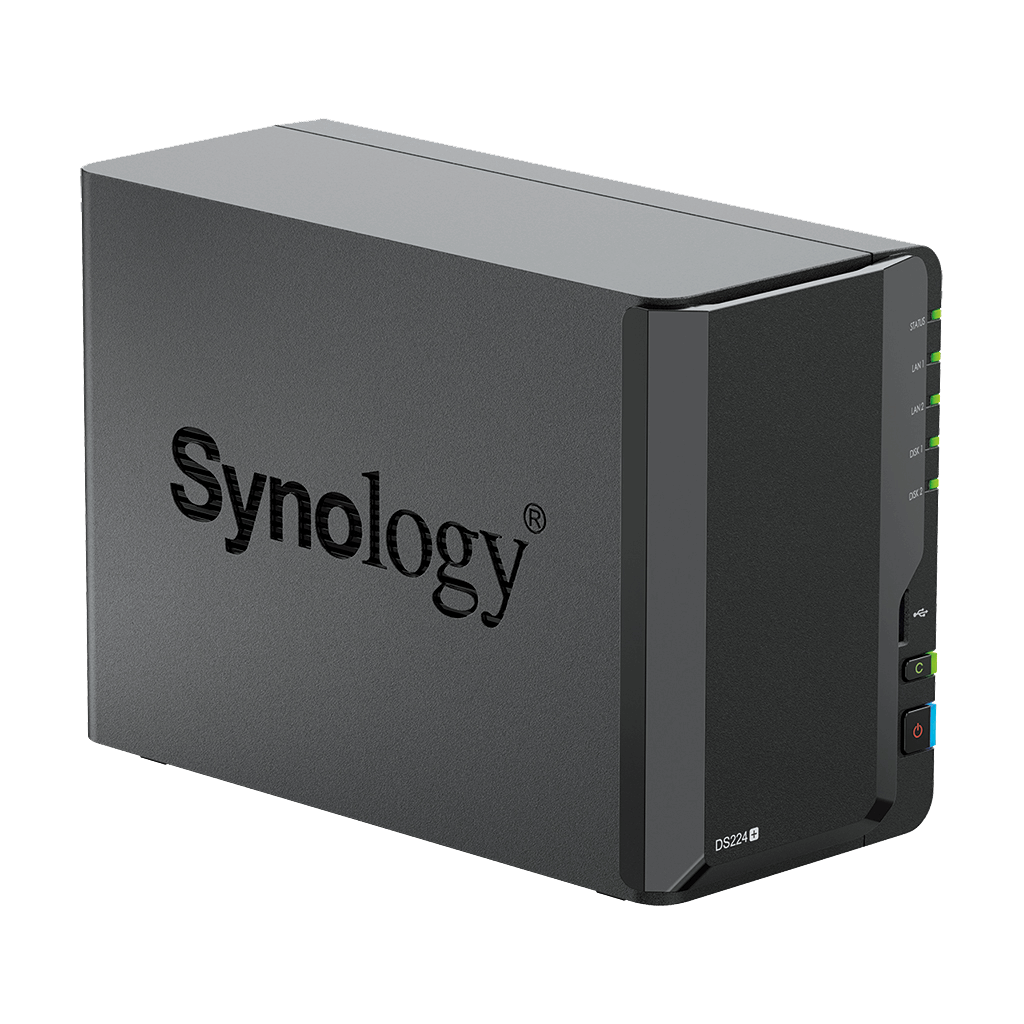

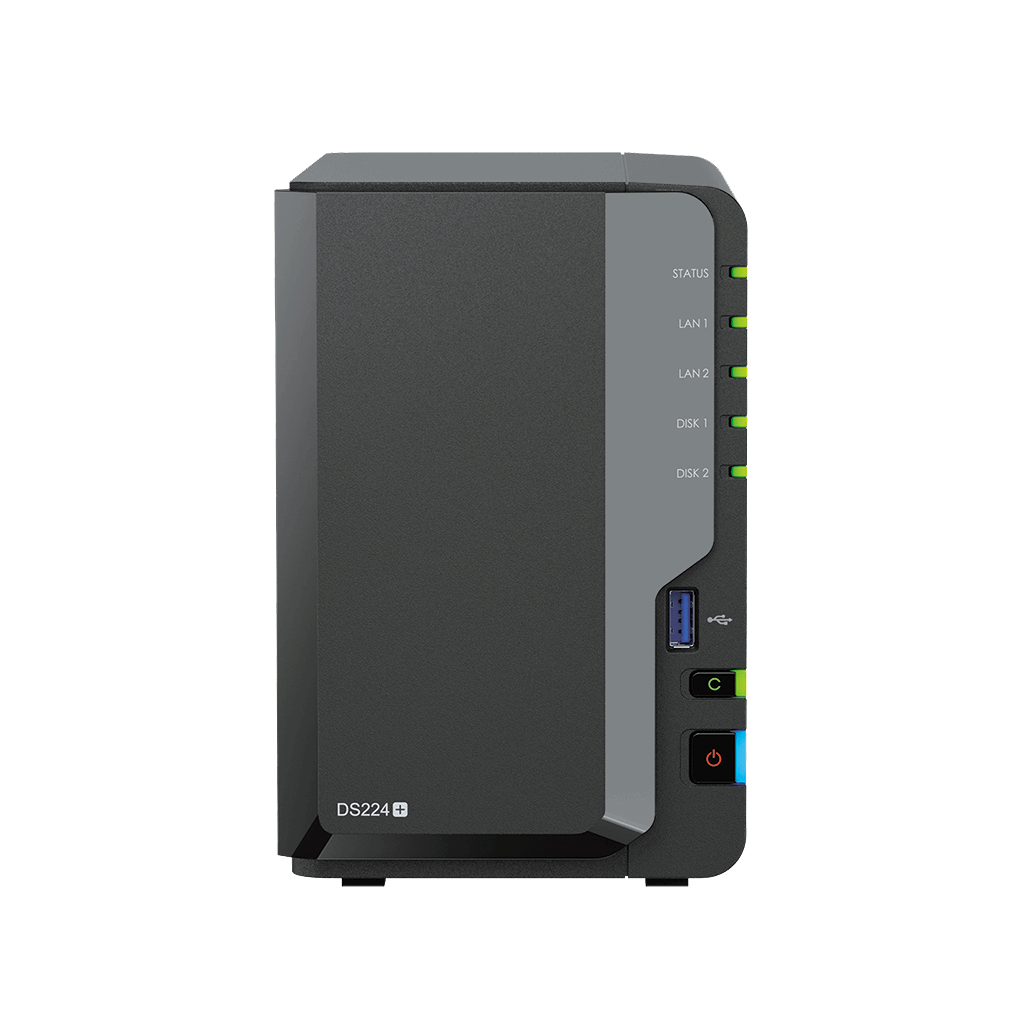

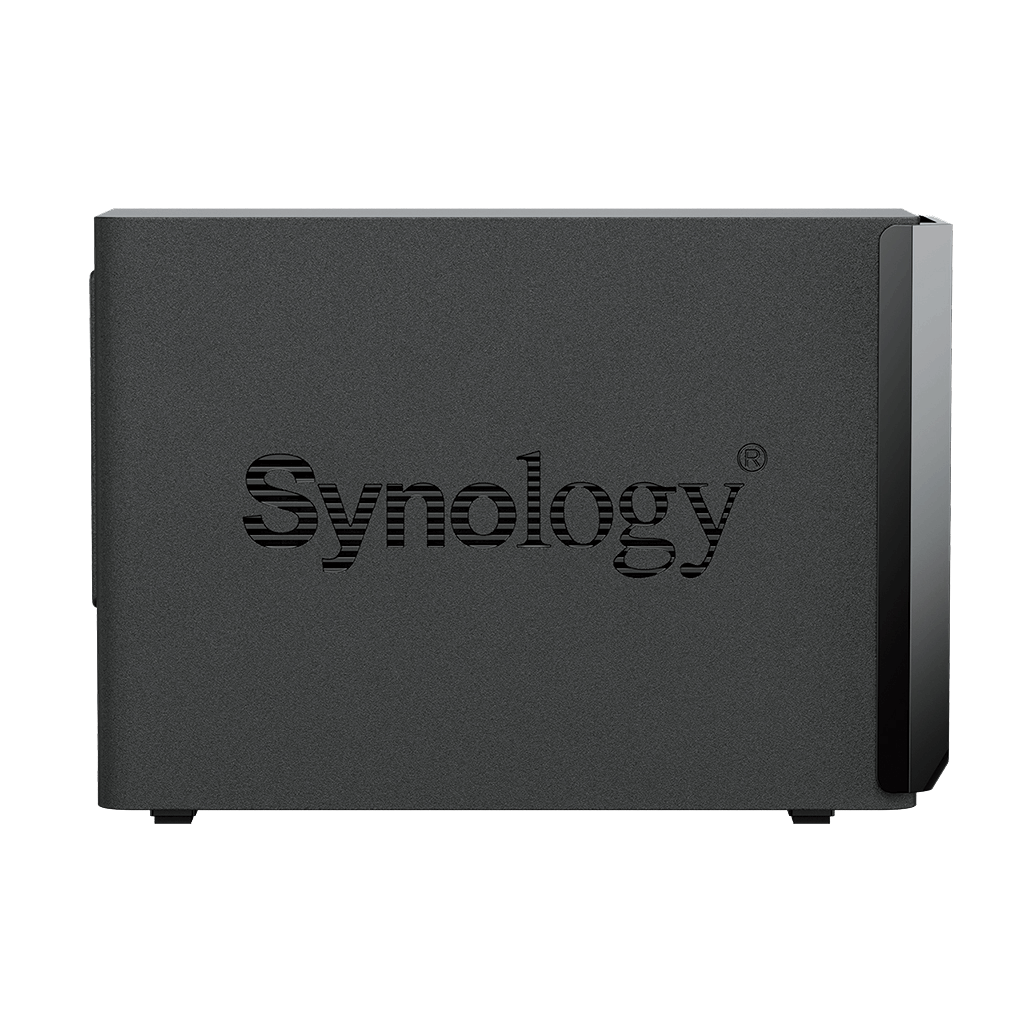

Synology DS224+ 2-bay Compact Desktop NAS
A compact two-bay NAS with an Intel Celeron processor, 2 GB DDR4 memory and dual 1GbE connectivity for home and small-office data management.
- Processor
- Intel Celeron J4125
- Memory
- 2 GB DDR4 non-ECC
- Drive bays
- 2
- Networking
- 2 × 1GbE
Keep everyday files, photos and backups under your control
The Synology DS224+ brings centralised file storage, private cloud access and backup into a compact two-bay design. Its Intel Celeron J4125 platform and upgradeable memory make it a practical choice for households, creators and small offices that want more capability than an entry-level NAS.
Two-bay private cloud
Create a compact central location for important files, photos and shared folders.
Intel quad-core platform
The Celeron J4125 provides four cores with a verified turbo frequency up to 2.7 GHz.
Upgradeable memory
Start with 2 GB DDR4 and expand to the supplied maximum of 6 GB.
Dual 1GbE ports
Two network ports provide flexible connectivity for a compact desktop system.
Hot-swappable bays
Supported SATA drive trays simplify planned drive replacement and maintenance.
DSM data tools
Use supplied file management, backup and media features through Synology DiskStation Manager.
Who is the Synology DS224+ best for?
A strong choice for
- Home private cloud storage
- Small-office file sharing
- Photo and media organisation
- Centralised device backups
- Buyers wanting an upgradeable two-bay NAS
Consider another model if you need
- You need more than two drive bays
- You require 2.5GbE or 10GbE networking
- You need external drive-bay expansion
- Your applications require a higher memory ceiling
Key specifications
- Model
- DS224+
- Product type
- 2-bay compact desktop NAS
- Processor
- Intel Celeron J4125
- CPU cores
- 4
- CPU frequency
- 2.0 (base) / 2.7 (turbo) GHz
- System memory
- 2 GB DDR4 non-ECC
- Maximum memory
- 6 GB (2 GB + 4 GB)
- Drive bays
- 2
- Drive categories
- | 3.5" SATA HDD; 2.5" SATA SSD
- Built-in network
- 2 × 1GbE
- USB ports
- 2 × USB 3.2 Gen 1
- Dimensions
- Not specified
- Weight
- 1.30 kg
- Warranty
- 2-year hardware warranty, extendable to 4 years with extended warranty plus
Full technical specifications
Processor, memory and storage
| CPU Model | Intel Celeron J4125 |
|---|---|
| CPU Quantity | 1 |
| CPU Core | 4 |
| CPU Threads | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.0 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine | Supported |
| System Memory | 2 GB DDR4 non-ECC |
| Total Memory Slots | 1 |
| Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
| Memory notes | | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.; Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. |
| Drive Bays | 2 |
| Drive Type | | 3.5" SATA HDD; 2.5" SATA SSD |
| Hot Swappable Drive* | Supported |
Network, ports and expansion
| RJ-45 1GbE LAN Port | 2 |
|---|---|
| USB 3.2 Gen 1 Port* | 2 |
| USB Copy | Supported |
| External Ports notes | | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.; The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
Physical design and power
| Size (Height × Width × Depth) | 165 mm × 108 mm × 232.2 mm |
|---|---|
| Weight | 1.30 kg |
| System Fan | 92 mm × 92 mm × 1 pcs |
| Fan Speed Mode | | Full-Speed Mode; Cool Mode; Quiet Mode |
| Brightness Adjustable Front LED Indicators | Supported |
| Power Recovery | Supported |
| Noise Level* | 22 dB(A) |
| Scheduled Power On / Off | Supported |
| Wake on LAN / WAN | Supported |
| Power Supply Unit / Adapter | 60 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 14.69 watts (Access); 4.41 watts (HDD Hibernation) |
| British Thermal Unit | 50.09 BTU/hr (Access); 15.04 BTU/hr (HDD Hibernation) |
| Others notes | |; | Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8% |
Environment, warranty and package
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certification | | FCC; CE; BSMI; VCCI; RCM; UKCA; CCC; KC; BIS |
| Warranty | 2-year hardware warranty, extendable to 4 years with extended warranty plus |
| Warranty notes | | The warranty period starts from the purchase date as stated on your purchase receipt. | |
| Environment | RoHS Compliant |
| Packaging Content | | Main Unit X 1; Accessory Pack X 1; AC Power Adapter X 1; AC Power Cord X 1; RJ-45 LAN Cable X 2; Quick Installation Guide X 1 |
Frequently asked questions about the Synology DS224+
What is the Synology DS224+?
The Synology DS224+ is a 2-bay compact desktop NAS for home private cloud storage, small-office file sharing, photo and media organisation.
Which processor is in the Synology DS224+?
It uses the Intel Celeron J4125 with 4 cores at 2.0 (base) / 2.7 (turbo) GHz.
How much memory does the Synology DS224+ include?
It includes 2 GB DDR4 non-ECC and the supplied maximum memory capacity is 6 GB (2 GB + 4 GB).
How many drive bays does the Synology DS224+ have?
It has 2 internal drive bays.
Which drive types does the Synology DS224+ support?
| 3.5" SATA HDD; 2.5" SATA SSD. Confirm exact drive models on Synology’s compatibility list.
What networking is built into the Synology DS224+?
The verified built-in network interfaces are 2 × 1GbE.
What external ports does the Synology DS224+ provide?
It provides 2 USB 3.2 Gen 1 ports alongside 2 × 1GbE.
Does the Synology DS224+ include storage drives?
No. This listing identifies the Synology DS224+ as diskless, so compatible drives are selected separately.
What are the Synology DS224+ dimensions?
It measures Not specified and weighs 1.30 kg.
What warranty applies to the Synology DS224+?
Synology specifies 2-year hardware warranty, extendable to 4 years with extended warranty plus. Warranty-extension availability depends on region.
- DS224+ is listed as diskless; compatible storage drives are selected separately.
- Confirm exact drives, memory and accessories on Synology’s compatibility list for DS224+.
- Actual usable capacity and performance depend on installed drives, storage configuration, workloads and network environment.
