A compact storage hub with 100% data ownership

Conquer data chaos

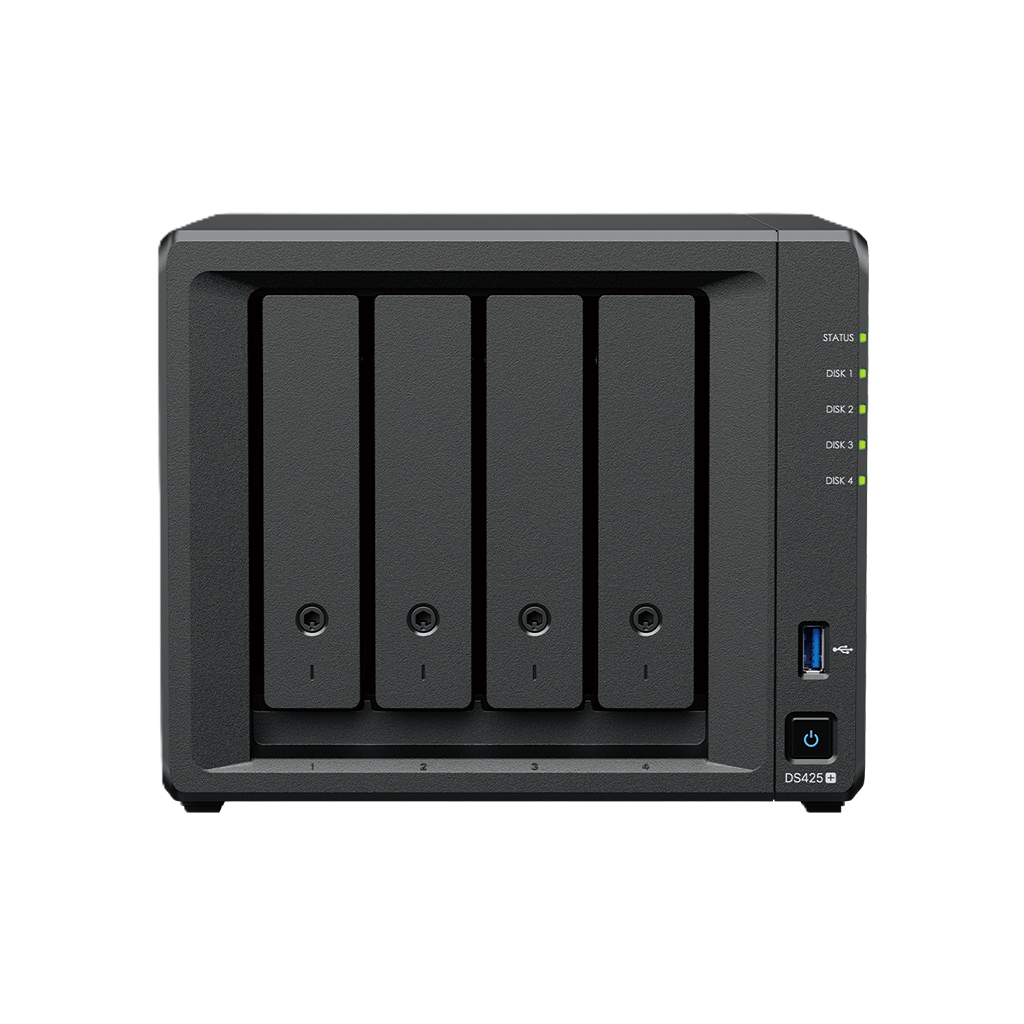

Compact 4-bay

Up to 80 TB of raw storage

Speedy storage

Built-in 2.5GbE port and over 278/281 MB/s sequential read/write

Versatile applications

Back up multiple endpoints, manage 40 IP cameras, or safely sync and share files across sites

Specification

Hardware Specifications
CPU	CPU Model	Intel Celeron J4125
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	2 GB DDR4 non-ECC
	Total Memory Slots	1
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	4
	M.2 Drive Slots	2 (NVMe)
	Drive Type	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. Compatible drives are mandatory. Please consult our  before purchasing hard drives. For more details, please refer to
External Ports	RJ-45 1GbE LAN Port	1
	RJ-45 2.5GbE LAN Port	1
	USB 3.2 Gen 1 Port	2
	Notes	MTU value of 1GbE LAN port has a limit of 1500.
Appearance	Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
	Weight	2.18 kg
Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	21.6 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	90 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	28.25 watts (Access) 6.10 watts (HDD Hibernation)
	British Thermal Unit	96.33 BTU/hr (Access) 20.79 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	3-year hardware warranty, extendable to 5 years with
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.  EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
