Designed as a multimedia center for digital homes, the HS-264 provides various apps and utilities (such as QuMagie, Video Station, Music Station, and Plex Media Server) for storing and enjoying all your photos, videos, and music. High performance and streaming quality are ensured by an Intel® Celeron® N5105 quad-core processor and two 2.5GbE ports, while the dual HDMI™ 2.0 (4K @60Hz) output enables you to use the HS-264 as a Home Theater PC for an amazing entertainment experience.
The HS-264 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)
-
2.5GbE connectivity
Supercharge your media streaming and file sharing with two 2.5GbE ports. Up to 5 Gbps transfer speeds can be made by setting port trunking.
-
4K HDMI™ output
Dual HDMI™ 2.0 output for direct 4K HD media playback. Supports 4K media streaming and transcoding.
-
Silent operation
The fanless, low vibration design keeps the HS-264 cool and quiet while also preventing dust buildup.
-
Home entertainment center
Centrally store and easily access your photos, music, and videos with the HS-264.
-
Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.
-
Secure remote access
Access your files and multimedia at any time with the simple and secure myQNAPcloud remote access service.
Specification
| CPU | Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit |
|
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding |
|
| System Memory | 8 GB, not expandable |
| Maximum Memory | 8 GB, not expandable |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) |
|
| Jumbo Frame |
|
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A |
| IR Sensor | (RM-IR004) |
| HDMI™ Output | 2 x HDMI™ 2.0 (up to resolution 3840 x 2160 @ 60Hz) |

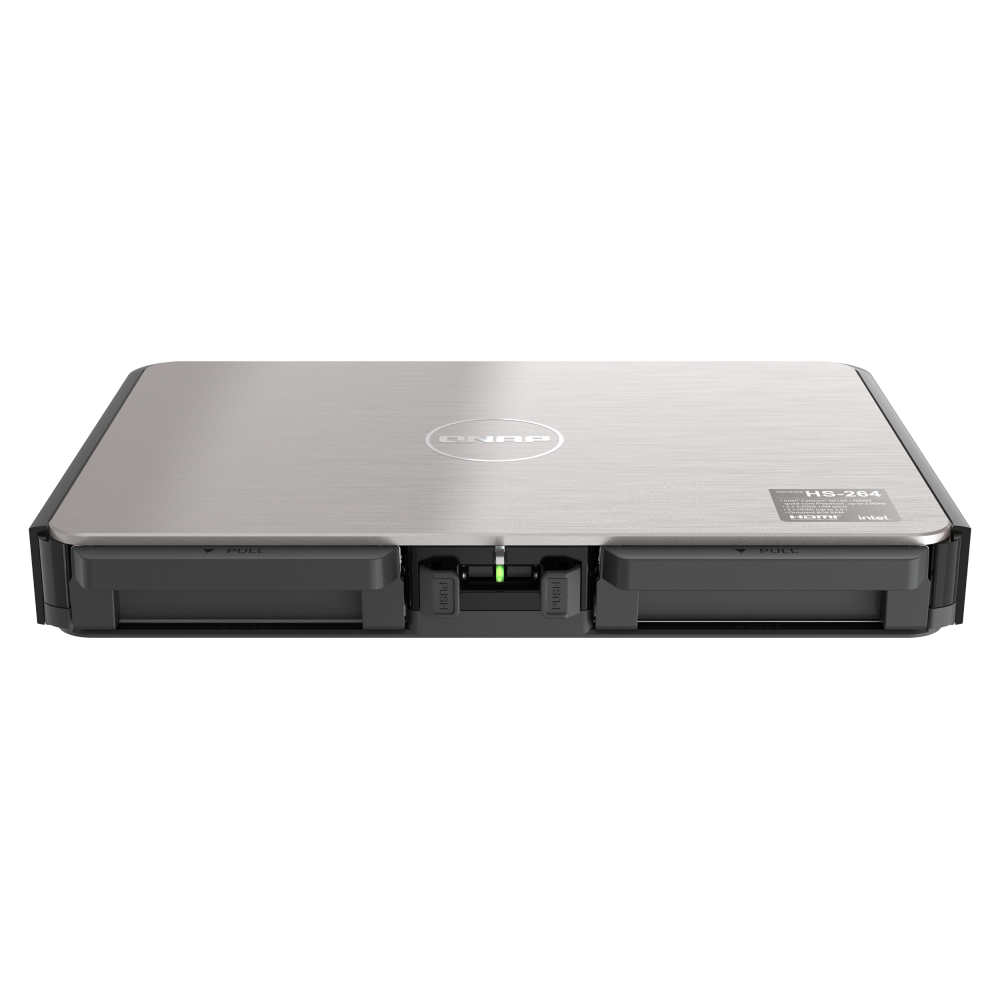

| Form Factor | Set-Top design |
| LED Indicators | Status, LAN |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 39 × 302 × 220 mm |
| Weight (Net) | 2.06 kg |
| Weight (Gross) | 2.74 kg |
| Operating Temperature | 0 - 35 °C (32°F - 95°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 60W adapter, 100-240V |
| Power Consumption: Disk Standby Mode | 11.315 |
| Power Consumption: Operating Mode, Typical | 24.995 W |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
