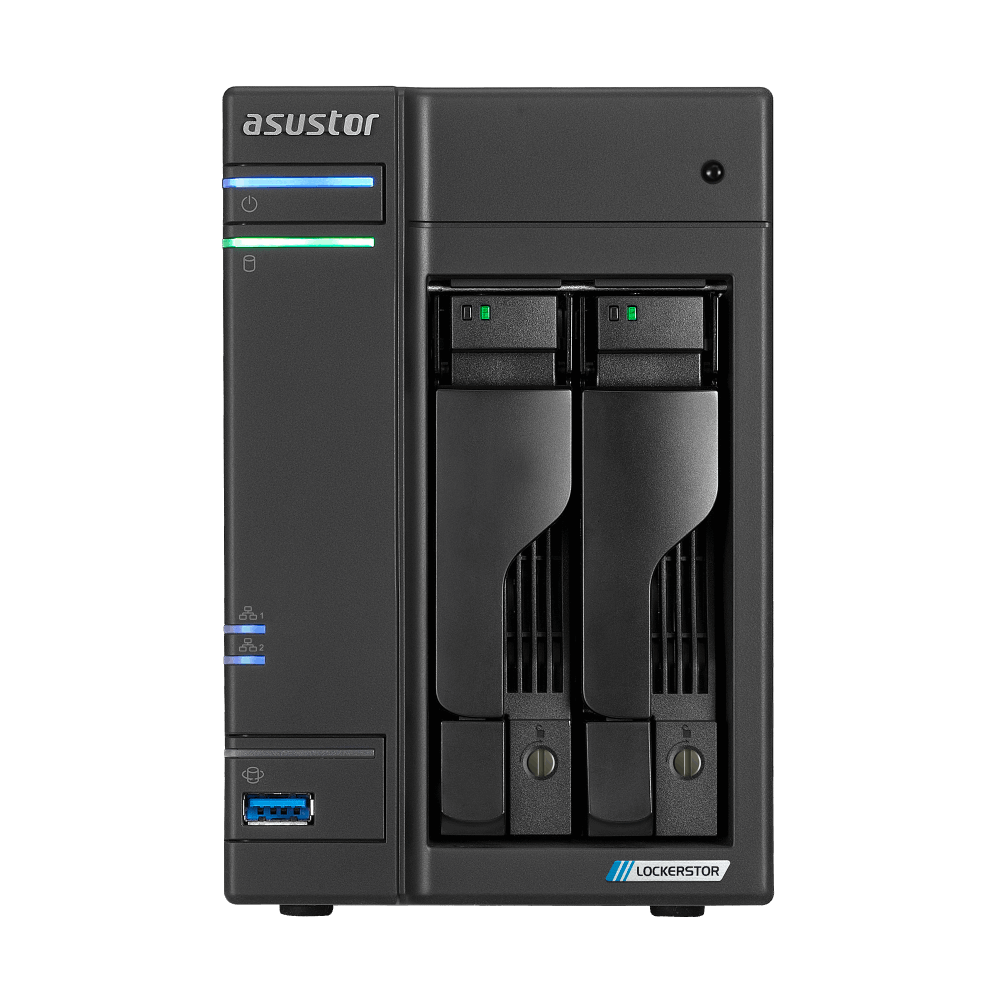

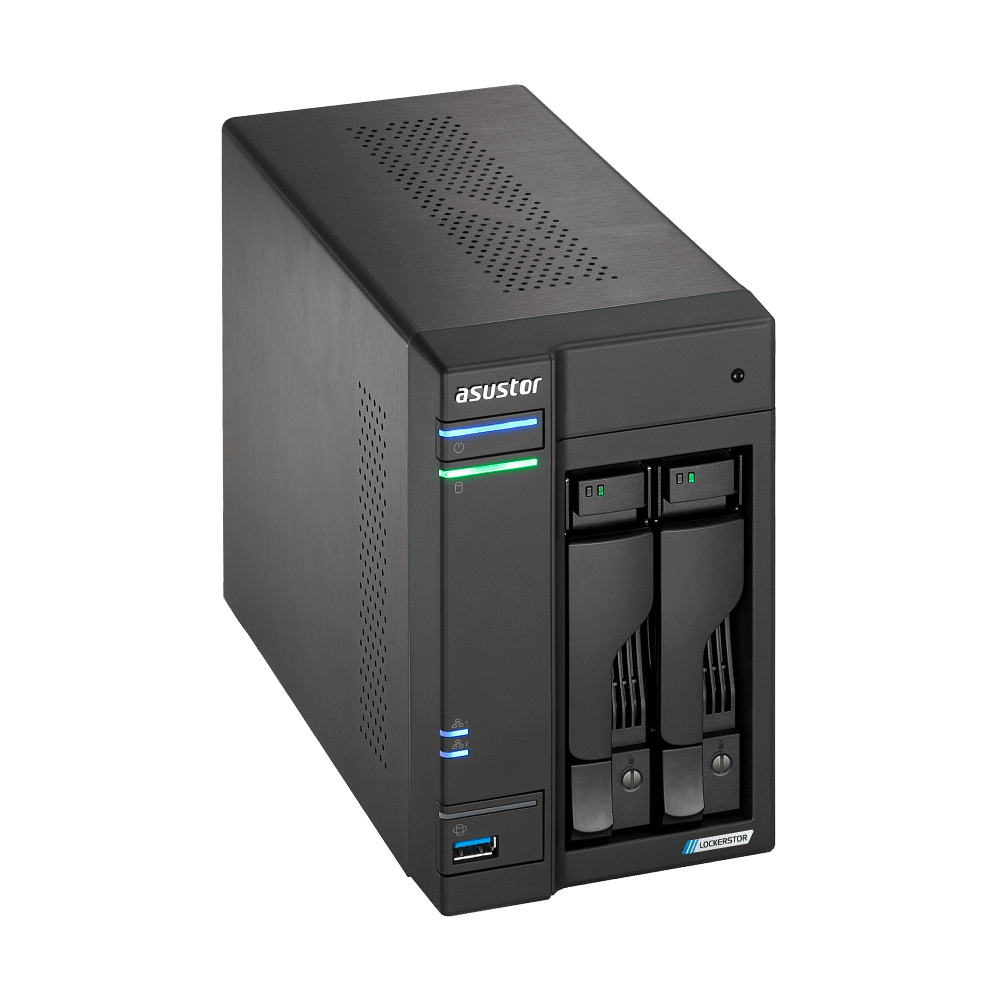

The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
- Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
- Superfast 2.5-Gigabit Ethernet ports
- Flexible PCIe slot for M.2 SSDs
- Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
- Uses DDR4-2933 with 40% more performance
- USB 3.2 Gen2 ports – 10Gbps speed
- Enjoy, download, upload and stream content with 4K transcoding
- Increased ventilation for SSDs
- Supports Wake on LAN and Wake on WAN
Specification
Hardware Specifications
|
CPU
|
CPU Model |
Intel Celeron N5105 |
|
CPU Architecture |
x64 64-bit |
|
CPU Frequency |
Quad-Core 2.0GHz (burst up 2.90 GHz) |
Memory
|
Memory |
4GB SO-DIMM DDR4
|
|
Memory Module Pre-installed |
4GB (1x 4GB) |
|
Total Memory Slots |
2 |
|
Memory Expandable up to |
16GB (2x 8GB)
|
|
Flash Memory |
8GB eMMC |
Storage
|
Drive Bays |
2 |
|
M.2 Drive Slots |
4
|
|
Compatible Drive Type
|
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe
|
|
M.2 PCIe Interface
|
PCIe 3.0 x1 |
|
Maximum Drive Bays with
|
10 |
|
Supports Hot Swappable Drives
|
|
External Ports
|
Expansion |
2x USB 3.2 Gen 2 (10Gbps) |
|
Network |
2x 2.5 Gigabit Ethernet (2.5G/1G/100M) |
|
Multimedia Output |
1x HDMI 2.0b |
Others
|
System Fan |
1x 70mm |
|
Infrared Receiver |
|
|
Power Supply Unit / Adapter |
65W x1 |
|
Input Power Voltage |
100V to 240V AC |
|
Certification |
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
|
Warranty |
3 Years |
Operation
|
Power Consumption |
21 W (Operation);
13.5 W (Disk Hibernation);
0.79 W (Sleep Mode)
|
|
Noise Level |
17.7dB (HDD idle) |
|
Operation Temperature |
0°C~40°C (32°F~104°F) |
|
Storage Temperature |
-20°C~70°C (-4°F~158°F) |
|
Humidity |
5% to 95% RH |
Size and Weight
|
Size |
163.5 (H) x 108 (W) x 230 (D) mm |
|
Weight |
2 kg / 4.4 lb |
