Two-Bay Intel 2.5GbE NAS
QNAP TS-264-8G Desktop NAS
A compact two-bay NAS with an Intel Celeron N5095 quad-core processor, 8GB DDR4 memory, dual 2.5GbE, two M.2 NVMe slots, PCIe expansion, HDMI 2.1 and hardware-accelerated transcoding.
Fast two-bay storage for backup, collaboration and multimedia
The QNAP TS-264-8G is a two-bay network attached storage system for file management, backup, collaboration and video conversion. Dual 2.5GbE, M.2 NVMe slots, PCIe expansion and HDMI output provide flexible connectivity for homes and small workgroups.
Key features and benefits
Intel quad-core processing
The Intel Celeron N5095 four-core processor and Intel UHD Graphics support multitasking and multimedia workflows.
Dual 2.5GbE
Two 2.5GbE ports support faster compatible networks and the stated port-trunking use case.
Two M.2 NVMe slots
Two M.2 2280 PCIe Gen3 x1 slots support the listed NVMe SSD and cache options.
PCIe expansion
A PCIe Gen3 x2 slot supports the listed network and storage expansion options.
HDMI 2.1 output
HDMI output supports the stated maximum resolution of 4096 × 2160 at 60Hz.
Fast USB connectivity
Two USB 3.2 Gen2 Type-A ports support 10Gbps USB connections.
Who is this model best for?
A strong choice for
- Home and small-office backup
- Shared files and collaboration
- Multimedia libraries and video conversion
- Two-bay private-cloud storage
- Users planning M.2 or PCIe expansion
Consider another model if you need
- You need more than two drive bays
- You need more than 16GB maximum memory
- You require built-in 10GbE
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9GHz
- Memory
- 8GB SODIMM DDR4 (1 × 8GB)
- Maximum memory
- 16GB (2 × 8GB)
- Drive bays
- 2 × 3.5-inch SATA 6Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen3 x1
- Networking
- 2 × 2.5GbE
- PCIe slot
- 1 × PCIe Gen3 x2
- USB
- 2 × USB 3.2 Gen2 Type-A; 2 × USB 2.0
- HDMI
- 1 × HDMI 2.1, up to 4096 × 2160 at 60Hz
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) Since 2024/01 |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Software and system features
| Hardware-accelerated Transcoding | Supported |
|---|---|

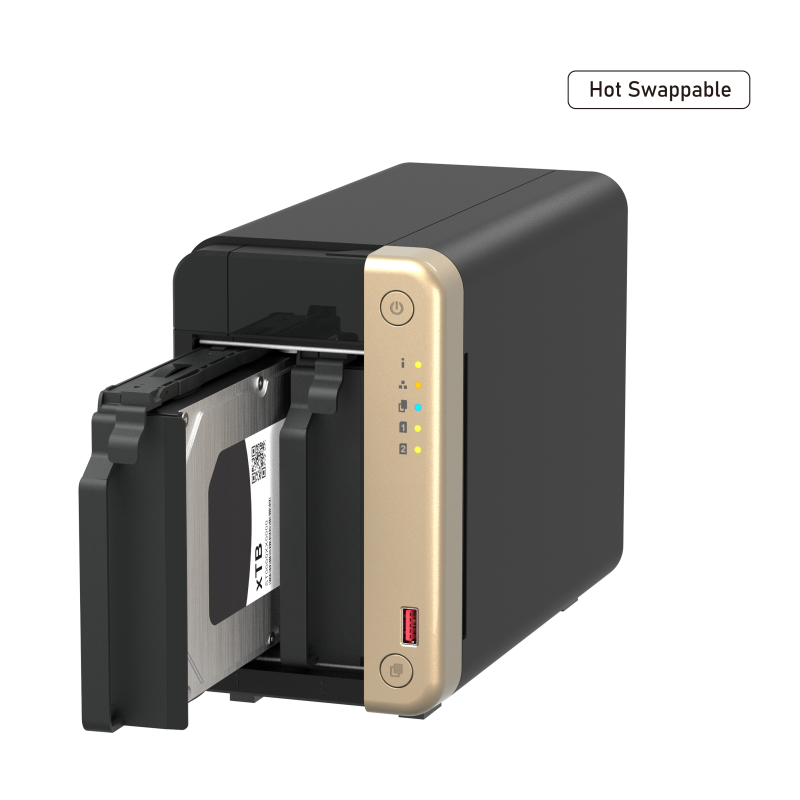

| Hot-swappable | Supported |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | Supported (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 105 × 226.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 1.55 kg |
| Weight (Gross) | 2.61 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 60W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 18.288 W |
| Power Consumption: Operating Mode, Typical | 29.086 W Tested with drives fully populated. |
| Fan | 1 x 70mm, 12VDC |
Frequently asked questions about the TS-264-8G
What is the QNAP TS-264-8G?
It is a two-bay Intel-powered desktop NAS with dual 2.5GbE, two M.2 slots, PCIe expansion and HDMI output.
Which processor does the TS-264-8G use?
It uses an Intel Celeron N5095 four-core/four-thread processor with burst speed up to 2.9GHz.
How much memory is included?
The TS-264-8G includes 8GB SODIMM DDR4 as one 8GB module.
What is the maximum memory?
The stated maximum is 16GB using two 8GB modules.
How many drive bays does it have?
It has two 3.5-inch SATA bays and is shipped without hard drives.
Which drives are listed as compatible?
The listed compatibility includes 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives.
How many network ports are included?
It includes two 2.5GbE ports.
Does the TS-264-8G have M.2 slots?
Yes. It has two M.2 2280 PCIe Gen3 x1 slots.
Does it support hardware transcoding?
Yes. Hardware-accelerated transcoding is listed.
What HDMI output is provided?
It has one HDMI 2.1 output with a stated maximum of 4096 × 2160 at 60Hz.
Important information
The system is shipped without hard drives.
The optional infrared remote control is not included.
Check the relevant compatibility information before selecting PCIe expansion hardware.
