10-Bay U.2 NVMe / SATA All-Flash NAS

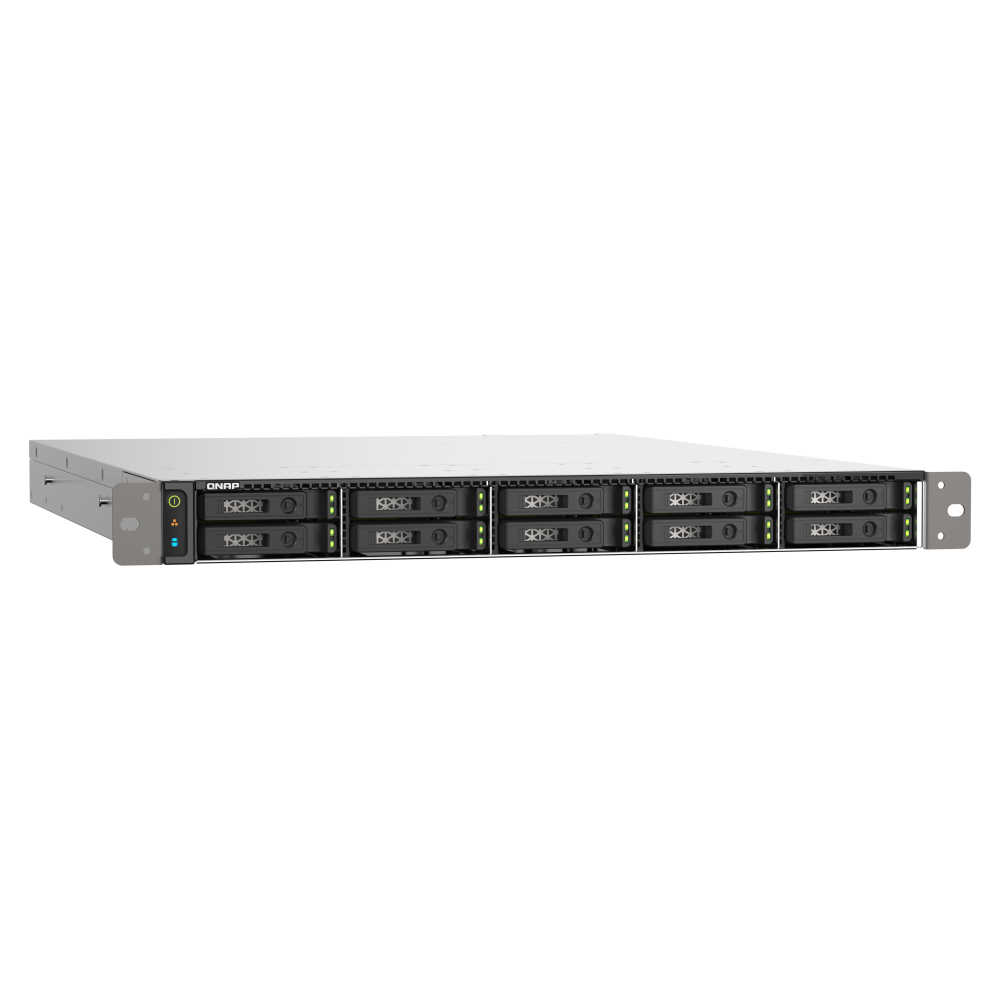

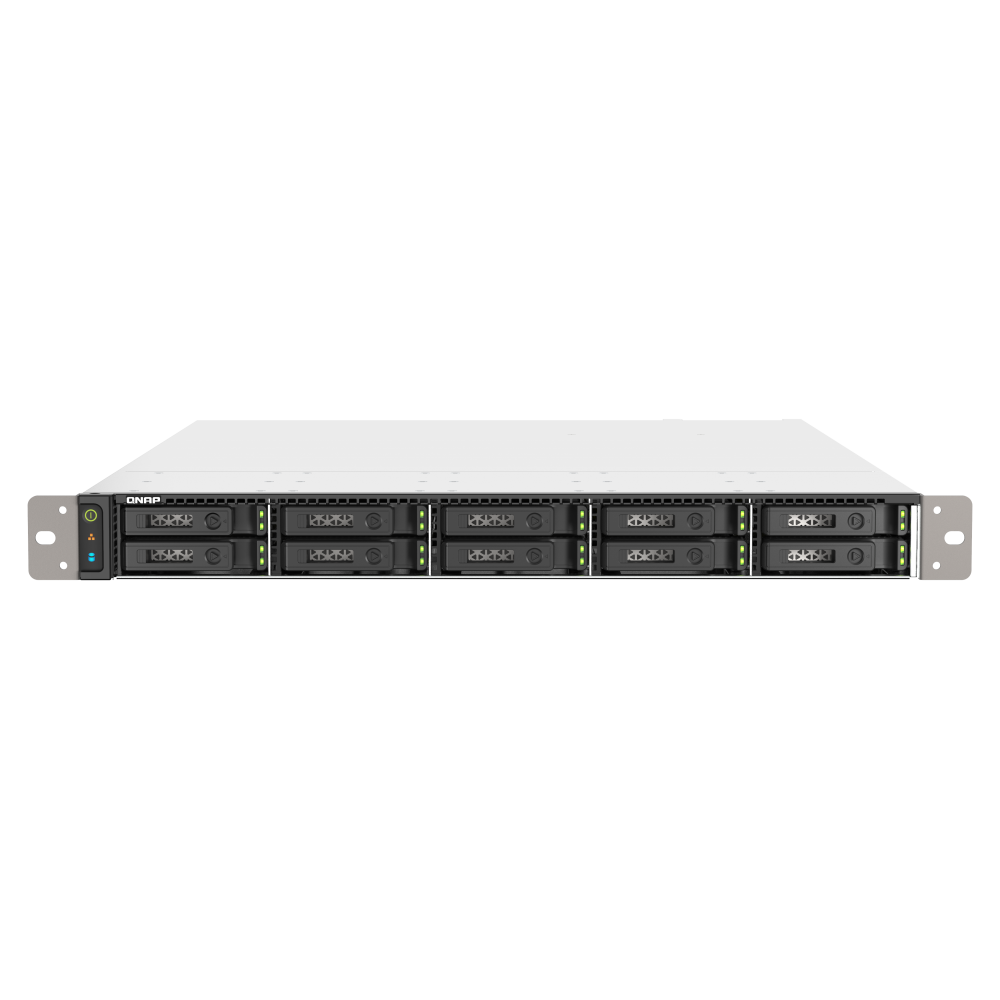

QNAP TS-h1090FU-7232P-64G All-Flash NAS
A 10-bay 1U all-flash NAS with U.2 NVMe or SATA SSD support, dual 25GbE connectivity, two PCIe Gen 4 slots, ZFS-based storage services and redundant power supplies.
Dense 1U flash storage for low-latency applications
The QNAP TS-h1090FU-7232P-64G combines ten hot-swappable SSD bays with dual 25GbE ports, ZFS-based QuTS hero services and redundant power in a compact rackmount chassis. It is designed for I/O-intensive virtualisation, data-centre storage, multimedia workflows and backup or recovery tasks.
Key features and benefits
Ten all-flash bays
Install U.2 NVMe PCIe Gen 4 x4 or SATA solid state drives across ten hot-swappable 2.5-inch bays.
Dual 25GbE connectivity
Two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports support high-throughput storage access.
ZFS efficiency tools
Inline data deduplication and compression, pool over-provisioning and TRIM support efficient flash-storage operation.
Two PCIe Gen 4 slots
The two x16 slots accept low-profile cards within the documented size limits.
Virtualisation features
Virtualisation storage, virtual machines with SR-IOV and containerised applications are supported.
Redundant 1U design
Two 550W power supply units support continuity-focused rack installations.
Who is this model best for?
A strong choice for
- I/O-intensive virtualisation storage
- Modern data-centre and Tier 2 workloads
- High-speed multimedia storage
- Backup and recovery tasks
- Dense 1U all-flash deployments
Consider another model if you need
- You need 3.5-inch HDD capacity
- You require a tower chassis
- Your deployment requires more than two PCIe expansion slots
Key specifications
- CPU architecture
- 64-bit x86
- Maximum memory
- 1 TB+ (12 × 128 GB)
- Memory slots
- 12 × RDIMM DDR4
- Drive bays
- 10 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch U.2 NVMe Gen 4 x4 SSD; 2.5-inch SATA SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE
- Expansion
- 2 × PCIe Gen 4 x16 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 44 × 430 × 582 mm
- Power supply
- 550W × 2, AC 100–240V
Full technical specifications
Processor, memory and storage
| CPU Architecture | 64-bit x86 |
|---|---|
| Encryption Engine | Supported (AES-NI) |
| Maximum Memory | 1 TB+ (12 x 128 GB) |
| Memory Slot | 12 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only. Card dimensions for PCIe slot 1:198 x 68.9 x 18.76 mm / 7.8 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2:250 x 68.9x 18.76 mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | 1U Rackmount |
|---|---|
| LED Indicators | Disk, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 11.6 kg |
| Weight (Gross) | 13.4 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W PSU (x2), AC 100-240 V |
| Power Consumption: Operating Mode, Typical | 157.97 W Tested with drives fully populated. |
| Fan | 5 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-h1090FU-7232P-64G
What is the QNAP TS-h1090FU-7232P-64G?
It is a 10-bay 1U all-flash NAS for low-latency virtualisation, data-centre storage, multimedia work and backup or recovery.
How many drive bays does the TS-h1090FU-7232P-64G have?
It has ten hot-swappable 2.5-inch bays.
Which SSD types are supported?
The system supports 2.5-inch U.2 NVMe Gen 4 x4 SSDs and 2.5-inch SATA SSDs.
Are SSDs included?
No. The TS-h1090FU-7232P-64G is shipped without SSDs.
Which network interfaces are built in?
It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE Ethernet ports.
Does it support hot swapping?
Yes. Hot swapping is stated as supported for the drive bays.
What PCIe expansion is available?
Two PCIe Gen 4 x16 slots are provided for low-profile cards within the stated size limits.
How many USB ports are listed?
Three USB 3.2 Gen 1 ports are listed.
What is the chassis format?
The TS-h1090FU-7232P-64G uses a 1U rackmount chassis.
What are its dimensions?
The stated dimensions are 44 × 430 × 582 mm.
Important information
The system is shipped without SSDs.
The typical 157.97 W operating figure was tested with drives fully populated.
Confirm SSD, expansion-card and enclosure compatibility before purchase.
