10-Bay U.2 NVMe / SATA All-Flash NAS

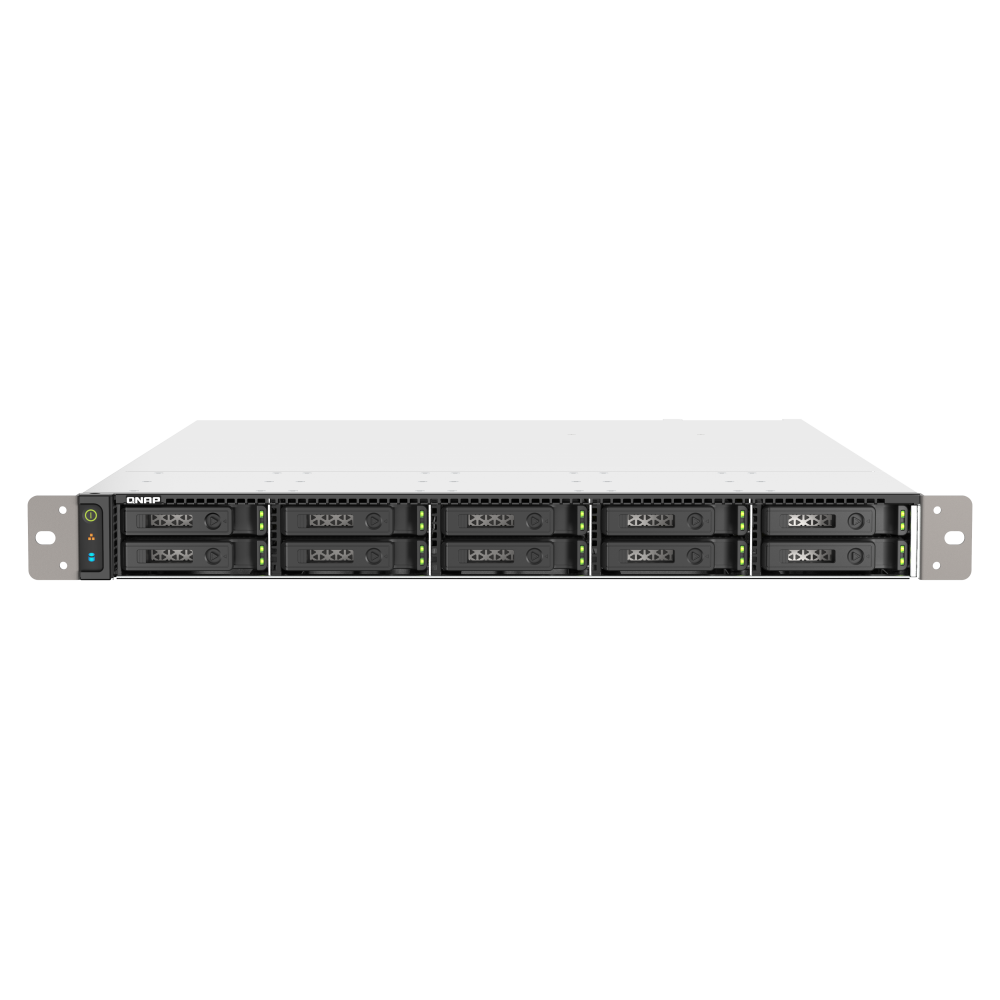

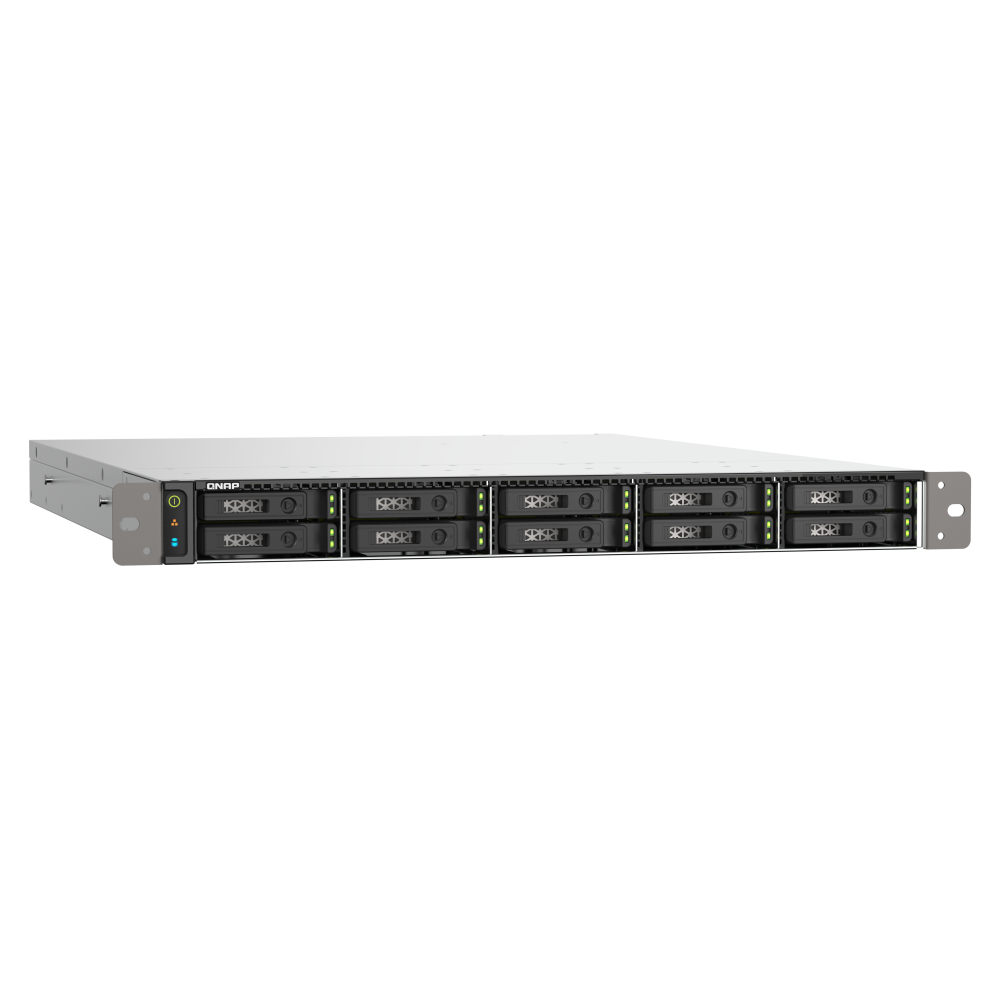

QNAP TS-h1090FU-7302P-256G All-Flash NAS
A compact 1U all-flash NAS with ten U.2 NVMe or SATA SSD bays, a 16-core AMD EPYC 7302P processor, 256 GB ECC memory, dual 25GbE connectivity and redundant power supplies.
High-density all-flash storage in a compact 1U chassis
The QNAP TS-h1090FU-7302P-256G brings ten hot-swappable SSD bays, 256 GB ECC memory and built-in 25GbE networking to a 1U rackmount design. Its ZFS-based QuTS hero platform is intended for I/O-intensive virtualisation, data-centre storage, multimedia workflows and backup or recovery tasks where low-latency flash storage matters.
Key features and benefits
Ten flexible SSD bays
Use U.2 NVMe PCIe Gen 4 x4 or SATA solid state drives across ten hot-swappable 2.5-inch bays.
Dual 25GbE connectivity
Two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports support high-bandwidth storage access.
ZFS storage efficiency
Inline data deduplication and compression, pool over-provisioning and TRIM help manage SSD use and lifespan.
Two PCIe Gen 4 x16 slots
Install supported network, QM2 or Fibre Channel cards in the two low-profile PCIe slots.
Virtualisation capabilities
Virtualisation storage, virtual machines with SR-IOV and containerised applications are supported.
Redundant rackmount power
Two 550W power supplies support continuity-focused 1U deployments.
Who is this model best for?
A strong choice for
- I/O-intensive virtualisation storage
- Modern data-centre and Tier 2 workloads
- High-speed multimedia storage
- Mission-critical backup and recovery tasks
- Rack environments requiring dense all-flash capacity
Consider another model if you need
- You need 3.5-inch HDD capacity rather than an SSD-only platform
- You require a tower chassis
- Your network is not equipped for SFP28 25GbE connectivity
Key specifications
- Processor
- AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- System memory
- 256 GB RDIMM DDR4 ECC (8 × 32 GB)
- Maximum memory
- 1 TB+ (12 × 128 GB)
- Drive bays
- 10 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch U.2 NVMe Gen 4 x4 SSD; 2.5-inch SATA SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE
- Expansion
- 2 × PCIe Gen 4 x16 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 44 × 430 × 582 mm
- Power supply
- 550W × 2, AC 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 256 GB RDIMM DDR4 ECC (8 x 32 GB) |
| Maximum Memory | 1 TB+ (12 x 128 GB) |
| Memory Slot | 12 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only. Card dimensions for PCIe slot 1:198 x 68.9 x 18.76 mm / 7.8 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2:250 x 68.9x 18.76 mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | 1U Rackmount |
|---|---|
| LED Indicators | Disk, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 11.6 kg |
| Weight (Gross) | 13.4 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W PSU (x2), AC 100-240 V |
| Power Consumption: Operating Mode, Typical | 157.97 W Tested with drives fully populated. |
| Fan | 5 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-h1090FU-7302P-256G
What is the QNAP TS-h1090FU-7302P-256G?
It is a 10-bay 1U all-flash NAS for low-latency storage, virtualisation, multimedia workflows and backup or recovery tasks.
Which processor does this model use?
The TS-h1090FU-7302P-256G uses an AMD EPYC 7302P 16-core/32-thread processor with a stated speed of up to 3.3 GHz.
How much memory is included?
It includes 256 GB RDIMM DDR4 ECC memory configured as eight 32 GB modules.
What is the maximum memory capacity?
The stated maximum is 1 TB+ across twelve RDIMM DDR4 slots.
How many drive bays does the TS-h1090FU-7302P-256G have?
It has ten hot-swappable 2.5-inch drive bays.
Which SSD types are supported?
The bays support 2.5-inch U.2 NVMe Gen 4 x4 SSDs and 2.5-inch SATA SSDs.
Are SSDs included?
No. The TS-h1090FU-7302P-256G is shipped without SSDs.
Which network ports are built in?
It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE Ethernet ports.
What PCIe expansion is available?
Two PCIe Gen 4 x16 slots are provided for low-profile cards, subject to the stated card-size limits.
What are its dimensions?
The stated dimensions are 44 × 430 × 582 mm.
Important information
The system is shipped without SSDs.
The typical 157.97 W operating figure was tested with drives fully populated.
Confirm SSD, expansion-card and enclosure compatibility before purchase.
