12-Bay U.2 NVMe / SATA All-Flash NAS

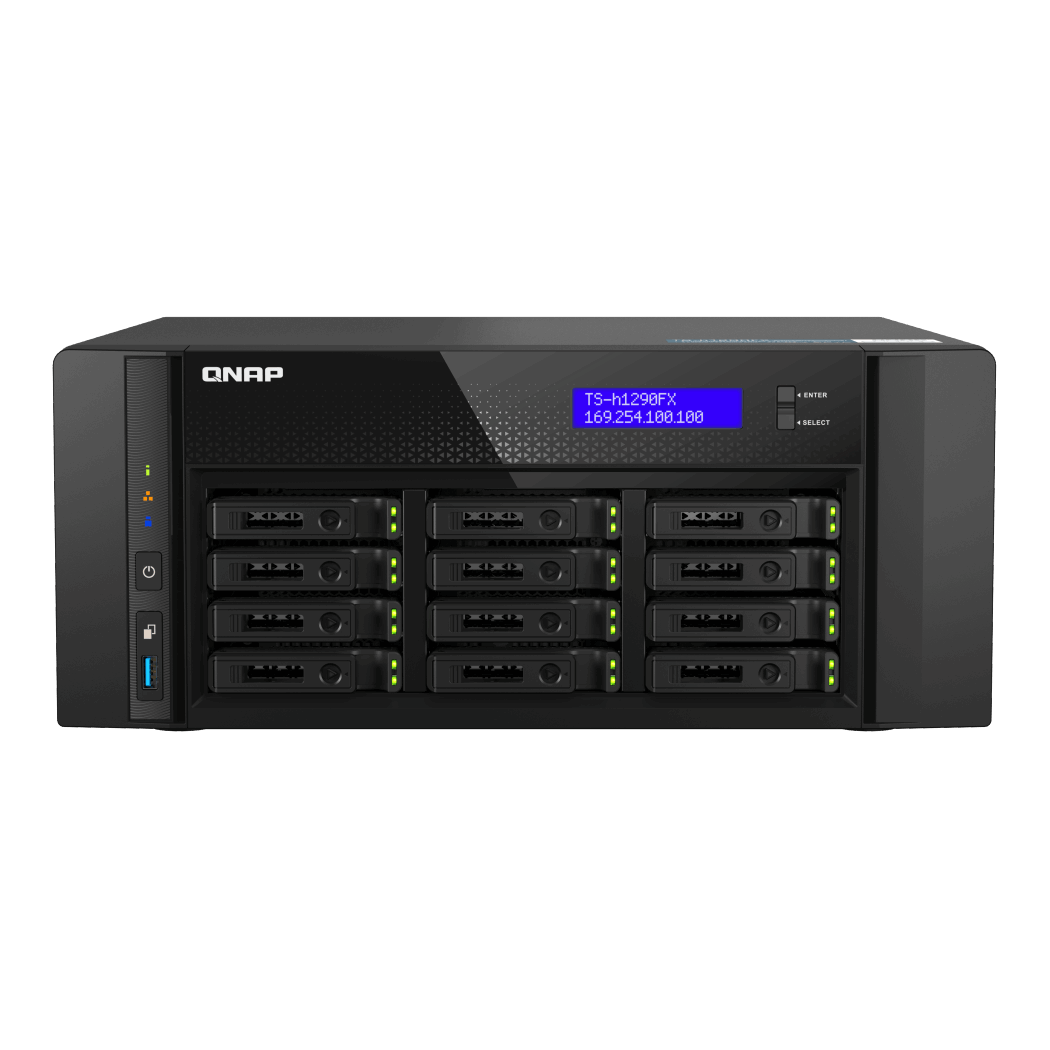

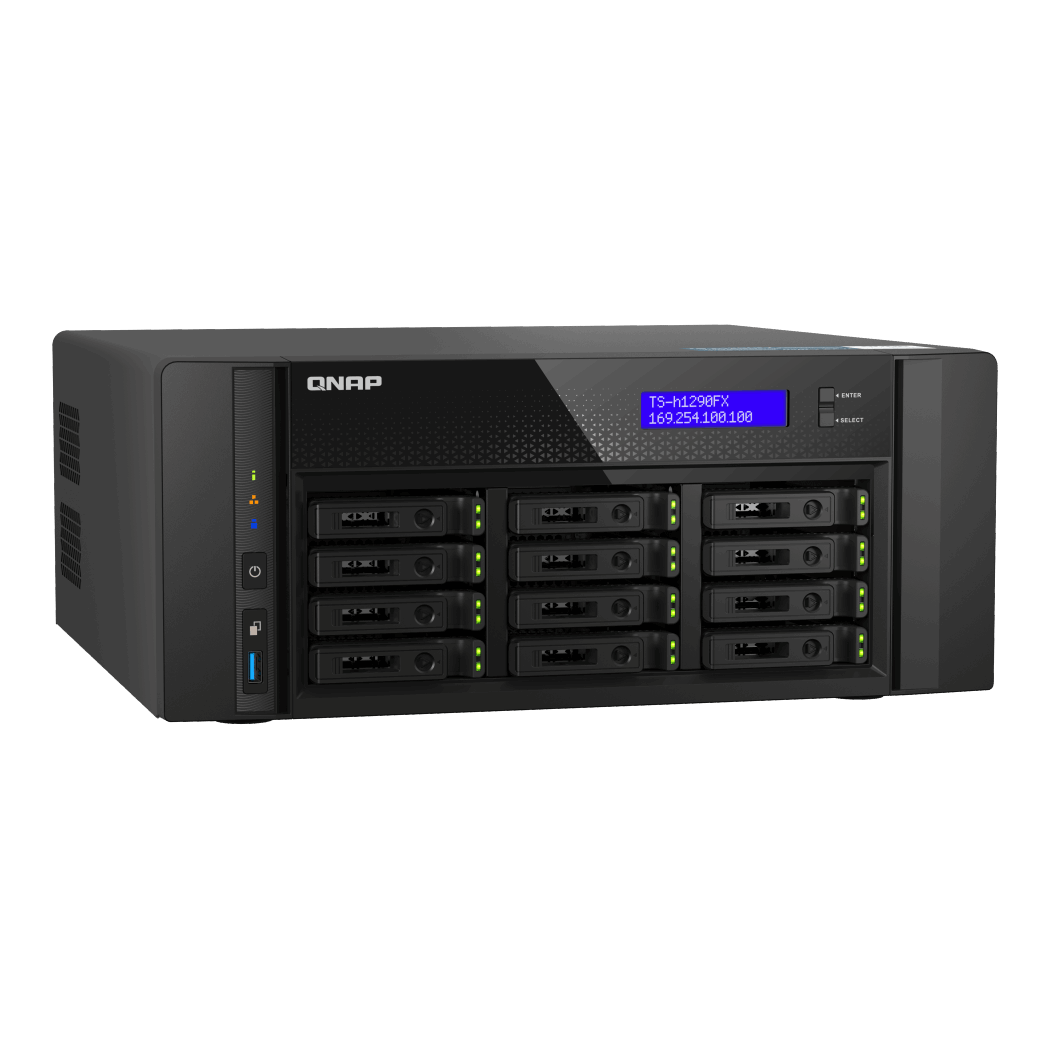

QNAP TS-h1290FX-7232P-64G All-Flash NAS
A 12-bay all-flash tower NAS with an 8-core AMD EPYC processor configuration, 64 GB ECC memory, ZFS-based storage and built-in dual 25GbE connectivity.
An expandable entry configuration for the TS-h1290FX platform
The QNAP TS-h1290FX-7232P-64G starts with 64 GB of ECC memory while retaining the family’s twelve hot-swappable SSD bays, dual 25GbE networking and four PCIe Gen 4 slots. It suits teams building a ZFS-based all-flash platform for file sharing, backup, collaboration and media storage with room for later memory expansion.
Key features and benefits
All-flash storage choices
Twelve 2.5-inch bays support SATA SSDs and U.2 NVMe PCIe Gen 4 x4 SSDs.
64 GB ECC starting memory
Eight 8 GB RDIMM DDR4 ECC modules are installed, and the listed maximum is 1 TB.
High-speed built-in networking
Two 25GbE SFP28 SmartNIC ports and two 2.5GbE RJ45 ports are included.
ZFS integrity features
QuTS hero includes self-healing, WORM, inline data deduplication and compression.
Four PCIe Gen 4 slots
The system provides four expansion slots for supported network, graphics and other PCIe cards.
SSD-focused management
Hot swapping, SSD cache acceleration, pool over-provisioning and TRIM are included in the feature set.
Who is this model best for?
A strong choice for
- Teams starting with 64 GB ECC memory
- High-speed all-flash file sharing and collaboration
- ZFS-based backup and storage workflows
- Media storage over 25GbE networks
- Tower installations that need PCIe expansion
Consider another model if you need
- You require a higher-core processor configuration
- You need more installed memory from the outset
- Your storage plan depends on 3.5-inch HDDs or a rackmount chassis
Key specifications
- Processor
- AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz
- System memory
- 64 GB RDIMM DDR4 ECC (8 × 8 GB)
- Maximum memory
- 1 TB (8 × 128 GB)
- Drive bays
- 12 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch SATA SSD; 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE RJ45
- Expansion
- 4 × PCIe Gen 4 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 150 × 368 × 362 mm
- Power supply
- 750W, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 64 GB RDIMM DDR4 ECC (8 x 8 GB) |
| Maximum Memory | 1 TB (8 x 128 GB) |
| Memory Slot | 8 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 ~ Slot 2:185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3 ~ Slot 4:280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button | Supported |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 150 × 368 × 362 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 10.4 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 750W, 100-240V |
| Power Consumption: Operating Mode, Typical | 134.41 W |
| Fan | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-h1290FX-7232P-64G
What is the QNAP TS-h1290FX-7232P-64G?
It is a 12-bay all-flash tower NAS with ZFS-based storage, 64 GB ECC memory and dual 25GbE connectivity.
Which processor is listed for the TS-h1290FX-7232P-64G?
It is listed with an AMD EPYC 7232P/7252 8-core/16-thread processor at up to 3.2 GHz.
How much memory is installed?
This configuration includes 64 GB RDIMM DDR4 ECC memory as eight 8 GB modules.
Can its memory be expanded?
Yes. Eight RDIMM DDR4 slots and a maximum memory capacity of 1 TB are listed.
How many SSD bays are included?
The TS-h1290FX-7232P-64G has twelve hot-swappable 2.5-inch bays.
Which drive formats are listed?
The supported formats listed are 2.5-inch SATA SSD and 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSD.
Does the TS-h1290FX-7232P-64G include SSDs?
No. It is shipped without SSDs.
What networking is built in?
It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE RJ45 ports.
Does it support expansion cards?
Yes. The system has four PCIe Gen 4 slots with the slot widths detailed in the full specifications.
What are its physical dimensions?
The listed dimensions are 150 × 368 × 362 mm, excluding the foot pad.
Important information
The system is shipped without SSDs.
Confirm SSD and PCIe-card compatibility against the applicable QNAP compatibility lists.
