12-Bay U.2 NVMe / SATA All-Flash NAS

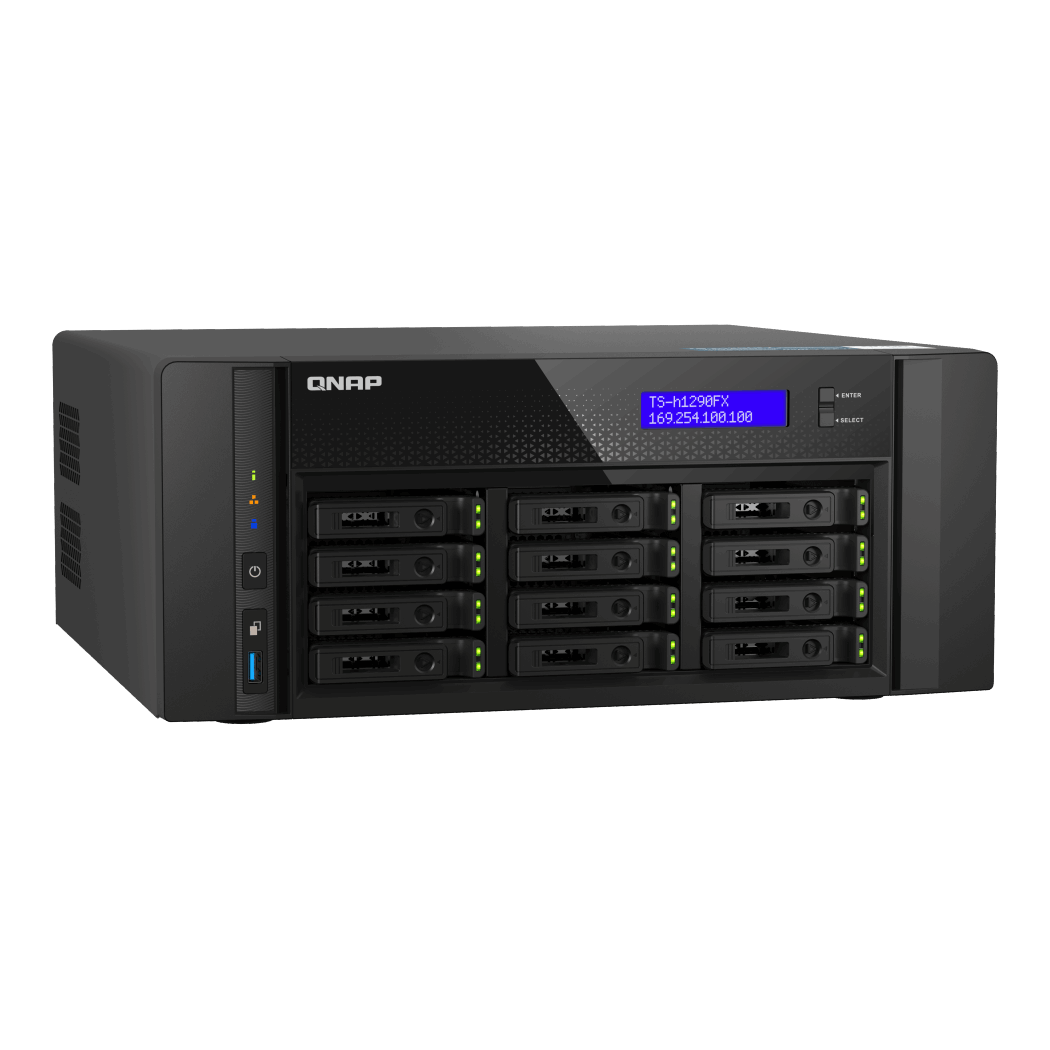

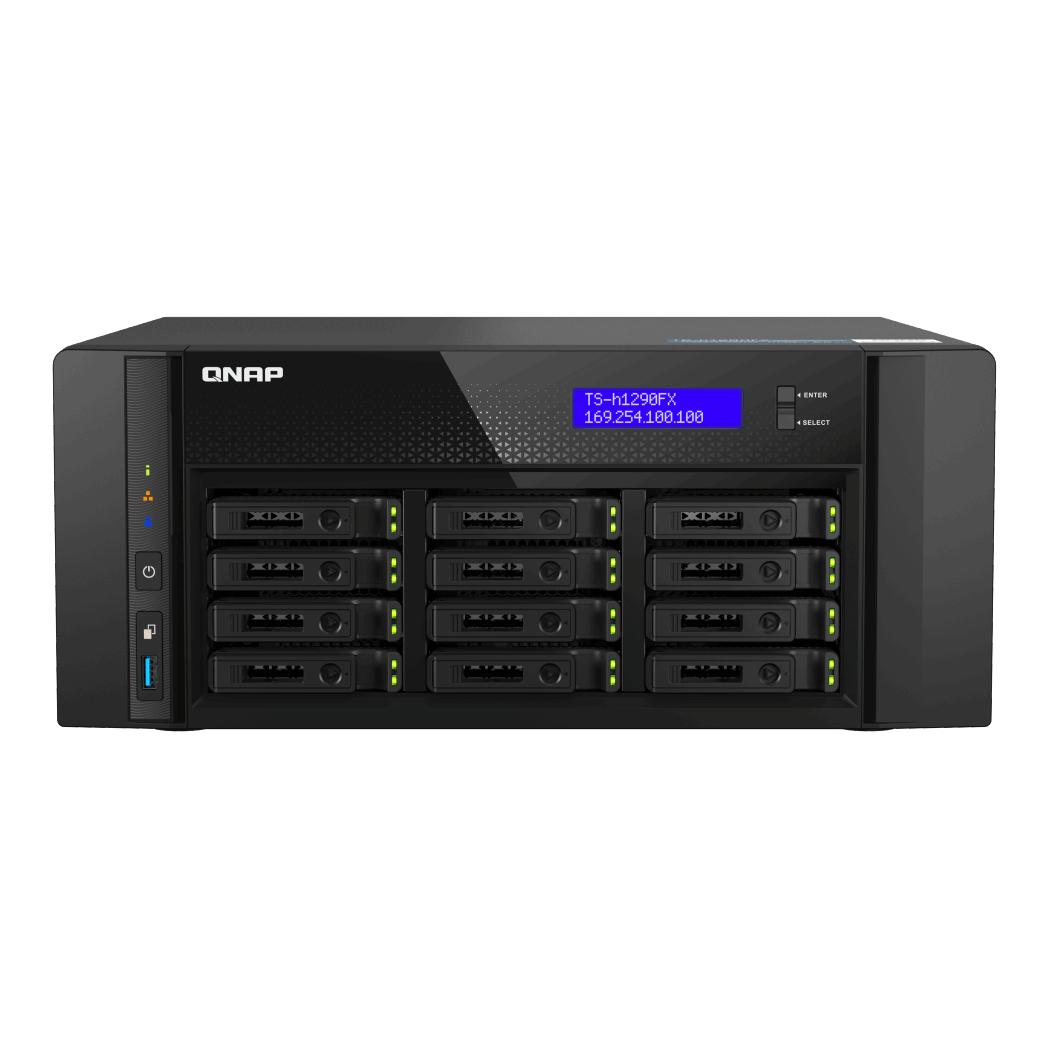

QNAP TS-h1290FX-7302P-128G All-Flash NAS
A 12-bay all-flash tower NAS pairing the 16-core AMD EPYC 7302P with 128 GB ECC memory, ZFS-based storage and dual 25GbE connectivity for fast collaborative workflows.
Balanced memory capacity for high-speed all-flash collaboration
The QNAP TS-h1290FX-7302P-128G provides the same twelve-bay all-flash architecture and 16-core processing platform with 128 GB of installed ECC memory. It is positioned for high-speed file sharing, real-time media work, backup and ZFS storage where strong connectivity and future memory expansion matter.
Key features and benefits
Twelve SSD bays
Deploy SATA SSDs or U.2 NVMe PCIe Gen 4 x4 SSDs in twelve hot-swappable 2.5-inch bays.
128 GB ECC memory included
Eight 16 GB RDIMM DDR4 ECC modules are installed, with a listed maximum memory capacity of 1 TB.
Dual 25GbE plus 2.5GbE
Two 25GbE SFP28 SmartNIC ports handle high-bandwidth traffic, alongside two 2.5GbE RJ45 ports.
QuTS hero storage services
QuTS hero provides self-healing, WORM, inline data deduplication and compression for data integrity and efficient storage use.
PCIe Gen 4 expansion
Four PCIe slots provide room for supported networking, graphics and other expansion cards.
SSD performance management
SSD cache acceleration, pool over-provisioning and TRIM are included in the feature set.
Who is this model best for?
A strong choice for
- Creative teams sharing and editing large media files
- Businesses deploying ZFS-based all-flash storage
- Backup and collaborative storage over 25GbE
- Buyers needing 128 GB installed ECC memory
- Tower deployments with future PCIe expansion plans
Consider another model if you need
- You need more than 128 GB installed at purchase rather than upgrading later
- You need 3.5-inch HDD bays
- A rackmount chassis is required for your installation
Key specifications
- Processor
- AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- System memory
- 128 GB RDIMM DDR4 ECC (8 × 16 GB)
- Maximum memory
- 1 TB (8 × 128 GB)
- Drive bays
- 12 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch SATA SSD; 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE RJ45
- Expansion
- 4 × PCIe Gen 4 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 150 × 368 × 362 mm
- Power supply
- 750W, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 128 GB RDIMM DDR4 ECC (8 x 16 GB) |
| Maximum Memory | 1 TB (8 x 128 GB) |
| Memory Slot | 8 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 ~ Slot 2:185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3 ~ Slot 4:280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button | Supported |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 150 × 368 × 362 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 10.4 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 750W, 100-240V |
| Power Consumption: Operating Mode, Typical | 134.41 W |
| Fan | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-h1290FX-7302P-128G
What is the QNAP TS-h1290FX-7302P-128G?
It is a 12-bay all-flash tower NAS designed for ZFS storage, fast collaboration, backup and media workflows.
What processor powers the TS-h1290FX-7302P-128G?
It uses an AMD EPYC 7302P 16-core/32-thread processor, listed at up to 3.3 GHz.
How much memory comes with this model?
The TS-h1290FX-7302P-128G includes 128 GB RDIMM DDR4 ECC memory as eight 16 GB modules.
What is the maximum memory capacity?
The listed maximum is 1 TB using eight 128 GB RDIMM DDR4 modules.
How many drive bays does the TS-h1290FX-7302P-128G have?
It has twelve hot-swappable 2.5-inch drive bays.
Which SSD types are supported?
The listed options are 2.5-inch SATA SSDs and 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSDs.
Are SSDs supplied with the TS-h1290FX-7302P-128G?
No. The system is shipped without SSDs.
Which network interfaces are built in?
This model has two 25GbE SFP28 SmartNIC ports and two 2.5GbE RJ45 ports.
How many PCIe slots are available?
Four PCIe Gen 4 slots are listed, with x16 and x8 slot configurations detailed in the full specifications.
What size is the TS-h1290FX-7302P-128G?
Its listed dimensions are 150 × 368 × 362 mm, excluding the foot pad.
Important information
The system is shipped without SSDs.
Confirm SSD and expansion-card compatibility against the applicable QNAP compatibility lists before purchase.
