12-Bay U.2 NVMe / SATA All-Flash NAS

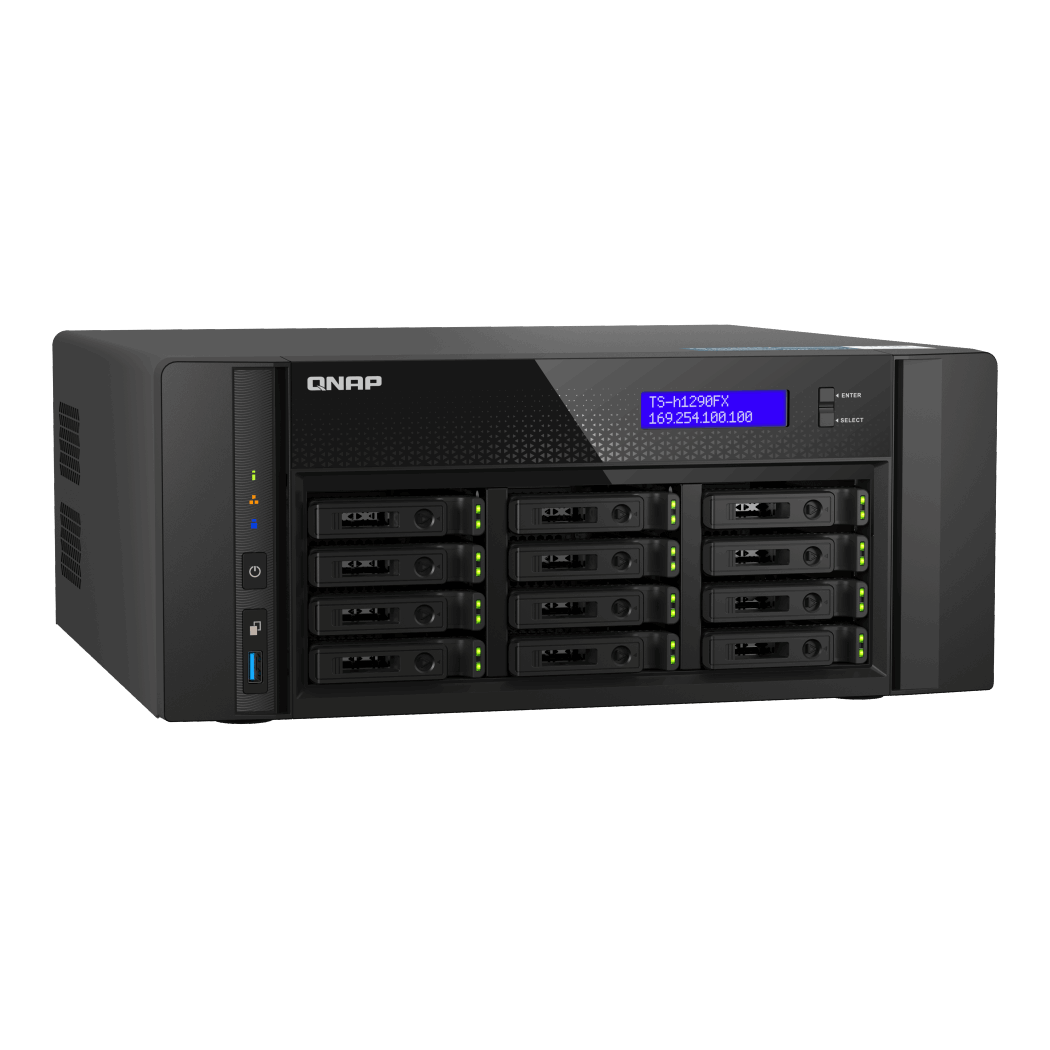

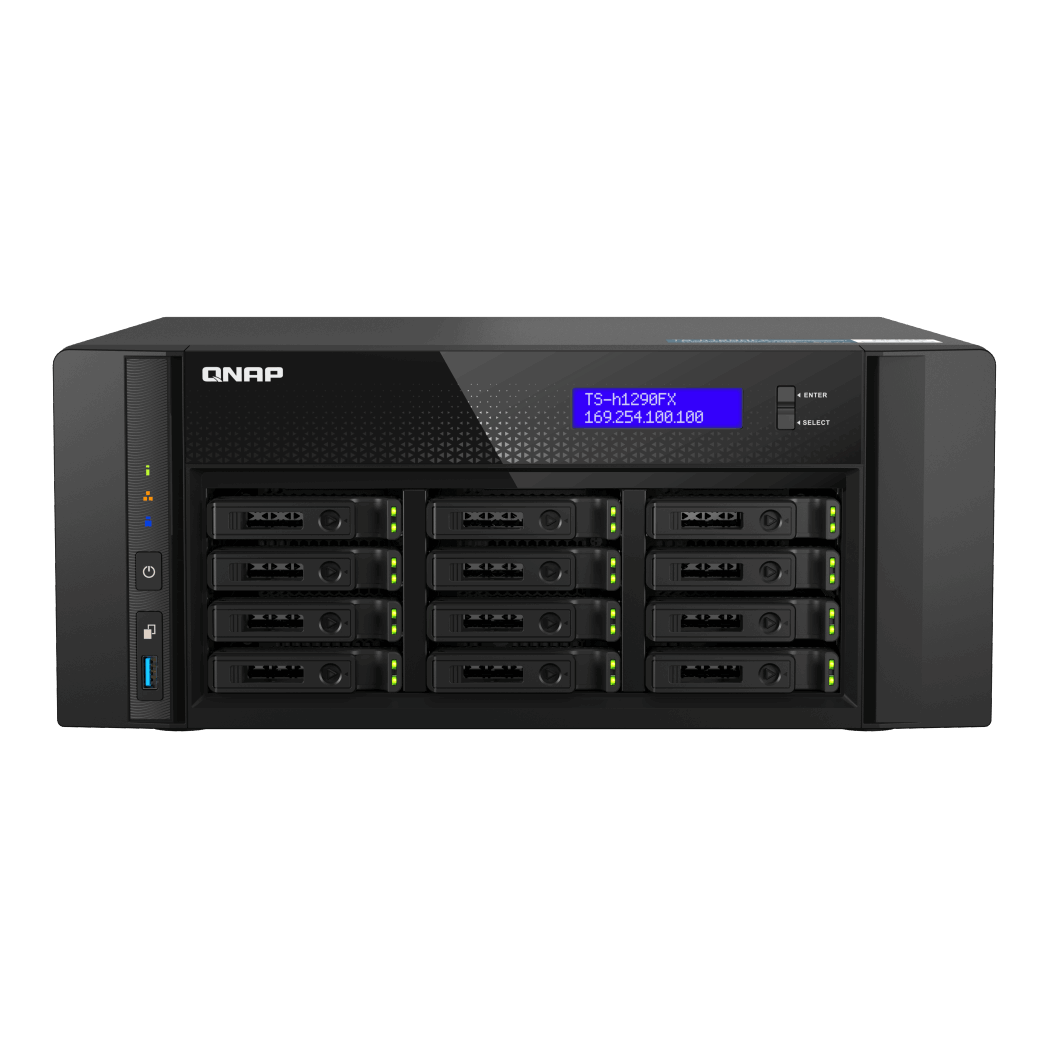

QNAP TS-h1290FX-7302P-256G All-Flash NAS
A 12-bay all-flash tower NAS with an AMD EPYC 7302P processor, 256 GB ECC memory, ZFS-based storage and built-in 25GbE connectivity for demanding collaborative storage workflows.
High-throughput ZFS storage for creative and business teams
The QNAP TS-h1290FX-7302P-256G combines twelve all-flash bays with a 16-core AMD EPYC processor and 256 GB of installed ECC memory. Its QuTS hero platform, dual 25GbE ports and PCIe Gen 4 expansion are designed for high-speed file transfer, collaborative 4K/8K media work, backup and storage consolidation.
Key features and benefits
Flexible all-flash bays
Use 2.5-inch SATA SSDs or U.2 NVMe PCIe Gen 4 x4 SSDs across twelve hot-swappable bays.
Built-in 25GbE connectivity
Two 25GbE SFP28 SmartNIC ports and two 2.5GbE RJ45 ports support fast access and sharing.
ZFS data protection
QuTS hero self-healing, Write Once Read Many support, inline deduplication and inline compression help protect and organise data.
SSD optimisation
Pool over-provisioning, TRIM and SSD cache acceleration support help manage SSD performance and lifespan.
Four PCIe Gen 4 slots
Add supported network, graphics or other PCIe cards to extend system functionality.
GPU and virtualisation options
GPU pass-through and SR-IOV are supported for suitable deployments.
Who is this model best for?
A strong choice for
- Collaborative 4K/8K media storage and editing workflows
- Teams moving large files over 25GbE networks
- ZFS-based backup and storage consolidation
- Studios or offices that prefer a tower system
- Deployments needing substantial installed ECC memory
Consider another model if you need
- You need 3.5-inch HDD capacity rather than an all-flash SSD platform
- You require a rackmount chassis
- Your environment does not include suitable 25GbE infrastructure
Key specifications
- Processor
- AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- System memory
- 256 GB RDIMM DDR4 ECC (8 × 32 GB)
- Maximum memory
- 1 TB (8 × 128 GB)
- Drive bays
- 12 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch SATA SSD; 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE RJ45
- Expansion
- 4 × PCIe Gen 4 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 157.2 × 368 × 362 mm
- Power supply
- 750W, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 256 GB RDIMM DDR4 ECC (8 x 32 GB) |
| Maximum Memory | 1 TB (8 x 128 GB) |
| Memory Slot | 8 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 ~ Slot 2:185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3 ~ Slot 4:280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button | Supported |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 157.2 × 368 × 362 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 10.4 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 750W, 100-240V |
| Power Consumption: Operating Mode, Typical | 134.41 W |
| Fan | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-h1290FX-7302P-256G
What is the QNAP TS-h1290FX-7302P-256G?
It is a 12-bay all-flash tower NAS running a ZFS-based operating system for collaborative storage, backup and media workflows.
Which processor is in the TS-h1290FX-7302P-256G?
The TS-h1290FX-7302P-256G uses an AMD EPYC 7302P 16-core/32-thread processor with a listed speed of up to 3.3 GHz.
How much memory is included?
It includes 256 GB RDIMM DDR4 ECC memory configured as eight 32 GB modules.
Can the TS-h1290FX-7302P-256G memory be expanded?
Yes. It has eight RDIMM DDR4 slots and a listed maximum capacity of 1 TB using eight 128 GB modules.
What drives fit the TS-h1290FX-7302P-256G?
Its twelve 2.5-inch bays accept SATA solid state drives and U.2 NVMe PCIe Gen 4 x4 solid state drives.
Are drives included with the TS-h1290FX-7302P-256G?
No. The system is supplied without SSDs.
What network ports are included?
It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE RJ45 ports.
Does the TS-h1290FX-7302P-256G support PCIe expansion?
Yes. Four PCIe Gen 4 slots are listed for supported expansion cards.
Are the drive bays hot-swappable?
Yes. Hot swapping is listed as supported for the TS-h1290FX-7302P-256G.
What are the TS-h1290FX-7302P-256G dimensions?
The listed dimensions are 157.2 × 368 × 362 mm, excluding the foot pad.
Important information
The system is shipped without SSDs.
Check the applicable QNAP compatibility list before selecting SSDs or expansion hardware.
