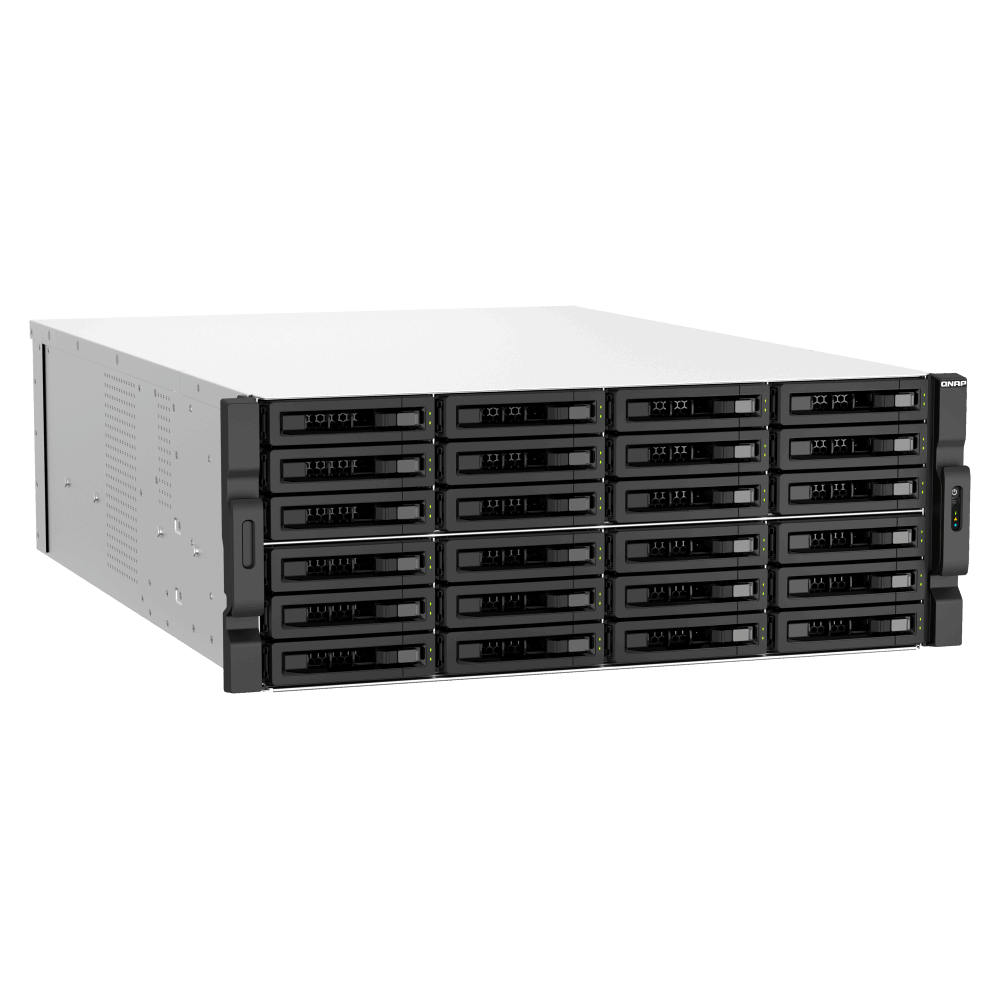

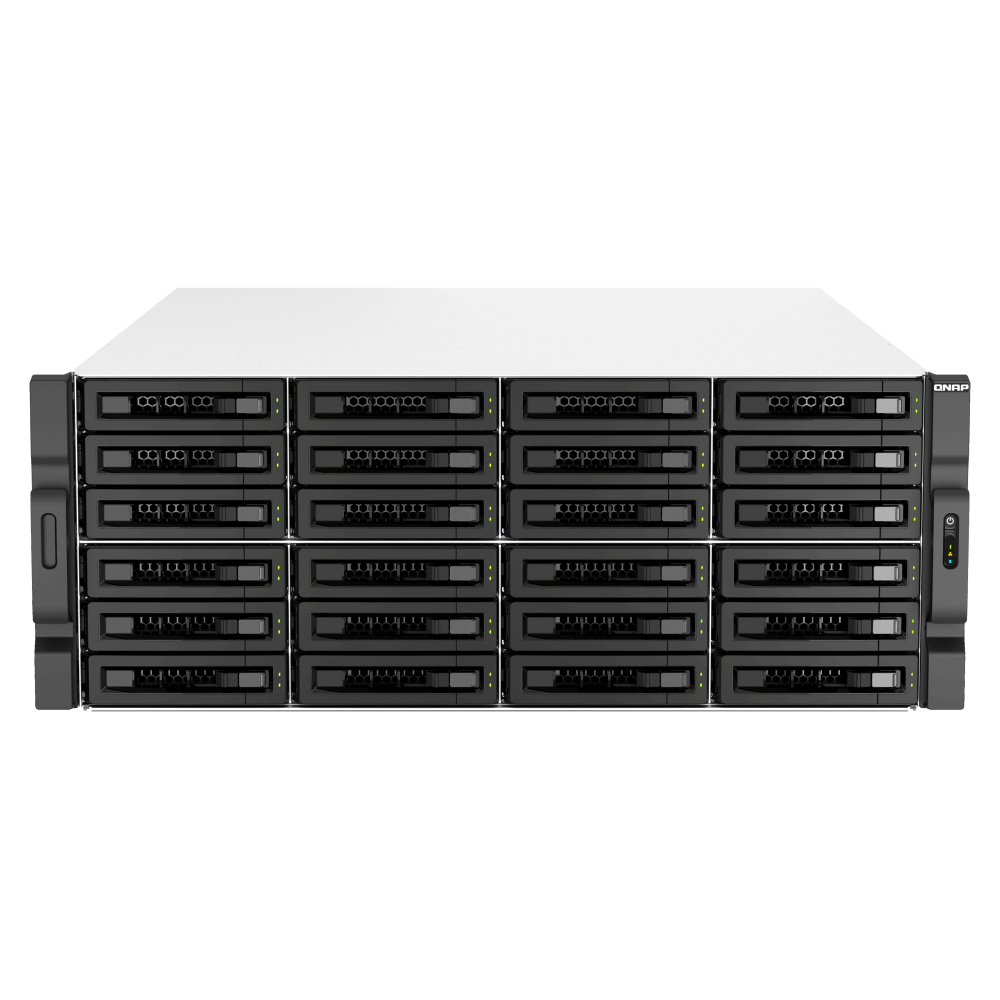

30-bay Xeon hybrid rackmount NAS
QNAP TS-h3087XU-RP-E2378-64G
A 4U rackmount NAS supplied with an Intel Xeon E-2378 8-core processor, 64GB ECC DDR4, twenty-four 3.5-inch bays, six 2.5-inch bays, dual 10GBASE-T and dual 2.5GbE connectivity.
High-capacity hybrid rackmount storage with built-in 10GbE
The QNAP TS-h3087XU-RP-E2378-64G combines twenty-four 3.5-inch SATA bays with six dedicated 2.5-inch SATA SSD bays. Its supplied QuTS hero feature set includes inline deduplication, snapshots, real-time SnapSync and QSAL, while the built-in 10GbE and 2.5GbE ports support demanding file access, virtualisation and backup tasks.
Key features and benefits
Thirty-bay hybrid storage
Twenty-four 3.5-inch bays and six 2.5-inch bays combine high-capacity HDD storage with dedicated SSD capacity.
Xeon and ECC platform
An eight-core Intel Xeon E-2378 is paired with 64GB ECC DDR4, expandable to a listed 128GB.
Built-in 10GbE and 2.5GbE
Two 10GBASE-T ports and two 2.5GbE ports are supplied.
PCIe Gen 4 expansion
Three PCIe Gen 4 slots support the supplied networking, QM2 and Fibre Channel adapter categories.
Business backup and virtualisation
The source positions the system for file servers, virtualisation, VDI and business backup and restoration.
QuTS hero data services
The supplied description includes inline deduplication, snapshots, real-time SnapSync and QSAL.
Who is the QNAP TS-h3087XU-RP-E2378-64G best for?
A strong choice for
- High-capacity business file storage
- Virtualisation servers and VDI storage
- Large backup and restoration tasks
- Hybrid HDD and SSD configurations
- Buyers needing built-in 10GbE and 2.5GbE
Consider another model if you need
- A tower rather than 4U rackmount enclosure
- More than 128GB maximum memory
- Built-in M.2 slots without a QM2 adapter
- A system supplied with drives where none are specified
- A smaller-capacity deployment
Key specifications
- Processor
- Intel Xeon E-2378, 8-core/16-thread, 2.6GHz up to 4.8GHz
- Memory
- 64GB ECC DDR4 (2 × 32GB); maximum 128GB (4 × 32GB)
- Drive bays
- 30 total: 24 × 3.5-inch SATA + 6 × 2.5-inch SATA
- Drive compatibility
- 3.5-inch SATA HDDs and 2.5-inch SATA SSDs in 3.5-inch bays; 2.5-inch SATA SSDs in 2.5-inch bays
- Networking
- 2 × 10GBASE-T; 2 × 2.5GbE; 25GbE optional via PCIe adapter
- M.2 slots
- Optional via a QM2 PCIe adapter
- PCIe
- 3 slots: 2 × Gen 4 x4 + 1 × Gen 4 x8
- USB
- 4 × Type-A USB 3.2 Gen 2, 10Gbps
- Form factor
- 4U rackmount
- Dimensions
- 176.2 × 441.6 × 630.2 mm
- Net weight
- 23.79 kg
- Standard warranty
- 5 (unit not stated in supplied source)
Full technical specifications
View all supplied technical specifications
| CPU | Intel® Xeon® E-2378 8C 16T 2.6GHz, up to 4.8GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 64 GB ECC DDR4 (2 x 32 GB) |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 30 (24 x 3.5-inch SATA + 6 x 2.5-inch SATA) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Supported |
| PCIe Slot | 3 (2 x Gen4 x4 +1 x Gen 4 x8) Card dimensions for PCIe slot 1:260 x 131.15 x 54.16 mm / 10.24 x 5.16 x 2.13 inches Card dimensions for PCIe slot 2:300 x 131.15 x 54.16 mm / 11.81 x 5.16 x 2.13 inches Card dimensions for PCIe slot 3:300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| HDMI™ Output | Optional via a PCIe adapter |
| Form Factor | 4U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 176.2 × 441.6 × 630.2 mm |
| Weight (Net) | 23.79 kg |
| Weight (Gross) | 29.13 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 2 x 800W PSU |
| Power Consumption: HDD Sleep Mode | 149.92 W |
| Power Consumption: Operating Mode, Typical | 219.03 W |
| Fan | 4 x 80mm, 12VDC |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 11000 |
Frequently asked questions about the QNAP TS-h3087XU-RP-E2378-64G
What is the QNAP TS-h3087XU-RP-E2378-64G?
It is a 30-bay 4U rackmount NAS with a Xeon E-2378 processor, 64GB ECC DDR4, dual 10GBASE-T and dual 2.5GbE connectivity.
How are the 30 drive bays arranged?
The source lists twenty-four 3.5-inch SATA bays and six 2.5-inch SATA bays.
How much memory is installed?
The table lists 64GB ECC DDR4 as two 32GB modules and a maximum of 128GB.
What networking is built in?
Two 10GBASE-T ports and two 2.5GbE ports are listed.
Are M.2 slots built in?
No built-in M.2 slot is listed; the source says M.2 support is optional via a QM2 PCIe adapter.
What form factor is the system?
The supplied table identifies a 4U rackmount chassis.
What is the warranty period?
The source gives the value 5 without a unit, so the duration cannot be confirmed.
