2-bay private cloud NAS — diskless

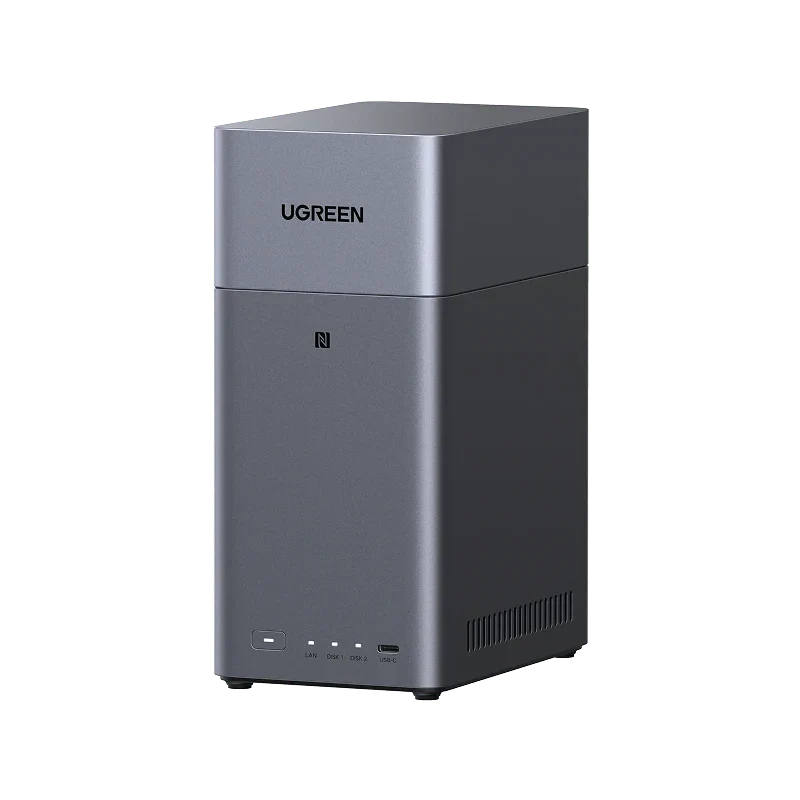

UGREEN NASync DH2300 2-Bay Desktop NAS
The UGREEN NASync DH2300 is a diskless 2-bay UGOS Pro NAS with a Rockchip A72+A53 ARM, 8 cores at 2.2GHz, 4GB LPDDR4X, 1GbE networking and 4K 60Hz HDMI output for local storage, backup, sharing and media management.
- Processor
- A72+A53 8 Core
- Memory
- 4GB LPDDR4X
- Storage
- 2 SATA bays; 64TB raw maximum
- Networking
- 1 × 1GbE
Straightforward two-bay storage for home files and media
The UGREEN NASync DH2300 is designed for first-time NAS owners who want centralised files, automatic backup, remote access, AI-assisted photo organisation and direct 4K HDMI playback. It supports two SATA drives and RAID 1, but it does not officially support Docker or virtual machines.
Eight-core Rockchip platform
The A72+A53 processor combines eight ARM cores at up to 2.2GHz for everyday UGOS Pro use.
Two-bay private cloud
Two SATA bays support up to 64TB raw capacity with two compatible 32TB drives.
RAID 1 option
RAID 1 can mirror two matching drives so one drive failure does not immediately remove access to the stored copy.
AI-assisted photo tools
UGOS Pro supports supplied photo sorting, search, sharing and automatic mobile-backup workflows.
Direct 4K output
A 4K 60Hz HDMI port supports direct television connection for compatible media playback.
Simple multi-device access
UGREEN supplies access through Windows, macOS, iOS, Android, web browser and smart-TV environments.
Who is the UGREEN NASync DH2300 best for?
A strong choice for
- First-time NAS owners
- Family photo and video backup
- Two-drive RAID 1 storage
- Everyday file sharing
- Direct HDMI media playback
Consider another model if you need
- You need official Docker or virtual-machine support
- You need RAID 5 or RAID 6
- You require faster than 1GbE networking
- You need M.2 NVMe slots or more than two SATA bays
Key specifications
- Model
- DH2300
- Regional unit SKU
- 95365
- Operating system
- UGOS Pro
- Processor
- Rockchip A72+A53 ARM, 8 cores at 2.2GHz
- Memory
- 4GB LPDDR4X
- System disk
- 32GB eMMC
- SATA bays
- 2
- RAID
- JBOD, Basic, RAID 0 and RAID 1
- Maximum raw storage
- 64TB (2 × 32TB)
- Networking
- 1 × 1GbE
- USB
- 1 × USB-C and 2 × USB-A, 5Gb/s
- HDMI
- 4K 60Hz
- Dimensions (L × W × H)
- 151 × 98 × 213.7 mm
- Warranty
- 2 years
Full technical specifications
Processor, memory and storage
| Model | DH2300 |
|---|---|
| Regional unit SKU | 95365 |
| Operating system | UGOS Pro |
| CPU model | A72+A53 8 Core |
| CPU architecture | Rockchip A72+A53 ARM, 8 cores at 2.2GHz |
| Memory | 4GB LPDDR4X |
| System disk | 32GB eMMC |
| SATA drive bays | 2 |
| Maximum raw storage | 64TB (2 × 32TB) |
| RAID | JBOD, Basic, RAID 0 and RAID 1 |
| PCIe expansion | None specified |
Network, ports and software positioning
| LAN ports | 1 × 1GbE |
|---|---|
| Front USB ports | 1 × USB-C and 2 × USB-A, 5Gb/s |
| HDMI | 4K 60Hz |
| Supported access environments | Windows, macOS, Android, iOS, web browsers and smart TVs |
| Photo organisation | Faces, scenes and places; duplicate removal and sharing tools |
| Docker support | Not officially supported |
| Virtual machines | Not supported |
Physical, power and warranty
| Dimensions (L × W × H) | 151 × 98 × 213.7 mm |
|---|---|
| Power consumption — drive access | 13.72W |
| Power consumption — drive hibernation | 3.304W |
| Storage drives | Not included |
| Limited warranty | 2 years against manufacturing defects, subject to regional terms |
Frequently asked questions about the UGREEN NASync DH2300
What is the UGREEN NASync DH2300?
It is a diskless 2-bay desktop NAS running UGOS Pro for local storage, backup, sharing and media management.
Which processor is in the DH2300?
The DH2300 uses the Rockchip A72+A53 ARM, 8 cores at 2.2GHz.
How much memory does the DH2300 include?
It includes 4GB LPDDR4X; no memory-upgrade specification is supplied for this model.
How many drives does the DH2300 accept?
It has 2 SATA drive bays and a listed raw maximum of 64TB using 2 compatible 32TB drives.
Which RAID modes does the DH2300 support?
UGREEN lists JBOD, Basic, RAID 0 and RAID 1.
What networking does the DH2300 provide?
It includes one 1GbE RJ-45 network port.
Does the DH2300 have HDMI?
Yes. It includes 4K 60Hz HDMI output for supported local media use.
Which USB ports are on the DH2300?
The front panel provides 1 × USB-C and 2 × USB-A, 5Gb/s.
Are storage drives included with the DH2300?
No. It is sold diskless, so compatible drives must be selected separately.
Does the DH2300 support Docker or virtual machines?
No. UGREEN states that Docker is not officially supported and virtual machines are not supported on the DH2300.
- This NAS is supplied without storage drives.
- The 64TB figure is raw capacity based on two 32TB drives; usable capacity is lower after formatting and RAID.
- Docker is not officially supported and virtual machines are not supported.
- Use UGREEN's current compatibility list before selecting drives.
